C.R. Laurence GEN574BN Brushed Nickel Geneva Series 5 Degree Pre-Set Wall Mount Short Back Plate Hinge combines elegance with functionality to enhance your shower space. Crafted from solid brass and featuring a brushed nickel finish, this hinge is designed to accommodate 5/16" (8 mm) to 1/2" (12 mm) monolithic tempered glass, ensuring durability and security. The self-centering mechanism, combined with a reversible 5-degree pivot pin, provides precise alignment and a seamless closing action. With the standard model factory set for a 0-degree closing position, or the option for a tighter 5-degree closure, this hinge is versatile enough to meet various installation needs. Custom pivot pins are available for those looking to accommodate off-angle installations. Engineered for performance, the GEN574BN can support up to 80 lbs. (36 kg) with two hinges and up to 120 lbs. (54 kg) with three hinges, making it suitable for doors up to 32 inches wide. Each hinge comes with a three-year warranty, highlighting its reliability in residential or hotel shower environments. Please note, it is essential to use the included template for installation, as cut-out dimensions may differ from other brands. Upgrade your shower with the superior craftsmanship of C.R. Laurence.

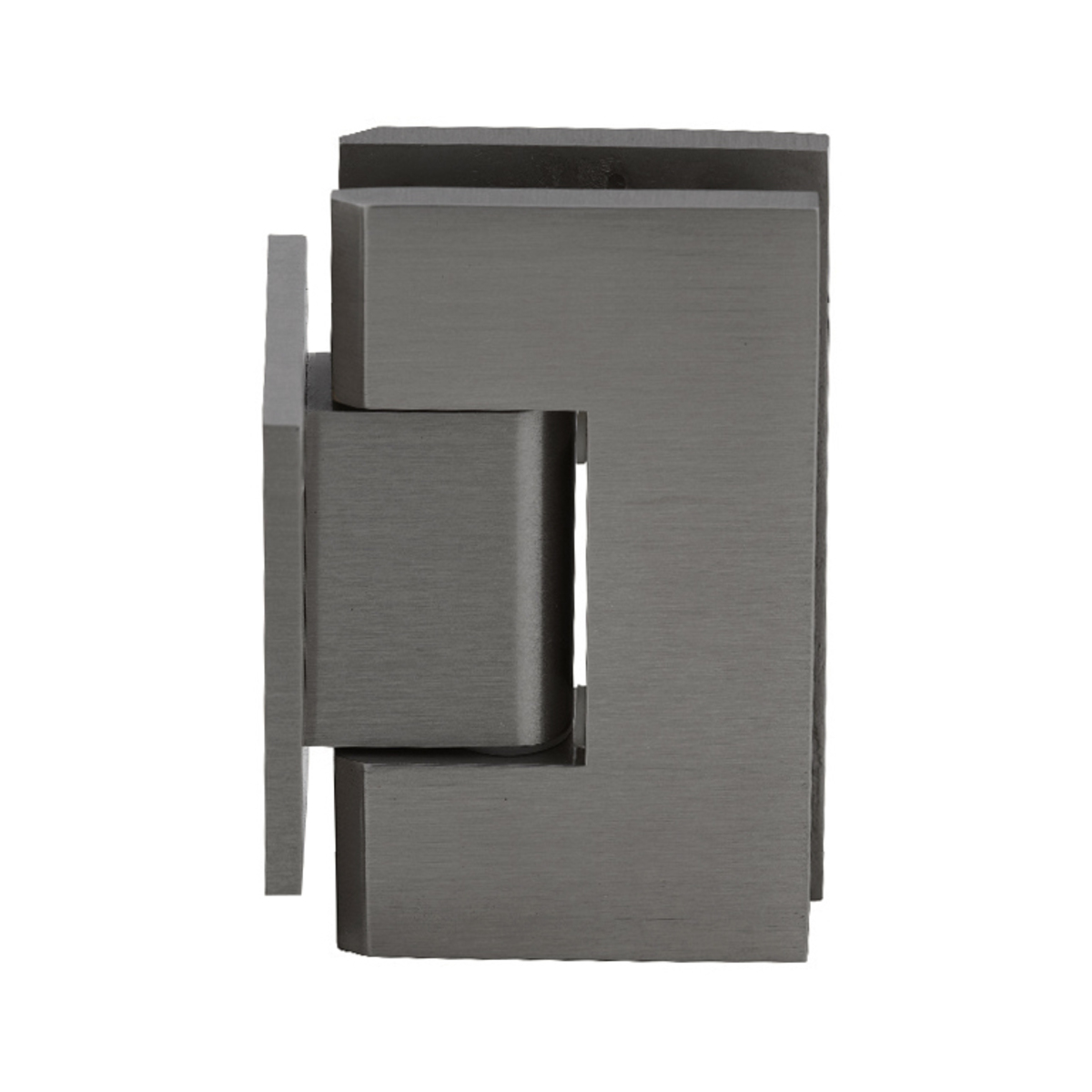

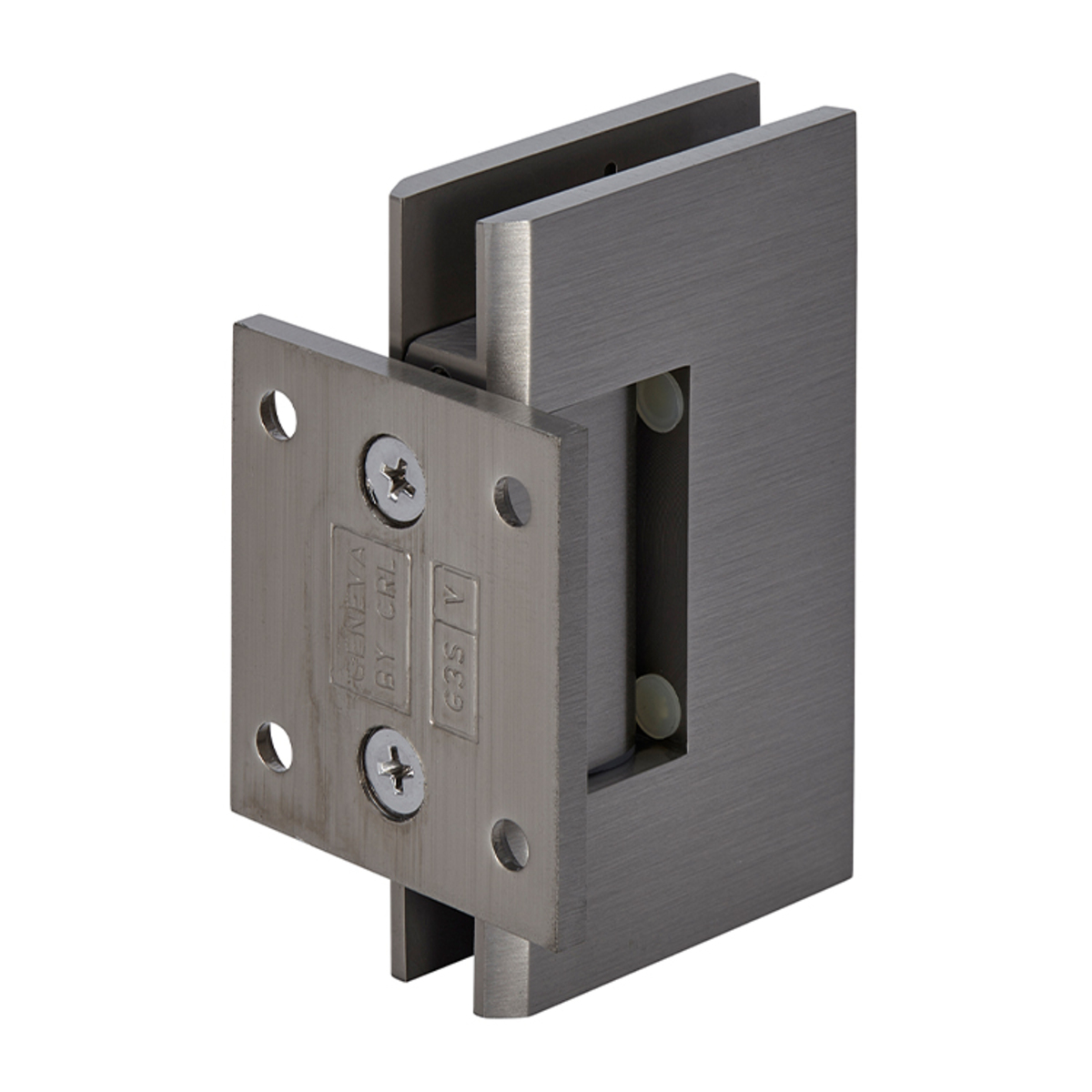

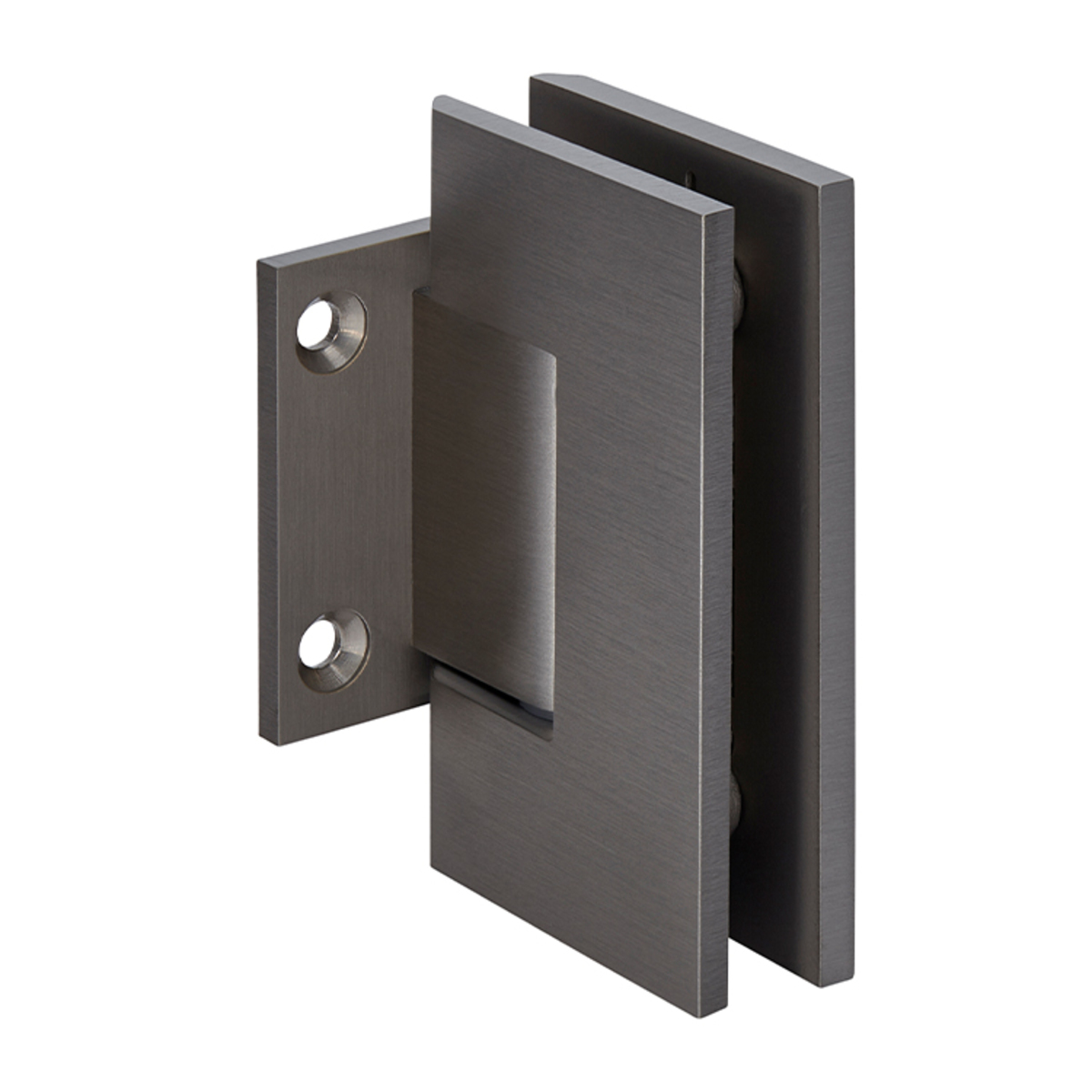

Brushed Nickel Geneva Series 5 Degree Pre-Set Wall Mount Short Back Plate Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• Three Year Warranty
• Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)
• Use Monolithic Tempered Glass

The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types. Geneva Hinges are self-centering and contain a Reversible 5 degree Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off-angle" installations. Made of solid brass with all moving parts (pins and springs) in stainless steel.


Standard Reversible Pivot Pin: Each Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90 Degrees. The opposite side is marked 85 Degrees. Standard Geneva Hinges come with the 90 Degrees side activated. Offset Models come with the Pin pre-set to 85 Degrees (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available to accommodate "off-angle" installations. If the 5 Degree Reversible Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degrees). If using the Custom Pivot Pin, contact our Technical Sales Shower Door Department. Your glass sizes and the aesthetics of the enclosure may be affected by the use of the Custom Pivot Pin.

Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position, or 5 degree Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 degree of Closed Position
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.

Custom finishes are available on request. Contact Technical Sales Shower Door Division.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
