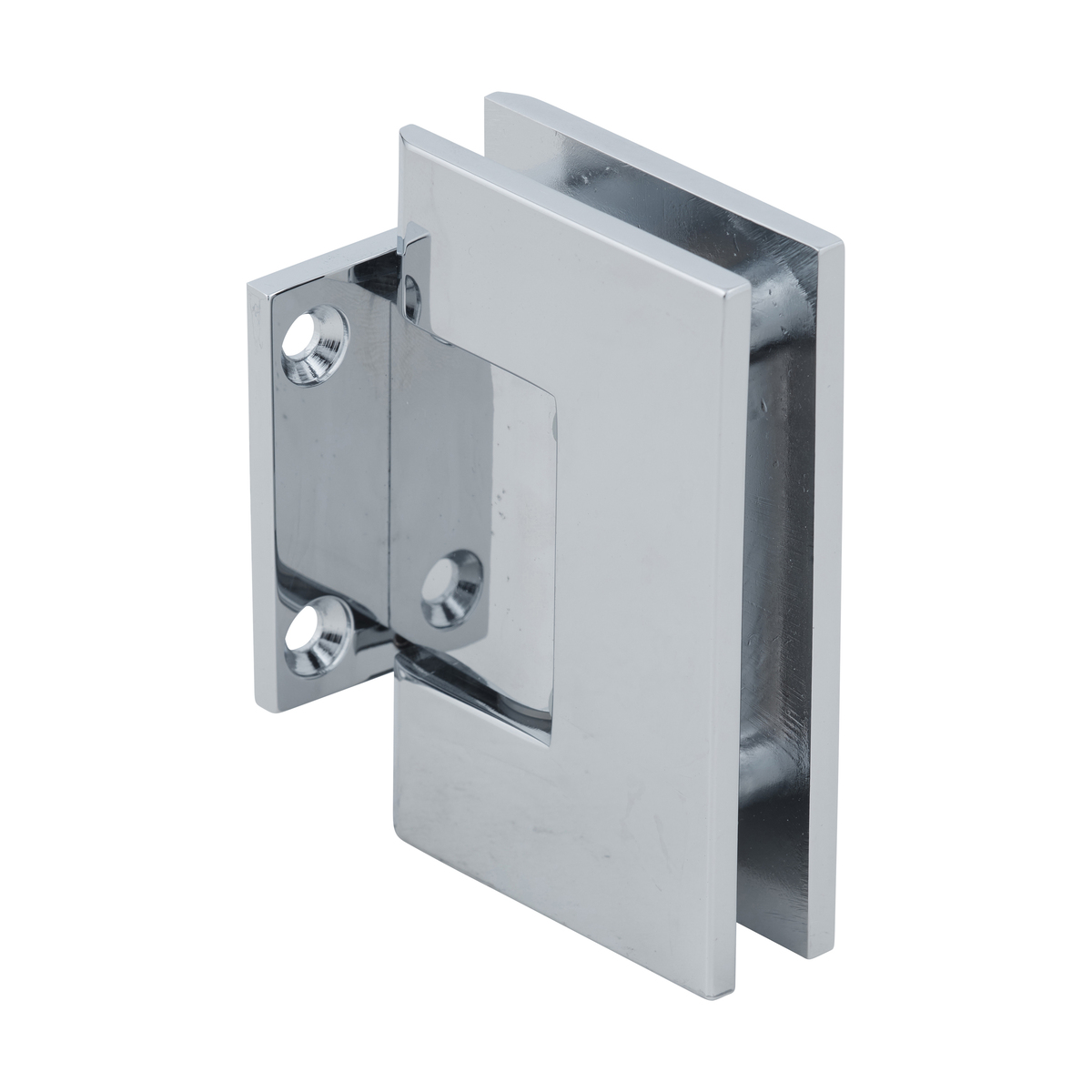

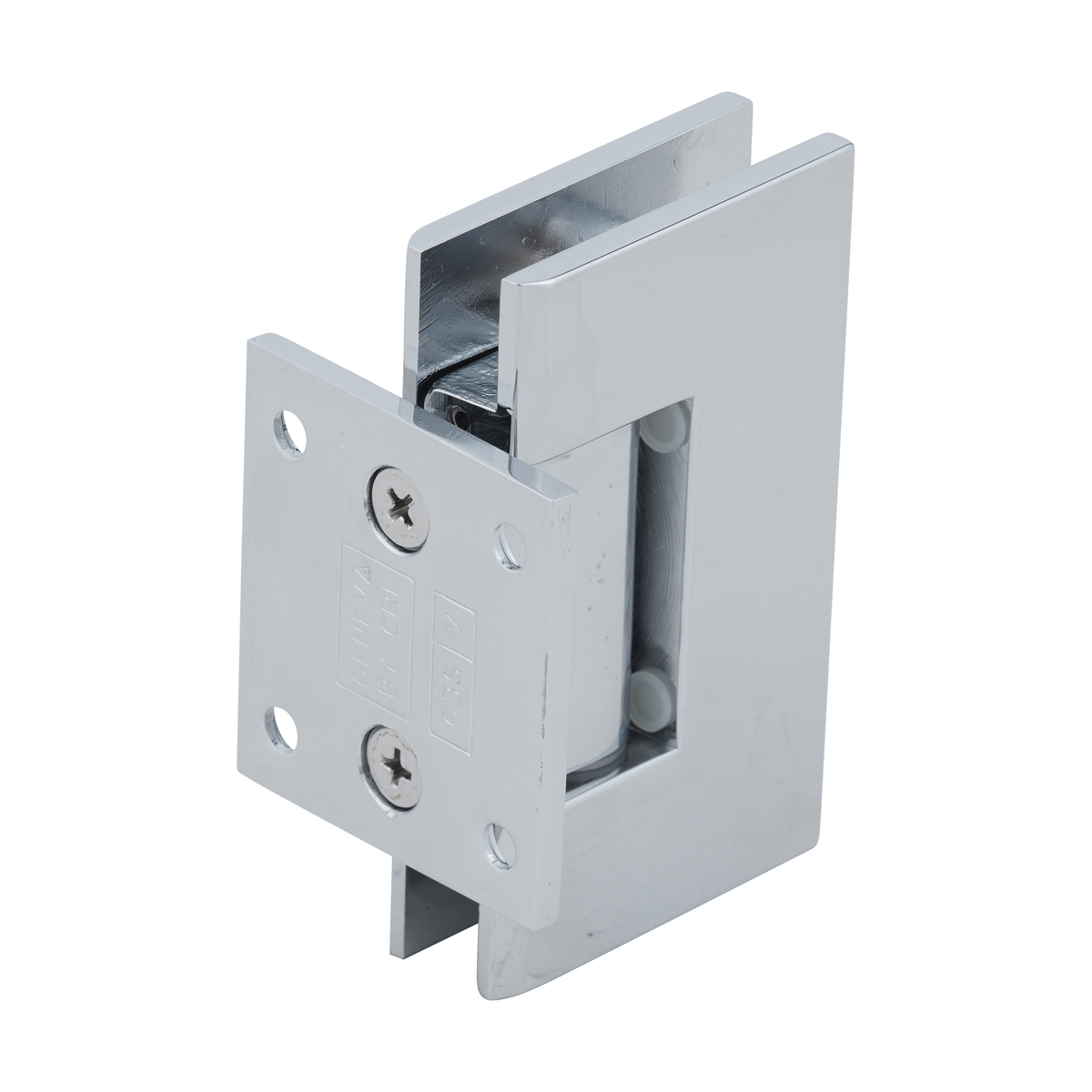

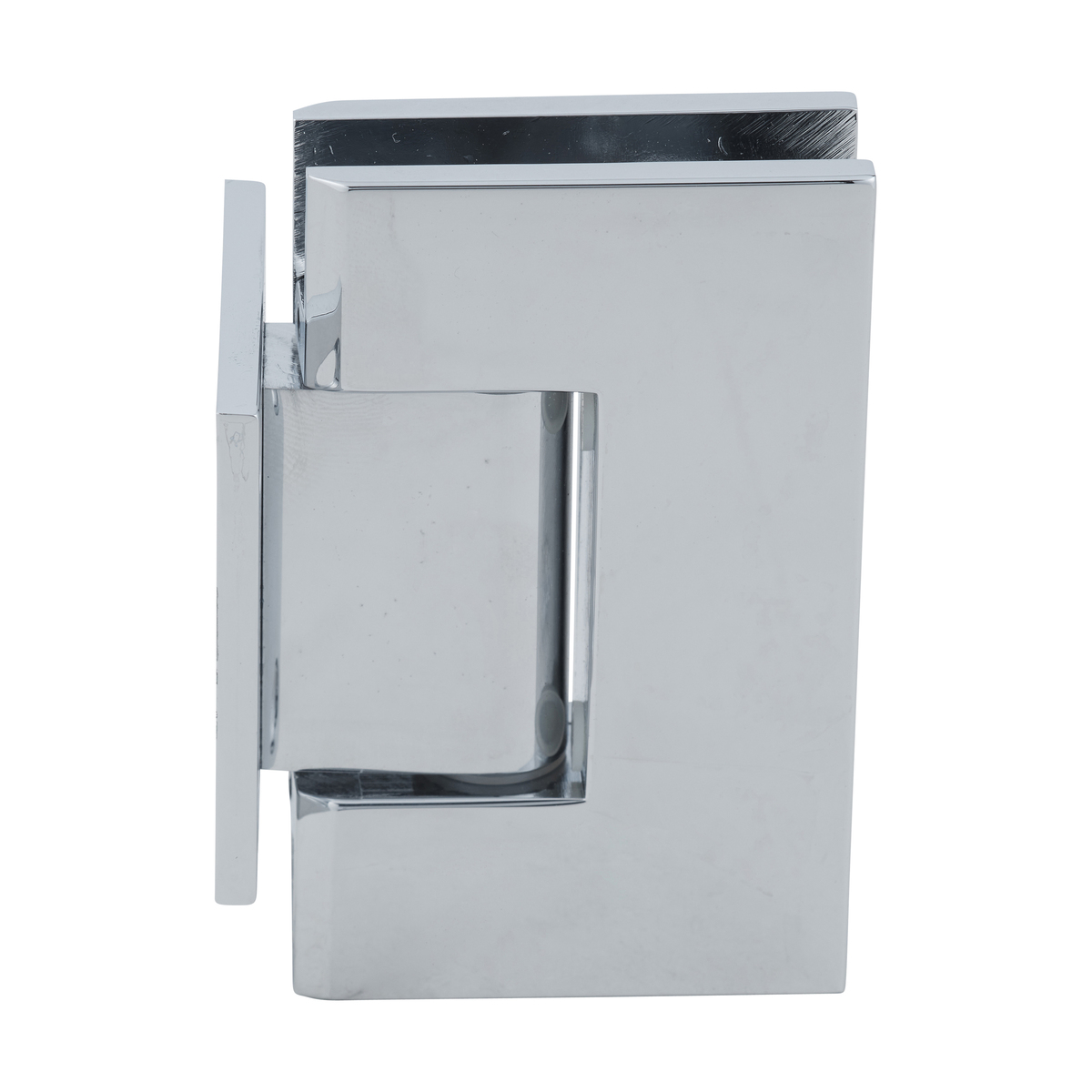

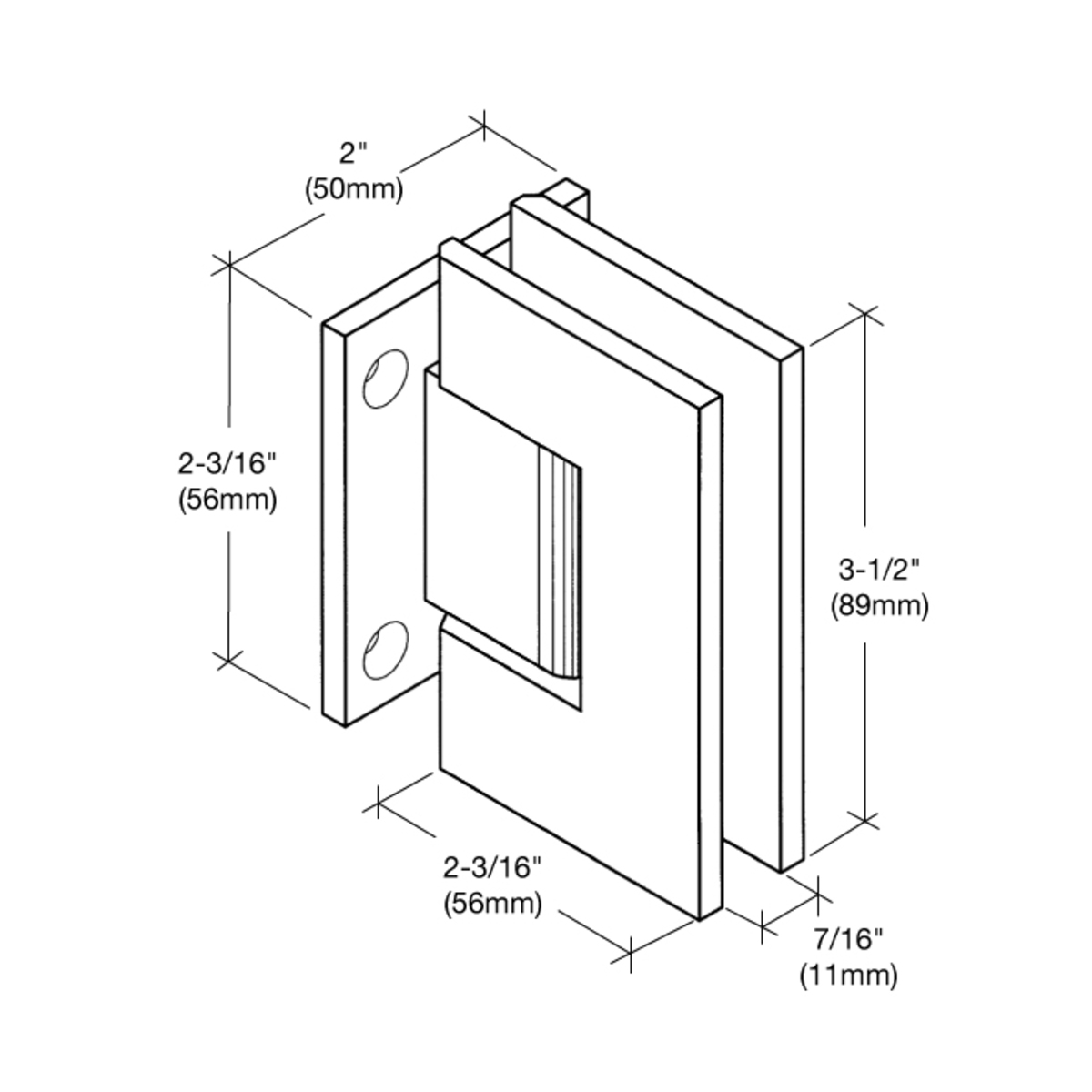

CRL GEN574CH Chrome Geneva 5 Pre-Set Wall Mount Short Back Plate Hinge

CRL GEN574CH Chrome Geneva 5 Pre-Set Wall Mount Short Back Plate Hinge

C.R. Laurence GEN574CH Chrome Geneva Series 5 Degree Pre-Set Wall Mount Short Back Plate Hinge offers a sophisticated solution for your shower enclosure needs. Designed for monolithic tempered glass, this hinge accommodates glass thicknesses from 5/16" (8 mm) to 1/2" (12 mm) while providing robust support-holding up to 80 lbs. (36 kg) with two hinges or 120 lbs. (54 kg) with three. With a self-centering mechanism and a reversible 5-degree pivot pin, the GEN574CH ensures a seamless closing experience. The hinge is factory set for a standard 0-degree closing position but can be adjusted to a tighter 5-degree closure for enhanced water containment. Crafted from solid brass, it features stainless steel moving parts for durability, making it suitable for residential or hotel shower installations. Available in several elegant finishes, including polished chrome, the Geneva Series hinges blend functionality with style. Each hinge includes necessary gaskets and screws, although the gasket pack must be purchased separately for installation with 5/16" glass. Enjoy peace of mind with a three-year warranty, guaranteeing the quality and reliability of your investment. For custom finishes or specific installation requirements, contact the Technical Sales Shower Door Division for tailored solutions.

Chrome Geneva Series 5 Degree Pre-Set Wall Mount Short Back Plate Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• Three Year Warranty
• Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)
• Use Monolithic Tempered Glass

The CRL Geneva Series of professional Hinges is able to accommodate 5/16" (8 mm) to 1/2" (12 mm) glass. A variety of six styles gives design flexibility, including three different Wall Mount and three different Glass-to-Glass types. Geneva Hinges are self-centering and contain a Reversible 5 degree Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off-angle" installations. Made of solid brass with all moving parts (pins and springs) in stainless steel.


Standard Reversible Pivot Pin: Each Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked 90 Degrees. The opposite side is marked 85 Degrees. Standard Geneva Hinges come with the 90 Degrees side activated. Offset Models come with the Pin pre-set to 85 Degrees (5 degree tighter closure into shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available to accommodate "off-angle" installations. If the 5 Degree Reversible Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degrees). If using the Custom Pivot Pin, contact our Technical Sales Shower Door Department. Your glass sizes and the aesthetics of the enclosure may be affected by the use of the Custom Pivot Pin.

Using two hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 5/16" to 1/2" glass (8 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Offers choice of Standard Model factory set at standard 0 degree closing position, or 5 degree Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass
Hinge Swings: 90 degree in and 90 degree Out
Closing Type: Self-Centering when within 15 degree of Closed Position
Cut-Out Required Includes: Gaskets, Screws, and Glass Fabrication Dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) thick tempered glass.

Custom finishes are available on request. Contact Technical Sales Shower Door Division.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
