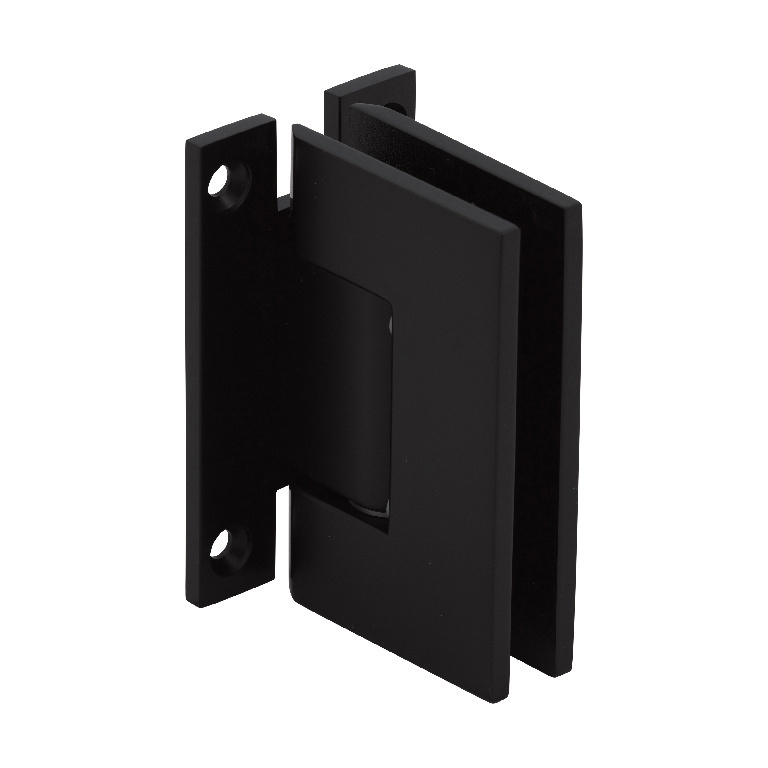

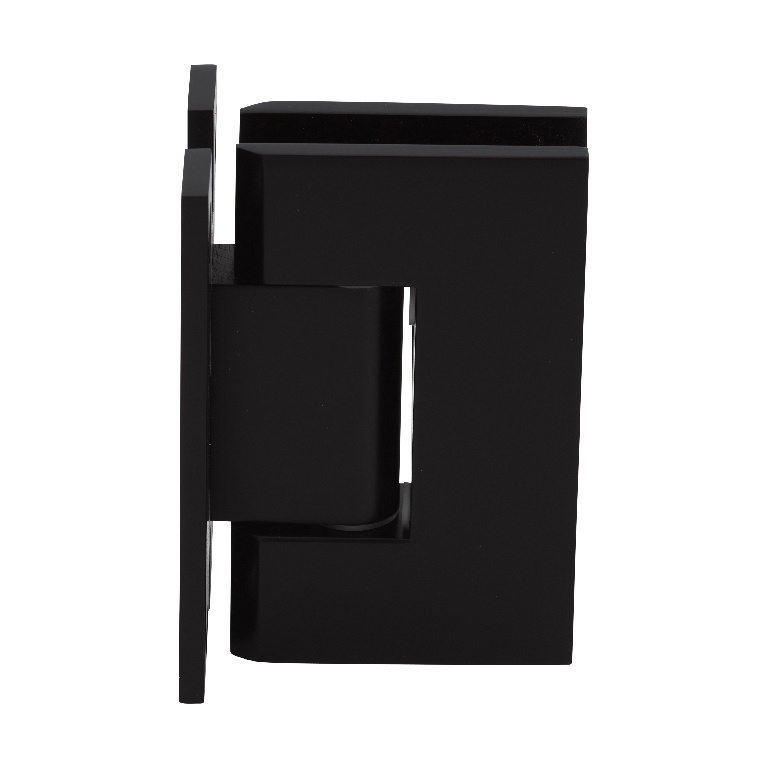

C.R. Laurence GENH0370RB Oil Rubbed Bronze Geneva 037 Series Wall Mount 'H' Back Plate Hinge offers a sophisticated solution for modern glass door installations. Its innovative wall plate design allows for tighter clearance between the glass and the wall, enhancing flexibility during installation. This hinge retains the renowned Geneva quality while showcasing a sleek square design, perfect for contemporary aesthetics. Crafted from durable brass and finished in an elegant oil-rubbed bronze, this hinge not only ensures functionality but also adds a touch of style to any space. It accommodates glazing thicknesses from 5/16 inches to 1/2 inches (8 mm to 12 mm) and supports a maximum door weight of up to 120 lbs. (54.4 kg) when using three hinges. The dimensions of the hinge are 3-1/2 inches in height and 2-3/16 inches in width, making it suitable for various door sizes. The self-centering feature guarantees proper alignment, ensuring smooth operation over time. With no shipping limitations, the GENH0370RB is ready to enhance your project with its blend of functionality and elegance. Trust C.R. Laurence to deliver quality and style in every detail.
Oil Rubbed Bronze Geneva 037 Series Wall Mount 'H' Back Plate Hinge
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
5 Degree Pre- Set: No
Adjustable: No

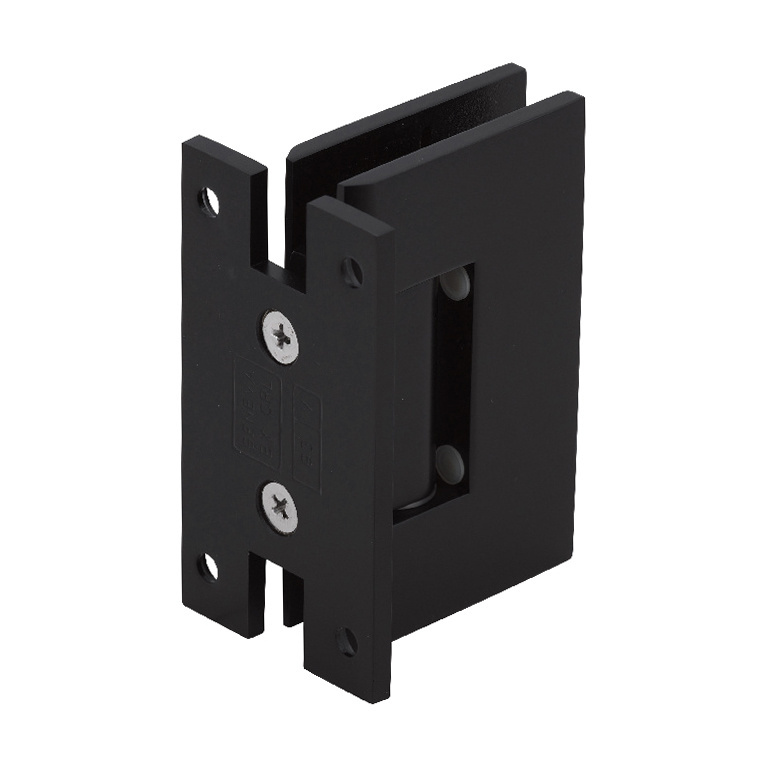

Back Plate: 'H'
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Edge Profile: Square
Finish/ Color:: Oil Rubbed Bronze
Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

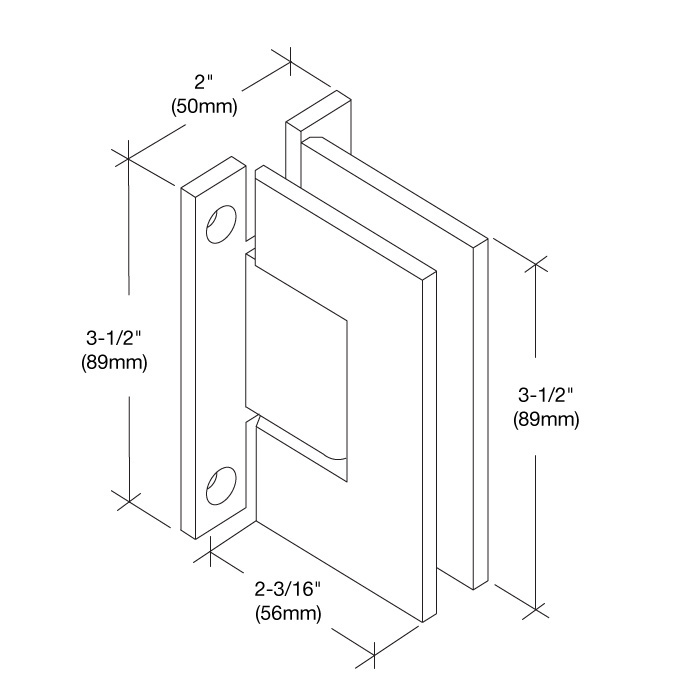

Height: 3-1/2 in. (89 mm)
Material: Brass
Maximum Clamping Screw Torque: 60-70 lbf.in (677.9-791 cN.m)
Maximum Door Weight - 2 Hinges: 80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges: 120 lbs. (54.4 kg)
Maximum Door Width - 2 Hinges: 28
Maximum Door Width - 3 Hinges: 32
Mounting Type: Wall Mount
Self- Centering: Yes
Series: Geneva
Shipping Limitations: None
Width: 2-3/16 in. (56 mm)
