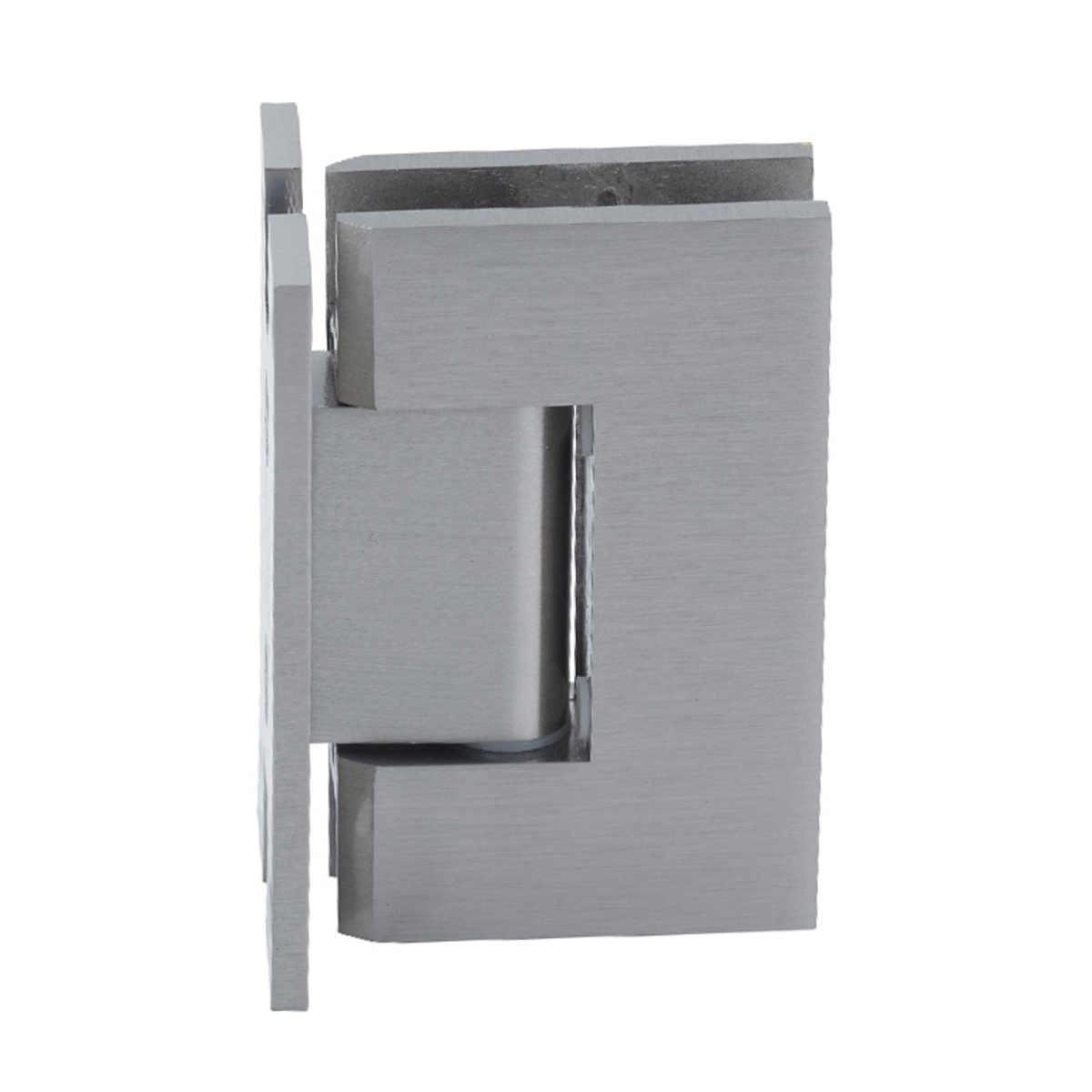

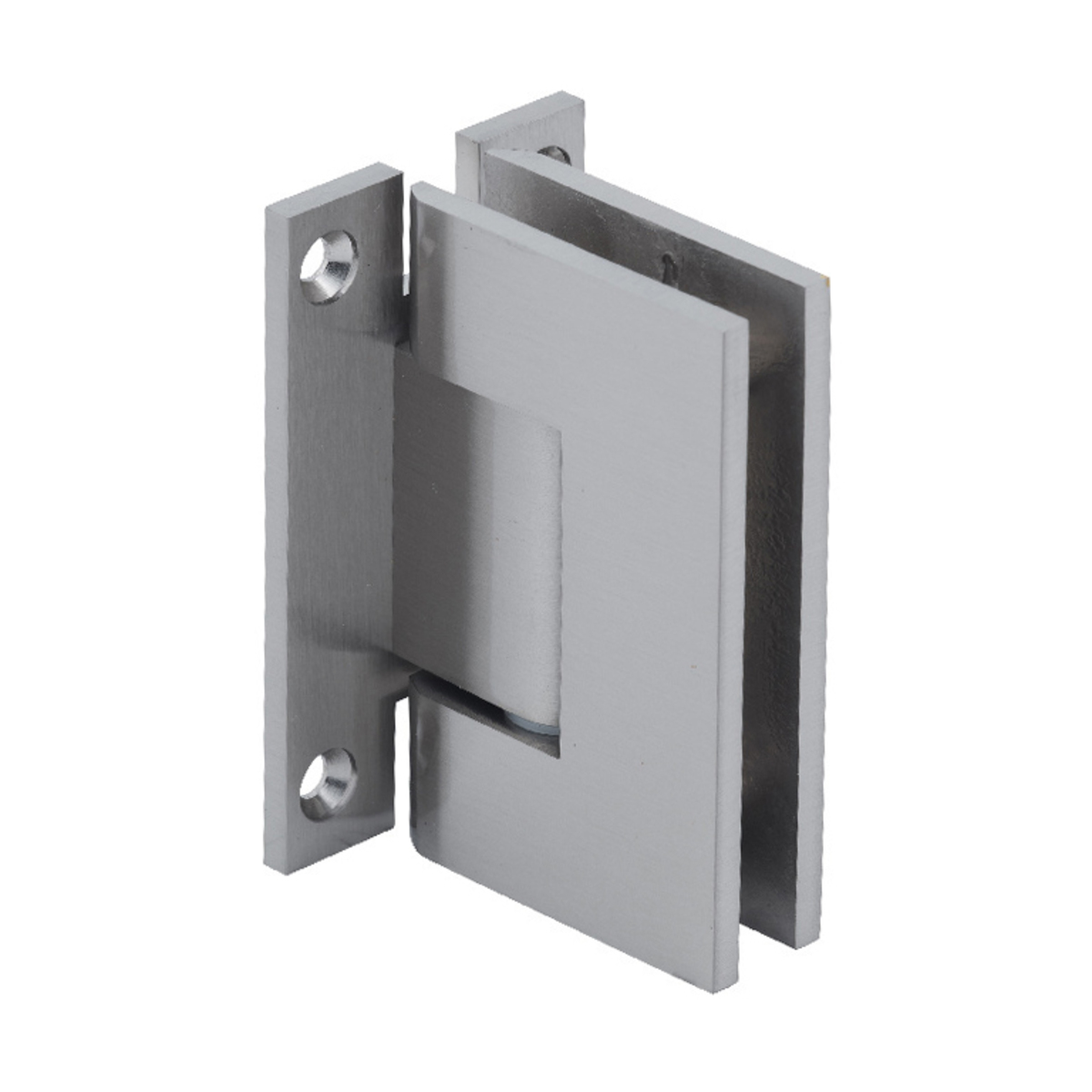

CRL GENH037BN Brushed Nickel Geneva 037 Wall Mount 'H' Back Plate Hinge

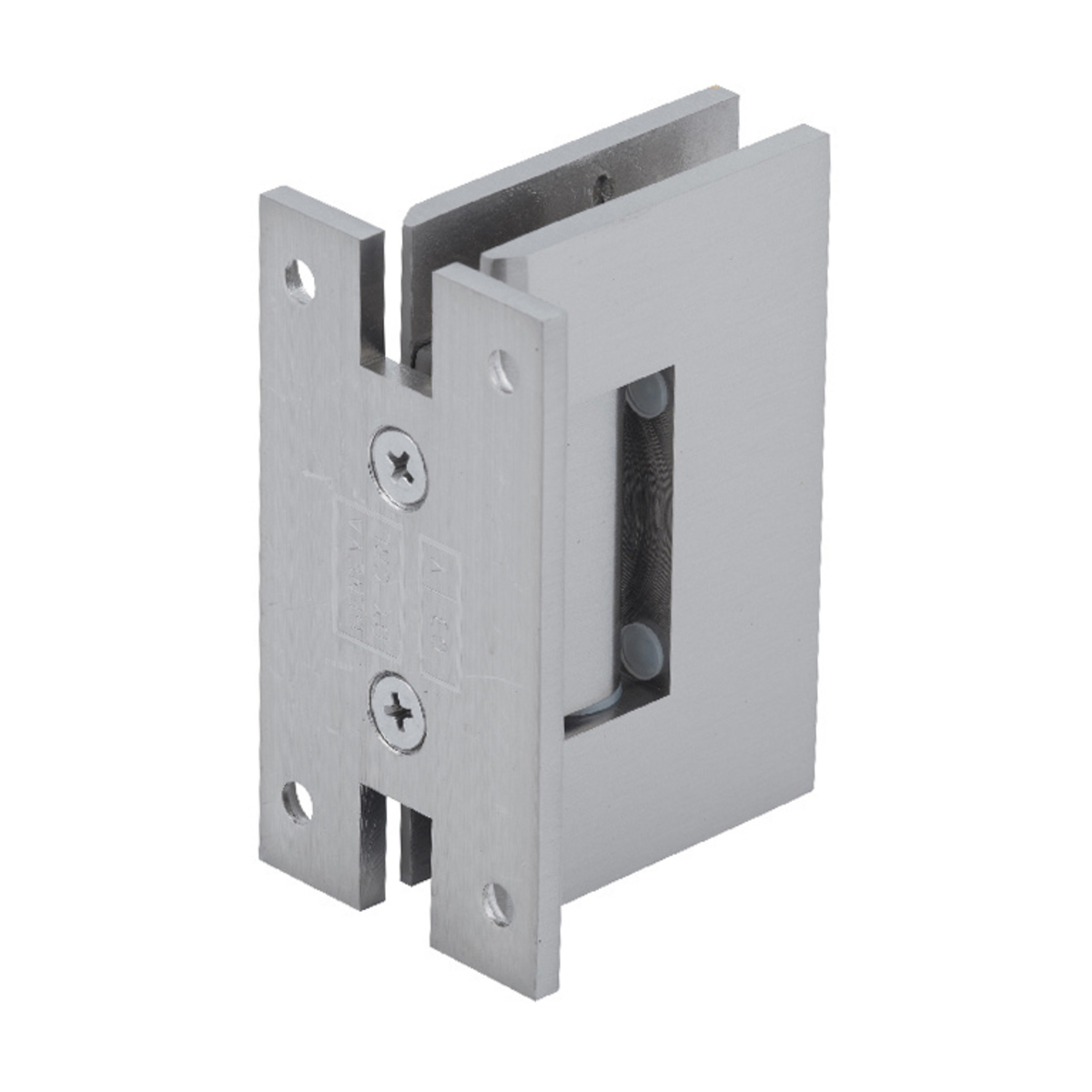

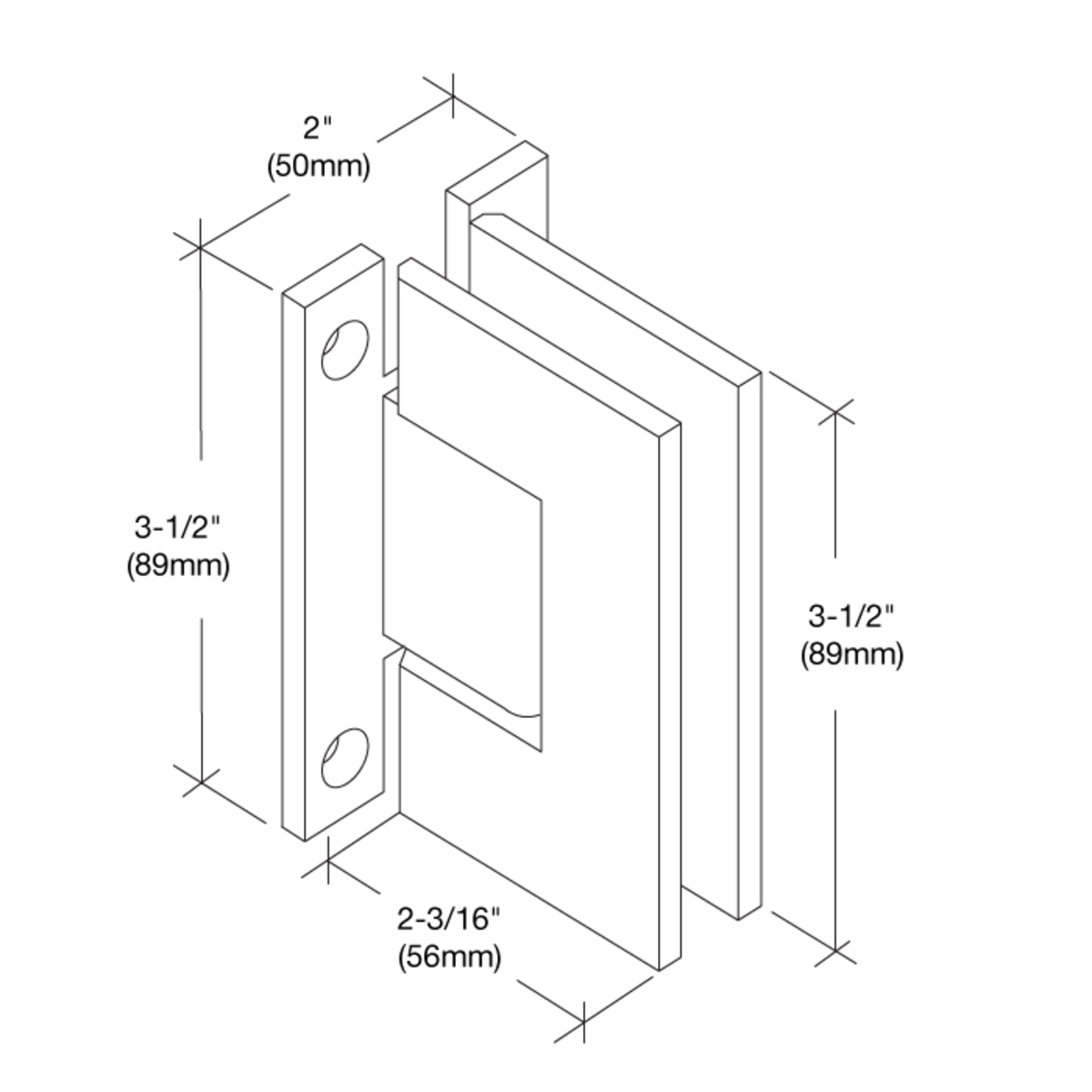

C.R. Laurence GENH037BN Brushed Nickel Geneva 037 Series Wall Mount 'H' Back Plate Hinge offers a modern solution for glass door installations. The innovative 'H' shaped wall mounting plate design allows for tighter clearance, enabling the glass to sit closer to the wall. This feature not only enhances the aesthetic appeal but also provides increased flexibility in installation, making it ideal for contemporary spaces. Crafted from durable brass with a brushed nickel finish, this hinge embodies both style and functionality. The square edge profile aligns with the most modern design trends, ensuring that your project achieves a sleek look. Designed for use with glazing thicknesses ranging from 5/16 inch to 1/2 inch (8 mm to 12 mm), this hinge supports impressive door weights-up to 80 lbs. (36.3 kg) with two hinges and 120 lbs. (54.4 kg) with three hinges. Self-centering capabilities enhance ease of use, while the wall mount configuration ensures stable and secure installation. With a height of 3-1/2 inches (89 mm) and a width of 2-3/16 inches (56 mm), this hinge is both compact and robust. C.R. Laurence continues to deliver quality with the Geneva series, providing building professionals and homeowners alike with trusted solutions for glass applications.

Brushed Nickel Geneva 037 Series Wall Mount 'H' Back Plate Hinge

• New Wall Plate Design Allows for Tighter Clearance
• Same Geneva Quality with a Different Look
• Square Design is the Most Contemporary Look

Resources

• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Glass and Hardware Cleaning Instructions
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Hardware Catalog
• Frameless Shower Door Quote Request Form
• GENH037 Template
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
• Hardware Finish Cross-Reference Guide
