CRL GR15HBS Brushed Stainless 1.5" 90 Horizontal Corner for 1/2" or 5/8" Glass RailingC.R. Laurence GR15HBS Brushed Stainless 1-1/2" Diameter 90 Degree Horizontal Corner for 1/2" or 5/8" Glass Cap Railing provides a robust solution for glass railing systems, ensuring stability and a sleek aesthetic. Designed for use with 1/2" (12 mm) or 5/8" (16 mm) thick glass, this horizontal corner enables hairline joint assemblies with CRL Cap Rail, enhancing the overall appearance of your installation. Each corner is meticulously fabricated, welded, and finished, ready for immediate installation. Available in four distinctive architectural finishes, the GR15HBS combines durability and style, making it an ideal choice for both commercial and residential projects. To achieve a secure and permanent bond, the use of CRL Cat. No. 32629 Metal Contact Cement is essential. Note that two Connector Sleeves are required for every corner but are not included with the product. Constructed from high-quality stainless steel, the standard alloy is 304, with 316 available upon special order. For brass options, alloy 260 is standard. Please keep in mind that while stainless steel is resistant to corrosion, regular maintenance is recommended to uphold its factory finish. For further inquiries or quotes, contact CRL Technical Sales.

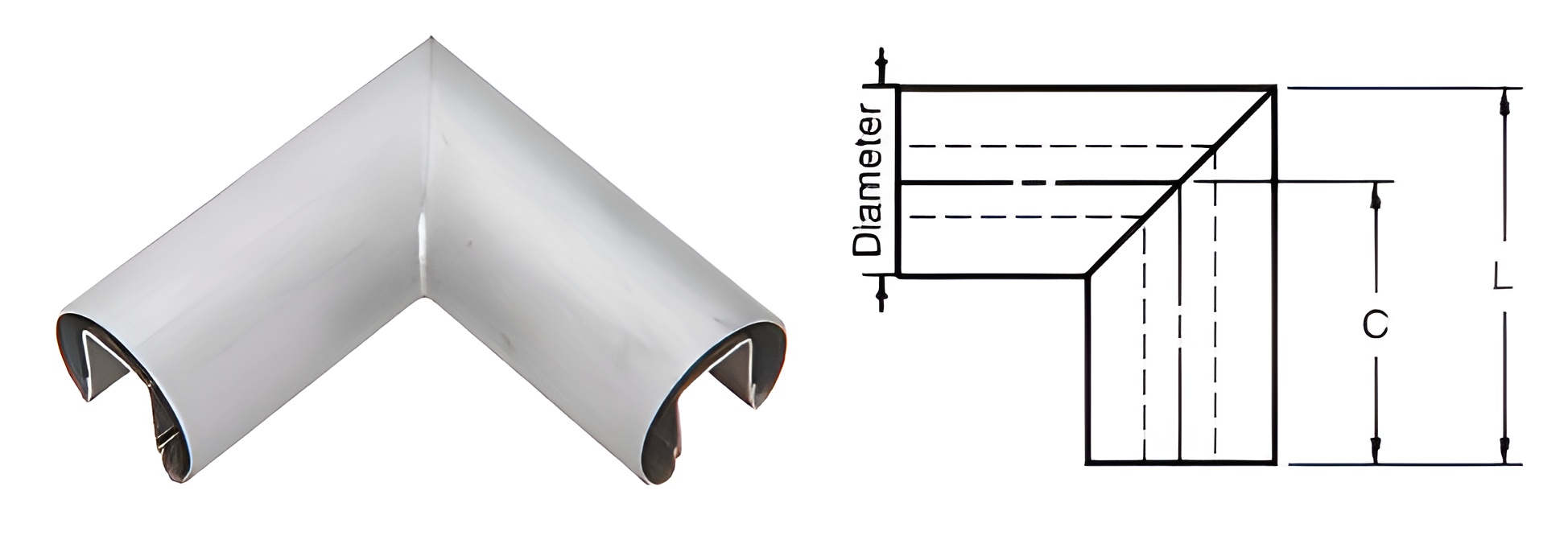

Brushed Stainless 1-1/2" Diameter 90 Degree Horizontal Corner for 1/2" or 5/8" Glass Cap Railing
- Welded, Finished, and Ready-to-Install
- Four Architectural Finishes
- Requires Two Connector Sleeves (Not Included)
Interior slip-fit Horizontal Corners for 1/2" (12 mm) or 5/8" (16 mm) thick glass allow for hairline joint assemblies with straight lengths of
CRL Cap Rail. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each corner.
Each Horizontal Corner is fabricated, finished, and individually packed. All of our stainless and brass corners are fabricated from CRL Premium Cap Rail, and are welded and finished to match. Standard stainless alloy is 304. Stainless alloy 316 is available on special order. For brass, alloy 260 is standard.
Please contact
CRL Technical Sales for more information or a quote.
NOTE: With the exception of the GR15 Series Cap Rail Corners, when used with 1/2" (12 mm) glass, our GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When using GR15 Series Cap Rail Corners or 5/8" (16 mm) glass, use 95CBL Silicone and shims only to secure the glass.
Product Warning:
When used with 1/2" (12 mm) glass, our GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When used with 5/8" (16 mm) glass, secure with shims and 95CBL Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Angle: 90
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/2 in. (38 mm)
Finish/ Color:: Brushed Stainless Steel
Material: Stainless Steel
Shipping Limitations: None
Resources
