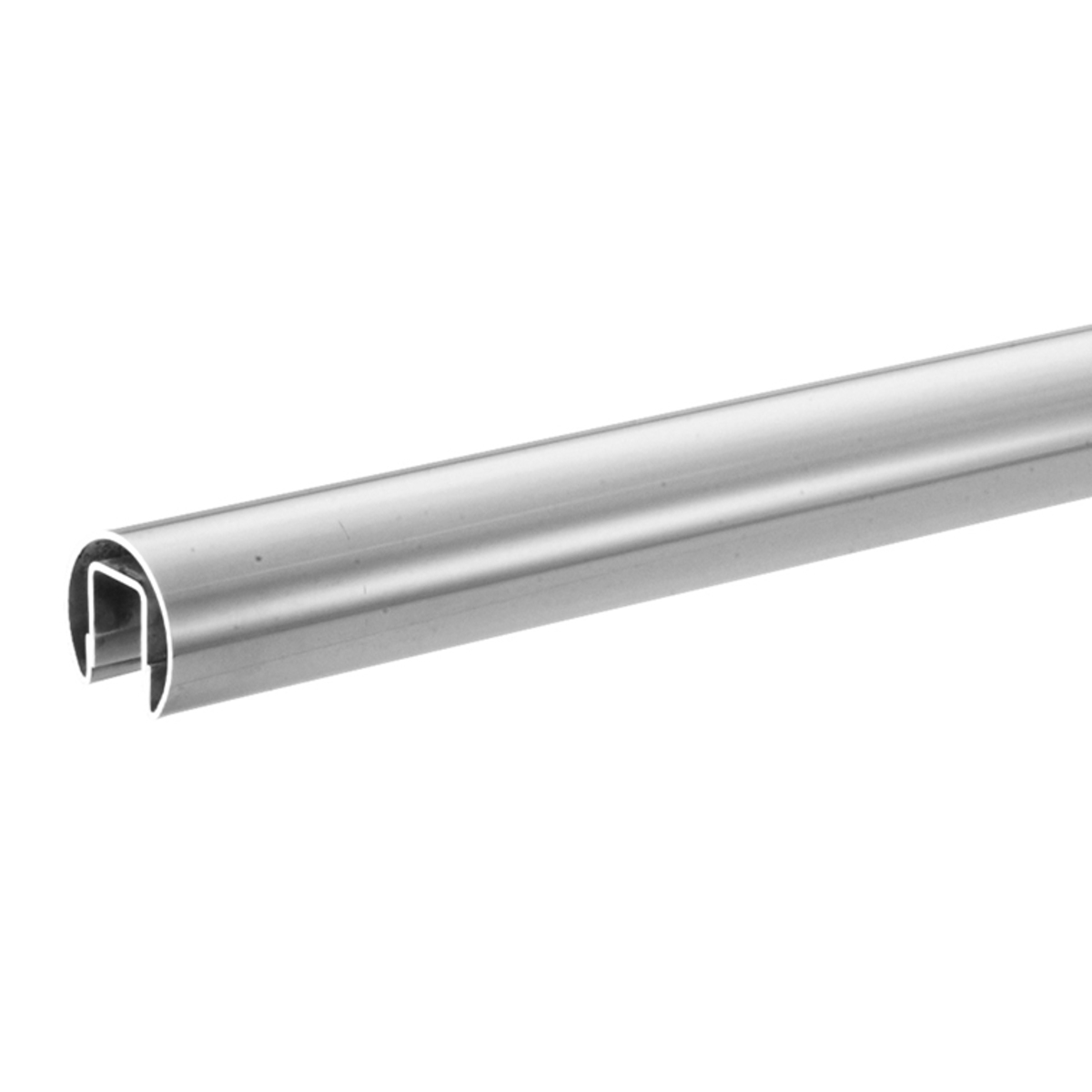

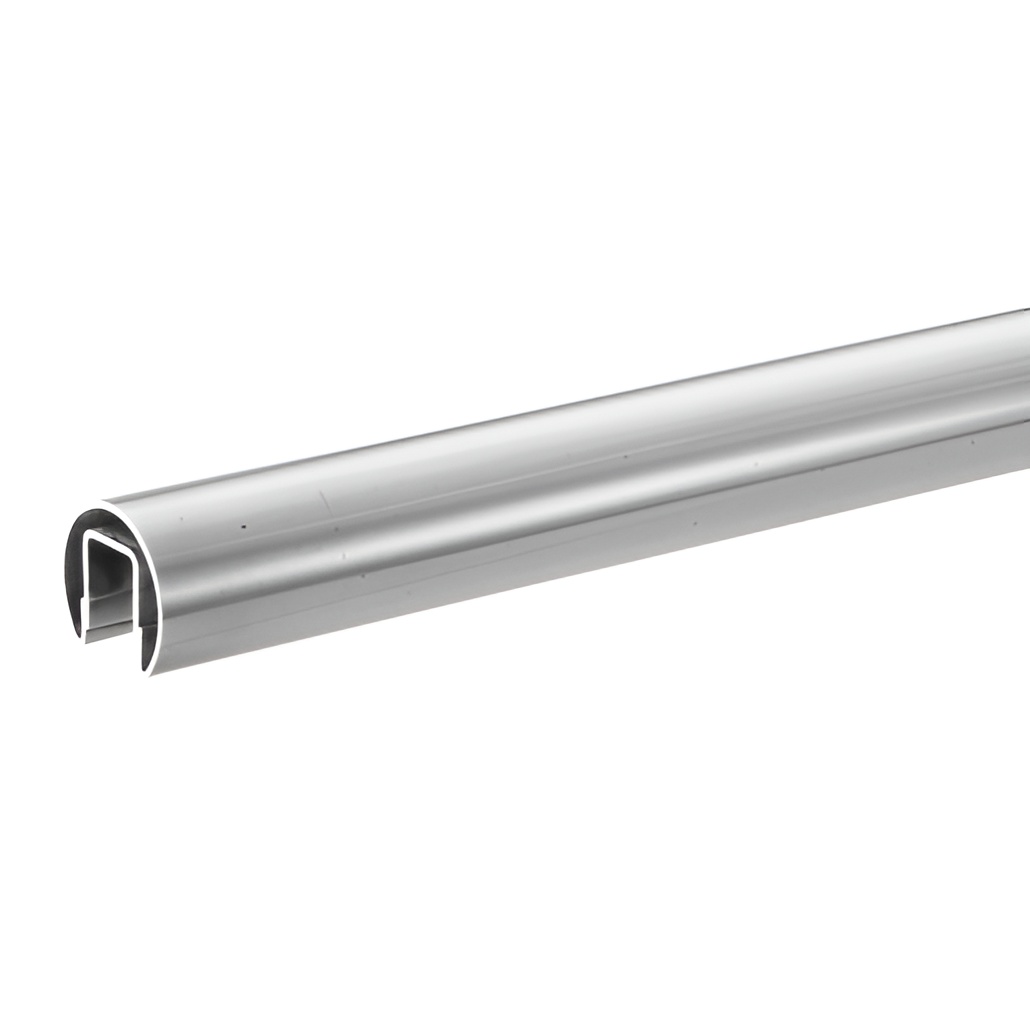

CRL GR15PS 304 Polished Stainless 1.5" Premium Cap Rail for 1/2" Glass - 120"C.R. Laurence GR15PS 304 Grade Polished Stainless 1-1/2" Premium Cap Rail for 1/2" Glass - 120" offers exceptional quality and durability for your architectural projects. Manufactured through a unique Bump-Forming process, this cap rail eliminates the stress and spring back often found in roll-formed products, ensuring tighter tolerances and consistent radii. The robust welds on both sides of the channel enhance stability and strength, making it a reliable choice for various applications. Available in lengths of 120" (3.05 m) and 168" (4.27 m), the GR15PS cap rail accommodates a range of fabricated corners and end caps. With four architectural finishes to choose from, it offers versatility and aesthetic appeal for any design. The precision tooling guarantees uniform diameters, allowing for seamless transitions at splices, corners, and end caps. To achieve secure connections, use the recommended Cat. No. 32629 Metal Contact Cement and corresponding Connector Sleeves. This cap rail is specifically designed to support 1/2" glass, ensuring safety and reliability in your installations. Please note that while stainless steel is resistant to corrosion, periodic maintenance is advised to preserve its factory finish. For specialized lengths or additional inquiries, contact CRL Technical Sales for assistance.
304 Grade Polished Stainless 1-1/2" Premium Cap Rail for 1/2" Glass - 120"
- Bump-Formed and Welded 120" (3.05 m) and 168" (4.27 m) Stock Lengths are Available in Seven Diameters from 1-1/2" (38 mm) to 4" (101.6 mm)
- Four Architectural Finishes
- Connects to a Variety of Fabricated Corners and End Caps
- Cut to Size or Custom Fabricated Lengths Also Available
- Use Sleeve No. GR15CSS
CRL's Premium Cap Rails are manufactured using a unique process known as Bump-Forming that ensures accuracy, consistency, and high quality. Unlike roll-formed cap rails, CRL's Bump-Formed Premium Cap Rails do not contain the stress and spring back associated with the roll-formed product. Welds on both sides of the channel add strength and stability to the Cap Rail. This results in a Cap Rail with tighter tolerances, consistent radius, and the ability to fit into welded corners without twist or discoloration. Put simply, it means this is the best product in the market place.
All CRL Premium Cap Rail are formed using precision tooling to maintain uniform diameters, allowing for smooth hairline transitions at splices, corners, and end caps. The internal channel is welded in place to increase strength and stability for fabrication. Use of our Cat. No.
32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections. Use
Connector Sleeves to connect Cap Rails.
NOTE: 95CBL Silicone should be used to secure 1/2" or 5/8" glass. Please contact
CRL Technical Sales for more information or for a quote.
Product Warning:
GR5PV Cap Rail Vinyl cannot be used with GR15 Cap Rails.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Ship via: No UPS - Common Carrier Only
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

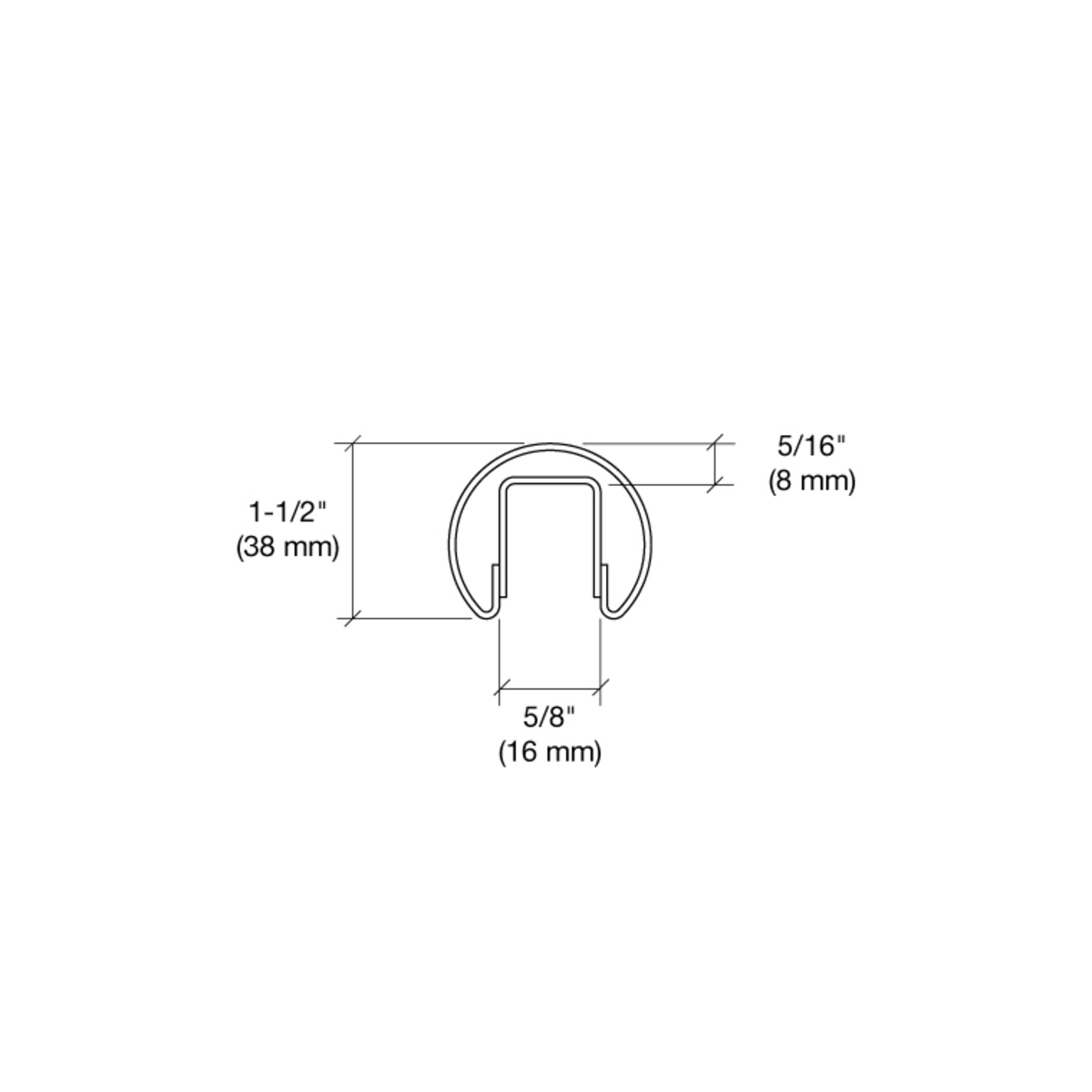

Depth: 5/16 in. (8 mm)
Diameter: 1-1/2 in. (38 mm)
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 1/2 in. (13 mm)
Length: 120 in. (3048 mm)
Material: Stainless Steel
Profile: Round
Shipping Limitations: No UPS - Common Carrier Only
Thickness: .05 in. (1.27 mm)
