CRL GR15SB C260 Satin Brass 1.5" Cap Rail for 1/2" Glass - 120" LengthC.R. Laurence GR15SB C260 Alloy Satin Brass 1-1/2" Premium Cap Rail for 1/2" Glass - 120" offers unparalleled quality and precision for your architectural projects. Crafted using an innovative Bump-Forming process, this cap rail stands apart from traditional roll-formed options by eliminating stress and spring back, ensuring tighter tolerances and consistent radii. The welded internal channel enhances strength and stability, making it ideal for seamless integration into welded corners without the risk of twisting or discoloration. Available in lengths of 120" (3.05 m) and 168" (4.27 m), the cap rail accommodates a variety of applications with seven diameter options ranging from 1-1/2" (38 mm) to 4" (101.6 mm). The satin brass finish not only adds an elegant touch but also enhances durability, although care should be taken due to brass's susceptibility to oxidation. For secure connections, use CRL’s Cat. No. 32629 Metal Contact Cement, along with Connector Sleeves to facilitate joining. This cap rail is compatible with various fabricated corners and end caps, allowing for custom configurations to suit your design needs. Ensure your installations meet professional standards with the GR15SB Premium Cap Rail, where quality meets functionality.

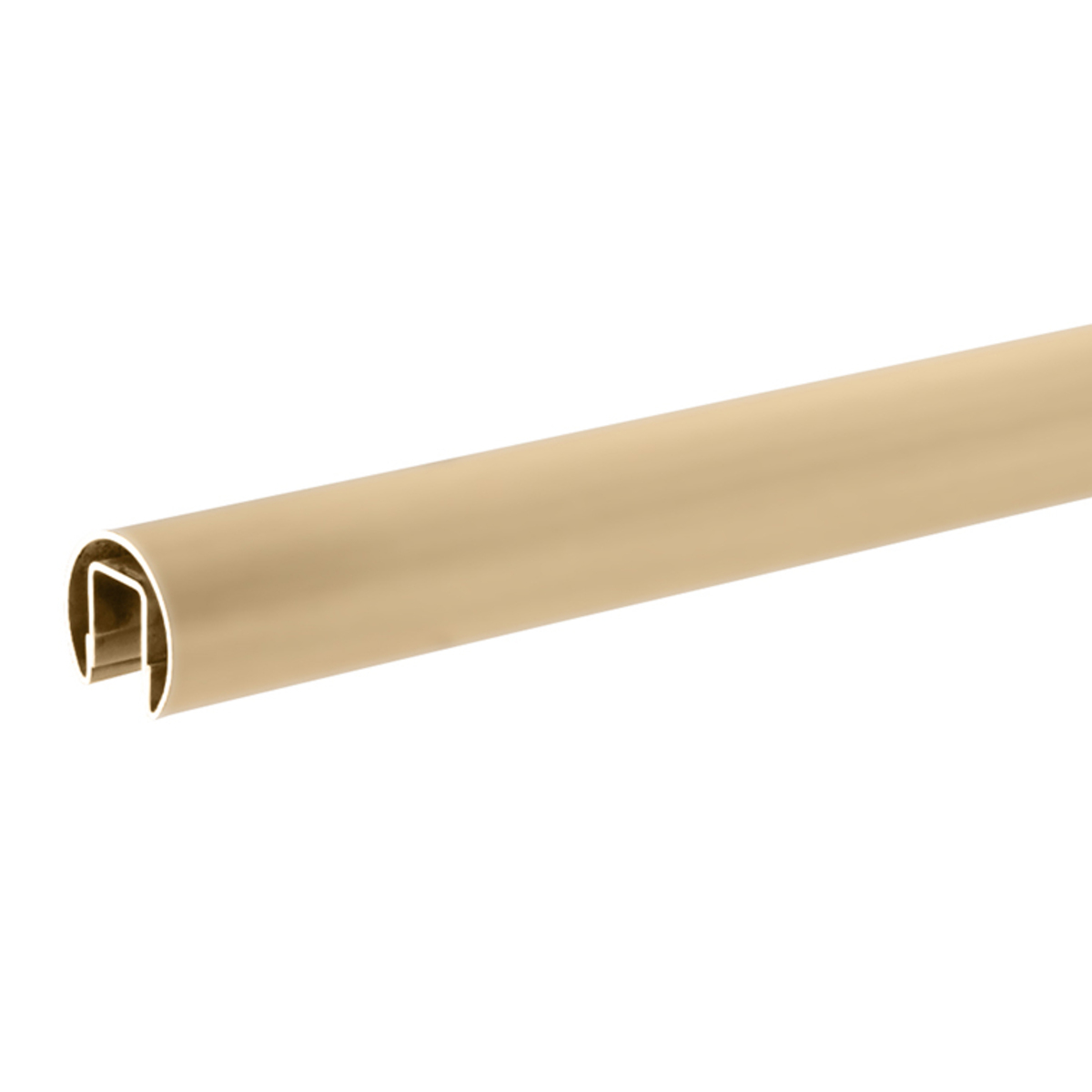

C260 Alloy Satin Brass 1-1/2" Premium Cap Rail for 1/2" Glass - 120"
- Bump-Formed and Welded 120" (3.05 m) and 168" (4.27 m) Stock Lengths are Available in Seven Diameters from 1-1/2" (38 mm) to 4" (101.6 mm)
- Four Architectural Finishes
- Connects to a Variety of Fabricated Corners and End Caps
- Cut to Size or Custom Fabricated Lengths Also Available
- Use Sleeve No. GR15CSB
CRL's Premium Cap Rails are manufactured using a unique process known as Bump-Forming that ensures accuracy, consistency, and high quality. Unlike roll-formed cap rails, CRL's Bump-Formed Premium Cap Rails do not contain the stress and spring back associated with the roll-formed product. Welds on both sides of the channel add strength and stability to the Cap Rail. This results in a Cap Rail with tighter tolerances, consistent radius, and the ability to fit into welded corners without twist or discoloration. Put simply, it means this is the best product in the market place.
All CRL Premium Cap Rail are formed using precision tooling to maintain uniform diameters, allowing for smooth hairline transitions at splices, corners, and end caps. The internal channel is welded in place to increase strength and stability for fabrication. Use of our Cat. No.
32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections. Use
Connector Sleeves to connect Cap Rails.
NOTE: 95CBL Silicone should be used to secure 1/2" or 5/8" glass. Please contact
CRL Technical Sales for more information or for a quote.
Product Warning:
GR5PV Cap Rail Vinyl cannot be used with GR15 Cap Rails.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Ship via: No UPS - Common Carrier Only
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Depth: 5/16 in. (8 mm)
Diameter: 1-1/2 in. (38 mm)
Finish/ Color:: Satin Brass
Glazing Thickness: 1/2 in. (13 mm)
Length: 120 in. (3048 mm)
Material: Brass
Profile: Round
Shipping Limitations: No UPS - Common Carrier Only
