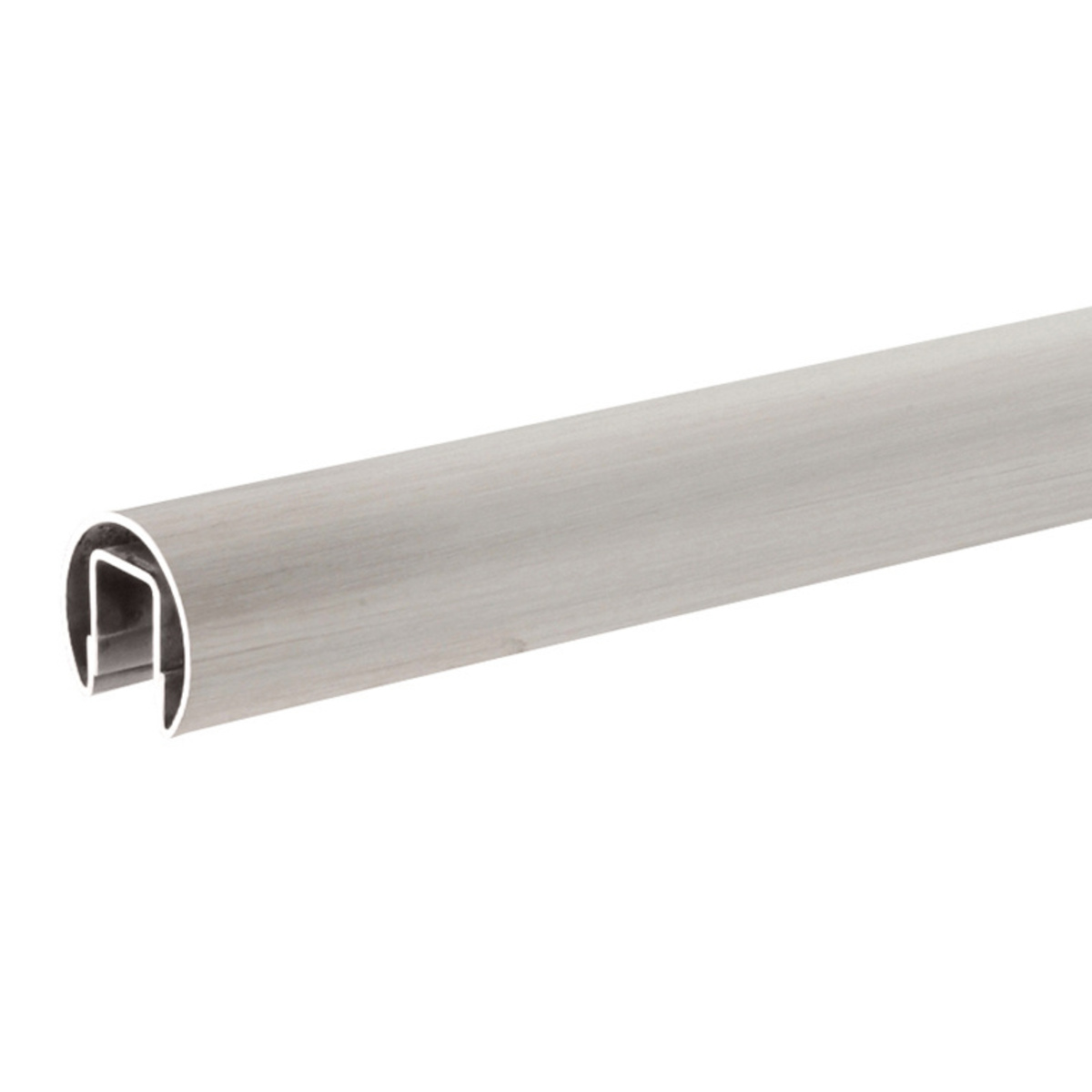

CRL GR16BS6 316 Brushed Stainless 1.66" Cap Rail for 1/2" Glass - 120" Length

CRL GR16BS6 316 Brushed Stainless 1.66" Cap Rail for 1/2" Glass - 120" Length

C.R. Laurence GR16BS6 316 Brushed Stainless 1.66" Premium Cap Rail for 1/2" Glass - 120" delivers unparalleled quality and strength for your railing systems. Engineered using a unique Bump-Forming process, this cap rail ensures accuracy and consistency, eliminating stress and spring back typically found in roll-formed alternatives. The welds on both sides of the channel provide added stability, allowing for tighter tolerances and a superior fit at corners and splices. Available in a brushed stainless steel finish, the GR16BS6 is designed to connect seamlessly with a variety of fabricated corners and end caps, making it a versatile choice for any architectural project. With a diameter of 1.66 inches and a depth of 1/4 inch, this cap rail is perfect for supporting 1/2 inch glass, ensuring a secure installation when paired with CRL's recommended vinyl and silicone sealants. Sold in 120-inch lengths, the GR16BS6 can be cut to size or custom fabricated to meet your specific needs. This premium cap rail not only enhances the aesthetic appeal of your installation but also meets high standards of durability and performance. For a secure and permanent bond, the use of CRL's Metal Contact Cement is advised at all connections.

316 Brushed Stainless 1.66" Premium Cap Rail for 1/2" Glass - 120"

• Bump-Formed and Welded 120" (3.05 m) and 168" (4.27 m) Stock Lengths are Available in Seven Diameters from 1-1/2" (38.1 mm) to 4" (101.6 mm)
• Four Architectural Finishes
• Connects to a Variety of Fabricated Corners and End Caps
• Cut to Size or Custom Fabricated Lengths Also Available
• For Stainless, Alloy 304 is Standard; Alloy 316 is Available in Two Sizes
• For Brass, Alloy 260 is Standard
• Use Connector Sleeve No. GR16CSS

CRL's Premium Cap Rails are manufactured using a unique process known as Bump-Forming that ensures accuracy, consistency, and high quality. Unlike roll-formed cap rails, CRL's Bump-Formed Premium Cap Rails do not contain the stress and spring back associated with the roll-formed product. Welds on both sides of the channel add strength and stability to the Cap Rail. This results in a Cap Rail with tighter tolerances, consistent radius, and the ability to fit into welded corners without twist or discoloration. Put simply, it means this is the best product in the market place.


All CRL Premium Cap Rail are formed using precision tooling to maintain uniform diameters, allowing for smooth hairline transitions at splices, corners, and end caps. The internal channel is welded in place to increase strength and stability for fabrication. Use Connector Sleeves to connect Cap Rails. Sold in 120" (3.05 m) lengths.

NOTE: When used with 1/2" (12 mm) glass, Cat. No. GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When used with 5/8" (16 mm) glass, secure with 95CBL Silicone Sealant and Shims. Please contact CRL Technical Sales for more information or for a quote.

Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections.

Use the Connector Sleeves to connect Cap Rails. NOTE:When used with 3/4" (19 mm) glass, 95CBL Silicone and shims should be used to secure the glass. All CRL Premium Cap Railings are stainless alloy 304. Stainless alloy 316 is available on special order. Please contact CRL Technical Sales for more information or for a quote.

Stainless Steel Advisory:
