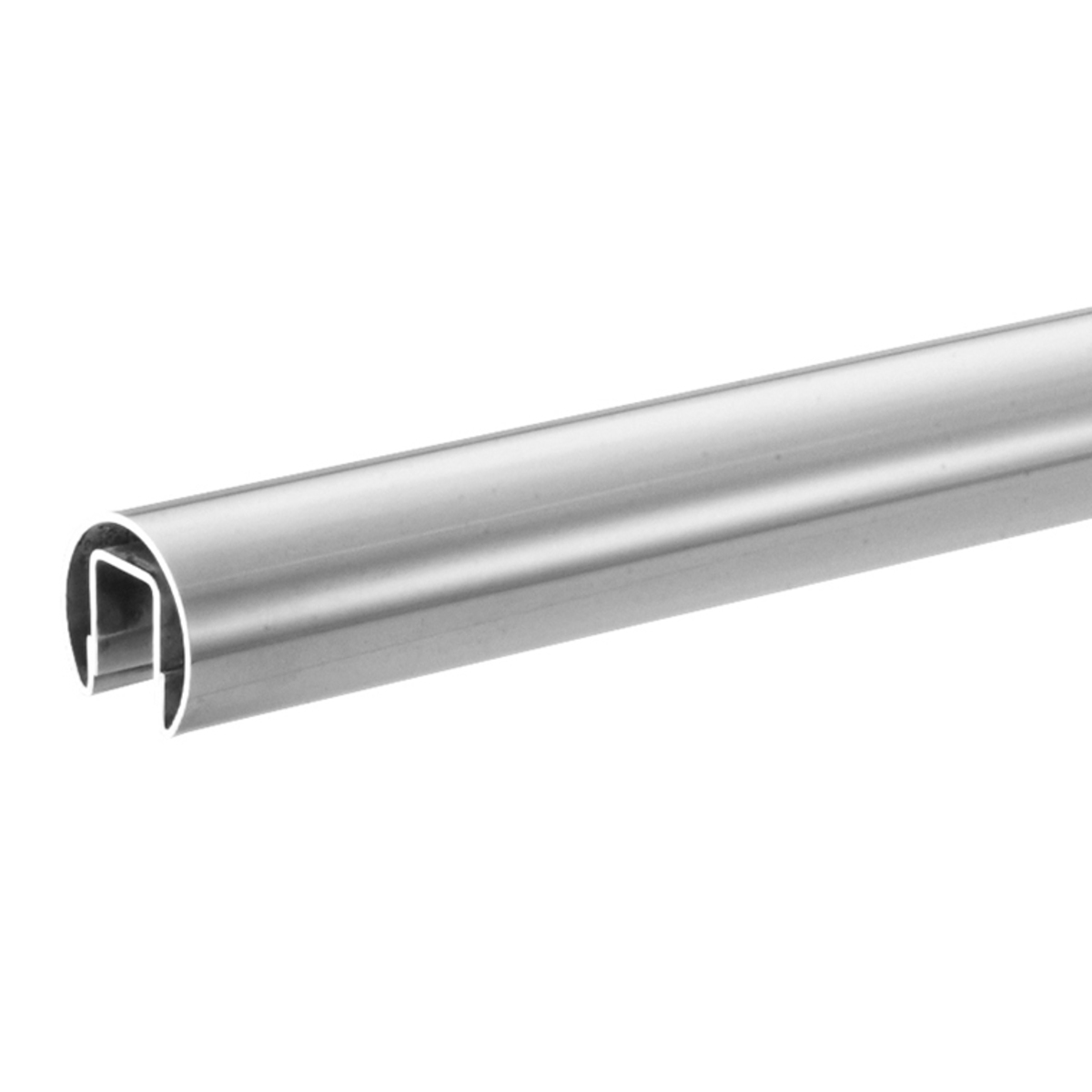

CRL GR16PS14 Polished Stainless 1.66" Premium Cap Rail for 1/2" Glass - 168" Length

CRL GR16PS14 Polished Stainless 1.66" Premium Cap Rail for 1/2" Glass - 168" Length

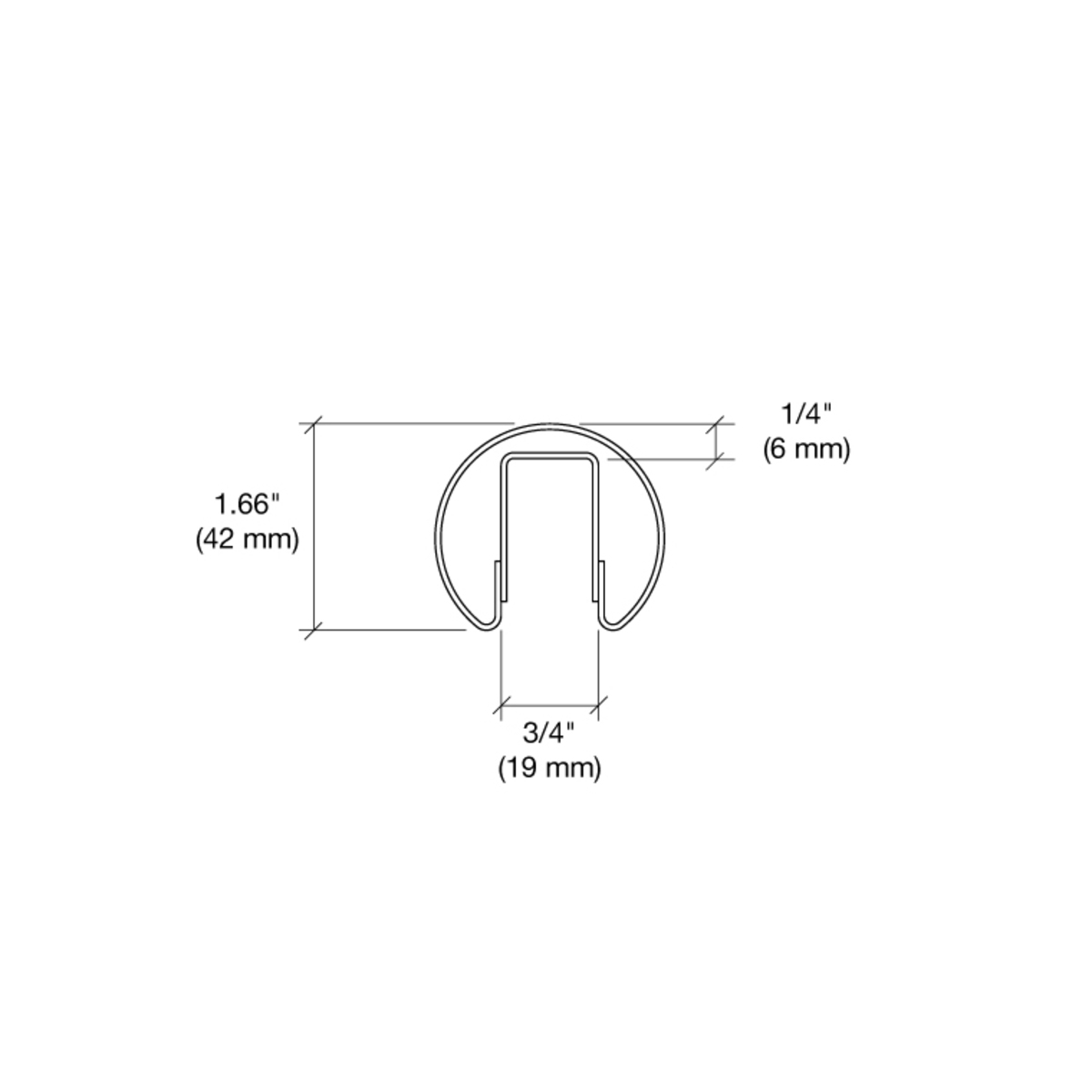

C.R. Laurence GR16PS14 Polished Stainless 1.66" Premium Cap Rail for 1/2" Glass - 168" offers unmatched quality for your glass railing systems. Crafted through an innovative Bump-Forming process, this cap rail guarantees precision and durability, eliminating the stress and spring back typical of roll-formed products. The robust design features welded sides that enhance strength and stability, ensuring a perfect fit for fabricated corners and end caps. Available in polished stainless steel, this cap rail is designed to accommodate 1/2" (12 mm) glass, providing a sleek and modern aesthetic to any project. The 168" (4.27 m) length allows for versatility, as it can be cut to size or custom fabricated to meet specific requirements. With a diameter of 1.66" (42 mm) and a thickness of 0.05" (1.27 mm), it meets both functional and design standards. For secure installations, utilize Connector Sleeve No. GR16CSS and ensure glass stability with appropriate silicone sealants. While stainless steel is resistant to corrosion, routine maintenance is recommended to preserve its finish. Elevate your architectural designs with C.R. Laurence's premium cap rail, a product that stands at the intersection of innovation and style.

Polished Stainless 1.66" Premium Cap Rail for 1/2" Glass - 168"

• Bump-Formed and Welded 120" (3.05 m) and 168" (4.27 m) Stock Lengths are Available in Seven Diameters from 1-1/2" (38.1 mm) to 4" (101.6 mm)
• Four Architectural Finishes
• Connects to a Variety of Fabricated Corners and End Caps
• Cut to Size or Custom Fabricated Lengths Also Available
• For Stainless, Alloy 304 is Standard; Alloy 316 is Available in Two Sizes
• For Brass, Alloy 260 is Standard
• Use Connector Sleeve No. GR16CSS

CRL's Premium Cap Rails are manufactured using a unique process known as Bump-Forming that ensures accuracy, consistency, and high quality. Unlike roll-formed cap rails, CRL's Bump-Formed Premium Cap Rails do not contain the stress and spring back associated with the roll-formed product. Welds on both sides of the channel add strength and stability to the Cap Rail. This results in a Cap Rail with tighter tolerances, consistent radius, and the ability to fit into welded corners without twist or discoloration. Put simply, it means this is the best product in the market place.


All CRL Premium Cap Rail are formed using precision tooling to maintain uniform diameters, allowing for smooth hairline transitions at splices, corners, and end caps. The internal channel is welded in place to increase strength and stability for fabrication. Use Connector Sleeves to connect Cap Rails. Sold in 168" (4.27 m) lengths.

NOTE: When used with 1/2" (12 mm) glass, Cat. No. GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When used with 5/8" (16 mm) glass, secure with 95CBL Silicone Sealant and Shims. Please contact CRL Technical Sales for more information or for a quote.

Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections.

Use the Connector Sleeves to connect Cap Rails. NOTE:When used with 3/4" (19 mm) glass, 95CBL Silicone and shims should be used to secure the glass. All CRL Premium Cap Railings are stainless alloy 304. Stainless alloy 316 is available on special order. Please contact CRL Technical Sales for more information or for a quote.

Stainless Steel Advisory:
