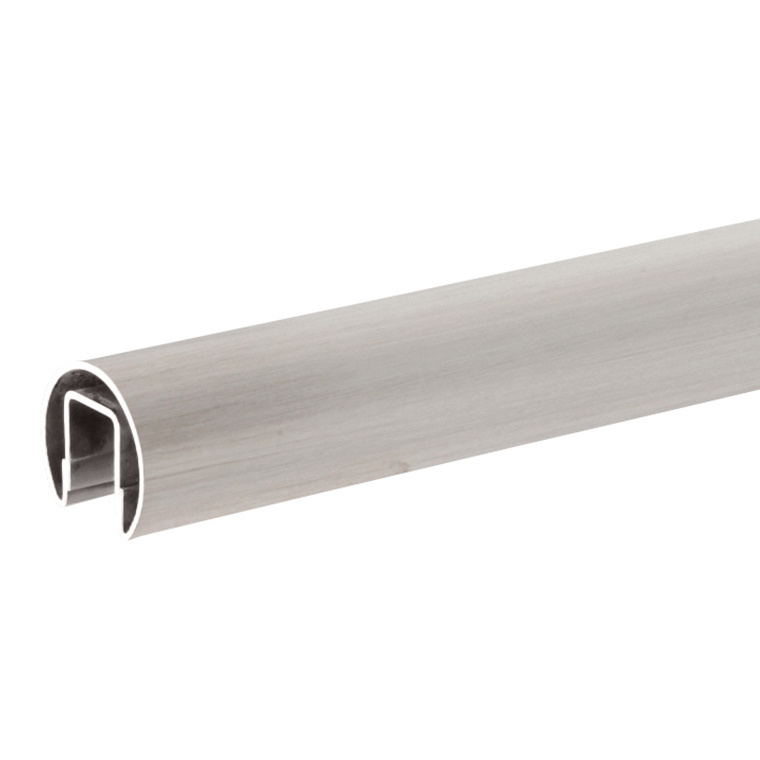

CRL GR20BS146 316 Brushed Stainless 2" Cap Rail for 1/2" or 5/8" Glass - 168"

CRL GR20BS146 316 Brushed Stainless 2" Cap Rail for 1/2" or 5/8" Glass - 168"

C.R. Laurence GR20BS146 316 Grade Brushed Stainless 2" Premium Cap Rail for 1/2" or 5/8" Glass - 168" offers a robust and elegant solution for your railing needs. Crafted using a unique Bump-Forming process, this premium cap rail ensures exceptional accuracy and consistency, free from the stress typically associated with roll-formed alternatives. The welded internal channel enhances its stability, providing tighter tolerances and a seamless fit into corners without twisting or discoloration. Available in a generous 168" length and designed to accommodate both 1/2" and 5/8" glass thicknesses, this cap rail can be tailored to your specific requirements, with cut-to-size and custom fabrication options also offered. Its brushed stainless steel finish not only provides a sleek aesthetic but also ensures durability against the elements. Compatible with various fabricated corners and end caps, the GR20BS146 easily integrates into your existing systems. For secure connections, utilize Connector Sleeves and the recommended Cat. No. 32629 Metal Contact Cement. Regular maintenance is advised to preserve its factory finish, making it an ideal choice for both building professionals and discerning homeowners alike. The rail meets high standards of architectural quality, making it a trusted choice in the industry.

316 Grade Brushed Stainless 2" Premium Cap Rail for 1/2" or 5/8" Glass - 168"

• Bump-Formed and Welded 120" (3.05 m) and 168" (4.27 m) Stock Lengths are Available in Seven Diameters from 1-1/2" (38.1 mm) to 4" (101.6 mm)
• Four Architectural Finishes
• Connects to a Variety of Fabricated Corners and End Caps
• Cut to Size or Custom Fabricated Lengths Also Available
• Use Sleeve No. GR20CSS

CRL's Premium Cap Rails are manufactured using a unique process known as Bump-Forming that ensures accuracy, consistency, and high quality. Unlike roll-formed cap rails, CRL's Bump-Formed Premium Cap Rails do not contain the stress and spring back associated with the roll-formed product. Welds on both sides of the channel add strength and stability to the Cap Rail. This results in a Cap Rail with tighter tolerances, consistent radius, and the ability to fit into welded corners without twist or discoloration. Put simply, it means this is the best product in the market place.


All CRL Premium Cap Rail are formed using precision tooling to maintain uniform diameters, allowing for smooth hairline transitions at splices, corners, and end caps. The internal channel is welded in place to increase strength and stability for fabrication. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections. Use Connector Sleeves to connect Cap Rails. Sold in 120" (3.05 m) lengths.

NOTE: When used with 1/2" (12 mm) glass, Cat. No. GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When used with 5/8" (16 mm) glass, secure with 95CBL Silicone Sealant and Shims. Please contact CRL Technical Sales for more information or for a quote.

Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections.

Use the Connector Sleeves to connect Cap Rails. NOTE:When used with 3/4" (19 mm) glass, 95CBL Silicone and shims should be used to secure the glass. All CRL Premium Cap Railings are stainless alloy 304. Stainless alloy 316 is available on special order. Please contact CRL Technical Sales for more information or for a quote.

Stainless Steel Advisory:
