CRL GR20PS6 316 Polished Stainless 2" Cap Rail for 1/2" or 5/8" Glass - 120"

CRL GR20PS6 316 Polished Stainless 2" Cap Rail for 1/2" or 5/8" Glass - 120"

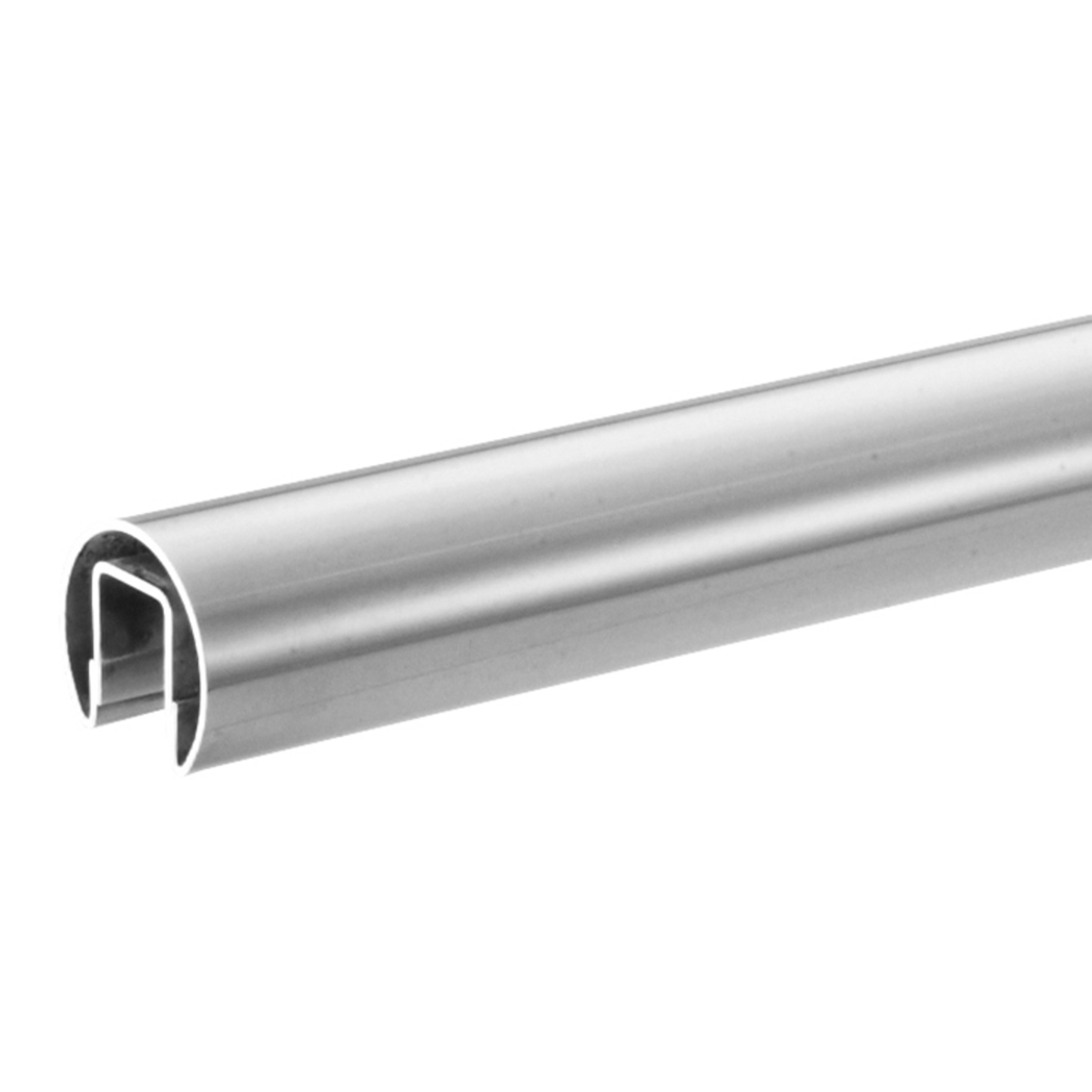

C.R. Laurence GR20PS6 316 Grade Polished Stainless 2" Premium Cap Rail for 1/2" or 5/8" Glass - 120" offers unparalleled strength and aesthetic appeal, making it an ideal choice for high-end architectural projects. Crafted using a unique Bump-Forming process, this cap rail ensures accuracy and consistency, free from the stress and spring back commonly associated with roll-formed products. The welded internal channel enhances stability and allows for a smooth, seamless transition at splices, corners, and end caps. Available in polished stainless steel, this 2" diameter cap rail supports glazing thicknesses of 1/2" and 5/8", effectively integrating with a variety of fabricated corners and end caps. For customized needs, lengths can be cut to size or specially fabricated. The GR20PS6 comes in a standard length of 120" (3048 mm) and is designed for use with Connector Sleeves for secure connections. To achieve a permanent bond, the use of CRL's Cat. No. 32629 Metal Contact Cement is essential at all joints. This product not only promises durability but also enhances the overall elegance of your installation, making it a top-tier choice for discerning builders and homeowners. Periodic maintenance will help preserve its factory finish, ensuring it remains a standout feature for years to come.

316 Grade Polished Stainless 2" Premium Cap Rail for 1/2" or 5/8" Glass - 120"

• Bump-Formed and Welded 120" (3.05 m) and 168" (4.27 m) Stock Lengths are Available in Seven Diameters from 1-1/2" (38.1 mm) to 4" (101.6 mm)
• Four Architectural Finishes
• Connects to a Variety of Fabricated Corners and End Caps
• Cut to Size or Custom Fabricated Lengths Also Available
• Use Sleeve No. GR20CSS

CRL's Premium Cap Rails are manufactured using a unique process known as Bump-Forming that ensures accuracy, consistency, and high quality. Unlike roll-formed cap rails, CRL's Bump-Formed Premium Cap Rails do not contain the stress and spring back associated with the roll-formed product. Welds on both sides of the channel add strength and stability to the Cap Rail. This results in a Cap Rail with tighter tolerances, consistent radius, and the ability to fit into welded corners without twist or discoloration. Put simply, it means this is the best product in the market place.


All CRL Premium Cap Rail are formed using precision tooling to maintain uniform diameters, allowing for smooth hairline transitions at splices, corners, and end caps. The internal channel is welded in place to increase strength and stability for fabrication. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections. Use Connector Sleeves to connect Cap Rails. Sold in 120" (3.05 m) lengths.

NOTE: When used with 1/2" (12 mm) glass, Cat. No. GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When used with 5/8" (16 mm) glass, secure with 95CBL Silicone Sealant and Shims. Please contact CRL Technical Sales for more information or for a quote.

Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections.

Use the Connector Sleeves to connect Cap Rails. NOTE:When used with 3/4" (19 mm) glass, 95CBL Silicone and shims should be used to secure the glass. All CRL Premium Cap Railings are stainless alloy 304. Stainless alloy 316 is available on special order. Please contact CRL Technical Sales for more information or for a quote.

Stainless Steel Advisory:
