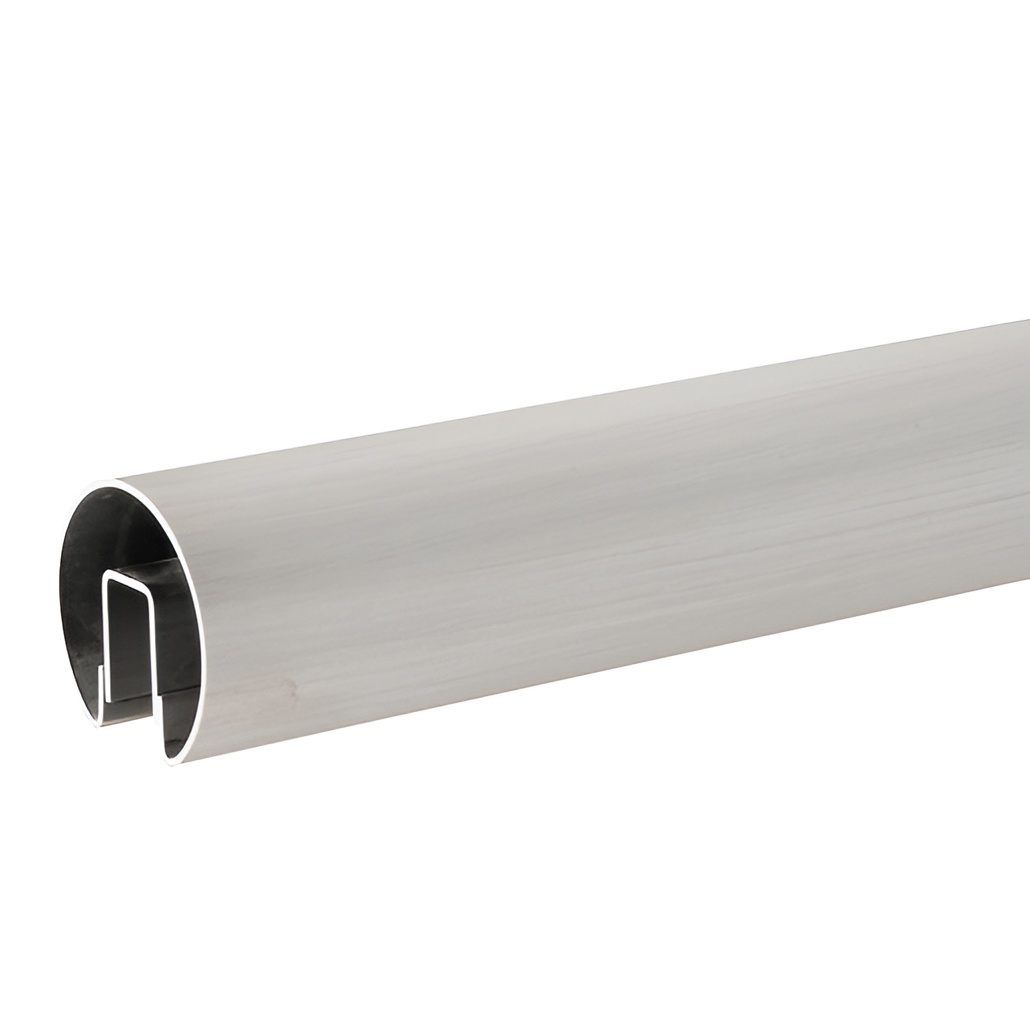

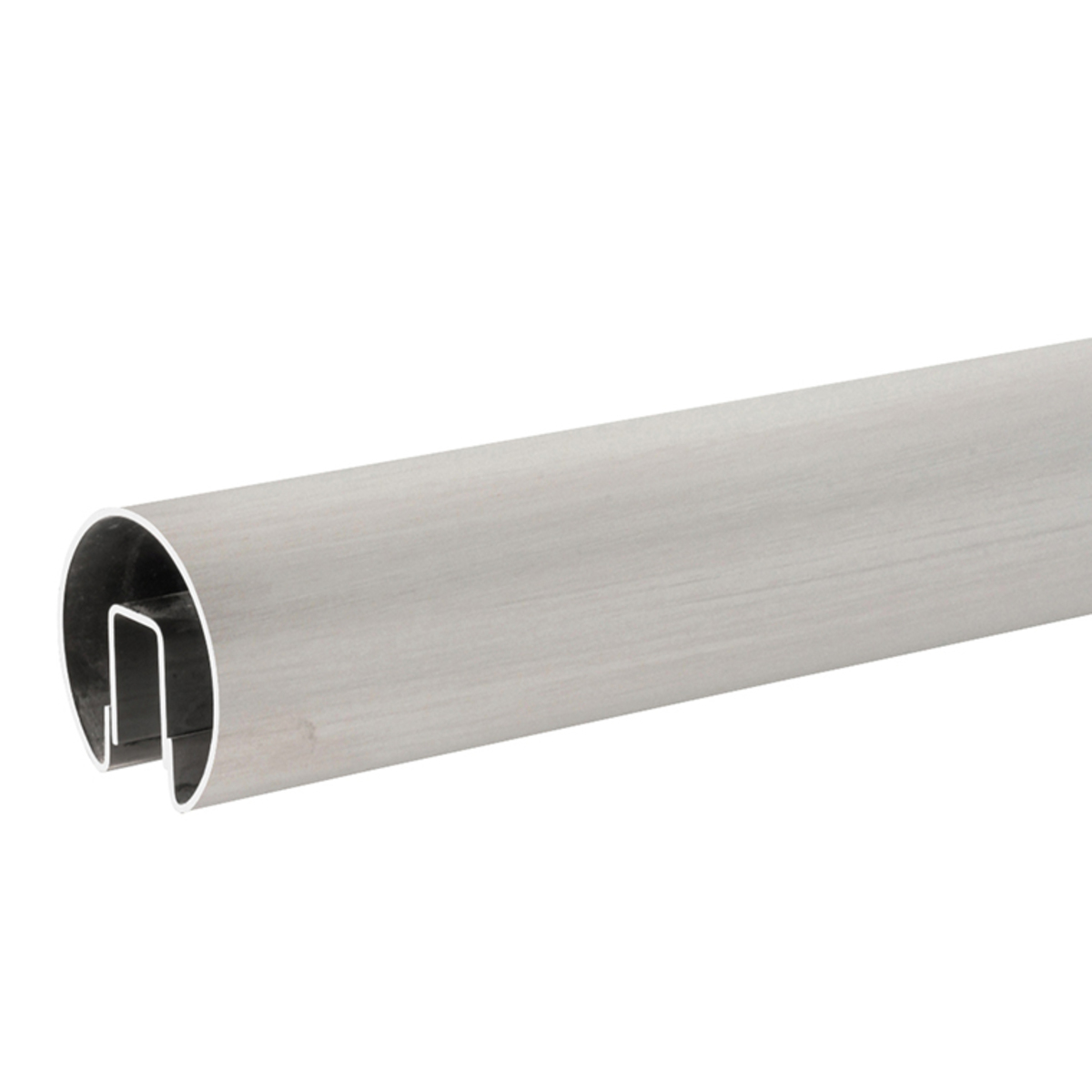

CRL GR257BS 304 Brushed Stainless 2.5" Premium Cap Rail for 3/4" Glass - 120"

C.R. Laurence GR257BS 304 Grade Brushed Stainless 2-1/2" Premium Cap Rail for 3/4" Glass - 120" is engineered for durability and aesthetics, making it an excellent choice for modern architectural applications. Formed using precision tooling, this cap rail maintains uniform diameters, ensuring seamless hairline transitions at splices, corners, and end caps. Its robust design features an internal channel that is welded in place, enhancing strength and stability during installation. Available in stock lengths of 120" (3.05 m) and 168" (4.27 m), the GR257BS cap rail can be connected to fabricated corners and end caps for a cohesive look. The brushed stainless steel finish not only provides a sleek appearance but also ensures resistance to corrosion, though periodic maintenance is recommended to preserve its factory sheen. For optimal installation, use Connector Sleeves with this cap rail, and secure the glass using Cat. No. GR7PV Cap Rail Vinyl and 95CBL Silicone. This product supports glazing thickness up to 3/4" (19 mm) and has a thickness of .0625" (1.59 mm). Trust C.R. Laurence for quality architectural metal solutions that combine functionality with design elegance.

304 Grade Brushed Stainless 2-1/2" Premium Cap Rail for 3/4" Glass - 120"

• Bumped-Formed and Welded 120" (3.05 m) and 168" (4.27 m) Stock Lengths are Available in Three Diameters and Four Architectural Finishes
• Connect to Fabricated Corners and End Caps
• Use Sleeve No. GR25CSS

Stainless Steel Advisory:

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• CRL Stainless Steel Disclaimer
• GRS Base Shoe Quote Request Form
• GRS Cap Railing System Quote Request Form
• GRS Cap Railing System Quote Request Form
• GRS Cap Rails Engineering Report 07-2020
• Windscreen and Pool Fencing Systems Product Information
• Windscreen and Pool Fencing Systems Product Information
