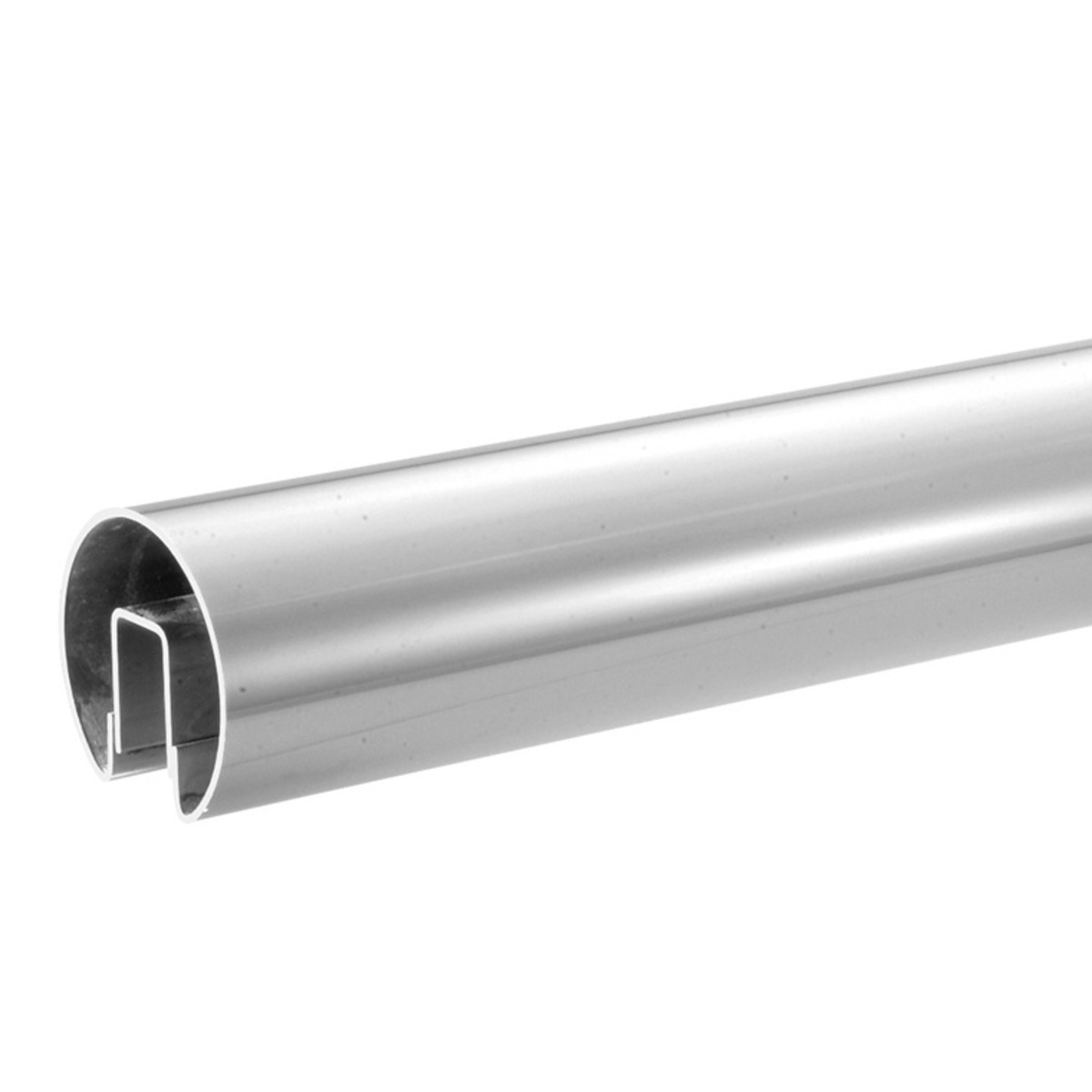

CRL GR25PS6 316 Polished Stainless 2.5" Cap Rail for 1/2" Glass - 120" Length

CRL GR25PS6 316 Polished Stainless 2.5" Cap Rail for 1/2" Glass - 120" Length

C.R. Laurence GR25PS6 316 Polished Stainless 2-1/2" Premium Cap Rail for 1/2" Glass - 120" offers a superior solution for enhancing both aesthetics and durability in architectural projects. Crafted using a unique Bump-Forming process, this cap rail ensures exceptional accuracy and consistency, eliminating the stress commonly associated with roll-formed alternatives. The robust welds on both sides of the channel provide additional strength and stability, making it ideal for seamless integration into welded corners without twisting or discoloration. Available in a 120" length and featuring a polished stainless steel finish, the GR25PS6 is compatible with various glazing thicknesses-specifically 1/2" and 5/8" glass. The cap rail can be cut to size or custom fabricated, accommodating unique project specifications. Its precision tooling maintains uniform diameters, allowing for smooth transitions at splices, corners, and end caps. For secure connections, utilize CRL’s Cat. No. 32629 Metal Contact Cement along with Connector Sleeves, ensuring a permanent bond. While stainless steel is resistant to corrosion, periodic maintenance is recommended to preserve its factory finish. Rely on CRL’s Premium Cap Rail for a blend of style, strength, and reliability in your next architectural endeavor.

316 Polished Stainless 2-1/2" Premium Cap Rail for 1/2" Glass - 120"

• Bump-Formed and Welded 120" (3.05 m) and 168" (4.27 m) Stock Lengths are Available in Seven Diameters from 1-1/2" (38.1 mm) to 4" (101.6 mm)
• Four Architectural Finishes
• Connects to a Variety of Fabricated Corners and End Caps
• Cut to Size or Custom Fabricated Lengths Also Available
• For Stainless, Alloy 304 is Standard; Alloy 316 is Available in Two Sizes
• For Brass, Alloy 260 is Standard
• Use Sleeve No. GR25CSS

CRL's Premium Cap Rails are manufactured using a unique process known as Bump-Forming that ensures accuracy, consistency, and high quality. Unlike roll-formed cap rails, CRL's Bump-Formed Premium Cap Rails do not contain the stress and spring back associated with the roll-formed product. Welds on both sides of the channel add strength and stability to the Cap Rail. This results in a Cap Rail with tighter tolerances, consistent radius, and the ability to fit into welded corners without twist or discoloration. Put simply, it means this is the best product in the market place.


All CRL Premium Cap Rail are formed using precision tooling to maintain uniform diameters, allowing for smooth hairline transitions at splices, corners, and end caps. The internal channel is welded in place to increase strength and stability for fabrication. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections. Use Connector Sleeves to connect Cap Rails. Sold in 120" (3.05 m) lengths.

NOTE: When used with 1/2" (12 mm) glass, Cat. No. GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When used with 5/8" (16 mm) glass, secure with 95CBL Silicone Sealant and Shims. Please contact CRL Technical Sales for more information or for a quote.

Use of our 32629 Metal Contact Cement is required to achieve a secure and permanent bond at all connections.

Use the Connector Sleeves to connect Cap Rails. NOTE:When used with 3/4" (19 mm) glass, 95CBL Silicone and shims should be used to secure the glass. All CRL Premium Cap Railings are stainless alloy 304. Stainless alloy 316 is available on special order. Please contact CRL Technical Sales for more information or for a quote.

Stainless Steel Advisory:
