CRL GR30BS Brushed Stainless 3" Premium Cap Rail for 1/2" or 5/8" Glass - 10'

C.R. Laurence GR30BS Brushed Stainless 3" Premium Cap Rail for 1/2" or 5/8" Glass - 120" offers a sleek and durable solution for your railing needs. Crafted from high-quality stainless steel, this cap rail features a brushed finish that enhances its aesthetic while providing excellent resistance to corrosion. Available in a generous 120" length, it is designed for easy customization with options for cut-to-size or custom-fabricated lengths. Constructed with precision tooling, the GR30BS maintains uniform diameters, ensuring smooth hairline transitions at splices, corners, and end caps. The internal channel is reinforced with welding every 3", significantly increasing its strength and stability during installation. Compatible with a variety of fabricated corners and end caps, this cap rail seamlessly integrates with your architectural designs. For optimal performance, use the recommended Connector Sleeves to connect Cap Rails and ensure a secure bond with C.R. Laurence's Metal Contact Cement. It accommodates glass thicknesses of 1/2" and 5/8", making it versatile for various applications. Note that while stainless steel is corrosion-resistant, regular maintenance is advised to preserve its finish. Elevate your space with the durability and elegance of the GR30BS Premium Cap Rail, perfect for both commercial and residential projects.

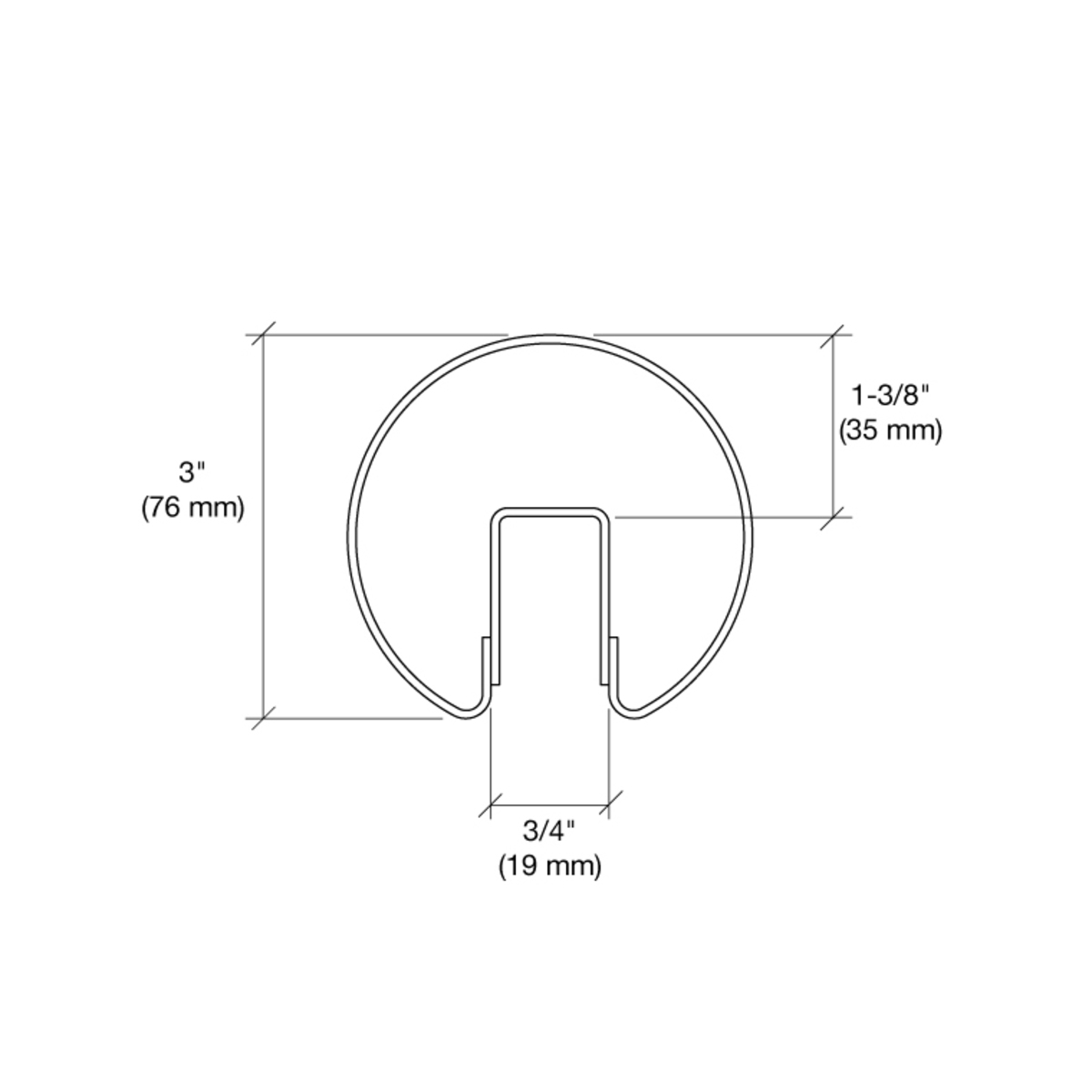

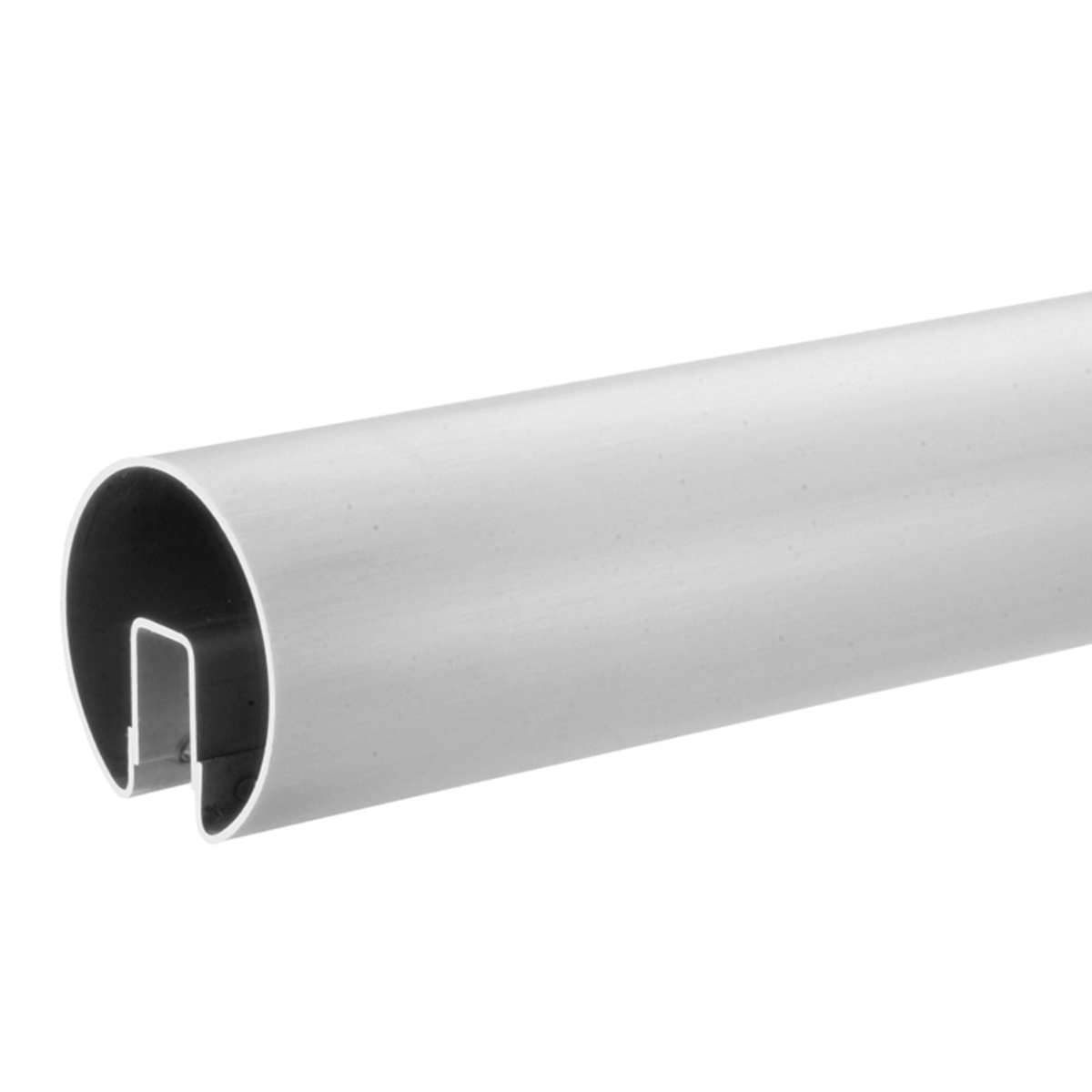

Brushed Stainless 3" Premium Cap Rail for 1/2" or 5/8" Glass - 120"

• Bump-Formed and Welded 120" (3.05 m) and 168" (4.27 m) Stock Lengths are Available in Seven Diameters from 1-1/2" (38.1 mm) to 4" (101.6 mm)
• Four Architectural Finishes
• Connects to a Variety of Fabricated Corners and End Caps
• Cut to Size or Custom Fabricated Lengths Also Available
• For Stainless, Alloy 304 is Standard; Alloy 316 is Available in Two Sizes
• For Brass, Alloy 260 is Standard
• Use Sleeve No. GR30CSS

Stainless Steel Advisory:

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• CRL Stainless Steel Disclaimer
• GRS Base Shoe Quote Request Form
• GRS Cap Railing System Quote Request Form
• GRS Cap Railing System Quote Request Form
• GRS Cap Rails Engineering Report 07-2020
• Windscreen and Pool Fencing Systems Product Information
