CRL GR35HBS Brushed Stainless 3.5" 90 Horizontal Corner for 1/2" or 5/8" Glass RailingC.R. Laurence GR35HBS Brushed Stainless 3-1/2" Diameter 90 Degree Horizontal Corner for 1/2" or 5/8" Glass Cap Railing seamlessly integrates elegance with functionality. Designed for use with 1/2" (12 mm) or 5/8" (16 mm) thick glass, this interior slip-fit corner allows for hairline joint assemblies, ensuring a sleek and contemporary appearance in any railing system. Fabricated from premium stainless steel, the GR35HBS features a brushed finish that not only enhances its aesthetic appeal but also offers durability and resistance to corrosion. Each corner is fully welded, finished, and ready for installation, minimizing preparation time on-site. Available in four architectural finishes, this corner can be tailored to meet specific design preferences. To achieve a secure and permanent bond, the use of CRL Cat. No. 32629 Metal Contact Cement is essential. Please note that two connector sleeves are required for each corner, although they are not included in the package. For optimal glass security, use GR5PV Cap Rail Vinyl and 95CBL Silicone with 1/2" glass, while shims and 95CBL Silicone are recommended for 5/8" installations. Elevate your architectural projects with the reliability and sophistication of C.R. Laurence's GR35HBS Horizontal Corner.

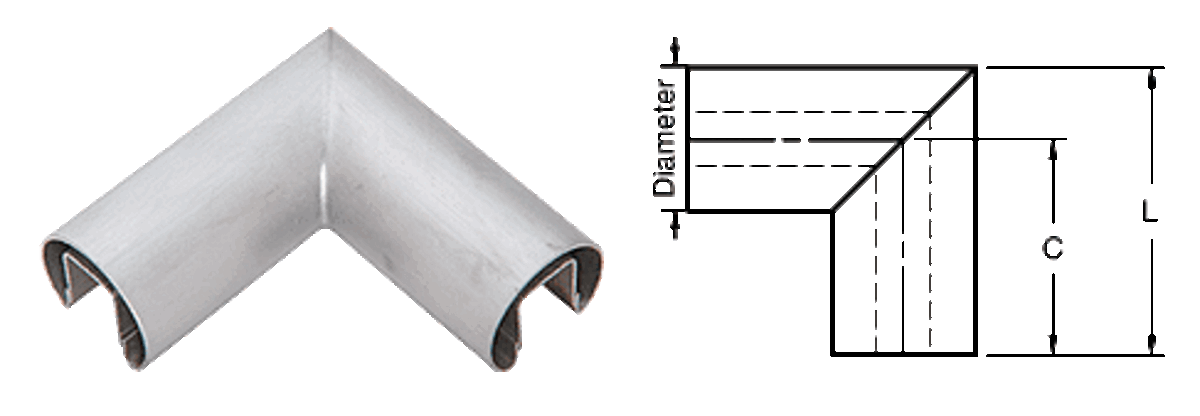

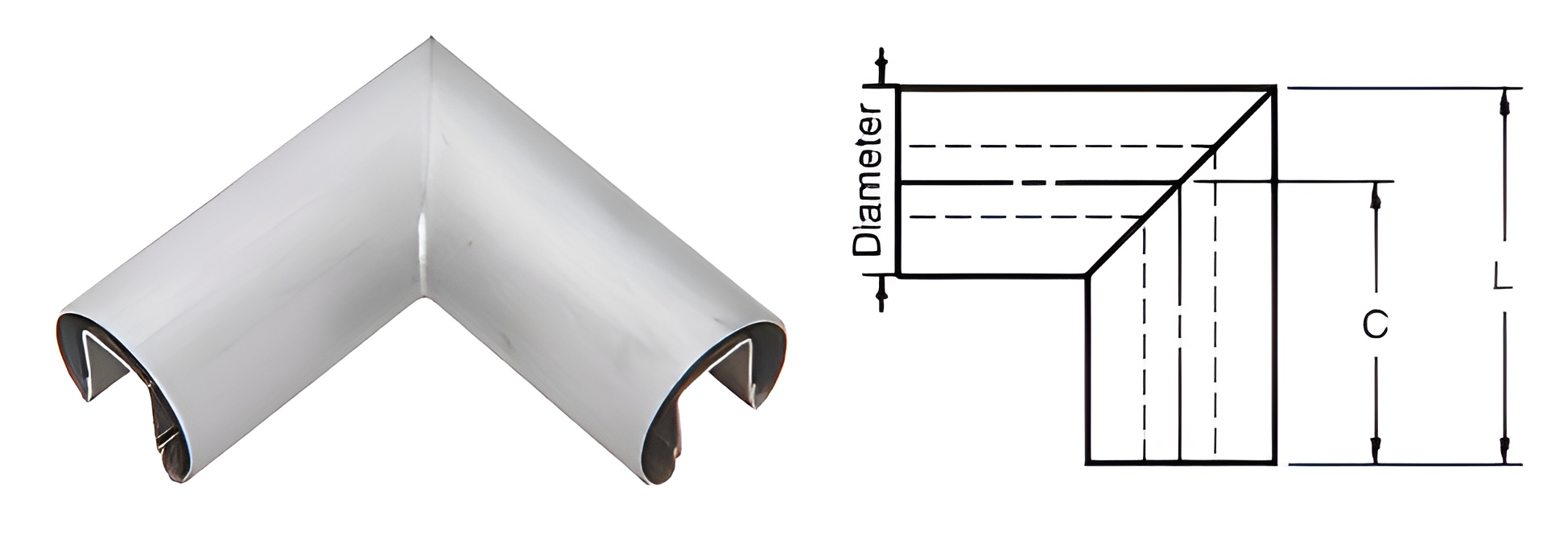

Brushed Stainless 3-1/2" Diameter 90 Degree Horizontal Corner for 1/2" or 5/8" Glass Cap Railing
- Welded, Finished, and Ready-to-Install
- Four Architectural Finishes
- Requires Two Connector Sleeves (Not Included)
Interior slip-fit Horizontal Corners for 1/2" (12 mm) or 5/8" (16 mm) thick glass allow for hairline joint assemblies with straight lengths of
CRL Cap Rail. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each corner.
Each Horizontal Corner is fabricated, finished, and individually packed. All of our stainless and brass corners are fabricated from CRL Premium Cap Rail, and are welded and finished to match. Standard stainless alloy is 304. Stainless alloy 316 is available on special order. For brass, alloy 260 is standard.
Please contact
CRL Technical Sales for more information or a quote.
NOTE: With the exception of the GR15 Series Cap Rail Corners, when used with 1/2" (12 mm) glass, our GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When using GR15 Series Cap Rail Corners or 5/8" (16 mm) glass, use 95CBL Silicone and shims only to secure the glass.
Product Warning:
When used with 1/2" (12 mm) glass, our GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When used with 5/8" (16 mm) glass, secure with shims and 95CBL Silicone.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Angle: 90
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Material: Stainless Steel
Shipping Limitations: None
