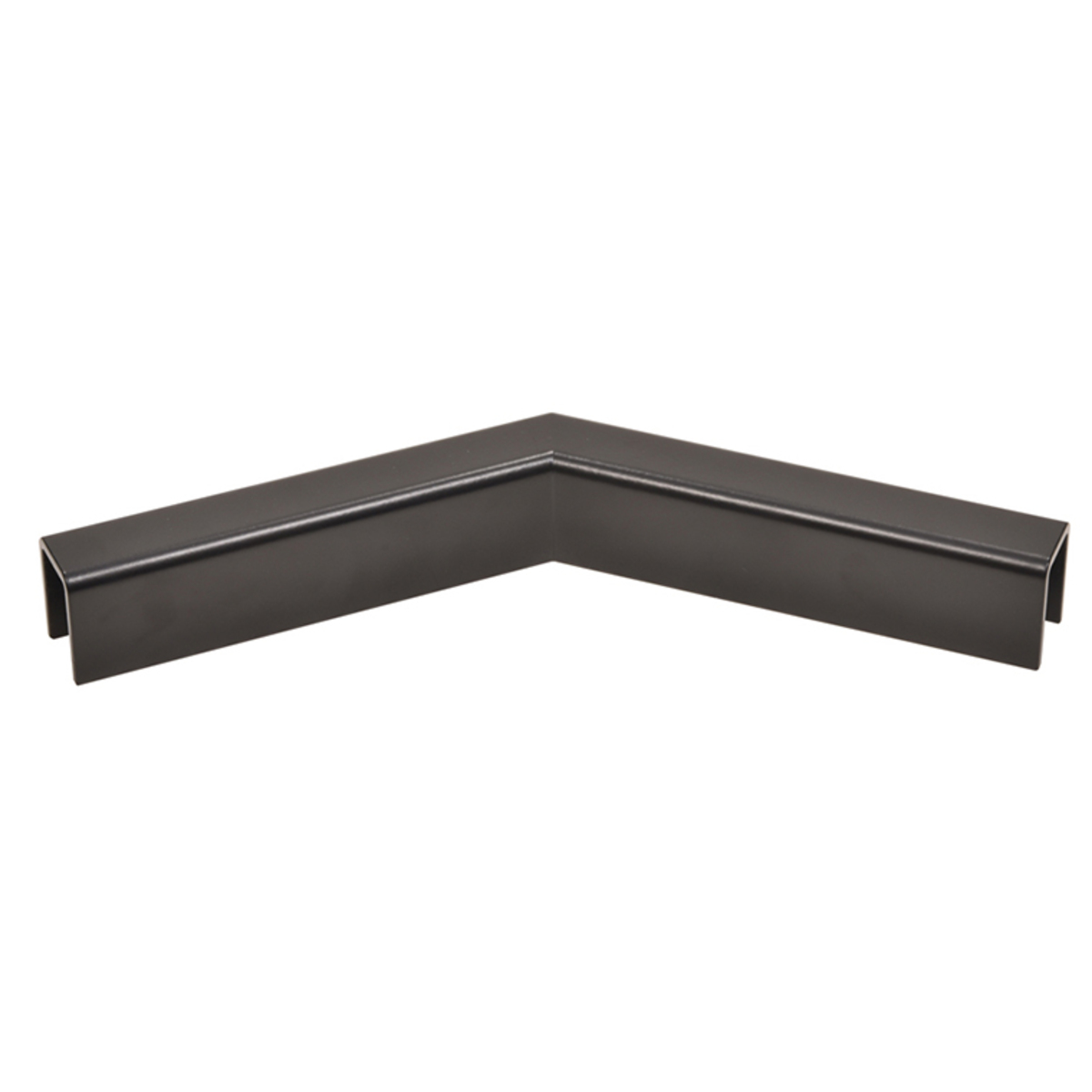

CRL GRL10H3MBL Matte Black 11 Ga 135 Horizontal Corner for 1/2" Glass Low Profile Cap Rail

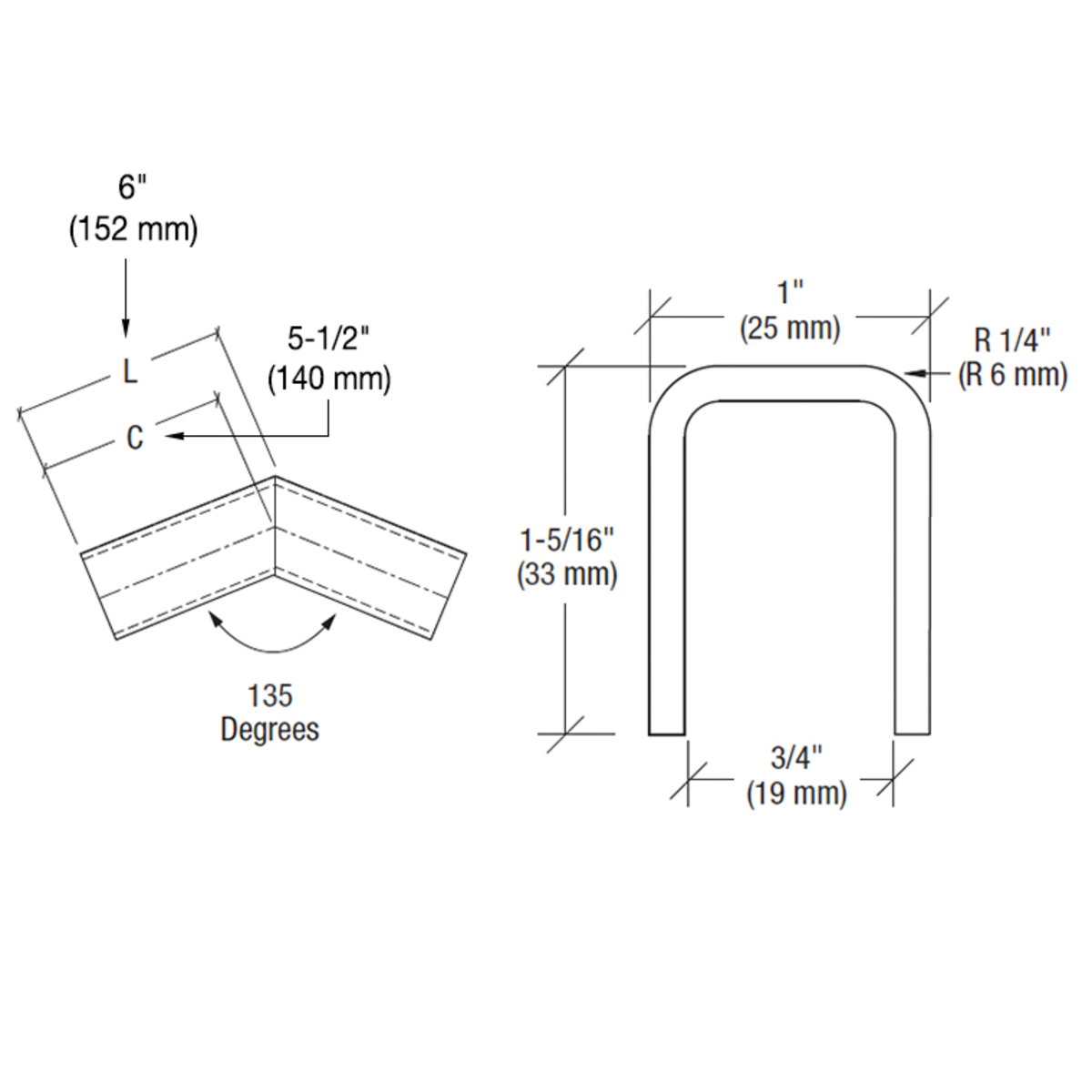

C.R. Laurence GRL10H3MBL Matte Black 11 Gauge 135 Degree Horizontal Corner for 1/2" Glass Low Profile Cap Rail is expertly designed for seamless integration into your architectural projects. This corner fitting accommodates both 1/2" (12 mm) and 5/8" (16 mm) thick glass, providing versatility for various applications. Crafted from durable stainless steel and finished in a sleek matte black, this corner piece not only enhances aesthetic appeal but also ensures long-lasting performance. Featuring welded and finished construction, the GRL10H3MBL is ready to install right out of the box. It allows for hairline joint assemblies with straight lengths of CRL 11 Gauge Cap Railing, making it an ideal choice for contemporary railing systems. For secure and permanent bonding, pair this corner with CRL's Cat. No. 32629 Metal Contact Cement and utilize two connector sleeves for each corner. When working with 1/2" glass, CRL's GR5PV Cap Rail Vinyl and 95CBL Silicone should be used for securing the glass. For 5/8" glass, simply use 95CBL Silicone and shims. With a centerline measurement of 5-1/2 inches and a length of 6 inches, the GRL10H3MBL delivers both precision and reliability for your glazing needs.

Matte Black 11 Gauge 135 Degree Horizontal Corner for 1/2" Glass Low Profile Cap Rail

• Two Profiles for 1/2" (12 mm) or 5/8" (16 mm) Glass
• Three Finishes Available
• Welded and Finished
• Ready-to-Install

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• GRS Base Shoe Quote Request Form
• GRS Cap Railing System Quote Request Form
• GRS Cap Railing System Quote Request Form
• Windscreen and Pool Fencing Systems Product Information
