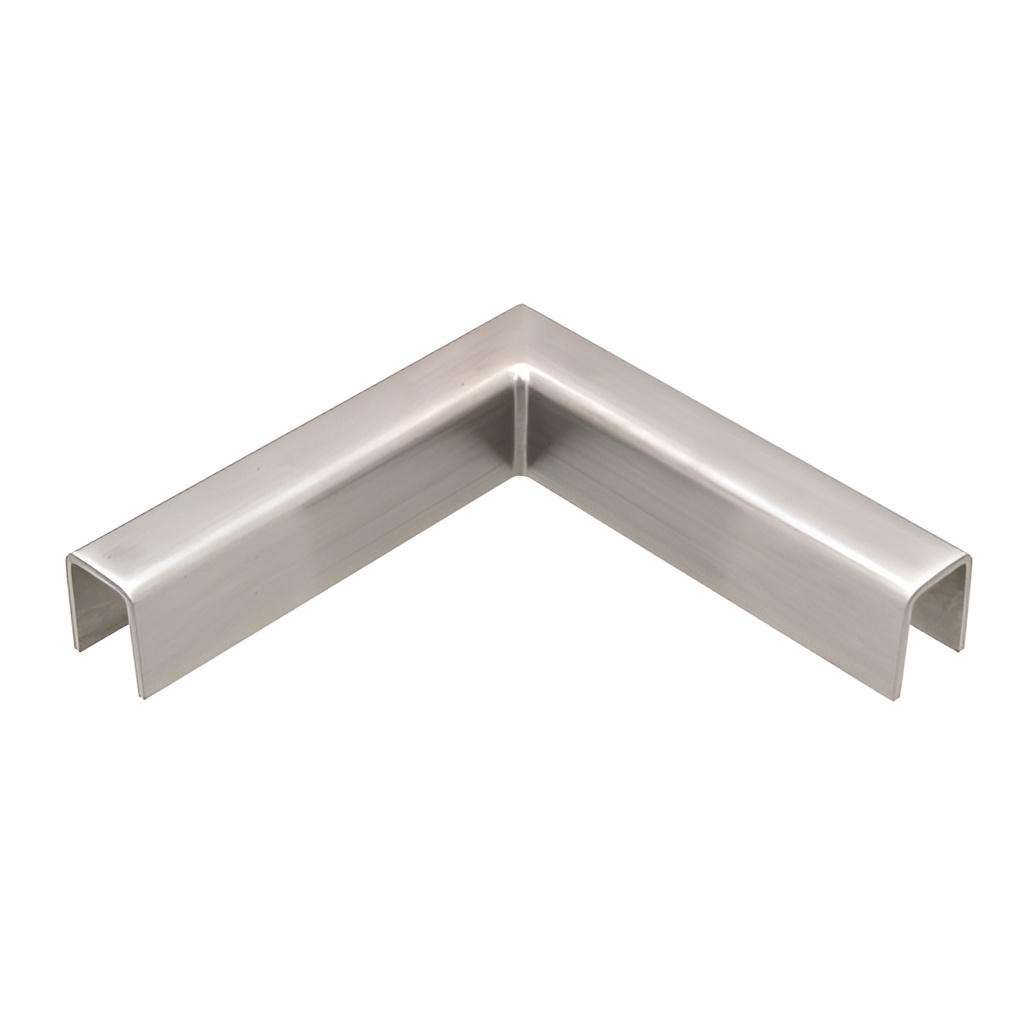

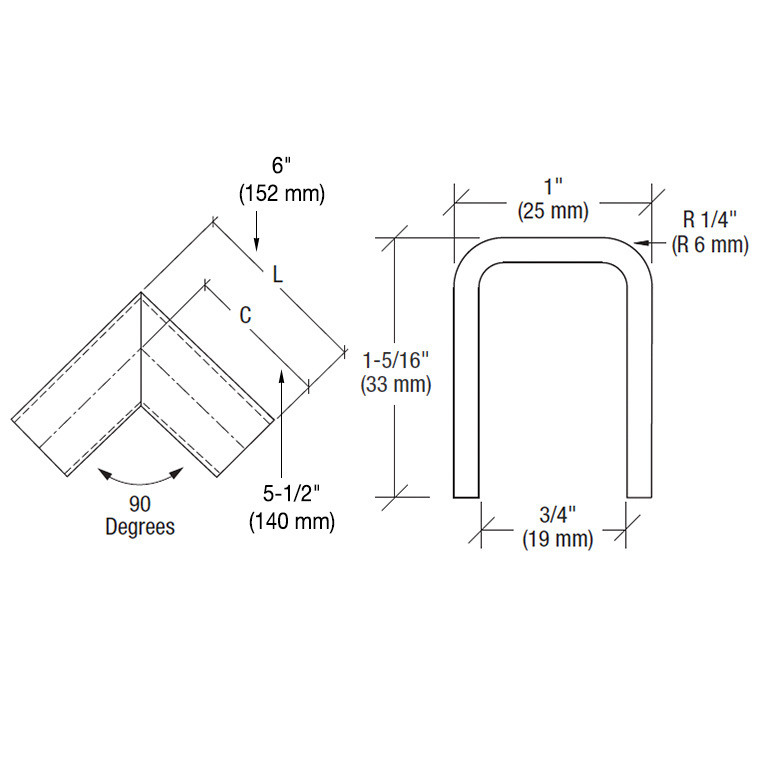

C.R. Laurence GRL10HBS 316 Brushed Stainless 90 Degree Horizontal Corner for 11 Gauge Low Profile Cap Railings is engineered for seamless integration into your architectural designs. This corner fitting accommodates both 1/2" (12 mm) and 5/8" (16 mm) thick glass, allowing for hairline joint assemblies that enhance the visual appeal of any space. Crafted from durable 316 stainless steel, the brushed finish not only provides a modern aesthetic but also ensures resistance to corrosion, maintaining its elegance with periodic maintenance. Designed for ease of installation, the GRL10HBS comes ready-to-install, eliminating the need for complicated assembly processes. Two connector sleeves are required for use with each corner, and for optimal performance, CRL’s Cat. No. 32629 Metal Contact Cement is recommended for a secure bond. When working with 1/2" glass, utilize GR5PV Cap Rail Vinyl and 95CBL Silicone for effective securing; for 5/8" glass, rely on 95CBL Silicone and shims. With a centerline measurement of 5-1/2 inches (139.7 mm) and a compact length of 6 inches (152.4 mm), this product is versatile enough for various applications while ensuring compliance with industry standards. Elevate your railing systems with the reliability and style of C.R. Laurence's GRL10HBS corner fitting.

316 Brushed Stainless 90 Degree Horizontal Corner for 11 Gauge Low Profile Cap Railings

• Two Profiles for 1/2" (12 mm) or 5/8" (16 mm) Glass
• Two Finishes Available
• Welded and Finished
• Ready-to-Install

Stainless Steel Advisory:
