C.R. Laurence GRL10HMBL Matte Black 90 Degree Horizontal Corner for 11 Gauge Low Profile Cap Railings offers a sleek and modern solution for creating visually appealing glass railings. Designed for use with 1/2" (12 mm) and 5/8" (16 mm) thick glass, this corner fitting facilitates hairline joint assemblies with straight lengths of CRL 11 Gauge Cap Railing. The welded and finished construction ensures durability, while its ready-to-install design saves time on-site. Available in three finishes, the matte black option not only complements contemporary aesthetics but also enhances the overall visual appeal of your installation. Each corner requires two connector sleeves for secure attachment, and for optimal adhesion, CRL’s Cat. No. 32629 Metal Contact Cement is recommended. When working with 1/2" glass, use the GR5PV Cap Rail Vinyl and 95CBL Silicone to achieve a secure fit; for 5/8" glass, rely on 95CBL Silicone and shims only. With a centerline measurement of 5-1/2 in. (139.7 mm) and a length of 6 in. (152.4 mm), this stainless steel corner is engineered to meet the demands of professional applications while delivering a clean, modern finish.

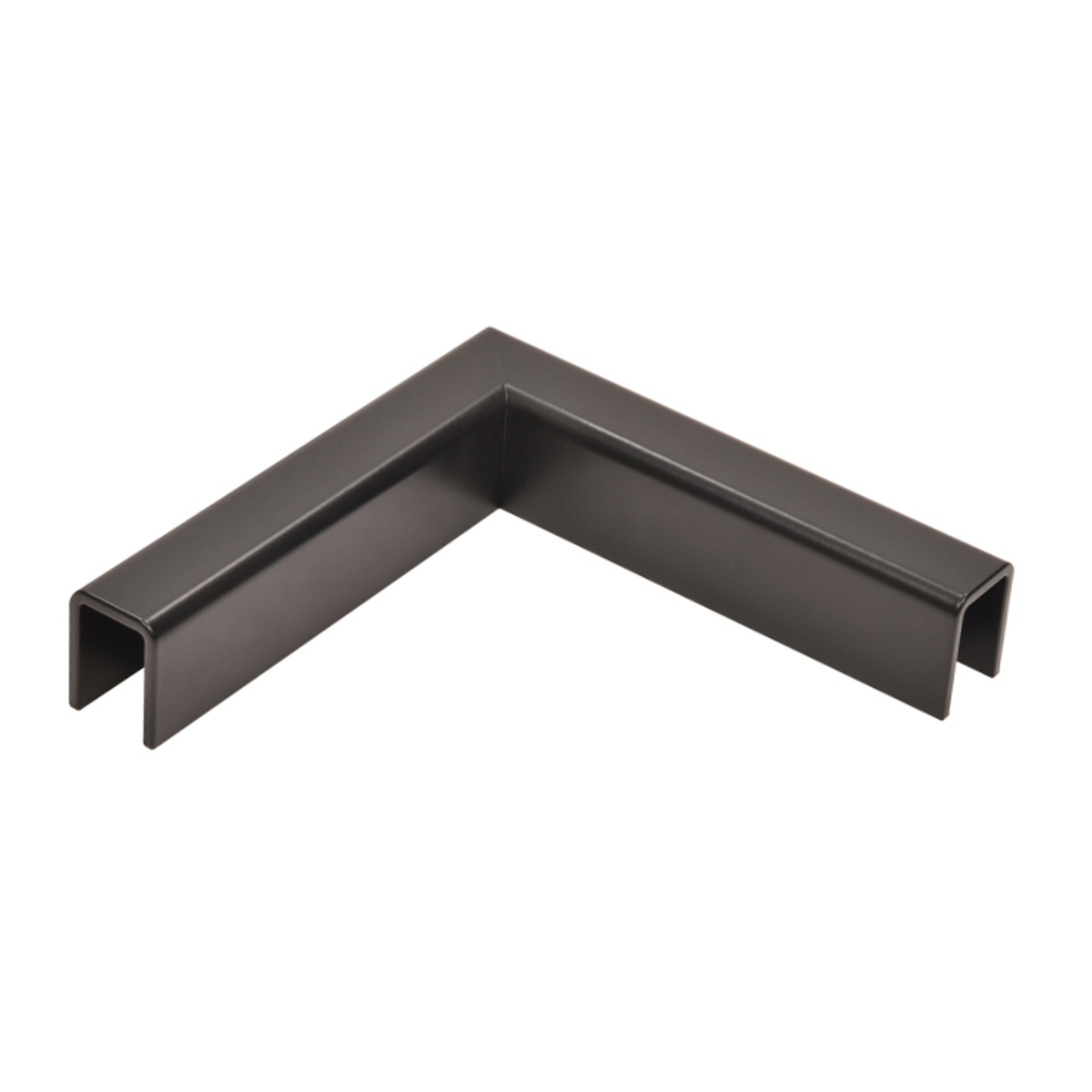

Matte Black 90 Degree Horizontal Corner for 11 Gauge Low Profile Cap Railings
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Angle: 90
Centerline: 5-1/2 in. (139.7 mm)
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Matte Black
Glazing Thickness: 1/2 in. & 5/8 in. (12 mm & 16 mm)
Length: 6 in. (152.4 mm)
Material: Stainless Steel
Shipping Limitations: None
