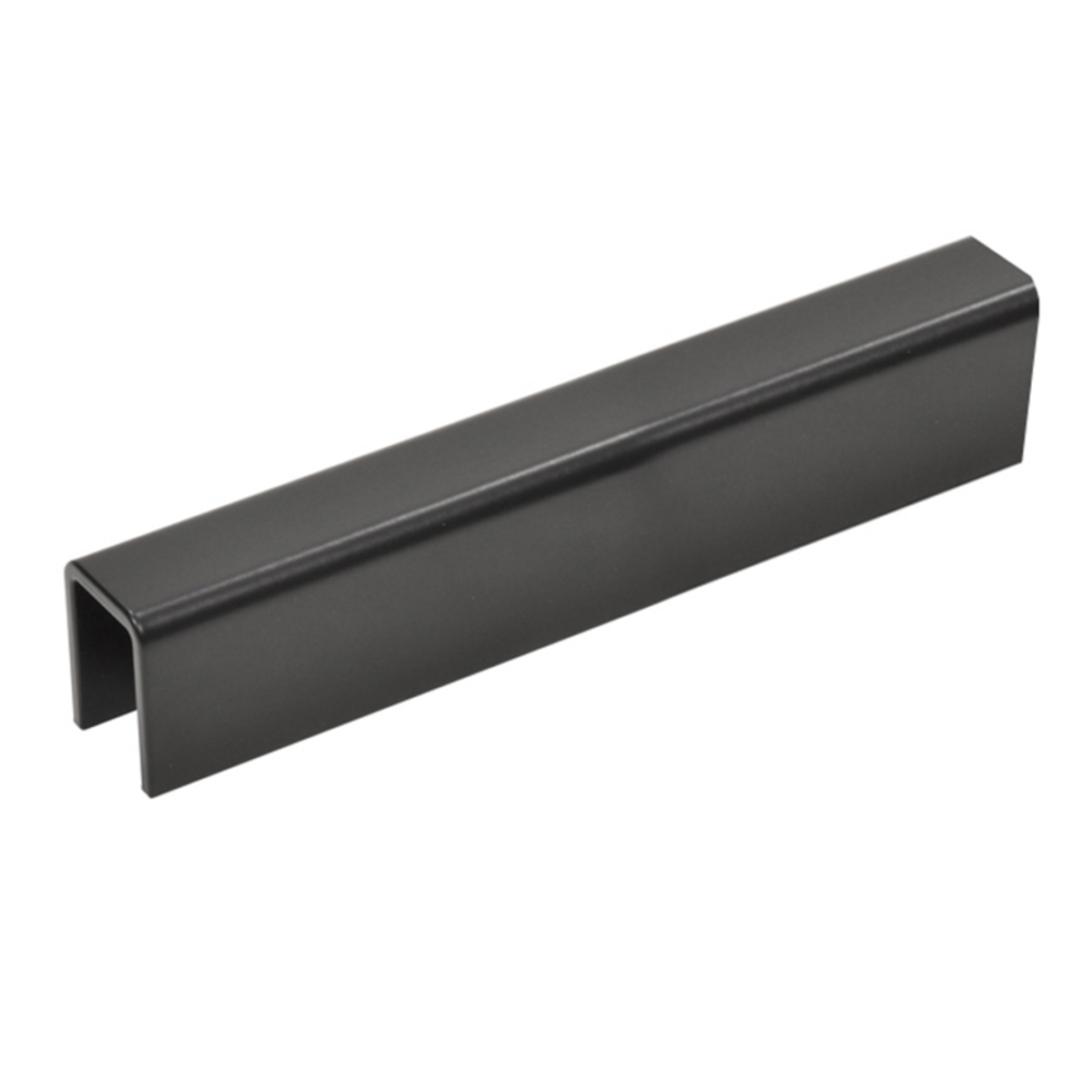

CRL GRL10MBL Matte Black 11 Gauge Cap Rail for 1/2" 5/8" Glass

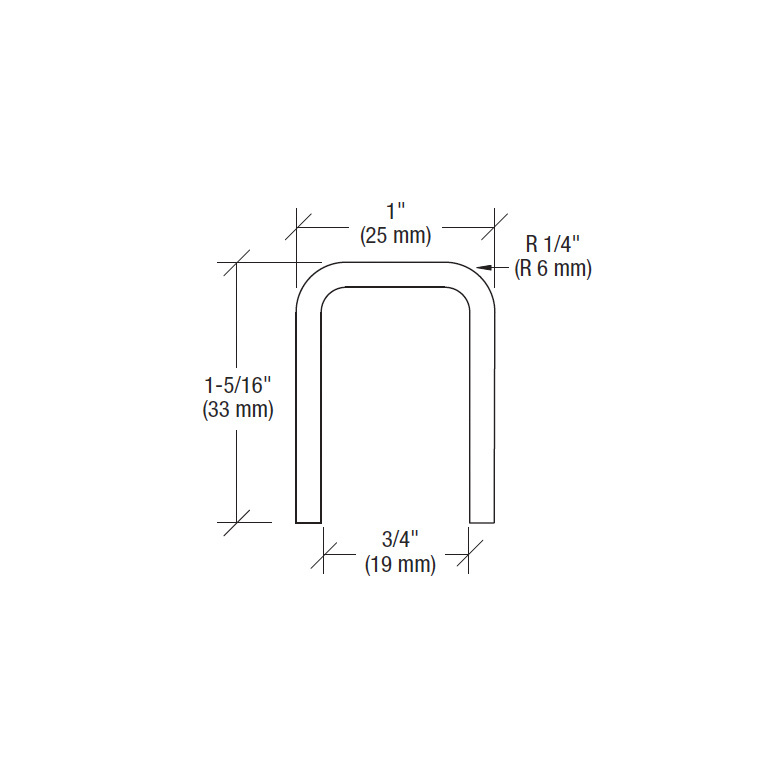

C.R. Laurence GRL10MBL Matte Black 11 Gauge Cap Rail for 1/2" or 5/8" Glass is an essential component for any guard rail application. Crafted from durable 6063-T5 aluminum, this cap rail is designed to provide robust protection for the edges of monolithic glass panels while securely holding them together. With a height of 1-5/16 inches and a width of 1 inch, this rail is perfectly suited for both 1/2 inch (12 mm) and 5/8 inch (16 mm) glass thicknesses. The GRL10MBL effectively connects to fabricated corners and end caps, ensuring a seamless installation that enhances safety and aesthetics. Available in three architectural finishes, this matte black option adds a modern touch to any space. When utilizing this cap rail with 1/2 inch glass, pairing it with GR5PV Cap Rail Vinyl and 95CBL Silicone is recommended, while 5/8 inch glass installations should be secured with 95CBL Silicone and shims. Measuring 10 feet in length, the GRL10MBL is ideal for extensive projects. For optimal performance, consult with the CRL Technical Sales Department for further assistance. This cap rail not only meets rigorous standards but also elevates the overall design of your glass installations.

Matte Black 11 Gauge Cap Rail for 1/2" or 5/8" Glass

• For 1/2" (12 mm) or 5/8" (16 mm) Monolithic Glass
• Designed for Use as a Top Rail for Guard Rail Applications
• Protects Glass Edge
• Secures Glass Panels Together
• Available in Three Architectural Finishes
• Connects to Fabricated Corners and End Caps

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• GRS Base Shoe Quote Request Form
• GRS Cap Railing System Quote Request Form
• GRS Cap Railing System Quote Request Form
• GRS Cap Rails Engineering Report 07-2020
• Windscreen and Pool Fencing Systems Product Information
