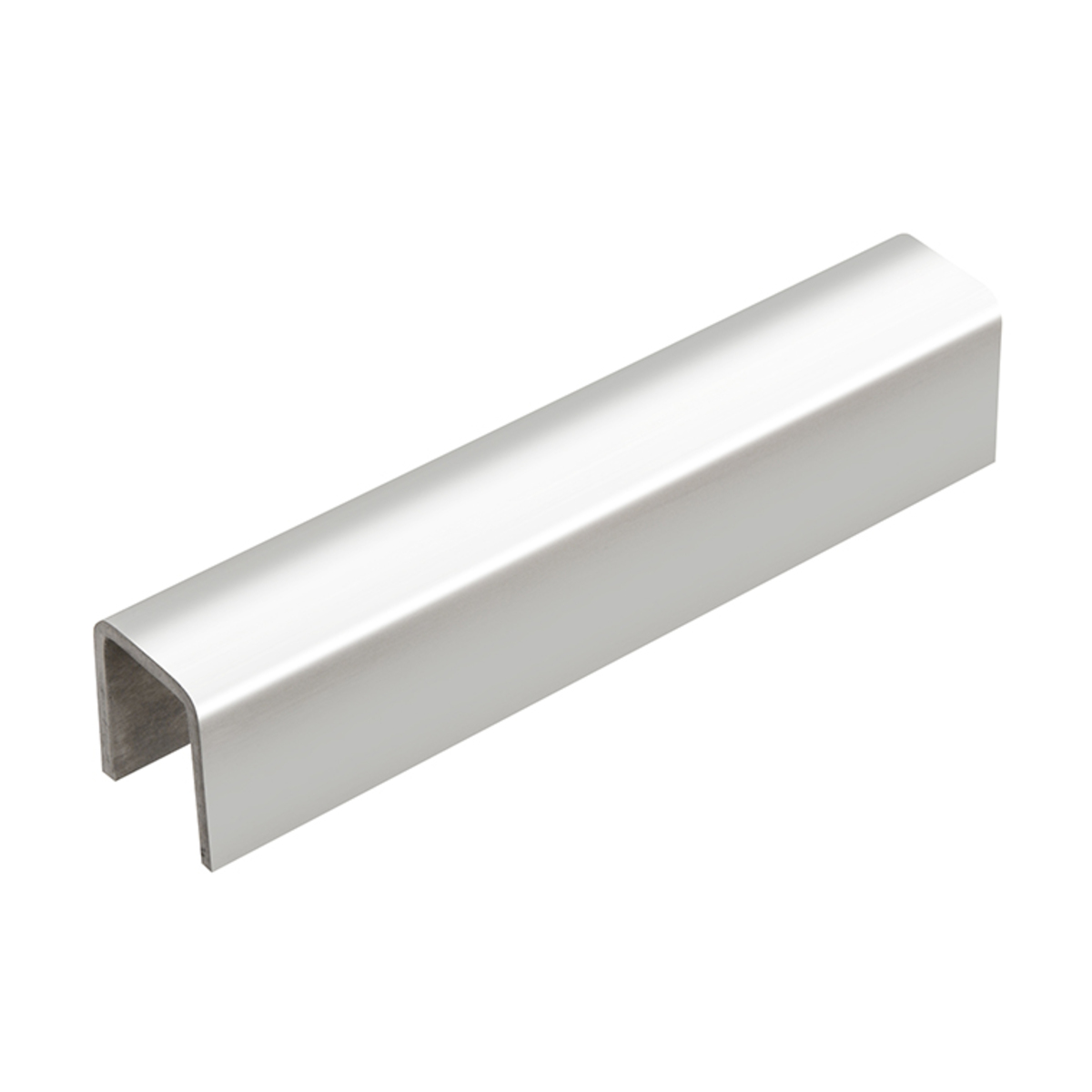

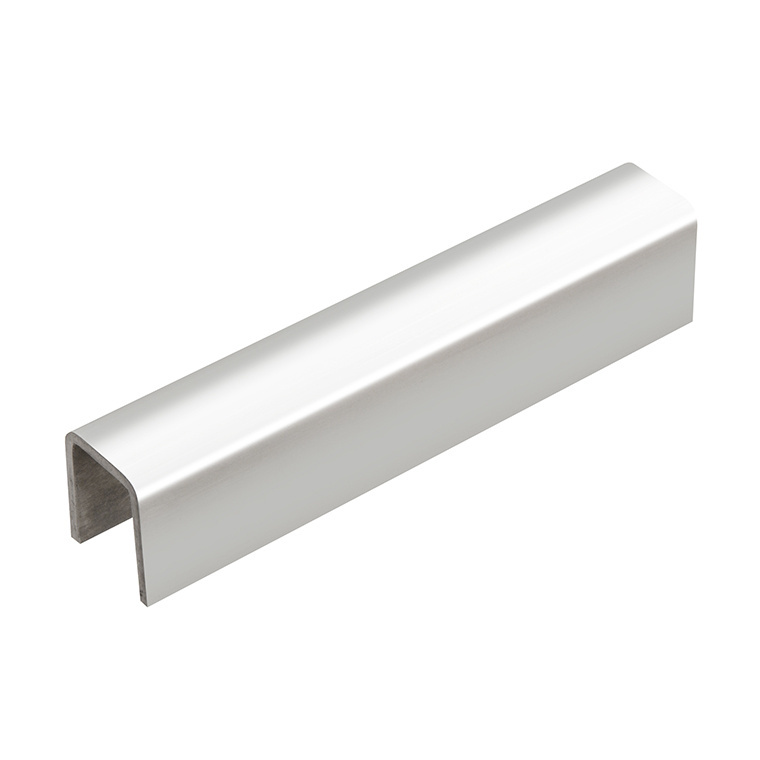

CRL GRL10PS 316 Polished Stainless 11 Ga Cap Rail for 1/2" or 5/8" Glass

C.R. Laurence GRL10PS 316 Polished Stainless 11 Gauge Cap Rail for 1/2" or 5/8" Glass offers a robust and elegant solution for securing glass panels in guard rail applications. Crafted from 316 stainless steel, this cap rail is designed to protect the edges of monolithic glass while effectively securing multiple panels together, ensuring both safety and aesthetic appeal. This low profile cap rail accommodates glass thicknesses of 1/2" (12 mm) and 5/8" (16 mm), making it versatile for various installations. With a height of 1-5/16 inches (33 mm) and a width of 1 inch (25 mm), it provides a sleek profile that enhances any architectural design. The GRL10PS is available in two architectural finishes, allowing for customization to fit your project’s needs. For proper installation, it connects seamlessly to fabricated corners and end caps, ensuring a polished look. Note that when using with 1/2" glass, it is recommended to secure with GR5PV Cap Rail Vinyl and 95CBL Silicone; for 5/8" glass, use 95CBL Silicone along with shims. This cap rail comes in a standard length of 10 feet (3.05 m), making it an ideal choice for both commercial and residential projects.

316 Polished Stainless 11 Gauge Cap Rail for 1/2" or 5/8" Glass

• For 1/2" (12 mm) or 5/8" (16 mm) Monolithic Glass
• Designed for Use as a Top Rail for Guard Rail Applications
• Protects Glass Edge
• Secures Glass Panels Together
• Available in Two Architectural Finishes
• Connects to Fabricated Corners and End Caps

Stainless Steel Advisory:

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• CRL Stainless Steel Disclaimer
• GRS Base Shoe Quote Request Form
• GRS Cap Railing System Quote Request Form
• GRS Cap Railing System Quote Request Form
• GRS Cap Rails Engineering Report 07-2020
• Windscreen and Pool Fencing Systems Product Information
