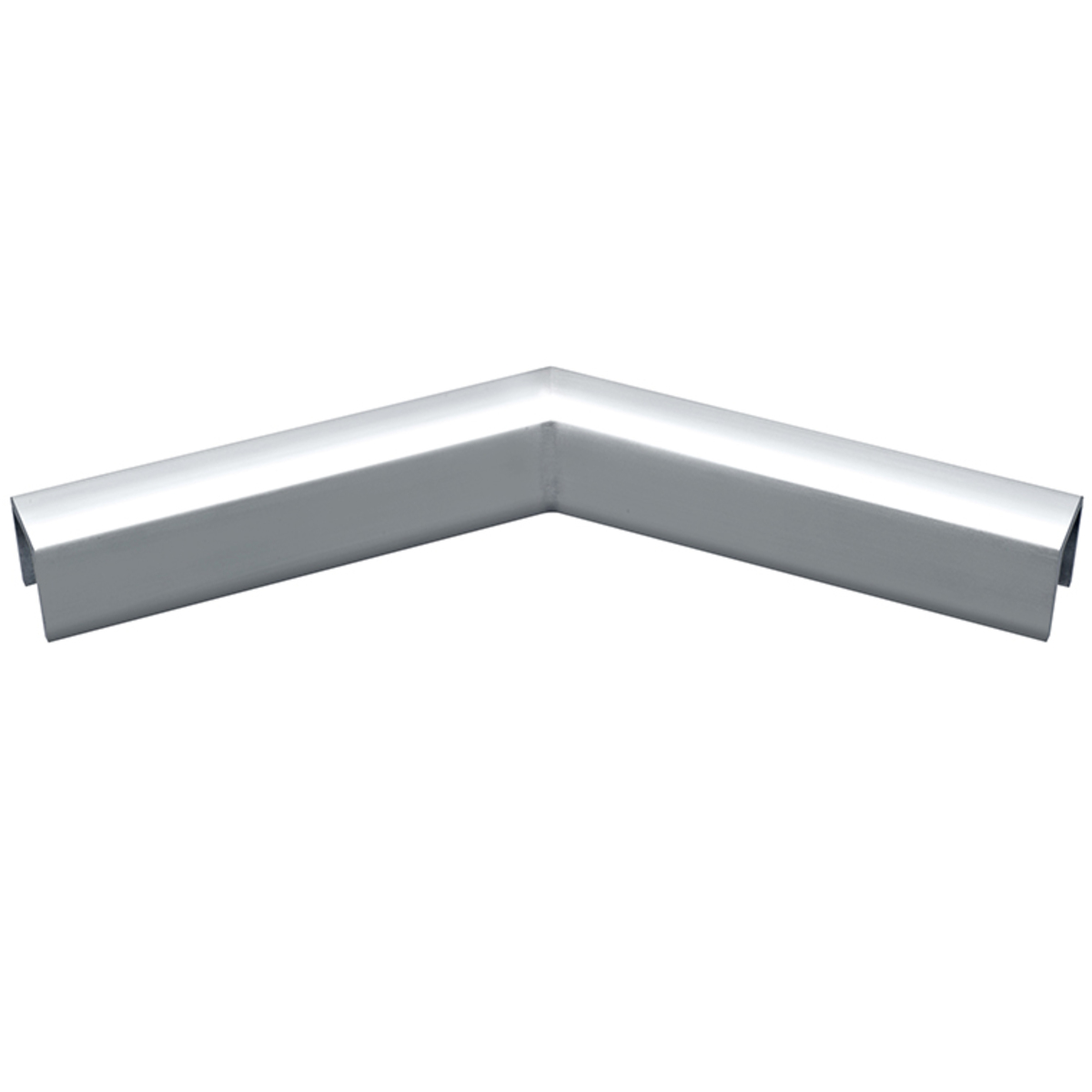

CRL GRLC10H3PS Polished Stainless 11 Gauge 135 Horizontal Corner for 1/2" Glass Cap Rail

C.R. Laurence GRLC10H3PS Polished Stainless 11 Gauge 135 Degree Horizontal Corner for 1/2" Glass Crisp Corner Cap Rail offers a sophisticated solution for creating seamless and elegant glass installations. Designed for both 1/2" (12 mm) and 5/8" (16 mm) thick glass, this corner fitting enables hairline joint assemblies when paired with CRL 11 Gauge Cap Railing, ensuring a polished look that complements modern architecture. Made from durable 304 stainless steel, the GRLC10H3PS is not only welded and finished for ease of installation but also available in a second stainless alloy 316 upon special order. This product comes ready-to-install, making it a convenient choice for building professionals and knowledgeable homeowners alike. For optimal performance, use CRL Cat. No. 32629 Metal Contact Cement to create a secure, long-lasting bond. Each corner requires two connector sleeves for proper installation. When working with 1/2" glass, it is recommended to use GR5PV Cap Rail Vinyl and 95CBL Silicone for securing the glass. In contrast, for 5/8" glass, rely solely on 95CBL Silicone and shims. With a polished stainless steel finish, the GRLC10H3PS not only enhances structural integrity but also elevates the aesthetic appeal of any space.

Polished Stainless 11 Gauge 135 Degree Horizontal Corner for 1/2" Glass Crisp Corner Cap Rail

• Two Profiles for 1/2" (12 mm) or 5/8" (16 mm) Glass
• Two Finishes Available
• Welded and Finished
• Ready-to-Install

Stainless Steel Advisory:
