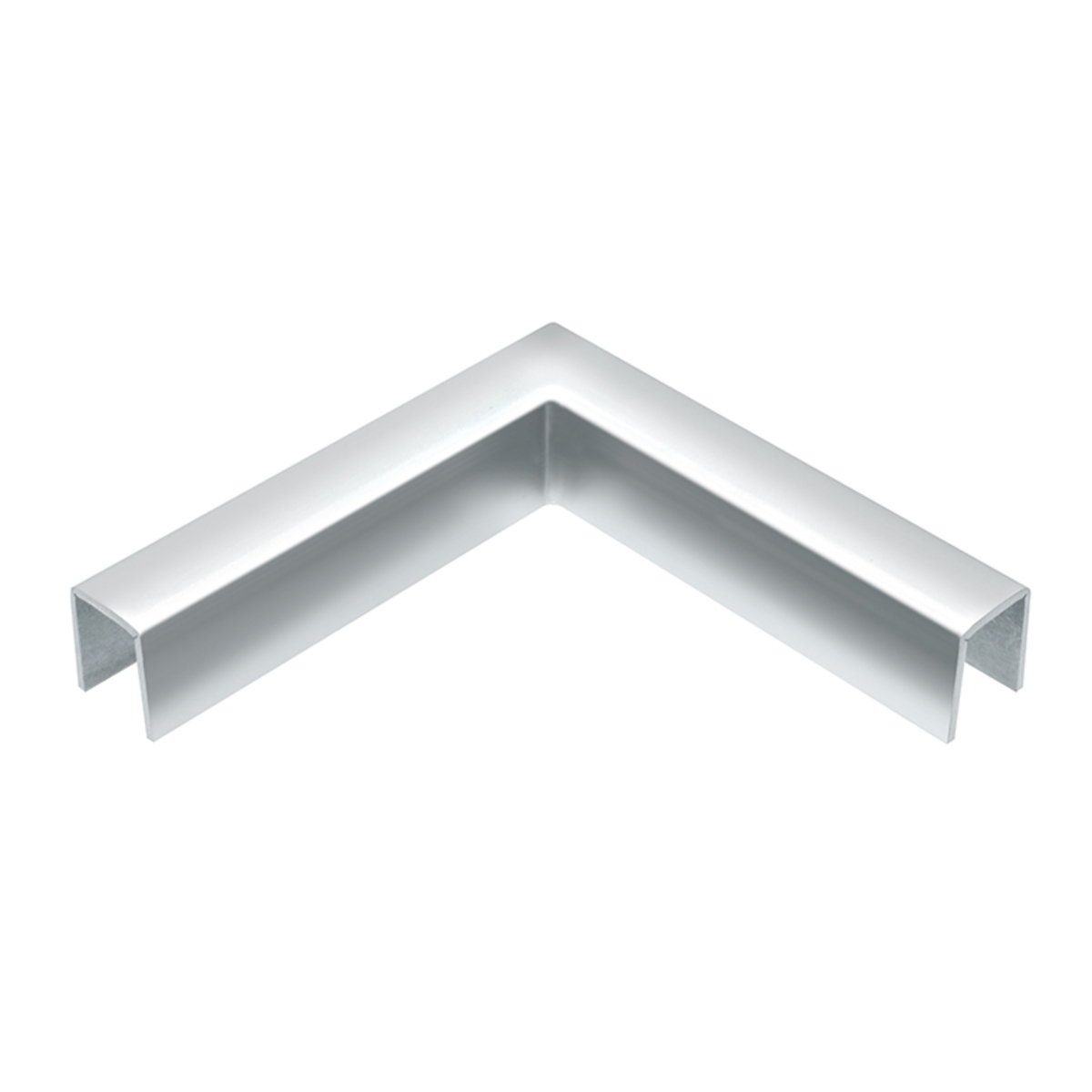

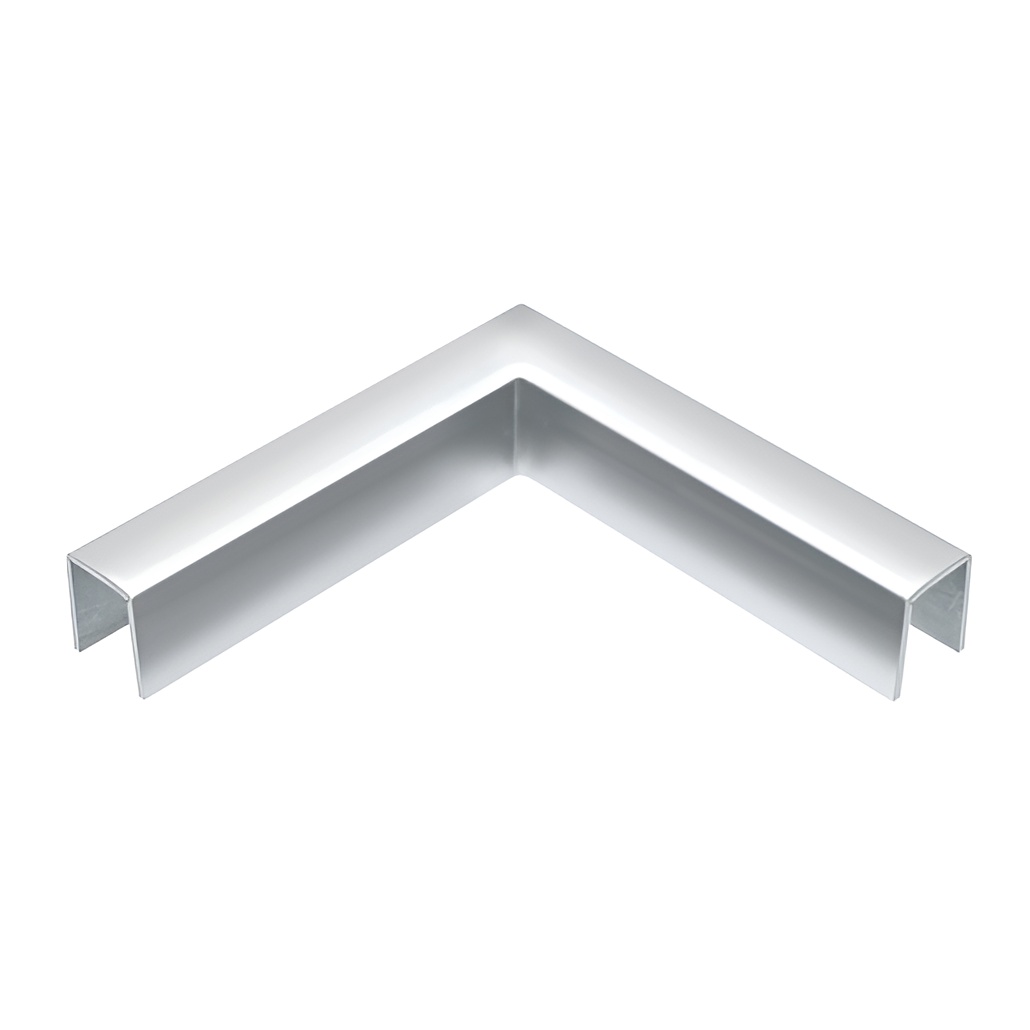

CRL GRLC10HPS Polished Stainless 90 Horizontal Corner for 11 Gauge Cap Railings

C.R. Laurence GRLC10HPS Polished Stainless 90 Degree Horizontal Corner for 11 Gauge Crisp Corner Cap Railings provides an elegant solution for seamless glass installations. Designed to accommodate both 1/2" (12 mm) and 5/8" (16 mm) thick glass, this corner fitting ensures hairline joint assemblies with CRL's 11 Gauge Cap Railing system. Crafted from high-quality 304 stainless steel, the polished finish adds a touch of sophistication while maintaining durability. This corner fitting is ready-to-install, featuring welded and finished components for a clean appearance. Two profiles are available to meet your specific project requirements, and for optimal performance, two Connector Sleeves are needed with each corner. To achieve a secure and permanent bond, we recommend using CRL's Cat. No. 32629 Metal Contact Cement. When using the GRLC10HPS with 1/2" glass, the GR5PV Cap Rail Vinyl and 95CBL Silicone should be utilized for secure attachment. For 5/8" glass, rely on 95CBL Silicone and shims. Although resistant to corrosion, periodic maintenance is advised to preserve the stainless steel's factory finish. Elevate your railing system with this functional and stylish corner solution from C.R. Laurence.

Polished Stainless 90 Degree Horizontal Corner for 11 Gauge Crisp Corner Cap Railings

• Two Profiles for 1/2" (12 mm) or 5/8" (16 mm) Glass
• Two Finishes Available
• Welded and Finished
• Ready-to-Install

Stainless Steel Advisory:
