CRL GRS15H3PS Polished Stainless 135 Horizontal Corner for 1.5" Square Glass RailingC.R. Laurence GRS15H3PS Polished Stainless 135 Degree Horizontal Corner for 1-1/2" Square Glass Cap Railing is expertly designed to elevate the aesthetic and structural integrity of your glass railing systems. Featuring a square profile, this corner is crafted from premium stainless steel, ensuring durability and a polished finish that enhances the overall appearance of your installation. Each unit is welded and finished to provide a seamless, ready-to-install solution that guarantees hairline joint assemblies when paired with straight lengths of CRL Square Cap Rail. For optimal performance, two connector sleeves are required for installation, which are not included. This corner supports glass thicknesses ranging from 1/2" (12 mm) to 5/8" (16 mm), and requires the use of CRL Metal Contact Cement (Cat. No. 32629) to create a secure bond. Notably, it is compatible with both 304 and 316 stainless alloys, with the latter available upon request. For maintenance, CRL recommends periodic care to uphold the factory finish, recognizing that while stainless steel is corrosion-resistant, it is not entirely rust-proof. The GRS15H3PS is an essential component for achieving both functionality and style in architectural glass railing systems.

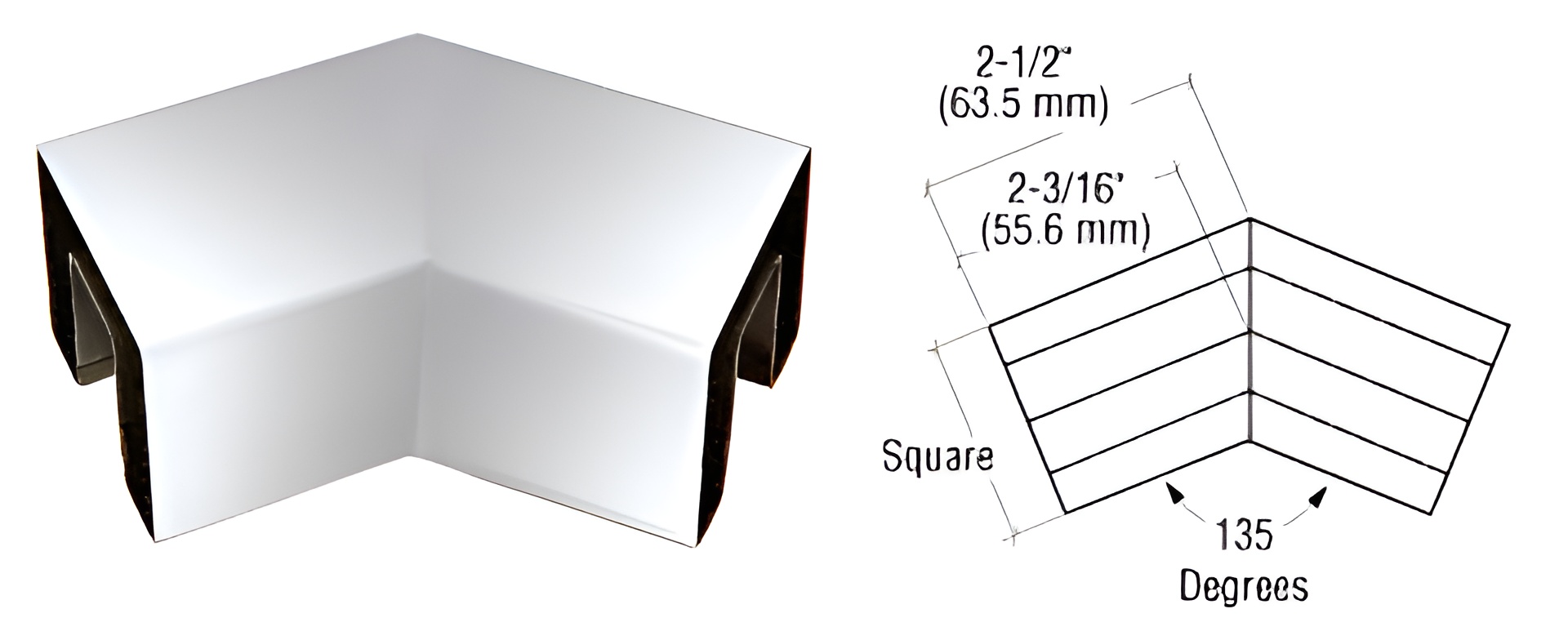

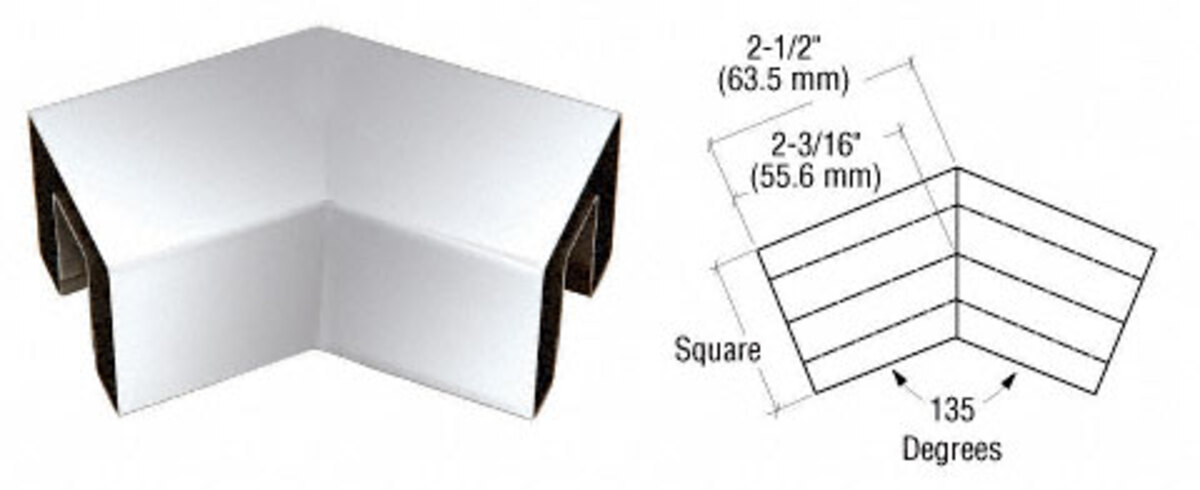

Polished Stainless 135 Degree Horizontal Corner for 1-1/2" Square Glass Cap Railing
- Square Profile
- Welded and Finished
- Ready-to-Install
- Two Finishes Available
- Requires Two Connector Sleeves (Not Included)
CRL Interior Slip-Fit Horizontal Corners for 1/2" (12 mm) to 5/8" (16 mm) thick glass allow for hairline joint assemblies with straight lengths of CRL Square Cap Rail. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each corner.
Each Horizontal Corner is fabricated, finished, and individually packed. All of our stainless corners are fabricated from CRL Premium Cap Rail, and are welded and finished to match. Standard stainless alloy is 304. Stainless alloy 316 is available on special order. Please contact CRL Technical Sales Department for more information or a quote.
NOTE: With the exception of the GRS15H3 Series Cap Rail Corners, when used with 1/2" (12 mm) glass, our GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When using GRS15H3 Series Cap Rail Corners with 5/8" (16 mm) glass, use 95CBL Silicone and shims only to secure the glass.
Product Warning:
With the exception of the GRS15 Series Cap Rail Corners, when used with 1/2" (12 mm) glass, our GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When using GRS15 Series Cap Rail Corners or 5/8" (16 mm) glass, use 95CBL Silicone and shims only to secure the glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Angle: 135
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Stainless Steel
Material: Stainless Steel
Shipping Limitations: None
