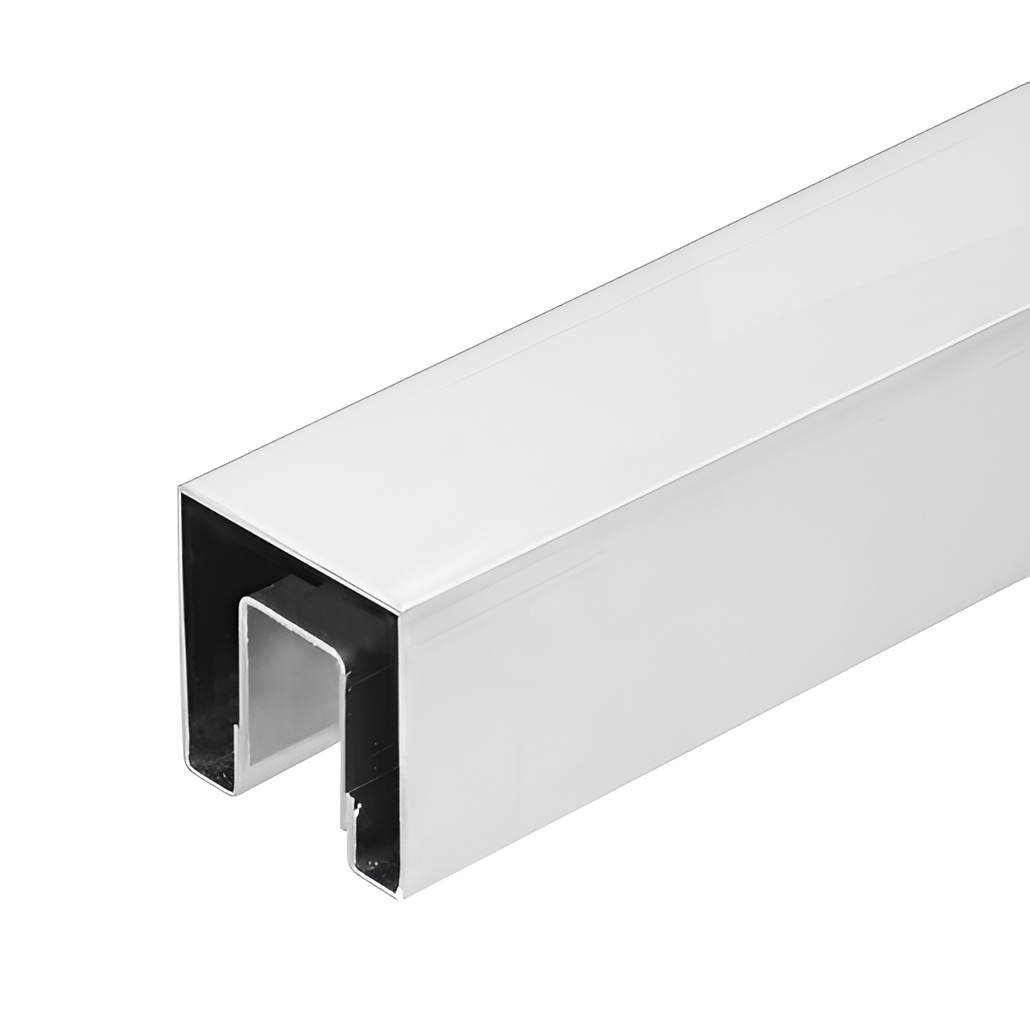

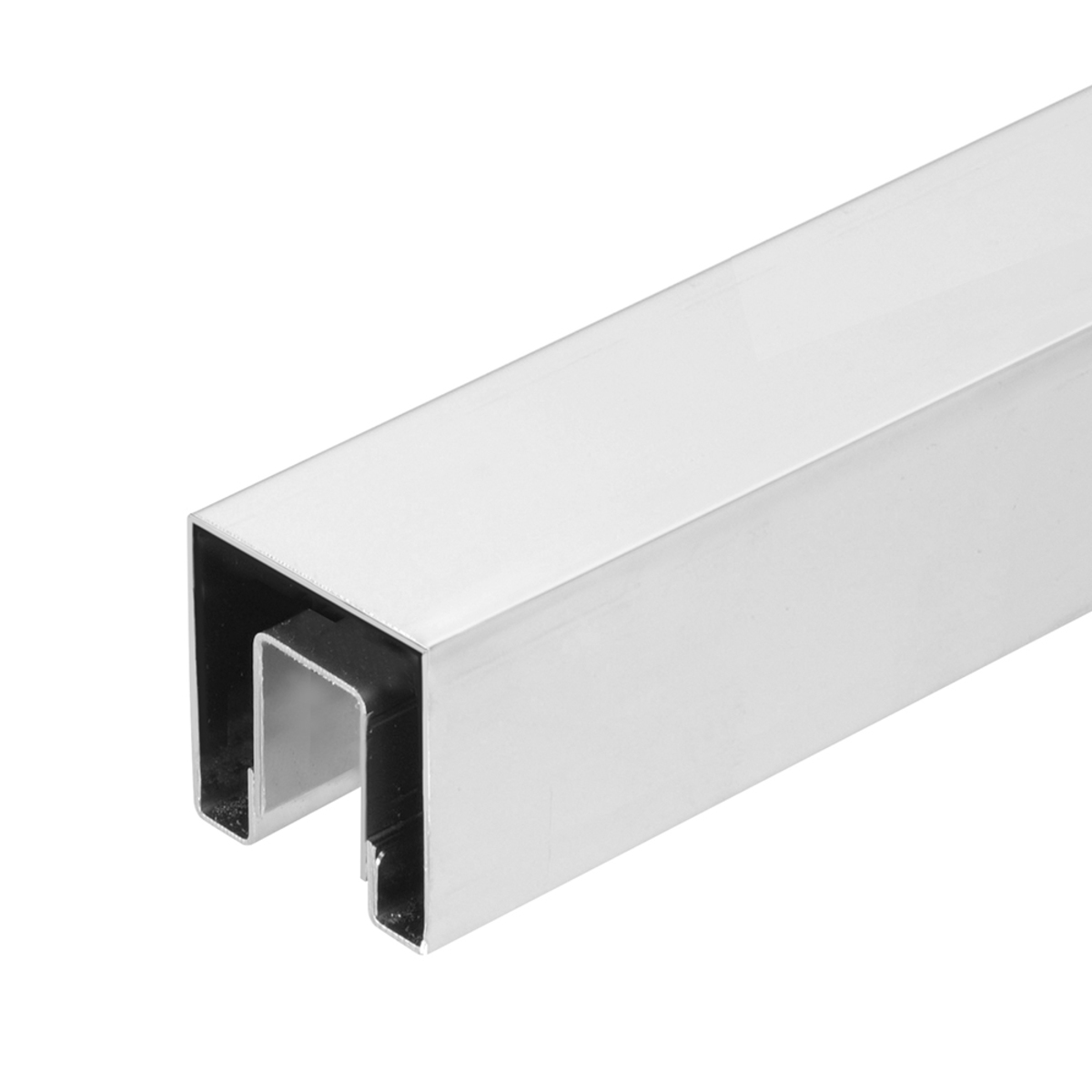

CRL GRSC207BS Brushed Stainless 2" Square Corner Cap Rail for 1/2" to 5/8" Glass

C.R. Laurence GRSC207BS Brushed Stainless 2" Square Crisp Corner Cap Rail is expertly designed for use with 1/2" (12 mm) to 5/8" (16 mm) glass, providing a sleek and modern aesthetic for various architectural applications. The unique Crisp Corner design enhances visual appeal while ensuring structural integrity through precision tooling that maintains uniform profiles. With 120" (3.05 m) stock lengths available in two sizes and finishes, this cap rail can be tailored to fit your project needs. Crafted from standard 304 stainless alloy, with the option of 316 alloy available upon special order, this cap rail is built to withstand the test of time. The internal channel is welded into place, significantly boosting strength and stability, and ensuring smooth hairline transitions at splices, corners, and end caps. For a secure bond at all connections, the use of Cat. No. 32629 Metal Contact Cement is recommended. The 1-1/2" (38 mm) square premium cap rail is specifically designed to work with 1/2" (12 mm) glass, secured with 95CBL Silicone and Shims. While stainless steel is resistant to corrosion, periodic maintenance is advised to preserve its factory finish. Ensure your architectural vision remains intact with C.R. Laurence's high-quality cap rails.

Brushed Stainless 2" Square Crisp Corner Cap Rail for 1/2 (12 mm) to 5/8 (16 mm) Glass

• Crisp Corner Design
• Use Sleeve No. GRS20CSS
• 120" (3.05 m) Stock Lengths Available in Two Sizes and Two Architectural Finishes
• Profiles Range From 1-1/2" (38 mm) to 2-1/2" (63.5 mm) Sizes
• 304 Stainless Alloy is Standard; 316 Alloy Available on Special Order

Stainless Steel Advisory:
