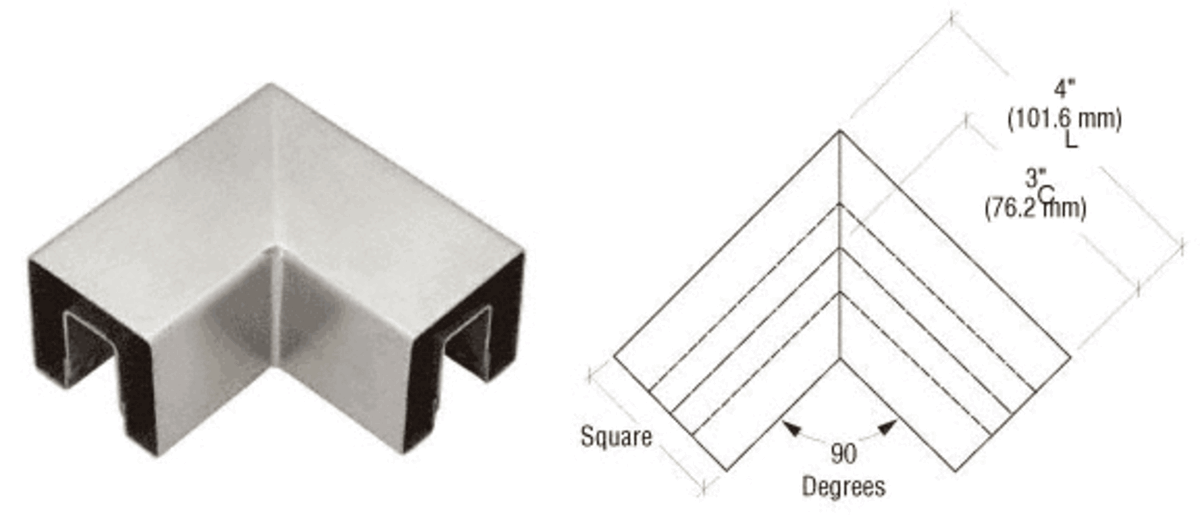

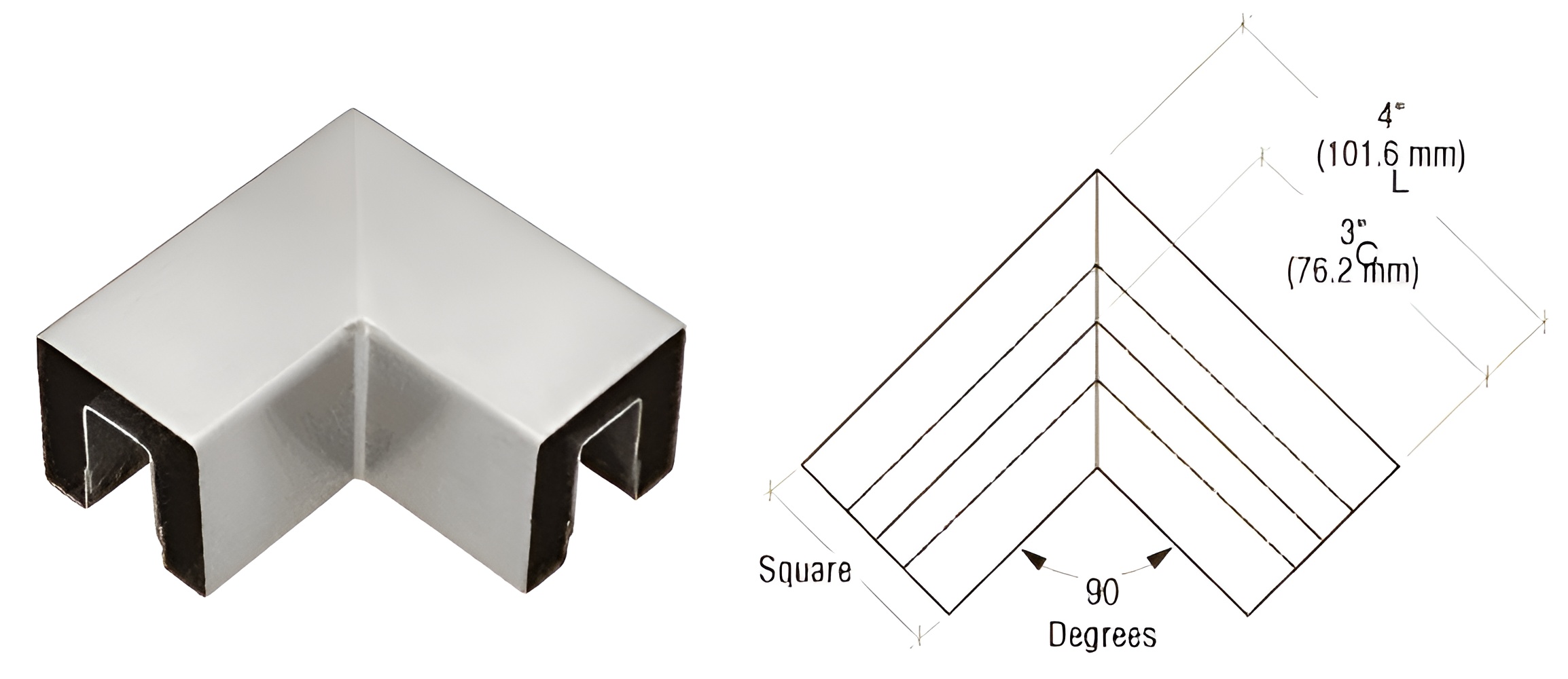

CRL GRSC20HBS Brushed Stainless 90 Square Cap for Horizontal Corners

C.R. Laurence GRSC20HBS Brushed Stainless 90 Degree Crisp Corner Square Cap Horizontal Corners offer a sleek and modern solution for glass assemblies, designed specifically for 1/2" (12 mm) to 5/8" (16 mm) thick glass. This innovative product features a new Crisp Corner profile, ensuring hairline joint assemblies that seamlessly integrate with straight lengths of CRL Crisp Corner Square Cap Rail. Ready to install, these horizontal corners facilitate a quick and efficient setup, ideal for both professional builders and knowledgeable homeowners. To achieve a secure and permanent bond, the use of CRL's Cat. No. 32629 Metal Contact Cement is essential. Each corner requires two Connector Sleeves for optimal performance. When working with 1/2" (12 mm) glass, CRL recommends pairing these corners with GR5PV Cap Rail Vinyl and 95CBL Silicone for effective glass securing. For 5/8" (16 mm) glass or GRSC15 Series Cap Rail Corners, use 95CBL Silicone and shims to ensure stability. Constructed from brushed stainless steel, these corners not only offer durability but also a stylish finish. Regular maintenance is suggested to preserve their factory sheen. With no shipping limitations, the GRSC20HBS is a versatile choice for any glazing project.

Brushed Stainless 90 Degree Crisp Corner Square Cap Horizontal Corners

• New Crisp Corner Profile
• Ready-to-Install

Stainless Steel Advisory:

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• CRL Stainless Steel Disclaimer
• GRS Base Shoe Quote Request Form
• GRS Base Shoe Quote Request Form
• GRS Cap Railing System Quote Request Form
• GRS Cap Railing System Quote Request Form
• Windscreen and Pool Fencing Systems Product Information
• Windscreen and Pool Fencing Systems Product Information
