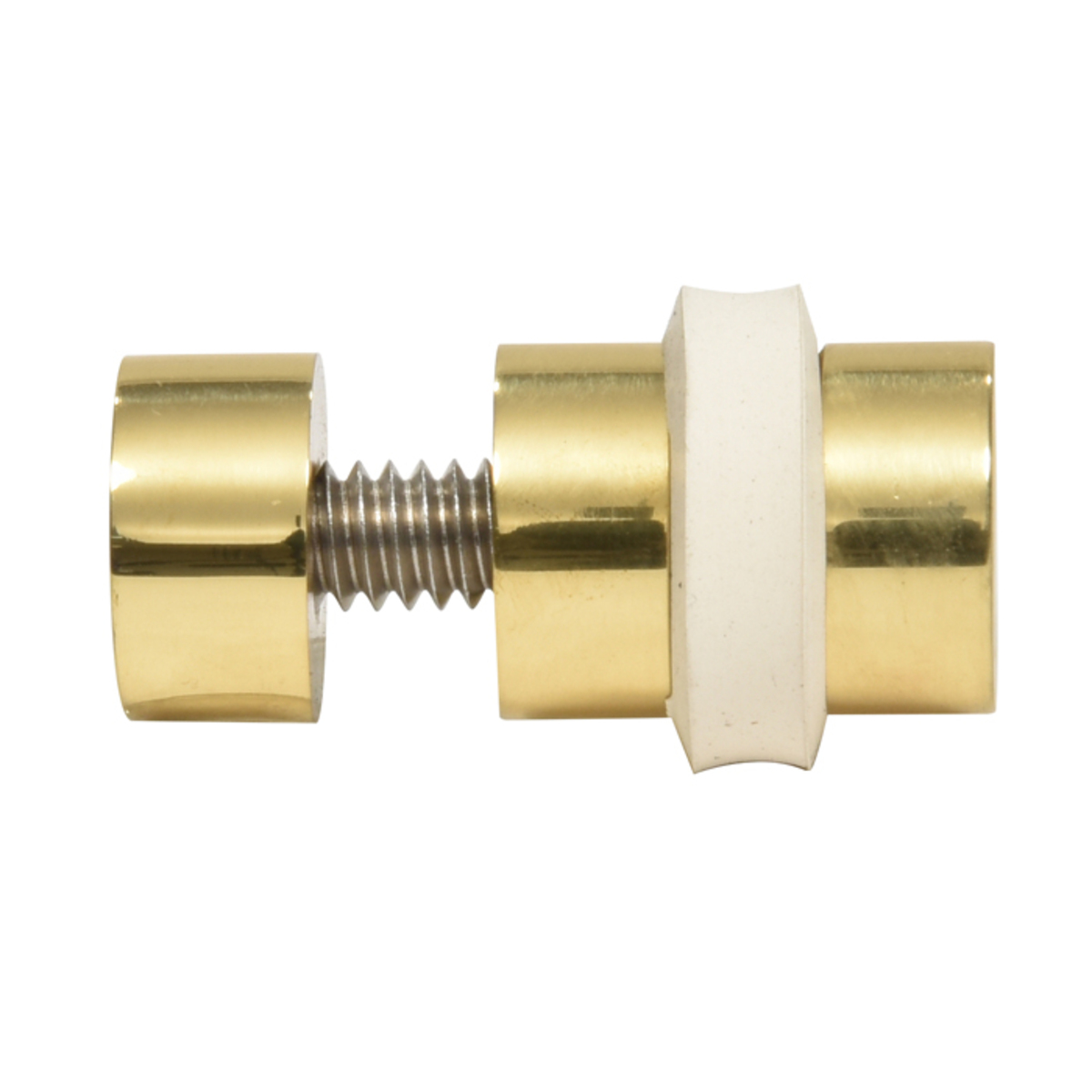

CRL GSR600BR Brass-Plated Glass Shelf Support

C.R. Laurence GSR600BR Brass Plated Glass Shelf Rest is a versatile solution designed for securely supporting 1/4 inch (6 mm) thick tempered glass shelves. This elegantly crafted shelf rest minimizes visible metal, offering a sleek appearance compared to conventional standards and brackets. Its design allows attachment through glass, wood, or metal panels, making it adaptable to various installation needs. The GSR600BR features a 1/4"-20 threaded rod, which can be swapped out for longer rods (AS14 Series) to accommodate thicker non-glass substrates or a Hanger Bolt (HB14 Series) for direct installation into wood studs. For optimal performance, a 1/4 inch (6 mm) diameter thru-hole is required in wood and metal substrates, while a 3/8 inch (10 mm) hole is needed for glass panels. Constructed from durable brass with a polished finish, this shelf rest adds a touch of elegance to any setting. However, note that brass may tarnish due to oxidation over time. With no shipping limitations, the GSR600BR is ready to enhance your shelving system. For further details, please refer to the Brass Finish Disclaimer in the Technical References section.

Brass Plated Glass Shelf Rest

• Intended for Use with 1/4 in. (6 mm) Thick Tempered Glass Shelves

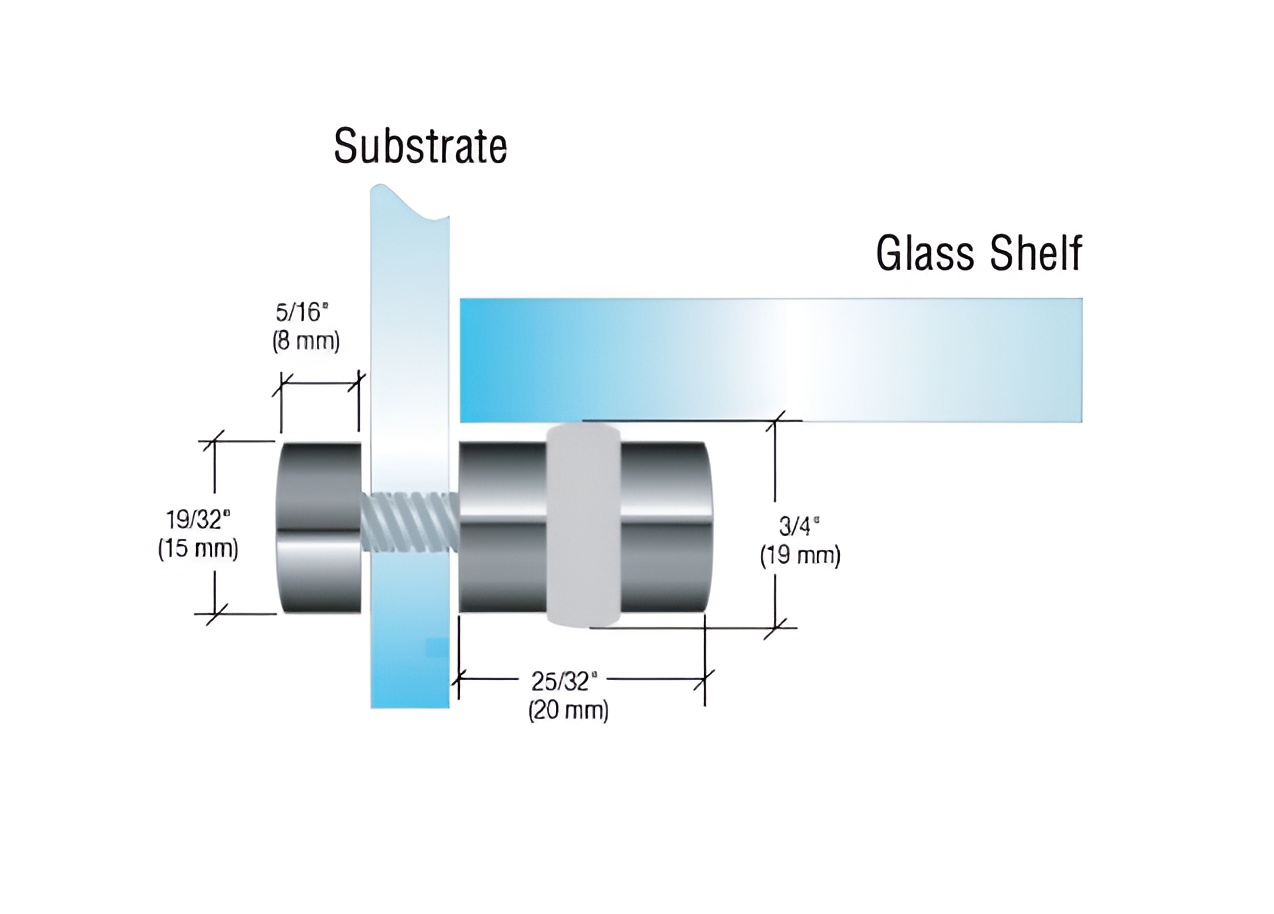

CRL Glass Shelf Rests are designed to attach through glass, wood, or metal panels. The Shelf Rest supports the glass shelf with very little metal showing in comparison to typical standards and brackets. The included 1/4"-20 threaded rod may be replaced with either longer threaded rods (AS14 Series) for thicker non-glass substrates or Hanger Bolt (HB14 Series) for attaching directly into a wood stud.

Brass Finish Advisory:

Resources

• Brass Finish Disclaimer
