CRL GT105 Gray 1/16
Images may not represent actual product and finish

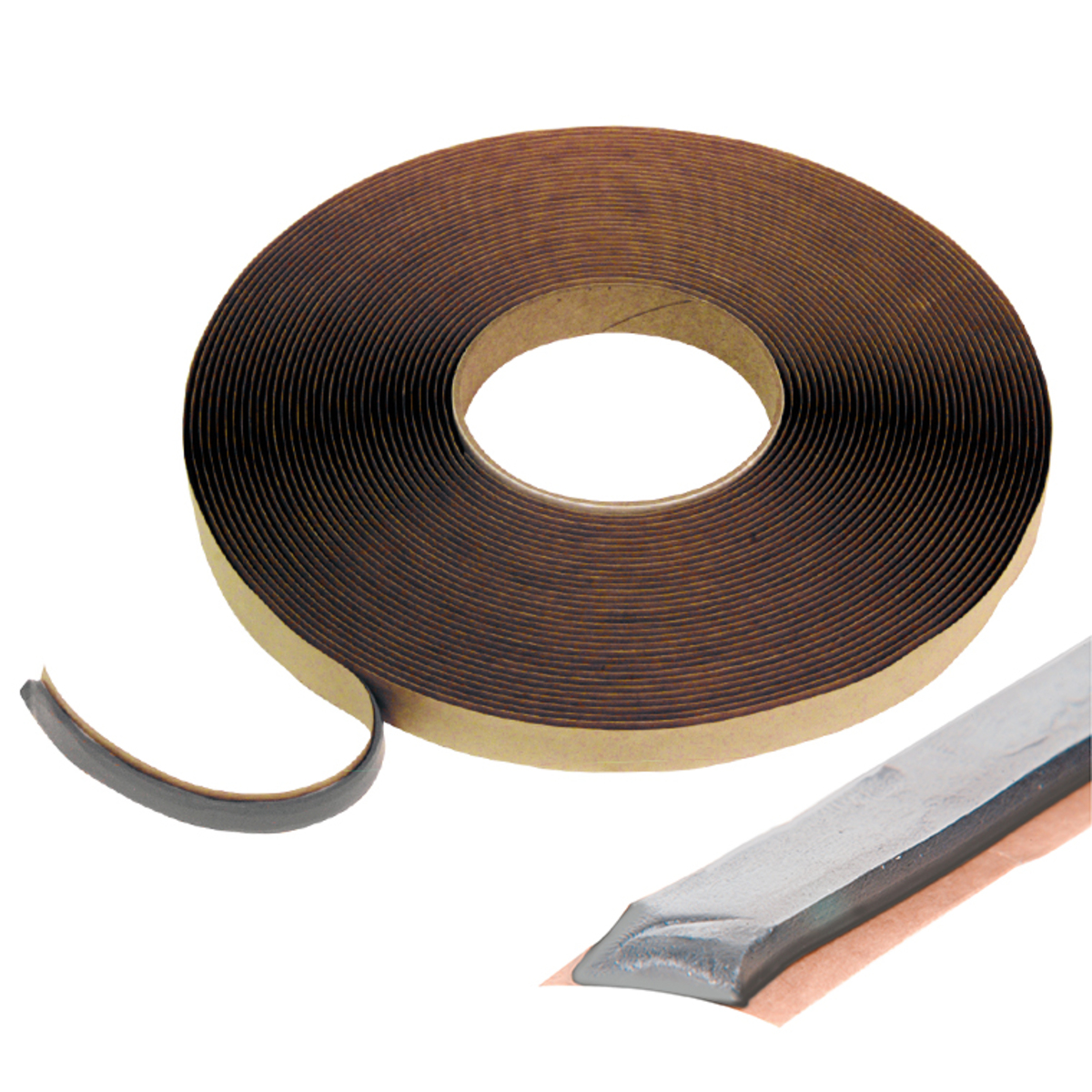

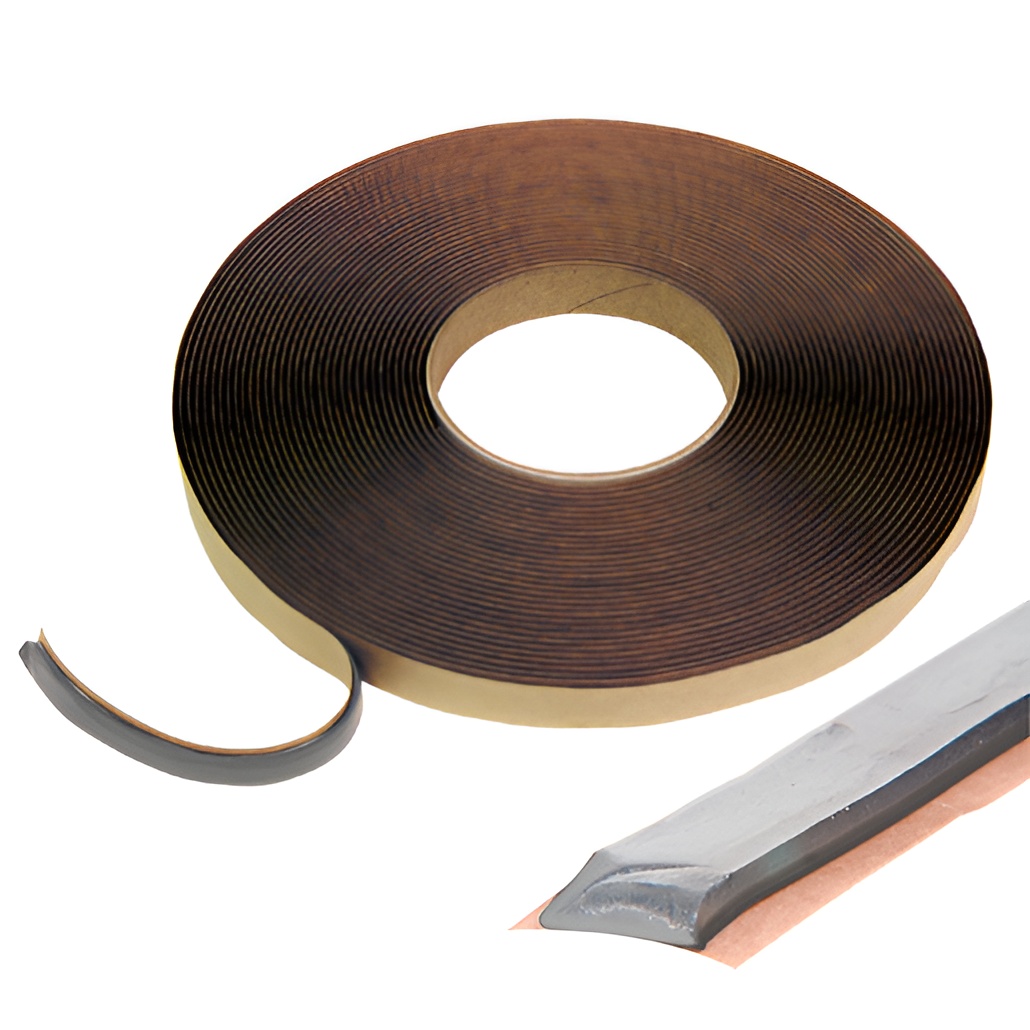

CRL GT105 Gray 1/16" x 3/8" Butyl Glazing Tape

Your Price: $29.81
Retail Price:$35.68
Your Savings:$5.87(16%)
CRL GT105 Gray Butyl Glazing Tape offers superior weather resistance and flexibility for durable exterior seals in glazing applications.
Part Number : CRL_GT105
Availability: 532 In Stock
CRL GT105 Gray 1/16" x 3/8" Butyl Glazing Tape

C.R. Laurence GT105 Gray 1/16" x 3/8" Butyl Architectural Glazing Tape is engineered for durability and exceptional performance in glazing applications. Constructed from a butyl rubber formula, this tape boasts age and weather-resistant properties, ensuring a reliable seal for years to come. With 100% solids content, it meets stringent AAMA certifications, making it an ideal choice for exterior primary spacing and glazing seals, whether for window sashes or various architectural surfaces such as metal, wood, and plastic. This extruded, preformed tape is designed to compress approximately 10% during installation, effectively accommodating surface alignment and movement caused by temperature fluctuations. It operates effectively in a temperature range from 20°F to 120°F during application and can withstand service conditions as extreme as -40°F to 190°F. Each roll measures 50 feet in length and features a thickness of 1/16 inch and a width of 3/8 inch, available in both gray and black options. With a service life of a minimum of 20 years, the GT105 is a robust solution for professional glazing needs. Follow recommended installation practices to achieve optimal adhesion and performance, ensuring a long-lasting and effective seal for your projects.

Gray 1/16" x 3/8" Butyl Architectural Glazing Tape

  • Age and Weather Resistant Butyl Rubber Formula
  • 100% Solids Content
  • Meets AAMA Certification
  • Used as an Exterior Primary Spacing and Glazing Seal
  • Available in Gray and Black

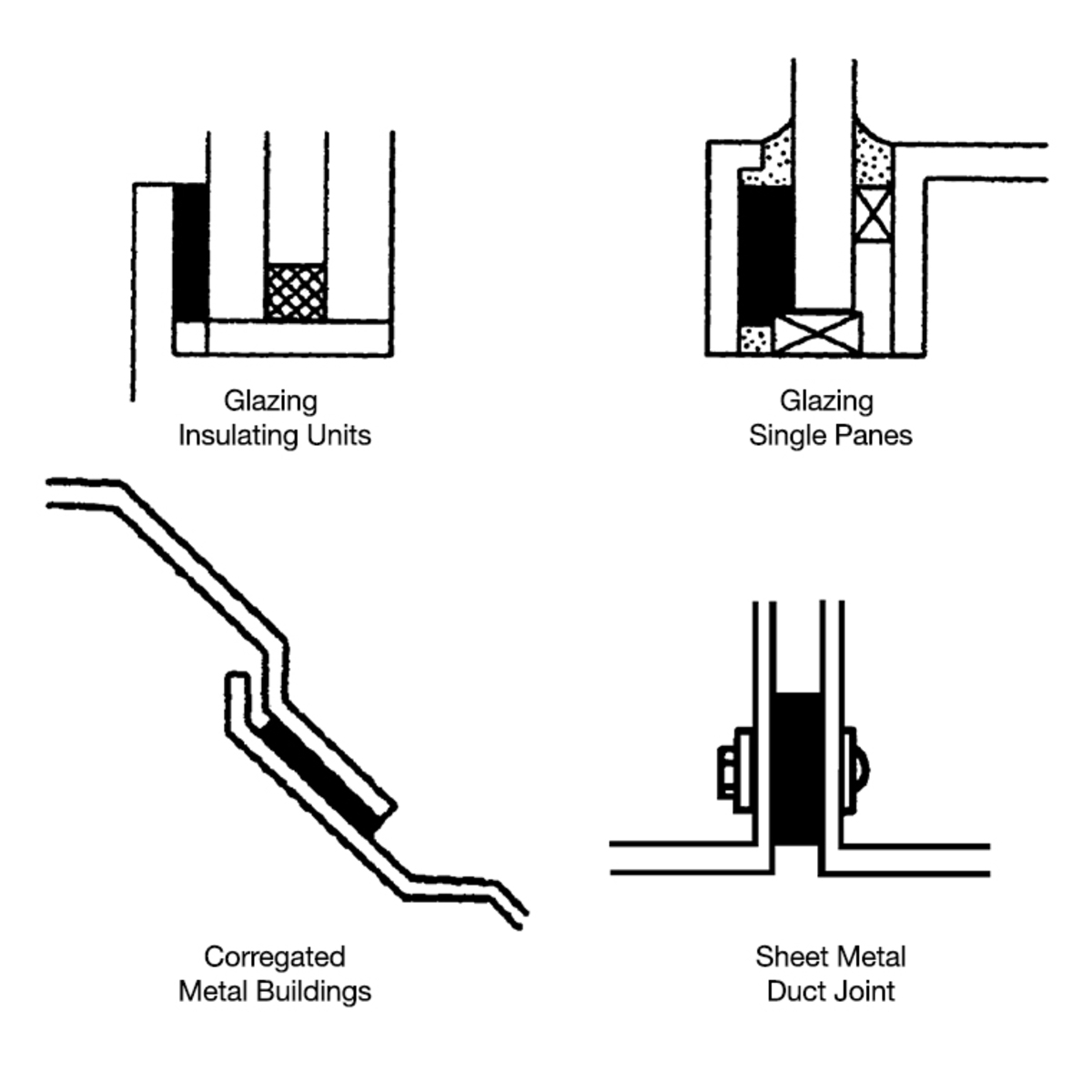

CRL Butyl Architectural Glazing Tape is an extruded, preformed tape furnished on release paper rolls. Based on a butyl rubber formulation with proven age and weather resistant properties, it is designed to create a long lasting, flexible weather seal between two surfaces that will be subjected to normal expansion/contraction and wind loading forces. It is used as an exterior primary spacing and glazing seal when glazing glass into a window sash; also used to seal other architectural surfaces such as metal to metal joints, wood to glass, metal to plastic, etc. The thickness is designed to be compressed approximately 10 percent at installation to accommodate surface alignments.


Typical Properties
  • Base Polymer: butyl rubber (polyisobutylene); Solids
  • Content: 100% solids (no asbestos); Cure Time: fully cured before application; Hardness: 20 durometer Shore "A" @ 77° (25°C)
  • Temperature Range: Application 20°F (-7°C) to 120°F (49°C); Service -40°F (-40°C) to 190°F (88°C); VOC
  • Content: 0%; Joint Movement: ±15% of joint width; Service Life: 20 year minimum.

    Applicable Standards: AAMA 804.3, 806.3, and 807.3. ASTM C1281

    Good Glazing Practices: The following "Good Glazing Practices" are recommended when using CRL Glazing Tapes. Surfaces to be adhered should be free of frost or standing water, brushed clean, solvent washed (MEK, Toluene or Naptha) and wiped dry. At installation, positive contact and approximately 10 percent compression is recommended to fully marry surfaces to be joined. Glazing tapes kept under compression with clips or wedges provide the best seals.

    Always use setting blocks (80 durometer Shore "A" hardness) placed at the sill quarter points. Spacing shims are recommended to accommodate wind loading when glass lite is over 100" (50 durometer Shore "A" hardness). Tape placement on the sill rabbet is not to be below the sight line unless a cap bead is specified, then tape is placed 3/16" (4.8 mm) below the sight line to allow for the cap bead. Do not overlap tape to join; always butt ends without stretching. To keep the tape surface clean, leave the release paper in place until ready-to-set the glass.


    Product Warning:

    Limitations: For applications above two floors use a spacer, shim, or a structural cap bead (such as silicone) to prevent over compression or use CRL 100+ Load Bearing Glazing Tape.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


    • Attributes

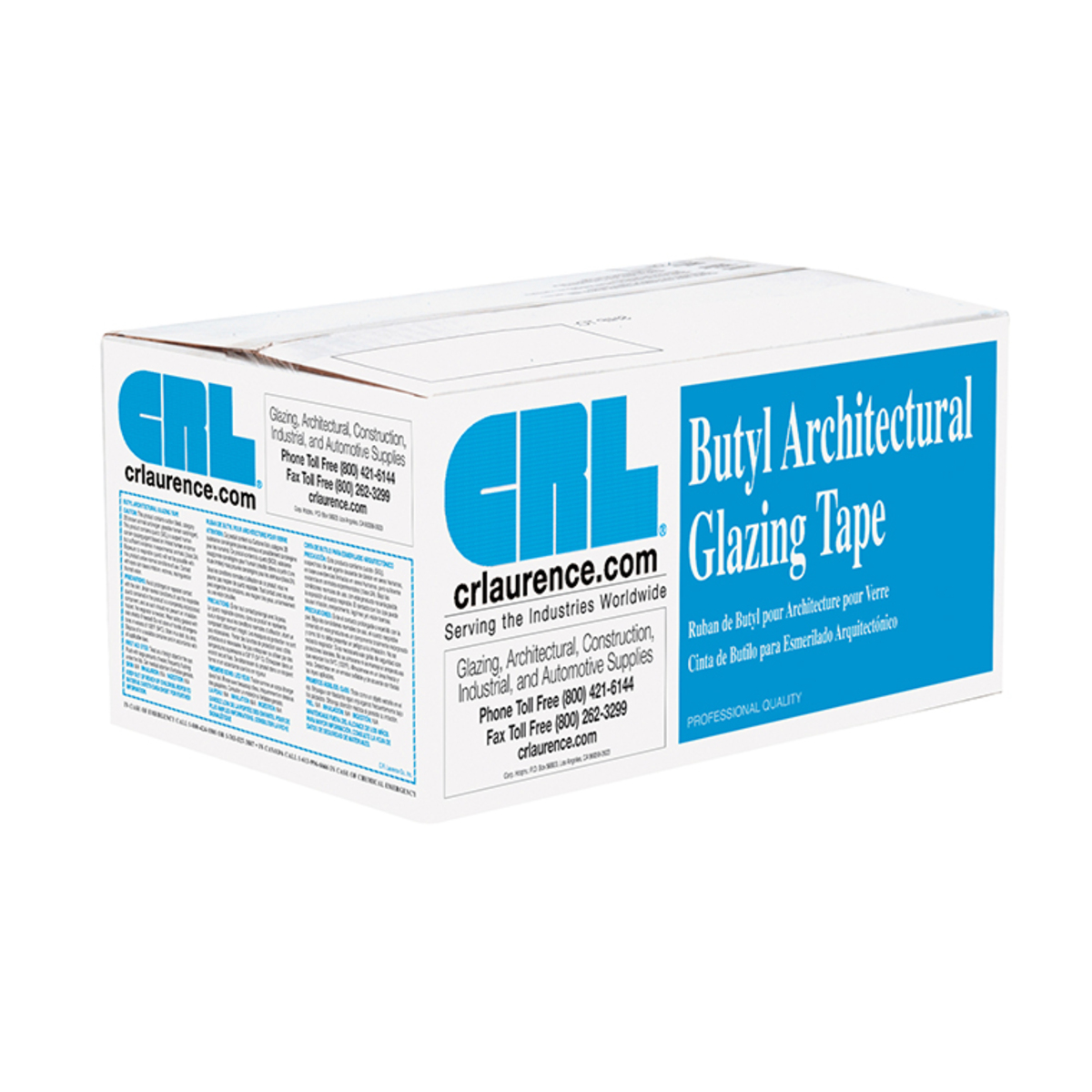

    Case Quantity: 24 Rolls

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Finish/ Color:: Gray

    Roll Length: 50 ft.(15 m)

    Shelf Life: 24 Months

    Shipping Limitations: None

    Thickness: 1/16 in. (2 mm)

    Type: Butyl

    Width: 3/8 in. (10 mm)
