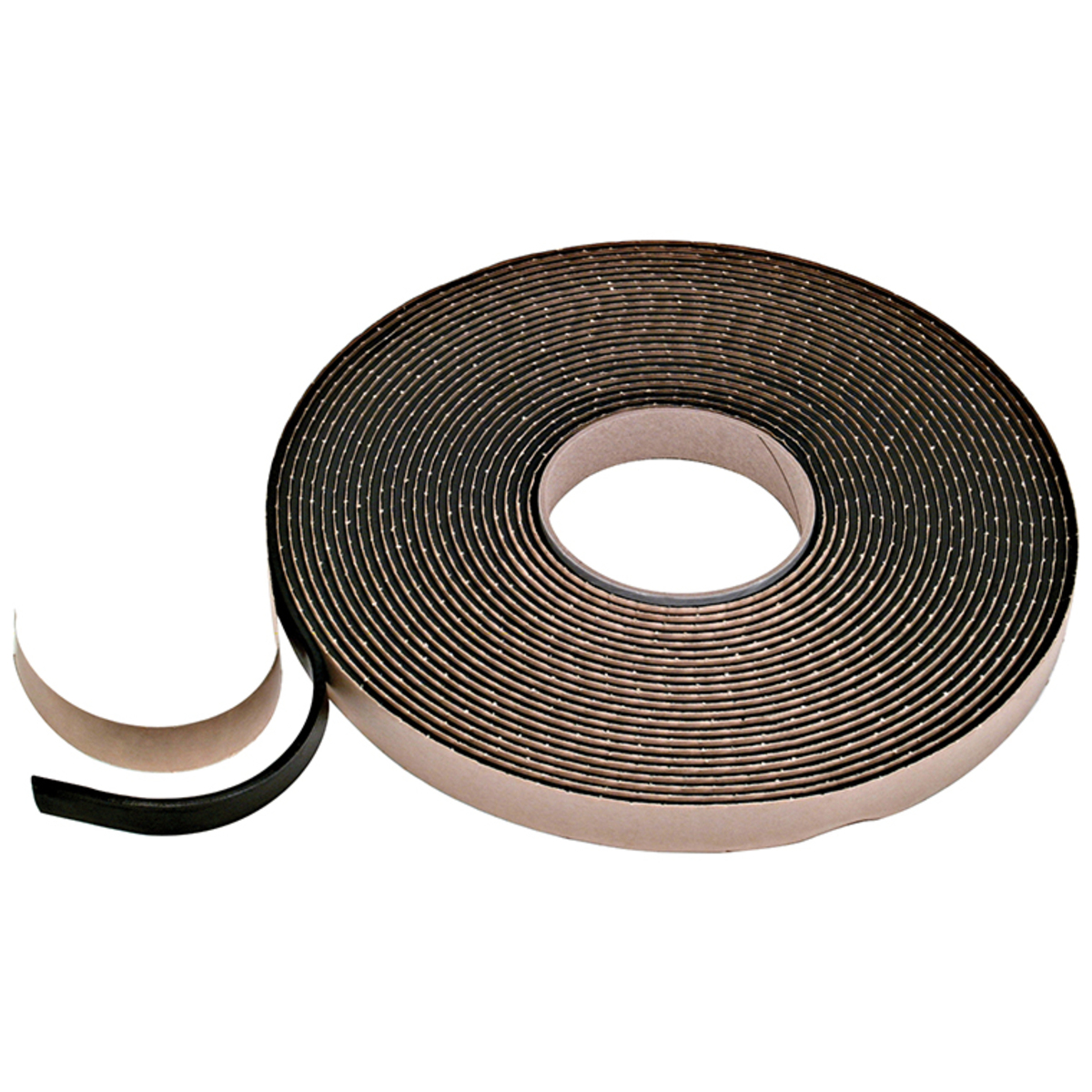

CRL GT804 Black 1/8" x 3/8" Load Bearing Butyl Glazing Tape, 100+ lbsC.R. Laurence GT804 Black 1/8" x 3/8" 100+ Load Bearing Butyl Architectural Glazing Tape is engineered for high-performance glazing of large glass lites exceeding 100 United Inches, eliminating the need for spacer shims. Crafted from a blend of butyl rubber polymers, this tape ensures even transfer of high wind loads from the glass to the window frame, making it ideal for applications that require robust performance under pressure. Designed to accommodate high wind loading even at elevated temperatures, the tape features a 100% solids content formula that resists moisture absorption and will not shrink over time. With a joint movement capability of ±15% of the joint width, it compresses to adapt to variations in pocket width. The GT804 can be applied in temperatures ranging from 20°F to 120°F (-7°C to 49°C) and boasts a service life of 20 years when applied correctly. This versatile tape comes on release paper rolls, ensuring quick alignment during installation. Complying with AAMA and ASTM standards, it is available in a sleek black finish, with each roll measuring 40 feet in length. Elevate your glazing projects with the reliability and performance of C.R. Laurence GT804.
Black 1/8" x 3/8" 100+ Load Bearing Butyl Architectural Glazing Tape
- For High Performance Glazing of Large Lites of Glass Exceeding 100 United Inches* Without the Need for Spacer Shims
- 100% Solids Content
- Accommodates High Windloading Even at Elevated Temperatures
- Black Color
CRL 100+ Load Bearing Butyl Architectural Glazing Tape is made from a blend of rubber polymers. It is designed for glazing large lites of glass exceeding 100"* without the need for spacer shims. 100+ Tape transfers high wind loads evenly, from the glass to the window frame, and will accommodate high wind loading at elevated temperatures. It enables the project to be glazed from the inside. The 100 percent solids content formula will not shrink or absorb moisture, but will compress to accommodate variances in pocket width. It comes on release paper rolls and is positioned for quick alignment during installation. Application temperature range is 20° to 120° (-7° to 49°C), and life expectancy if properly applied is 20 years.
APPLICABLE STANDARDS: AAMA 804.3, 806.3, and 807.3, ASTM C1281.
TYPICAL PROPERTIES:
Base Polymer: butyl rubber (polyisobutylene)
Solids Content: 100% solids (no asbestos).
Cure Time: Fully cured before application.
Hardness: 20 durometer Shore "A" @ 77° (25°C).
Temperature Range: Application 20°F (-7°C) to 120° (49°C); Service -40°F (-40°C) to 190°F (88°C).
VOC Content: 0%. Joint Movement: ±15% of joint width.
Service Life: 20 year minimum.l cap bead (such as silicone) to prevent over compression or use CRL 100+ Load Bearing Glazing Tape.
Product Warning:
NOTE: United Inches = width + height
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Case Quantity: 24 Rolls
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Black
Roll Length: 40 ft.(12 m)
Shelf Life: 24 Months
Shipping Limitations: None
Thickness: 1/8 in. (3 mm)
Type: Butyl
Width: 3/8 in. (10 mm)
