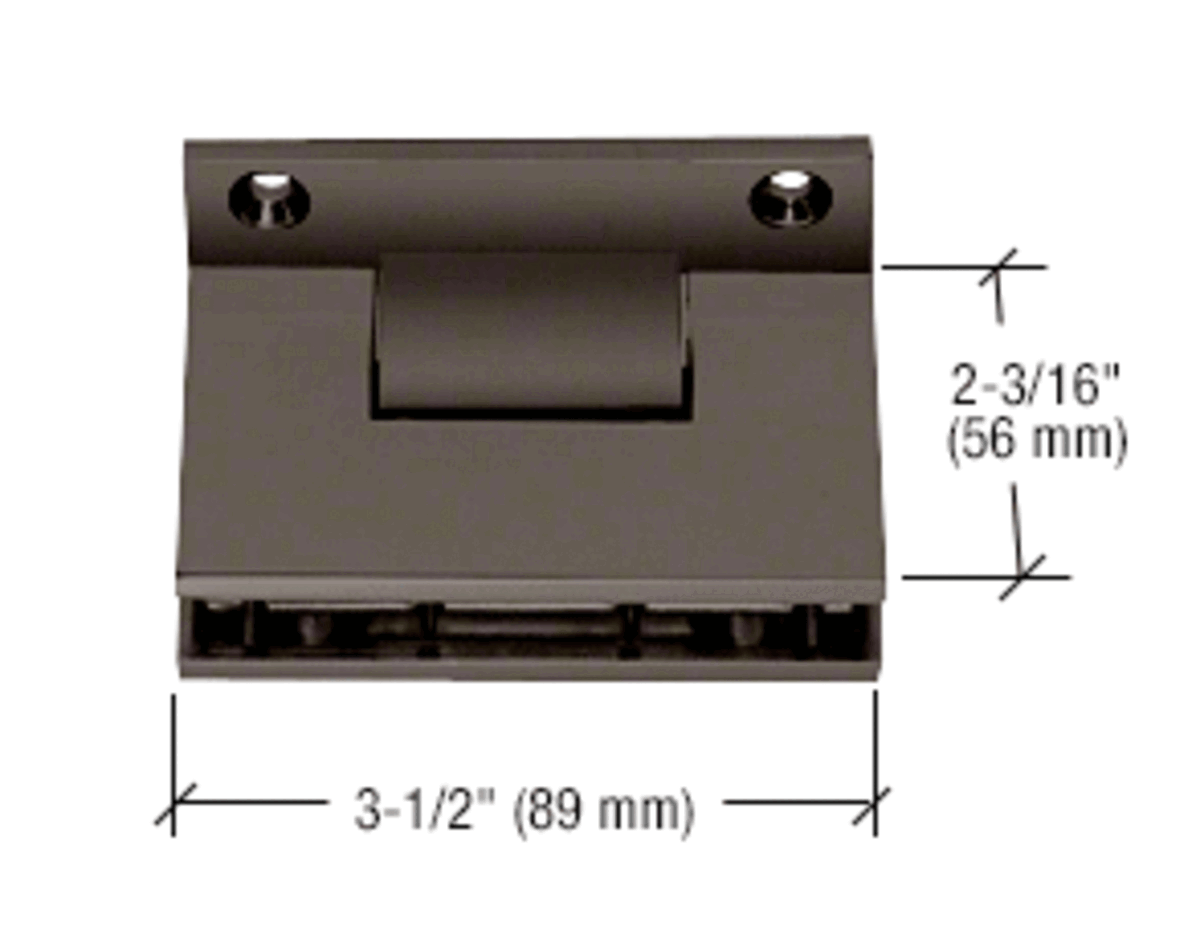

CRL GTC0370RB Oil Rubbed Bronze Geneva 3-Point Movable Square Transom Clamp

Your Price: $82.35

Retail Price:$98.58

Your Savings:$16.23(16%)

Elevate your design with the CRL Geneva 3-Point Transom Clamp, featuring ceiling mount versatility and stylish oil-rubbed bronze finish.

Part Number : CRL_GTC0370RB

Availability: 60 In Stock

Quantity

Description

CRL GTC0370RB Oil Rubbed Bronze Geneva 3-Point Movable Square Transom Clamp

C.R. Laurence GTC0370RB Oil Rubbed Bronze Geneva 3-Point Movable Square Style Transom Clamp offers a sophisticated solution for mounting transoms, diverging from the conventional side-mounted applications. This innovative design allows for a ceiling mount, maximizing glass visibility and creating a more open aesthetic. The clamp features three stopping points-45 degrees outward, the closed position, and 45 degrees inward-providing versatile options for glass positioning. Crafted from solid brass and finished in a rich oil-rubbed bronze, this clamp not only ensures durability but also complements a variety of architectural styles. It accommodates glass thicknesses ranging from 5/16" to 1/2" (8 to 12 mm), making it suitable for monolithic tempered glass applications. Each unit includes gaskets, mounting screws, and precise glass fabrication dimensions for easy installation. The Geneva transom clamp is designed for maximum transom sizes of 28" W x 12" H (711 x 305 mm) and requires the use of two clamps for optimal performance. Note that for 5/16" (8 mm) glass, additional gaskets (Cat. No. GEN13) must be ordered separately. Upgrade your architectural projects with the elegance and functionality of the C.R. Laurence Geneva 3-Point Movable Square Style Transom Clamp.

Oil Rubbed Bronze Geneva 3-Point Movable Square Style Transom Clamp

Mounts to Ceiling Instead of Traditional Side Mounting Application
Three Stopping Points Include 45 Degrees Out, Closed Position, and 45 Degrees In
Stocked in Five Popular Finishes
Use Monolithic Tempered Glass

Our CRL 3-Point Movable Transom Clamps provide design alternatives to the traditional side mounted "teeter-totter" application. Mounted to the ceiling instead of the sides of the transom allows more glass exposure. The Clamps will hold at 45 degrees inward, at the closed position, and at 45 degrees outward. The square or beveled appearance matches many of our popular Hinge Series. Accommodates 1/2", 3/8", and 5/16" (12, 10, and 8 mm) thick tempered glass.

SPECIFICATIONS:

Glass Thickness: 5/16" to 1/2" (8 to 12 mm)

Material: Solid Brass

Includes: Gaskets, Mounting Screws, Phillips Screws,

Allen Screws, and Glass Fabrication Dimensions

Gaskets are included for 3/8" and 1/2" (10 and 12 mm) glass only. If using 5/16" (8 mm) glass, Cat. No. GEN13 Gaskets must be ordered.
Cut-Out Required

NOTE: Maximum transom size is 28" W x 12" H (711 x 305 mm). Two Clamps must be used per transom. It is recommended to come in 6" (152 mm) to the center of the cutout for each Clamp.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Back Plate: Full

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Edge Profile: Square

Finish/ Color:: Oil Rubbed Bronze

Glazing Thickness: 3/8 in. (10 mm)

Height: 2-3/16 in. (56 mm)

Material: Brass

Maximum Door Width - 2 Hinges: 28

Mounting Type: Ceiling Mount

Series: Geneva

Shipping Limitations: None

Width: 3-1/2 in. (89 mm)
