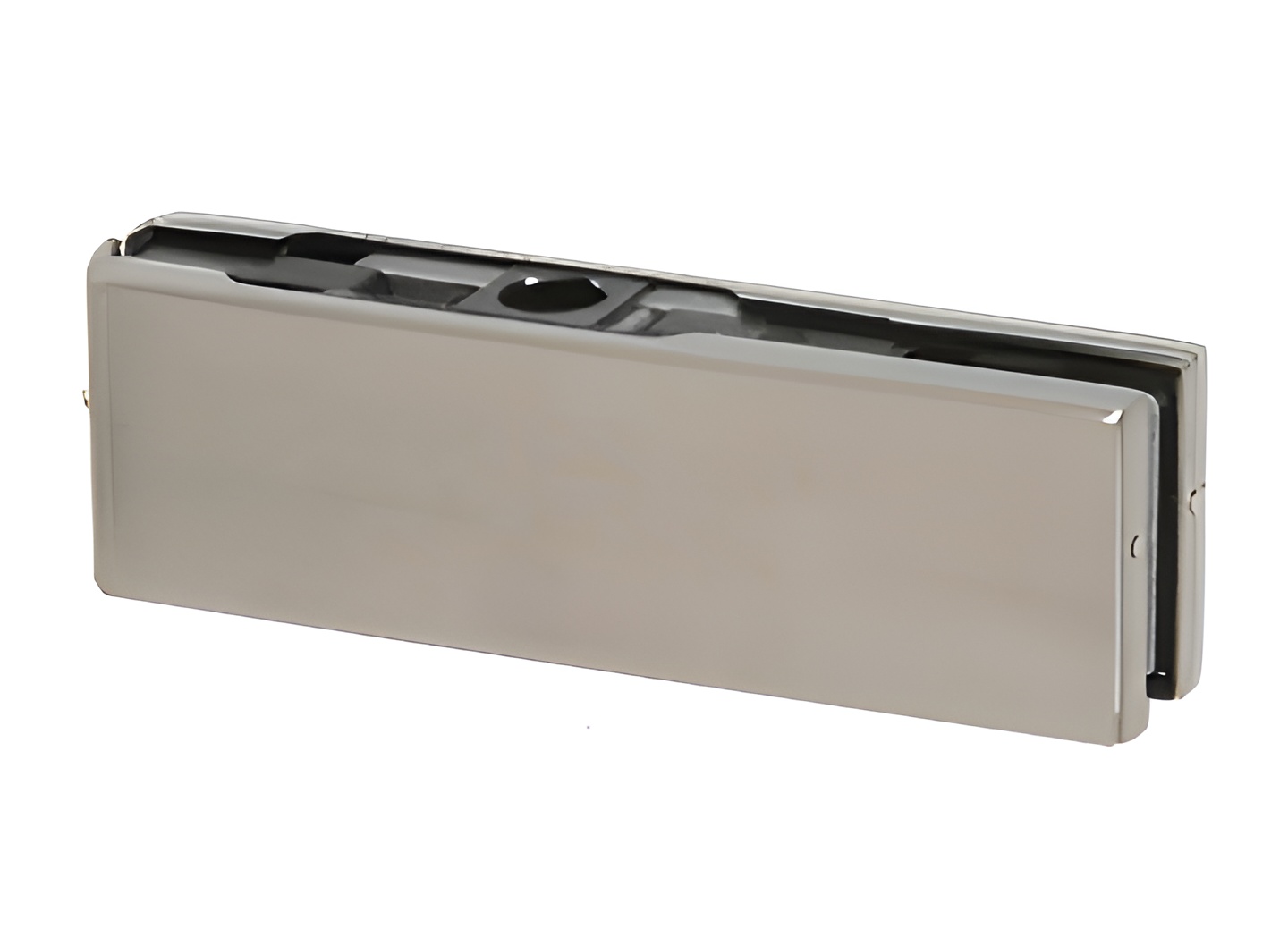

C.R. Laurence H100E20 Oil Dynamic Top Door Patch Fitting Hinge Body offers an exceptional solution for both interior and exterior glass door applications. Designed for use with 8 mm to 13.52 mm toughened glass, this patch fitting hinge body features a sleek slim line design, measuring just 56 mm in height. The innovative design not only enhances the aesthetics of your glass installations but also provides reliable functionality with a 2-9/16" (65 mm) pivot setback. This product is sold as a door patch body only, with cladding purchased separately to suit your specific design needs. Cladding options include Brushed Stainless Steel (Cat. No. H100ECBS), Polished Stainless Steel (Cat. No. H100ECPS), and Satin Anodized (Cat. No. H100ECSA). The hinge body includes gaskets, ensuring a secure fit when paired with the CRL Oil Dynamic Patch Fitting Door Hinge (Cat. No. H100E10). Additionally, the H100E20 comes with adjustable closing speed features, making it a versatile choice for various applications. For installation, a 12 mm top pivot pin is required (see Cat. No. H100EP1V). This top door patch fitting is engineered for durability and style, making it an ideal choice for modern architectural projects.
Oil Dynamic Top Door Patch Fitting Hinge Body
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Adjustable Closing Speed: Yes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Height: 2-3/16 in., 6-9/16 in. (56 mm, 167 mm)
Shipping Limitations: None
Works With: H100ECBS
