CRL H8010BTCH Chrome Vernon Oil Dynamic Wall Mount Hinge Full Back PlateC.R. Laurence H8010BTCH Bright Chrome Vernon Oil Dynamic Wall Mount Full Back Plate Hinge offers a sophisticated solution for self-closing glass doors, accommodating glass thicknesses from 5/16" to 9/16" (8 to 13.52 mm). This innovative hinge is specifically designed for interior doors in humid environments and withstands high temperatures up to 212°F (100°C), making it ideal for settings like steam rooms and shower doors. With an adjustable closing speed, the H8010BTCH allows for versatile application, swinging in and out a full 90 degrees with positive stops at 0, +90, and –90 degrees. This hinge supports doors up to 39" (1 m) wide and a maximum weight of 220 lbs. (100 kg), providing a robust alternative to traditional floor closers and patch fittings. Crafted from durable aluminum, the hinge is available in a striking Brite Chrome finish, as well as brushed satin and satin anodized options. The design incorporates snap-in molded gaskets to ensure a secure fit. With its ambidextrous design and extensive testing for longevity, the CRL H8010BTCH is a reliable choice for modern architectural projects requiring both functionality and aesthetic appeal.

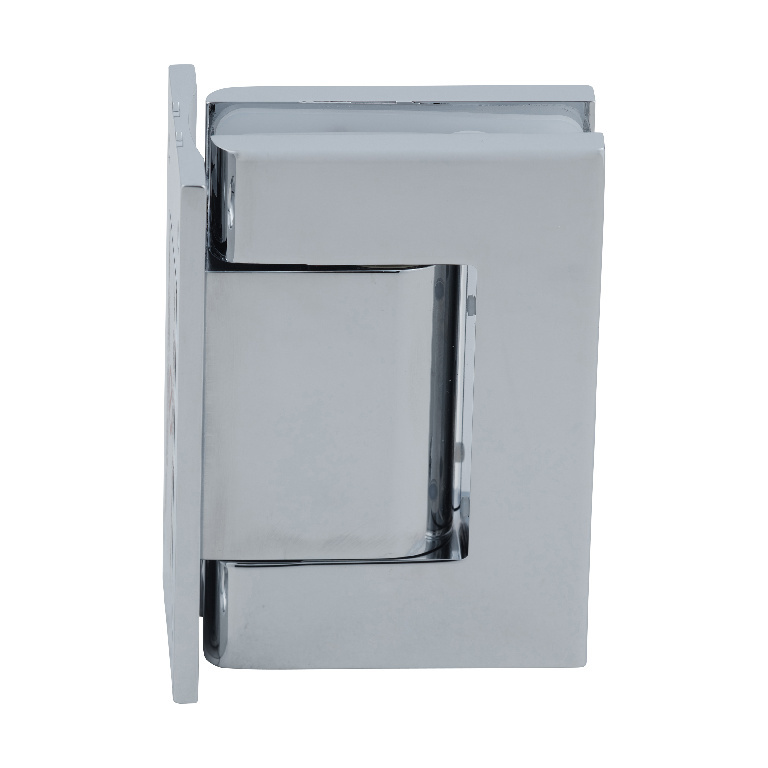

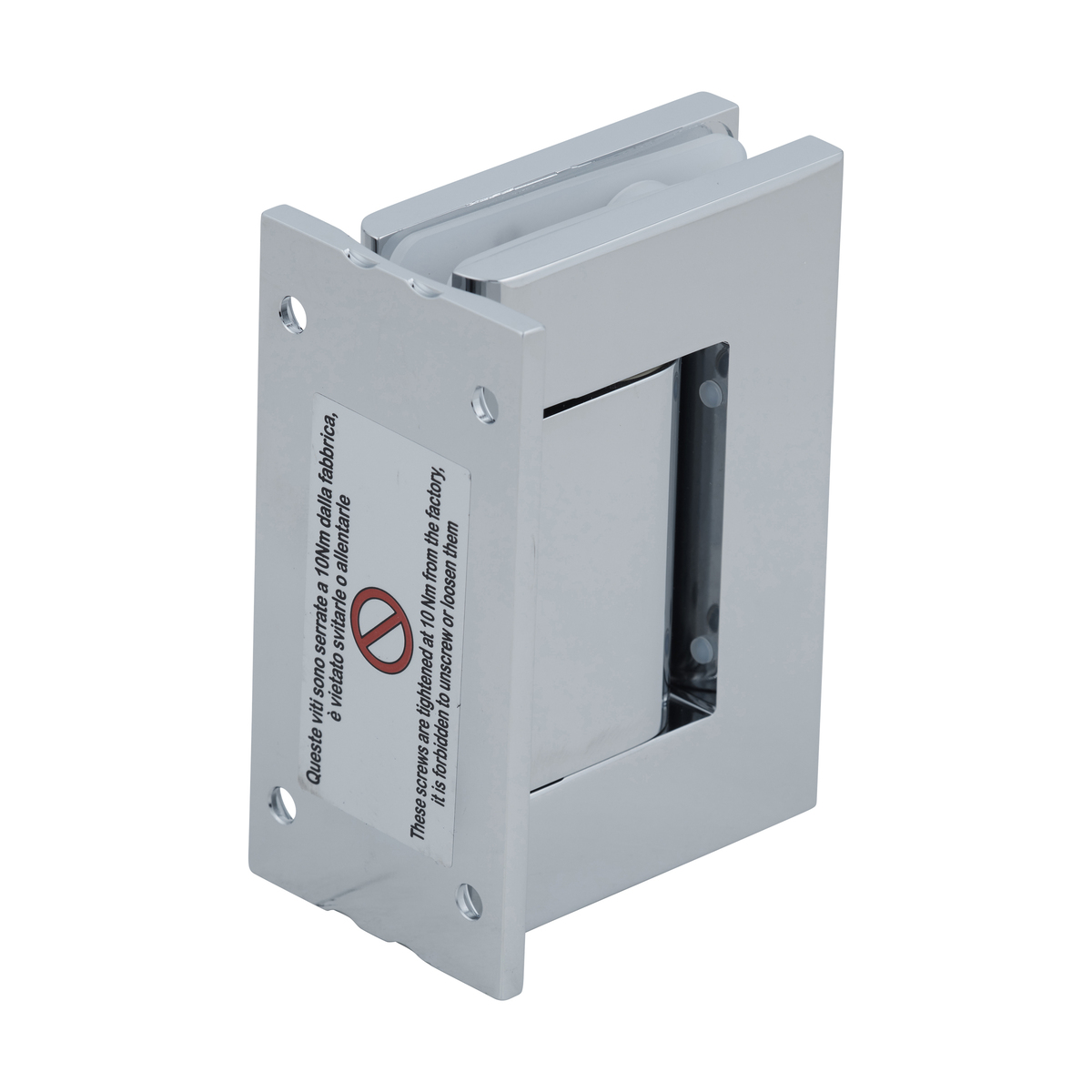

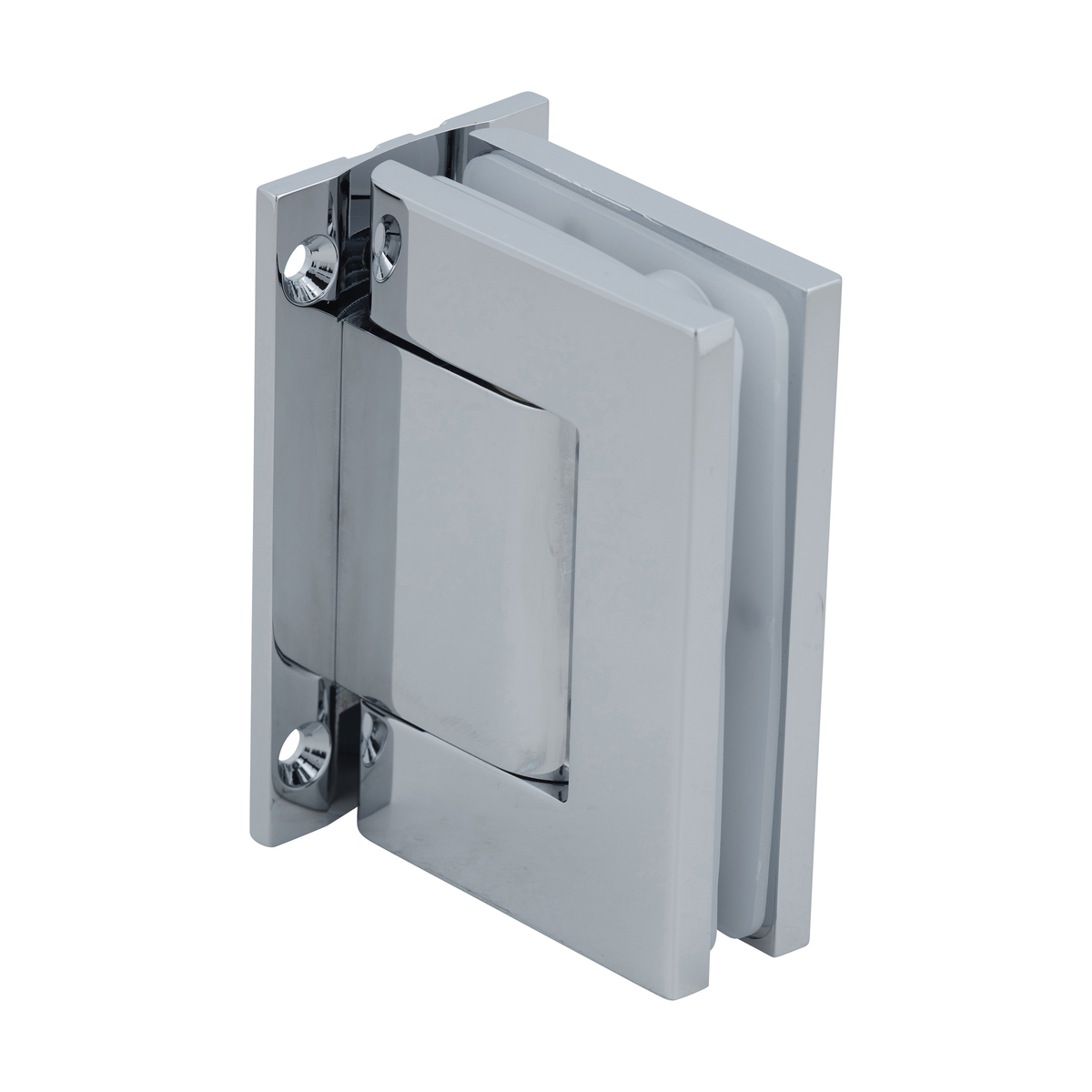

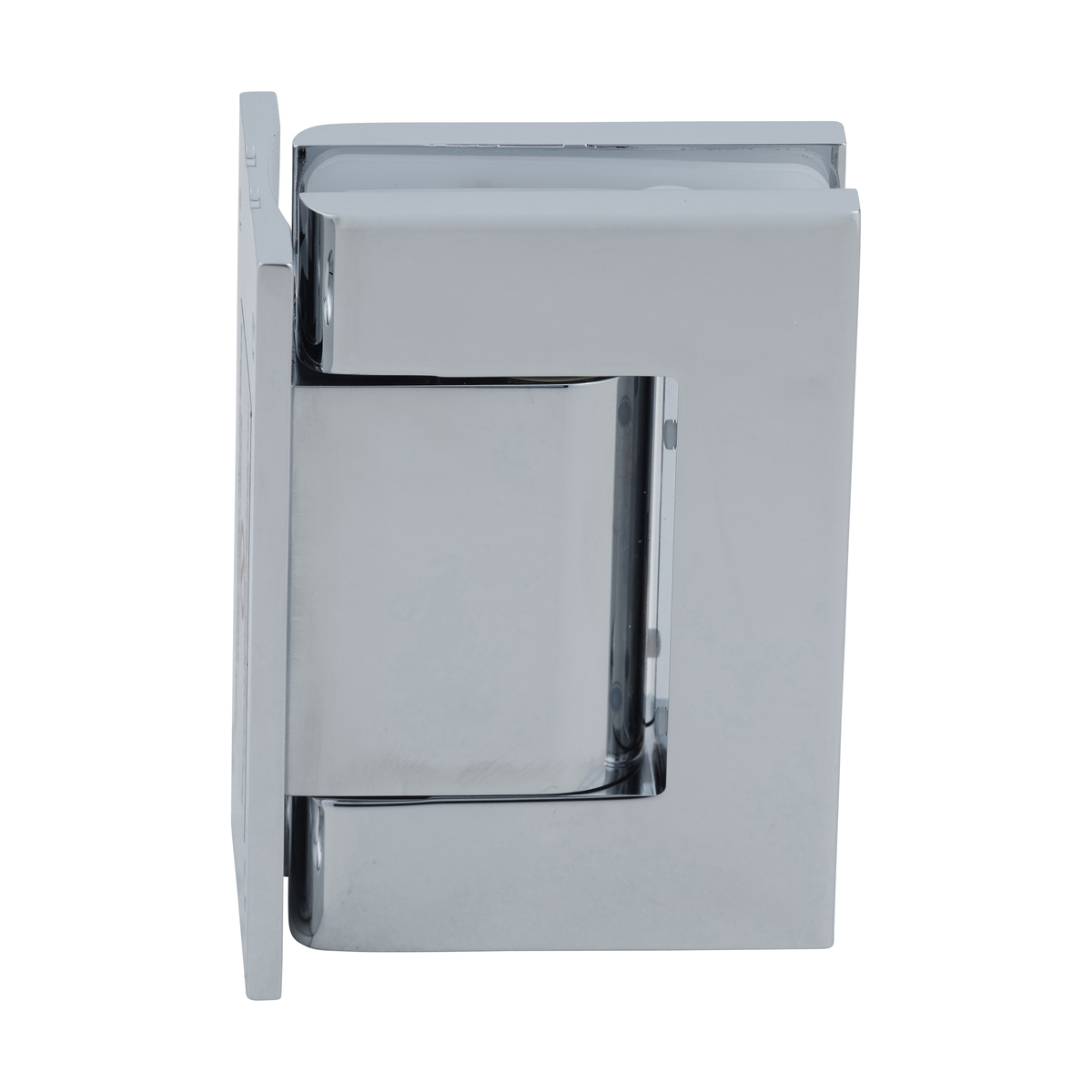

Bright Chrome Vernon Oil Dynamic Wall Mount Full Back Plate Hinge
- For Self-Closing Glass Doors from 5/16" to 9/16" (8 to 13.52 mm)
- Designed for Use on Interior Doors in Humid Conditions and High Temperatures
- Aluminum Body in Your Choice of Brite Chrome, Brushed Satin, and Satin Anodized Finishes
- Adjustable Closing Speed
- A Great Alternative to Floor Closers and Patch Fittings
This CRL Oil Dynamic Full Back Plate Wall Mount Hinge swings in and out a full 90 degrees, with stops at 0, +90, and –90 degrees. Closing speed can be adjusted, making it a great alternative to floor closers and patch fittings. For doors up to 39" (1 m) wide. Maximum weight per two hinges is 220 lbs. (100 kg). Designed for use on interior doors in damp and humid environments and high temperatures up to 212°F (100°C), such as steam rooms, Turkish baths and shower doors.
The Oil Dynamic Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. Oil Dynamic allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an 'all-glass' door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.
Properly mounted, two Oil Dynamic Hinges will support a 5/16" to 9/16" (8 to 13.52 mm) thick glass door up to 39" (1 m) in width and weighing up to 220 lbs. (100 kg). A control valve lets you adjust the hinge to the desired closing speed. And Oil Dynamic is ambidextrous, with positive stops at 0 and 90 degrees, giving you even more design freedom.
The Oil Dynamic Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. Oil Dynamic Hinges have been subject to strict testing (over 1 million cycles), assuring long lasting service.
SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90 Degrees Inwards and Outwards (Except H8060 Model, Which Only Swings One Way)
Closing Type: Automatic Closing From 0 to 80 Degrees
Special Feature: Holds Open at 90 Degrees; Adjustable Closing Speed. No Hold Open Models Available (Except H8060 Model).
Cut-Out Required
Includes: Snap-In Molded Gaskets for 5/16" to 9/16" (8 to 13.52 mm) Glass; Hex Screws Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)
NOTE: Do not use more than two hinges on one door. Not suitable for exterior and outdoor use. For exterior and outdoor use we recommend H8015JC Series.
Product Warning:
Do not use more than two hinges on one door. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Technical Sales Department. Use only the template included with our hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
The hinge cover plate uses a 4mm allen key.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Adjustable Closing Speed: Yes
Back Plate: Full
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Construction: Solid
Edge Profile: Square
Finish/ Color:: Polished Chrome
Glazing Thickness: 5/16 in. To 9/16 in. (8 mm To 14 mm)
Height: 4-1/4 in. (108 mm)
Hold Open: Yes
Material: Aluminum
Maximum Clamping Screw Torque: 60-70 lbf.in (677.9-791 cN.m)
Maximum Door Weight: 220 lbs. (99.8 kg)
Maximum Door Width: 39 in. (991 mm)
Mounting Type: Wall Mount
Self- Closing: Yes
Series: Vernon
Shipping Limitations: None
Width: 2-7/8 in. (73 mm)
