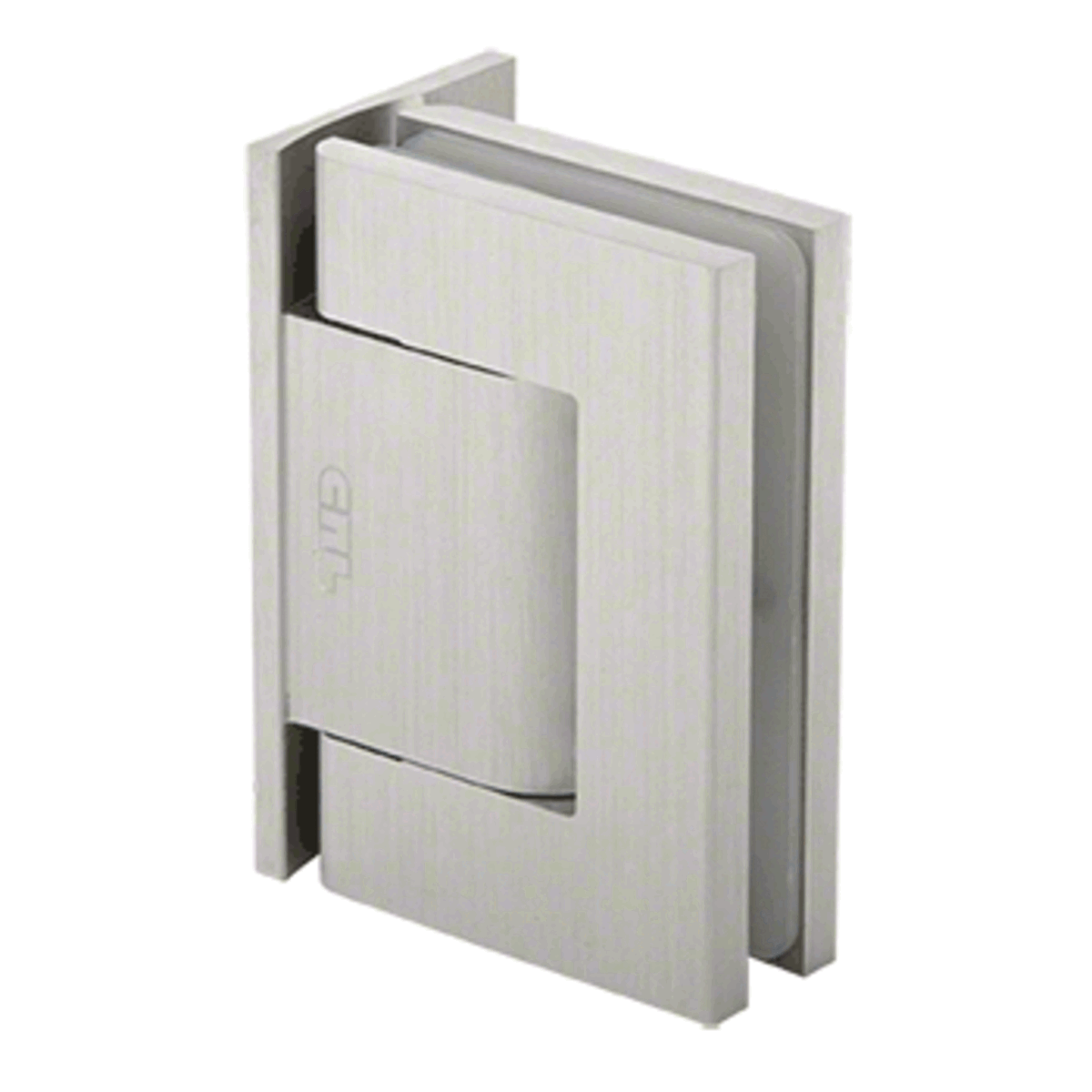

CRL H8011SN Brushed Satin Nickel Vernon Oil Dynamic Offset Back Plate Hinge

CRL H8011SN Brushed Satin Nickel Vernon Oil Dynamic Offset Back Plate Hinge

C.R. Laurence H8011SN Brushed Satin Nickel Vernon Oil Dynamic Offset Back Plate Wall-to-Glass Hinge - Hold Open offers an innovative solution for self-closing glass doors. Designed to accommodate glass thicknesses from 5/16" to 9/16" (8 to 13.52 mm), this hinge is ideal for interior doors, particularly those leading into bathrooms. It features an aluminum construction available in a brushed satin finish, providing both durability and aesthetic appeal. This hinge enables doors to swing a full 90 degrees, with adjustable closing speeds and positive stops at 0 and 90 degrees for versatile functionality. With a maximum width of 39" (1 m) and a weight capacity of up to 220 lbs. (100 kg) per two hinges, it supports substantial glass installations while maintaining ease of use. The Oil Dynamic design eliminates the need for traditional floor closers or overhead devices, allowing for a sleek, all-glass appearance without extensive retrofitting. Additional features include snap-in molded gaskets and hex screws for straightforward installation. It is important to note that only two hinges should be used per door, and this product is not suitable for humid conditions or outdoor use. Elevate your interior spaces with the reliability and modern design of the C.R. Laurence H8011SN hinge.

Brushed Satin Nickel Vernon Oil Dynamic Offset Back Plate Wall-to-Glass Hinge - Hold Open

• For Self-Closing Glass Doors from 5/16" to 9/16" (8 to 13.52 mm) Thick
• Designed for Use on Interior Doors
• Aluminum Body in Your Choice of Three Finishes: Brite Chrome, Brushed Satin, and Satin Anodized
• Adjustable Closing Speed
• A Great Alternative to Floor Closers and Patch Fittings. Torque Setting: 9Nm Minimum – 10Nm Maximum

This CRL Offset Back Plate Wall Mount Hinge swings in and out a full 90 degrees, with stops at 0 degree, +90 degree, and -90 degree. Closing speed can be adjusted. For doors up to 39" (1 m) wide. Maximum weight per two hinges is 220 lbs. (100 kg).


The Oil Dynamic Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. Designed for use on interior doors leading into the bathroom area, Oil Dynamic allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an 'all-glass' door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.

Properly mounted, two Oil Dynamic Hinges will support a 5/16" to 9/16" (8 to 13.52 mm) thick glass door up to 39" (1 m) in width and weighing up to 220 lbs. (100 kg).

NOTE: Do not use more than two hinges. A control valve lets you adjust the hinge to the desired closing speed. And Oil Dynamic is ambidextrous, with positive stops at 0 and 90 degrees, giving you even more design freedom.

The Oil Dynamic Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. Oil Dynamic has been subject to strict testing (over 1 million cycles), assuring long lasting service.

SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90 Degrees Inwards and Outwards
Closing Type: Automatic Closing from 0 to 80 Degrees
Special Feature: Holds Open at 90 Degrees; Adjustable Closing Speed. No Hold Open Models Available (Except H8060 Model).
Cut-Out Required
Includes: Snap-In Molded Gaskets for 5/16" to 9/16" (8 to 13.52 mm) Glass; Hex Screws
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)

NOTE: Do not use more than two hinges on one door. Not suitable for humid conditions or exterior and outdoor use.


Product Warning:

Do not use more than two hinges on one door. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Technical Sales Department. Use only the template included with our hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
