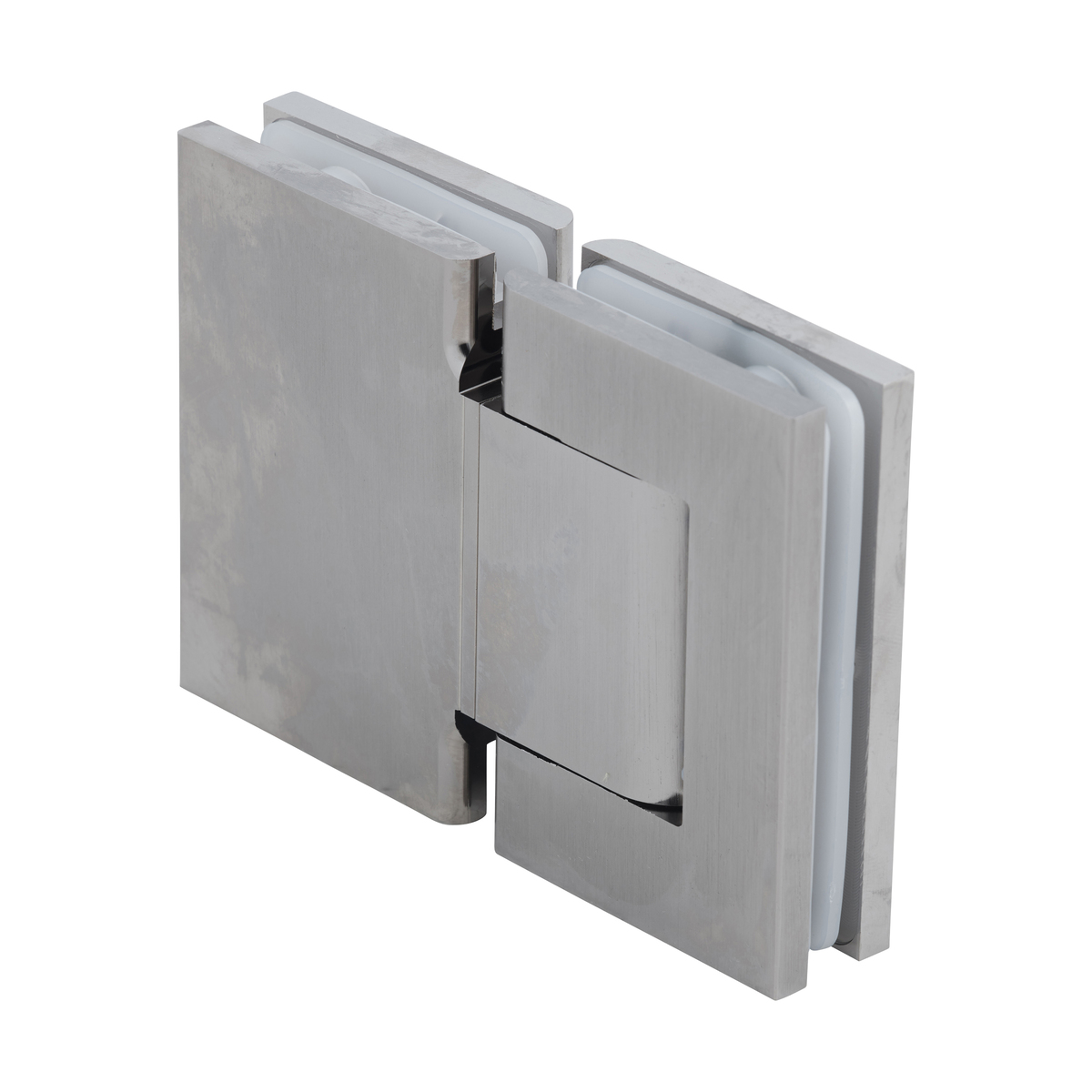

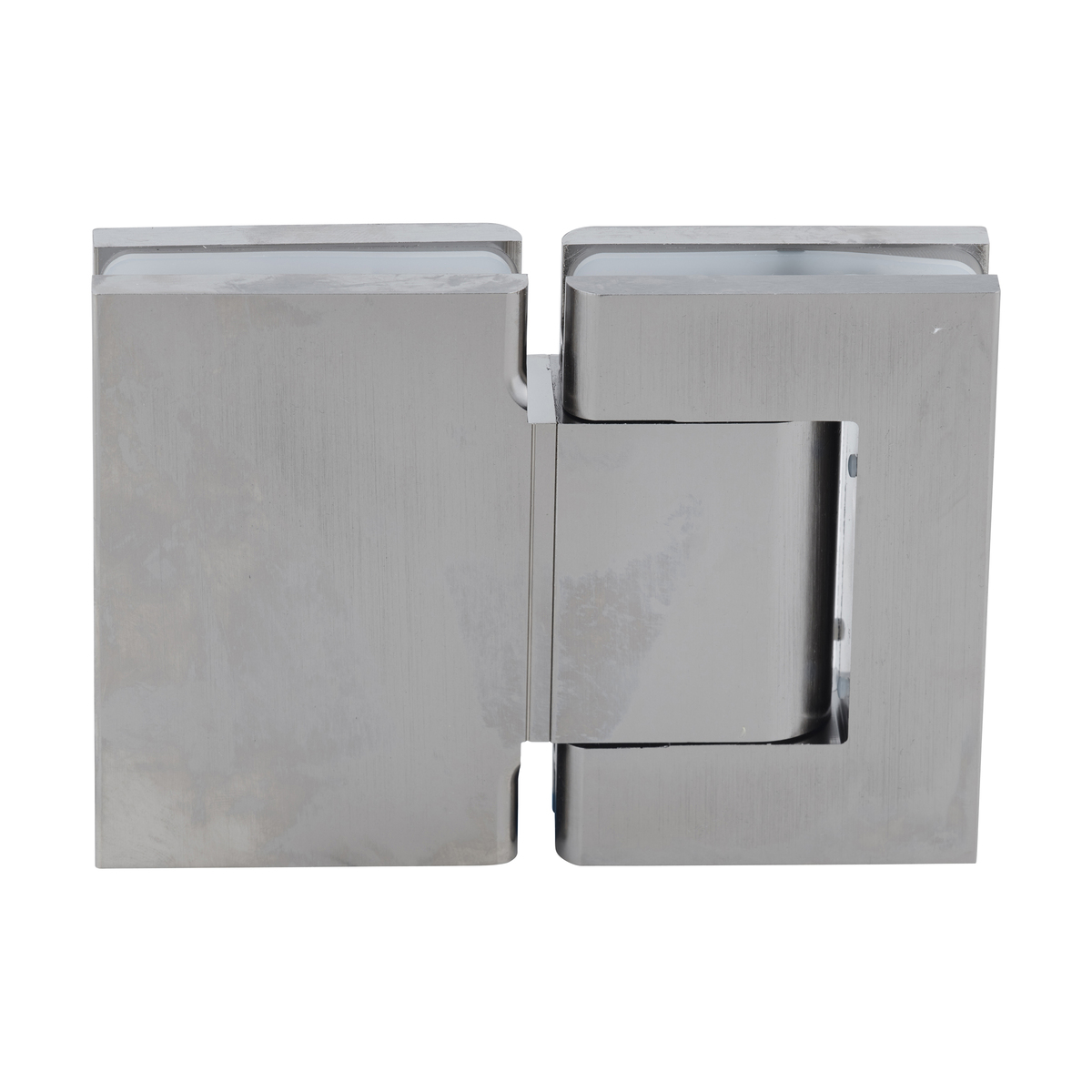

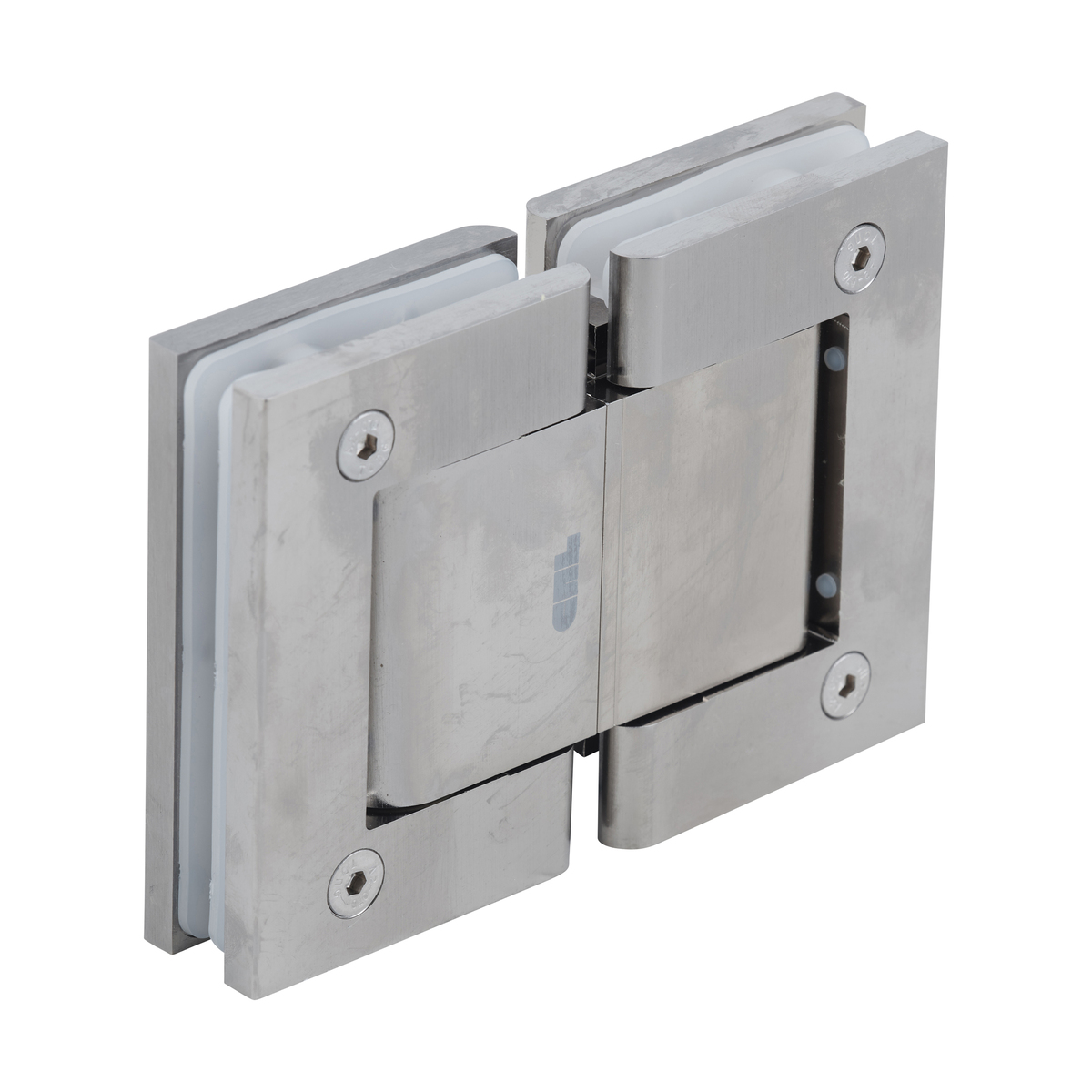

CRL H8015BTSN Satin Nickel Vernon 180 Glass-to-Glass HingeC.R. Laurence H8015BTSN Satin Nickel Vernon Oil Dynamic 180 Glass-to-Glass Hinge delivers advanced functionality for self-closing glass doors. Engineered for glass thicknesses ranging from 5/16" to 9/16" (8 to 13.52 mm), this hinge accommodates doors up to 39" (1 m) wide and supports a maximum weight of 220 lbs. (80 kg) using two hinges. With a unique design that allows for an impressive 180º swing, it features stops at 0º, +90º, and –90º, providing flexibility in door operation. Ideal for interior applications in humid and high-temperature environments, such as steam rooms or shower doors, this hinge is crafted from durable aluminum and comes in a sleek Satin Nickel finish, along with Brite Chrome and Brushed Satin options. The adjustable closing speed allows for personalized control, while the hold open feature at 90º enhances usability. The Oil Dynamic Hinge eliminates the need for traditional floor or overhead closers, facilitating an ‘all-glass’ installation without complex retrofitting. Each hinge is subjected to rigorous testing for reliability, ensuring long-lasting performance. For optimal results, ensure proper installation and limit usage to two hinges per door.
Satin Nickel Vernon Oil Dynamic 180 Glass-to-Glass Hinge
- For Self-Closing Glass Doors from 5/16" to 9/16" (8 to 13.52 mm) Thick
- Designed for Use on Interior Doors in Humid Conditions and High Temperatures
- Body in Your Choice of Three Finishes: Brite Chrome, Brushed Satin, and Satin Anodized
- Hold Open or No Hold Open Models
- Adjustable Closing Speed
This CRL Oil Dynamic 180º Glass-to-Glass Hinge swings in and out a full 90º, with stops at 0º, +90º, and –90º. Closing speed can be adjusted, making it a great alternative to floor closers and patch fittings. For doors up to 39" (1 m) wide. Maximum weight per two hinges is 176 lbs. (79.8 kg).
Designed for use on interior doors in damp and humid environments and high temperatures up to 212°F (100°C), such as steam rooms, Turkish baths, and shower doors.
The Oil Dynamic Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. It allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an 'all-glass' door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.
Properly mounted, two Oil Dynamic Hinges will support a 5/16" to 9/16" (8 to 13.52 mm) thick glass door up to 39" (1 m) in width and weighing up to 176 lbs. (79.8 kg). A control valve lets you adjust the hinge to the desired closing speed. And Oil Dynamic is ambidextrous, with positive stops at 0º and 90º, giving you even more design freedom.
The Oil Dynamic Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. It has been subject to strict testing (over 1 million cycles), assuring long lasting service.
SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90º Inwards and Outwards (Except H8060BT Model, Which Only Swings One Way)
Closing Type: Automatic Closing From 0º to 80º
Special Feature: Holds Open at 90º; Adjustable Closing Speed. No Hold Open Models Available (Except H8060BT Model).
Cut-Out Required
Includes: Snap-In Molded Gaskets for 5/16" to 9/16" (8 to 13.52 mm) Glass; Hex Screws
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 176 lbs. (79.8 kg)
NOTE: Do not use more than two hinges on one door. Not suitable for exterior/outdoor use. For exterior use we recommend H8015JCBS.
Product Warning:
Do not use more than two hinges on one door. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Technical Sales Department. Use only the template included with our hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Adjustable Closing Speed: Yes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Edge Profile: Square
Finish/ Color:: Satin Nickel
Glass To Glass Angle: 180
Glazing Thickness: 5/16 in. To 9/16 in. (8 mm To 14 mm)
Height: 4-1/4 in. (108 mm)
Hold Open: Yes
Material: Aluminum
Maximum Clamping Screw Torque: 60-70 lbf.in (677.9-791 cN.m)
Maximum Door Weight - 2 Hinges: 220 lbs. (99.8 kg)
Maximum Door Width: 39 in. (991 mm)
Mounting Type: Glass To Glass
Self- Closing: Yes
Series: Vernon
Shipping Limitations: None
Width - Door Portion: 2-7/8 in. (73 mm)
Width - Sidelite Portion: 2-7/8
