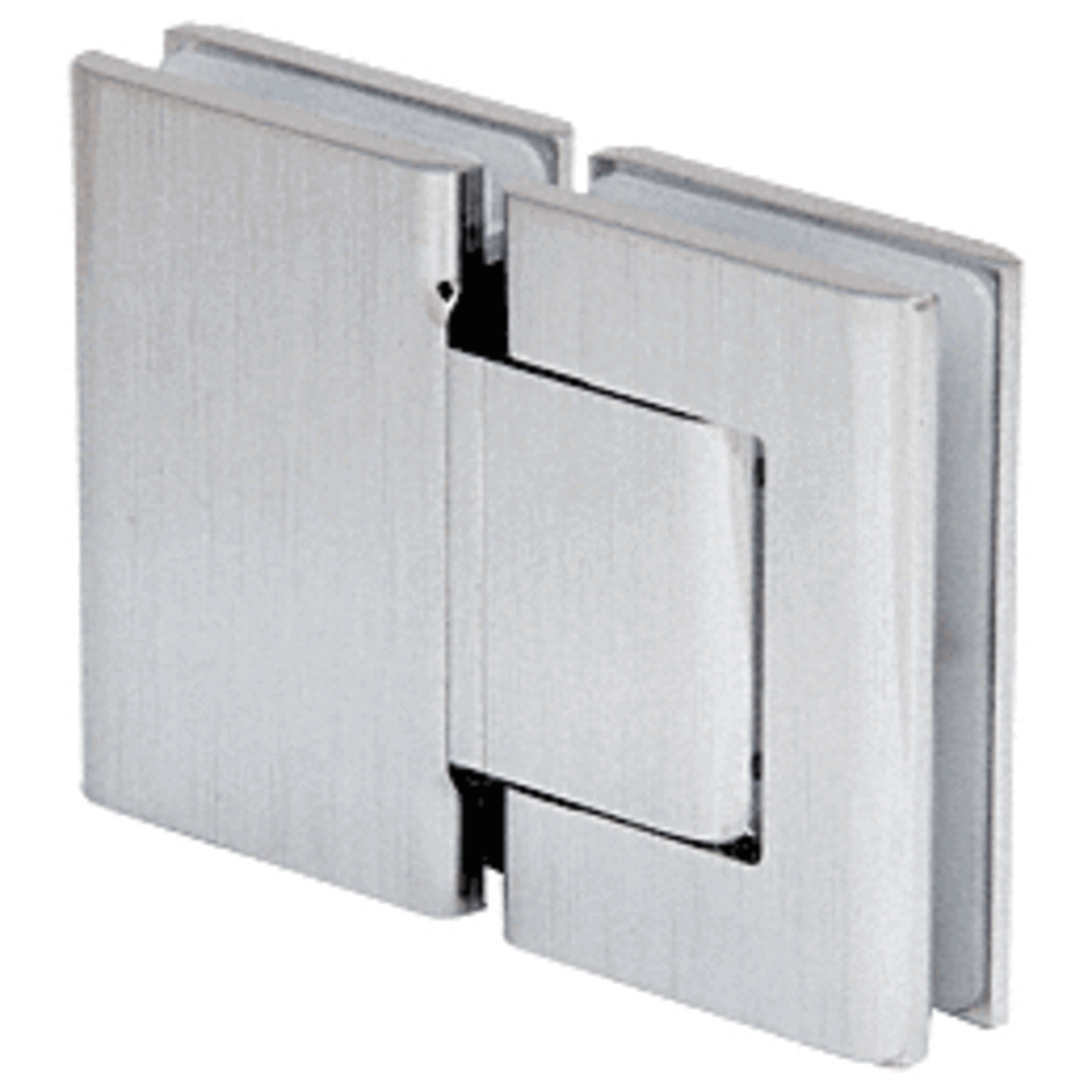

CRL H8015JCBS Brushed Stainless Vernon 180 Glass-to-Glass Hinge with Hold Open

CRL H8015JCBS Brushed Stainless Vernon 180 Glass-to-Glass Hinge with Hold Open

C.R. Laurence H8015JCBS Brushed Stainless Vernon Oil Dynamic 180 Glass-to-Glass Hinge is expertly engineered for self-closing glass doors, accommodating thicknesses of 5/16", 3/8", and 1/2" (8, 10, and 12 mm). This innovative hinge is perfect for interior applications, even in humid conditions and high temperatures, offering dependable performance without the need for bulky floor or overhead closers. With the capability to swing a full 90º in both directions, the hinge features adjustable closing speeds and holds open at 90º, providing flexibility in design. It supports doors up to 39" (1 m) wide and can handle weights of up to 176 lbs. (80 kg) when two hinges are properly installed. The aluminum body is crafted for durability and has undergone rigorous testing, ensuring long-lasting service. The H8015JCBS comes complete with snap-in molded gaskets for glass thicknesses ranging from 5/16" to 9/16" (8 to 13.52 mm) and includes hex screws for straightforward installation. Please note that this hinge is not suitable for outdoor use and should be installed using the specified template. Experience the seamless blend of style and functionality with this exceptional glass-to-glass hinge from C.R. Laurence.

Brushed Stainless Vernon Oil Dynamic 180 Glass-to-Glass Hinge - Hold Open

• For Self-Closing Glass Doors 5/16", 3/8" and 1/2" (8, 10 and 12 mm) Thick
• Suitable for Use on Interior Doors and in Humid Conditions and High Temperatures
• Hold Open or No Hold Open Models Available
• Adjustable Closing Speed
• A Great Alternative to Floor Closers and Patch Fittings

This CRL Oil Dynamic 180º Glass-to-Glass Hinge swings in and out a full 90º, with stops at 0º, +90º, and –90º. Closing speed can be adjusted. For doors up to 39" (1 m) wide. Maximum weight per two hinges is 176 lbs. (80 kg).


The Oil Dynamic Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. Designed for use on interior doors (not for Shower Doors), it allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an 'all-glass' door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.

Properly mounted, two Oil Dynamic Hinges will support a 5/16", 3/8" or 1/2" (8, 10 or 12 mm) thick glass door up to 39" (1 m) in width and weighing up to 176 lbs. (80 kg). A control valve lets you adjust the hinge to the desired closing speed. And Oil Dynamic is ambidextrous, with positive stops at 0º and 90º, giving you even more design freedom.

The Oil Dynamic Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. It has been subject to strict testing (over 1 million cycles), assuring long lasting service.

SPECIFICATIONS:
Glass Thickness Range: 5/16", 3/8" and 1/2" (8, 10 and 12 mm)
Construction: Aluminum
Hinge Swings: 90º Inwards and Outwards (Except H8060BT Model, Which Only Swings One Way)
Closing Type: Automatic Closing from 0º to 80º
Special Feature: Holds Open at 90º; Adjustable Closing Speed. No Hold Open Models Available (Except H8060BT Model).
Cut-Out Required
Includes: Snap-In Molded Gaskets for 5/16" to 9/16" (8 to 13.52 mm) Glass; Hex Screws
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 176 lbs. (80 kg)

NOTE: Do not use more than two hinges on one door. Not suitable for exterior and outdoor use.


Product Warning:

Do not use more than two hinges on one door. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Technical Sales Department. Use only the template included with our hinge. Cut-out dimensions for CRL hinges may not match those of other brands.

Stainless Steel Advisory:
