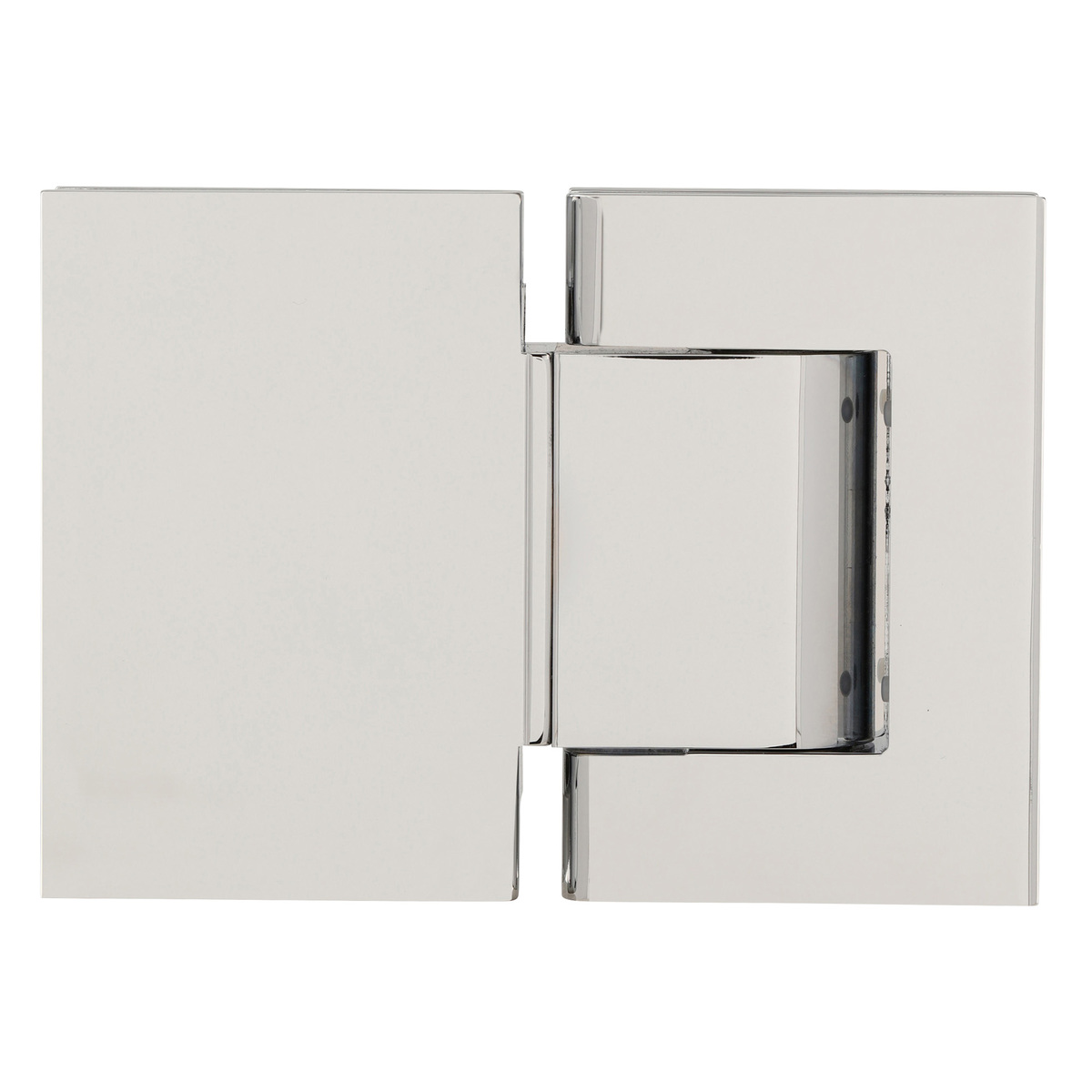

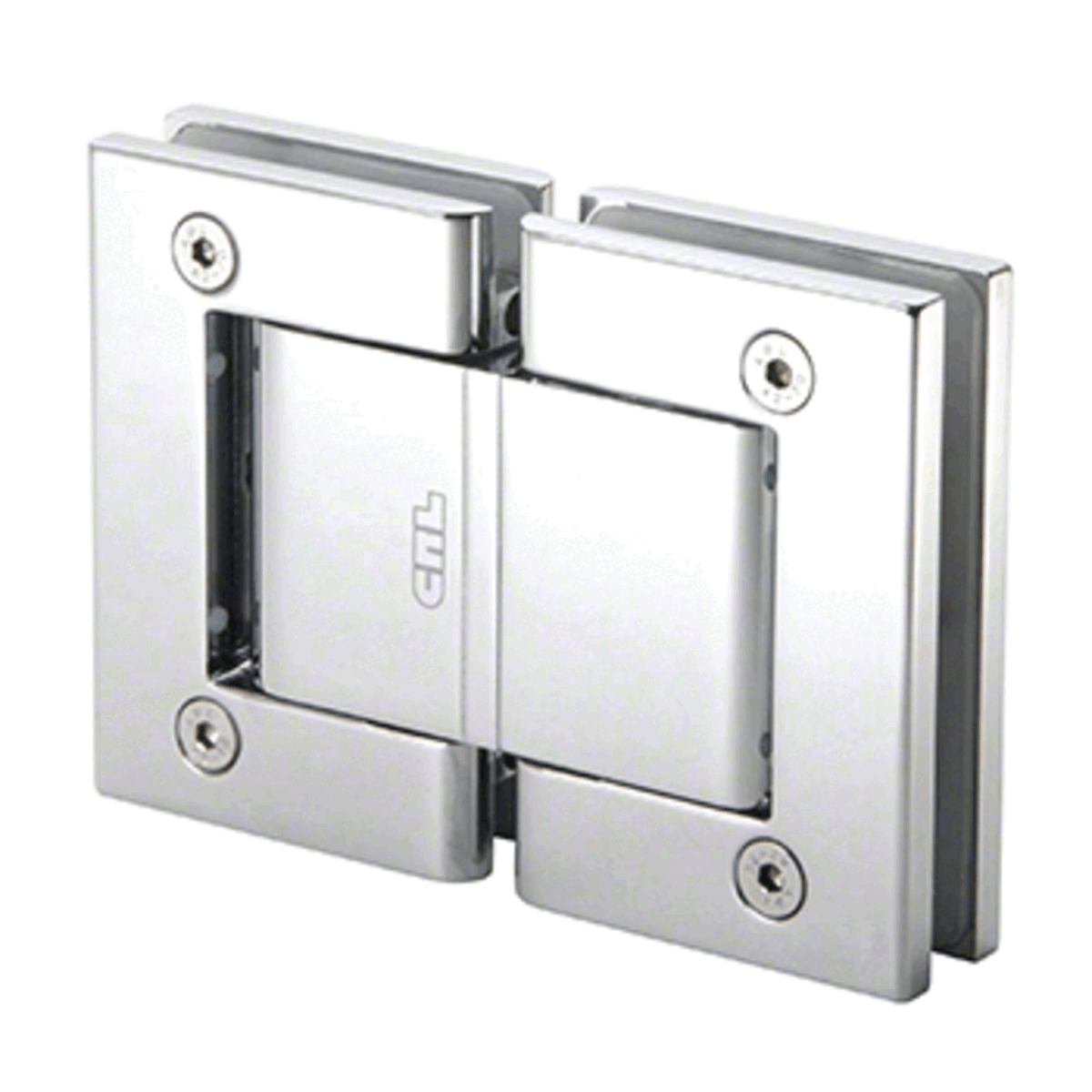

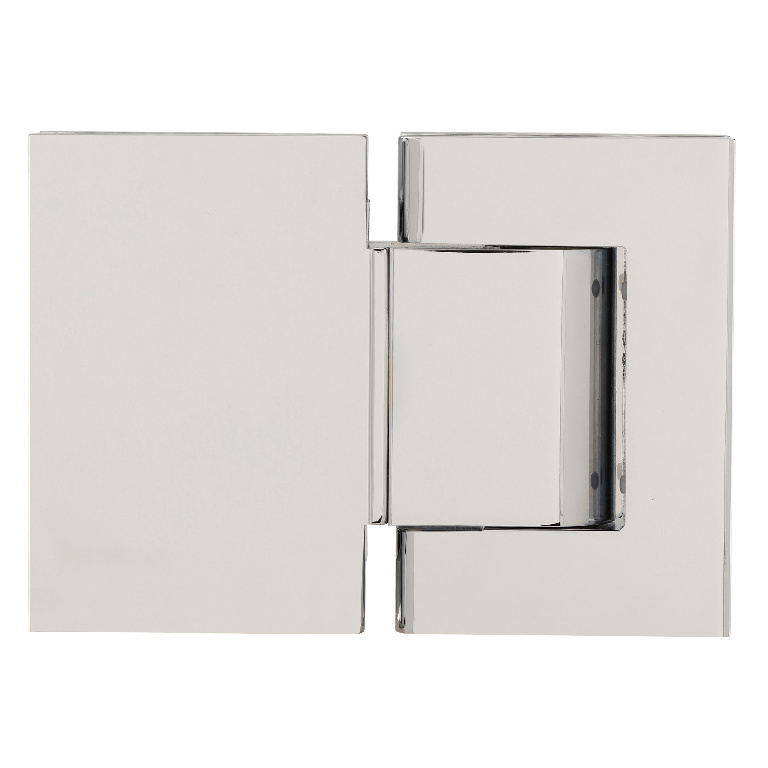

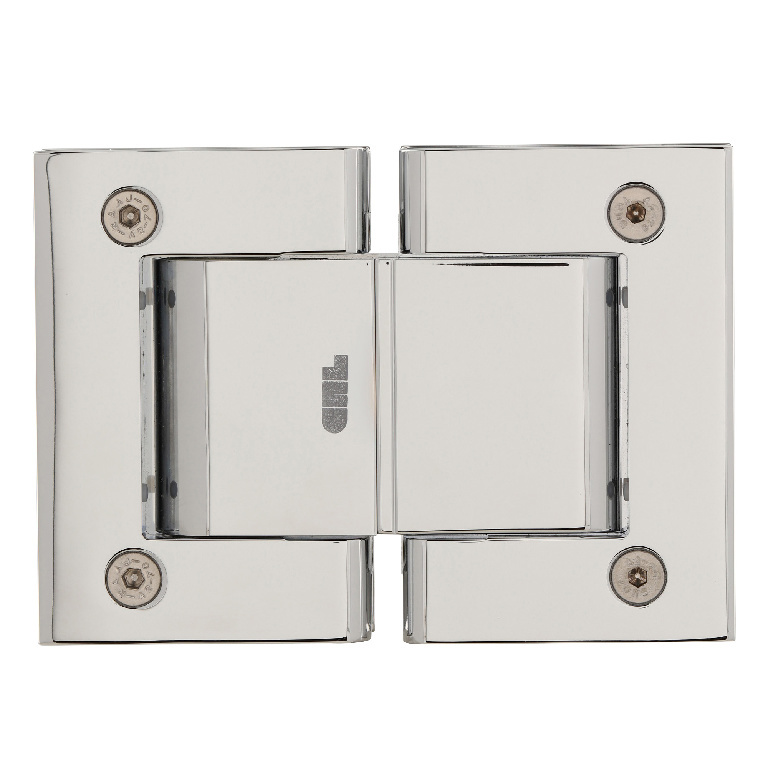

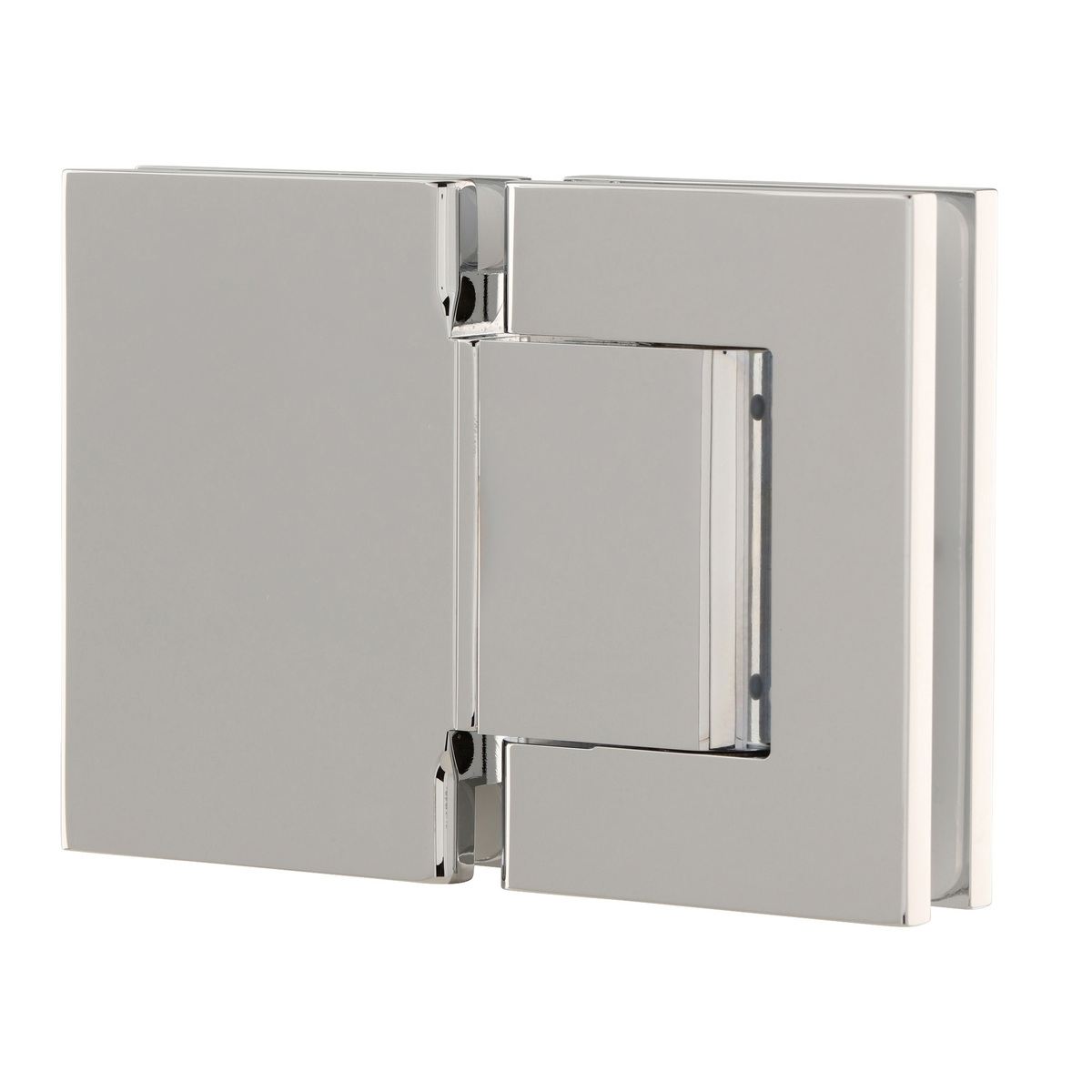

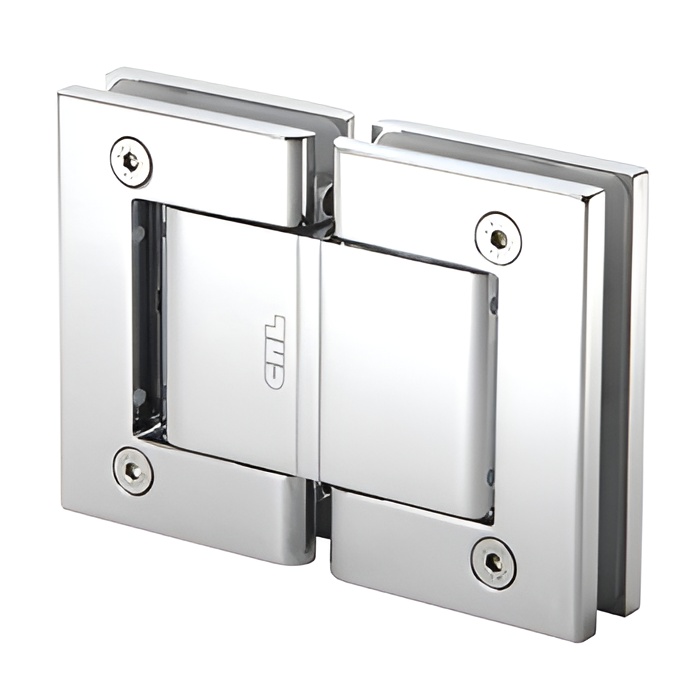

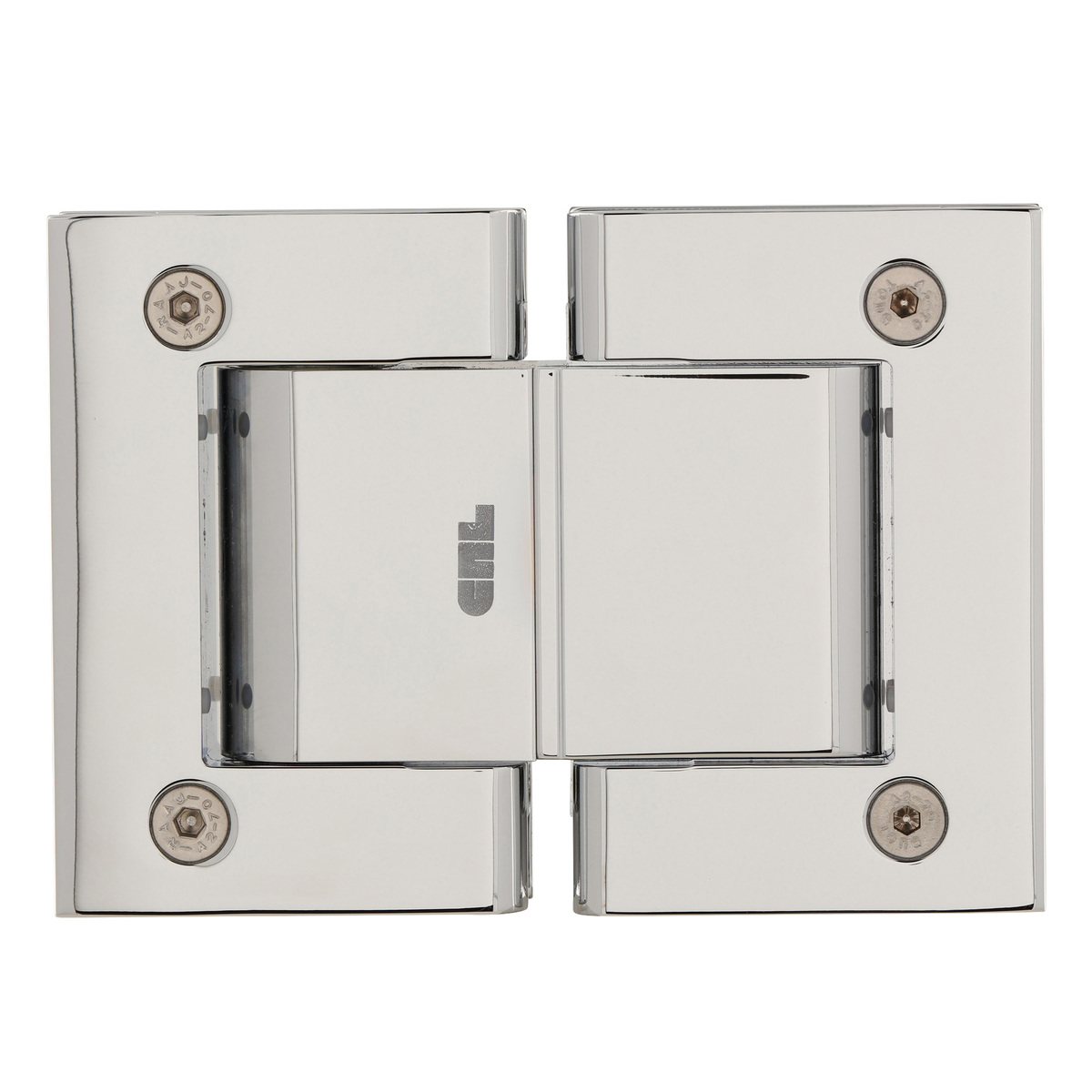

CRL H8215BTCH Chrome Vernon 180 Glass-to-Glass Dynamic Hinge

CRL H8215BTCH Chrome Vernon 180 Glass-to-Glass Dynamic Hinge

C.R. Laurence H8215BTCH Chrome Vernon Oil Dynamic 180 Degree Glass-to-Glass Hinge offers a sophisticated solution for self-closing glass doors, accommodating thicknesses from 5/16" to 9/16" (8 to 13.52 mm). Available in a polished chrome finish, this hinge combines style with practicality, making it a versatile choice for interior applications. Engineered with an aluminum body, the hinge supports doors up to 39" (1 m) wide and a maximum weight of 176 lbs. (80 kg). Its unique oil dynamic mechanism merges the functionality of mechanical hinges with the smooth operation of hydraulic closers, eliminating the need for bulky floor or overhead devices. This allows for clean lines and an all-glass aesthetic in existing openings without extensive retrofitting. The adjustable closing speed feature lets you customize the door's operation, ensuring a gentle and controlled closure. Designed for wall mount and glass-to-glass applications, the H8215BTCH hinge swings 90º in both directions and includes snap-in molded gaskets for easy installation. Ideal for modern interiors, the CRL Vernon Oil Dynamic Hinge is rigorously tested for durability, exceeding one million cycles, ensuring long-lasting performance you can trust.

Chrome Vernon Oil Dynamic 180 Degree Glass-to-Glass Hinge

• For Self-Closing Glass Doors From 5/16" to 9/16" (8 to 13.52 mm) Thick
• Aluminum Body in Your Choice of Brite Chrome, Satin Nickel, and Satin Anodized Finishes
• Adjustable Closing Speed
• A Great Alternative to Floor Closers and Patch Fittings

This CRL Oil Dynamic Full Back Plate Wall Mount Hinge swings in and out a full 90º, with stop at 0º. Closing speed can be adjusted. Intended for doors up to 39" (1 m) wide. Maximum weight per two hinges is 176 lbs. (80 kg). Designed for use on interior door applications only.


The Oil Dynamic Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. Oil Dynamic allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an 'all-glass' door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.

Properly mounted, two Oil Dynamic Hinges will support a 5/16" to 9/16" (8 to 13.52 mm) thick glass door up to 39" (1 m) in width and weighing up to 176 lbs. (80 kg). (Do not use more than two hinges.) A control valve lets you adjust the hinge to the desired closing speed. And Oil Dynamic is ambidextrous, giving you even more design freedom.

The Oil Dynamic Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. Oil Dynamic has been subject to strict testing (over 1 million cycles), assuring long lasting service.

SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90º Inwards and Outwards (Except H8060 Model, Which Only Swings One Way)
Closing Type: Automatic Closing From 0º to 80º
Cut-Out Glass Fabrication Required
Includes: Snap-In Molded Gaskets for 5/16" to 9/16" (8 to 13.52 mm) Glass
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 176 lbs. (80 kg)


Product Warning:

Do not use more than two hinges on one door. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Technical Sales Department. Use only the template included with our hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
