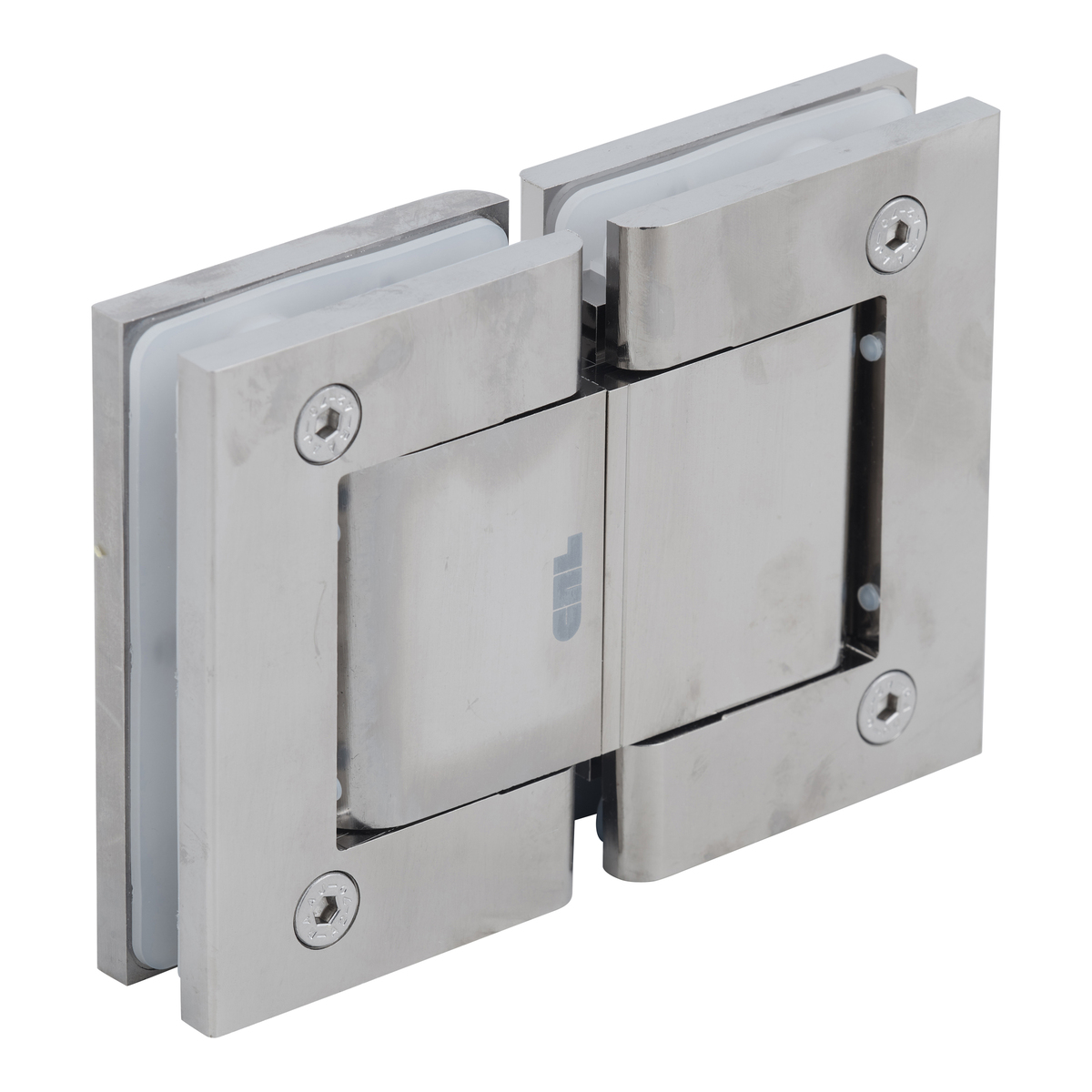

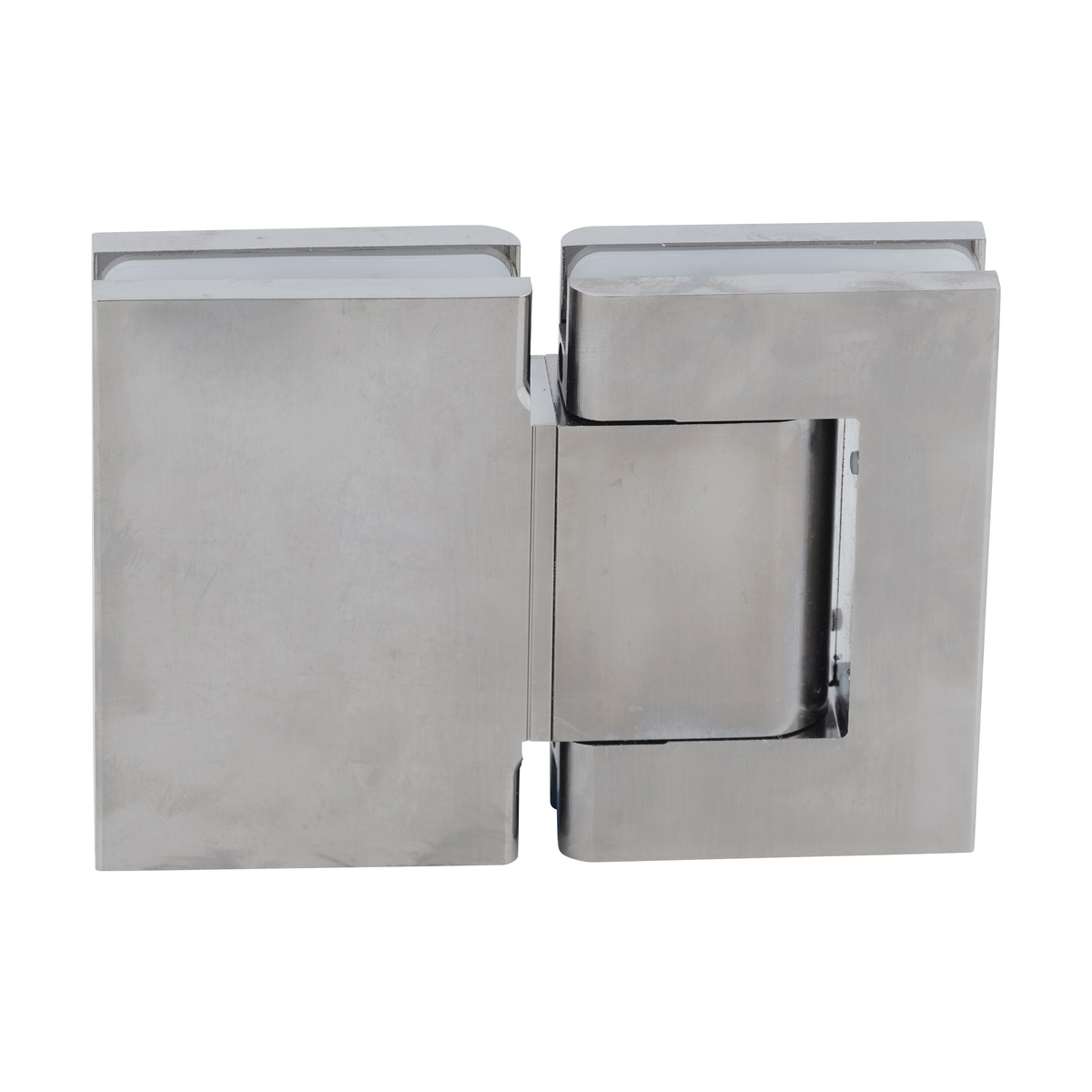

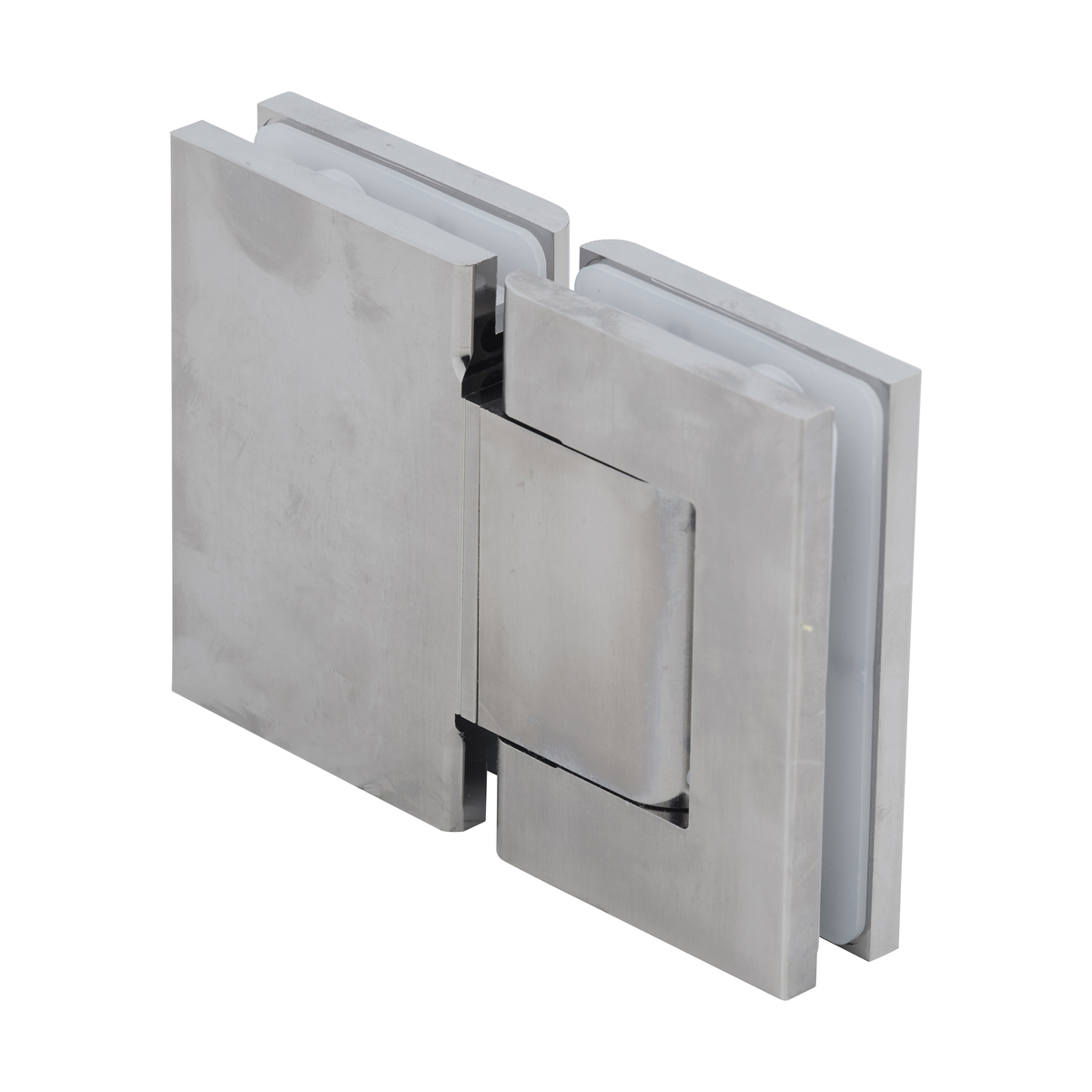

CRL H8215BTSN Satin Nickel Vernon 180 Glass-to-Glass Hinge

CRL H8215BTSN Satin Nickel Vernon 180 Glass-to-Glass Hinge

C.R. Laurence H8215BTSN Satin Nickel Vernon Oil Dynamic 180 Degree Glass-to-Glass Hinge offers an innovative solution for self-closing glass doors ranging from 5/16" to 9/16" thick. Crafted from durable aluminum, this hinge is available in elegant finishes, including Brite Chrome, Satin Nickel, and Satin Anodized, ensuring it complements any design aesthetic. Designed for versatility, the hinge allows for a full 90º swing in both directions and features an adjustable closing speed, making it an excellent alternative to traditional floor closers and patch fittings. It supports doors up to 39" wide and a maximum weight of 176 lbs when using two hinges, providing robust functionality for interior applications. The Oil Dynamic technology combines the benefits of mechanical hinges and hydraulic closers, enabling the installation of an all-glass door without extensive retrofitting. With a well-tested design that exceeds 1 million cycles, this hinge promises long-lasting performance. For added convenience, the hinge includes snap-in molded gaskets, ensuring a secure fit for your glass. Whether you're a building professional or a knowledgeable homeowner, the C.R. Laurence H8215BTSN hinge is the perfect choice for creating sleek, functional, and self-closing glass door solutions.

Satin Nickel Vernon Oil Dynamic 180 Degree Glass-to-Glass Hinge

• For Self-Closing Glass Doors From 5/16" to 9/16" (8 to 13.52 mm) Thick
• Aluminum Body in Your Choice of Brite Chrome, Satin Nickel, and Satin Anodized Finishes
• Adjustable Closing Speed
• A Great Alternative to Floor Closers and Patch Fittings

This CRL Oil Dynamic Full Back Plate Wall Mount Hinge swings in and out a full 90º, with stop at 0º. Closing speed can be adjusted. Intended for doors up to 39" (1 m) wide. Maximum weight per two hinges is 176 lbs. (80 kg). Designed for use on interior door applications only.


The Oil Dynamic Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. Oil Dynamic allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an 'all-glass' door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.

Properly mounted, two Oil Dynamic Hinges will support a 5/16" to 9/16" (8 to 13.52 mm) thick glass door up to 39" (1 m) in width and weighing up to 176 lbs. (80 kg). (Do not use more than two hinges.) A control valve lets you adjust the hinge to the desired closing speed. And Oil Dynamic is ambidextrous, giving you even more design freedom.

The Oil Dynamic Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. Oil Dynamic has been subject to strict testing (over 1 million cycles), assuring long lasting service.

SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90º Inwards and Outwards (Except H8060 Model, Which Only Swings One Way)
Closing Type: Automatic Closing From 0º to 80º
Cut-Out Glass Fabrication Required
Includes: Snap-In Molded Gaskets for 5/16" to 9/16" (8 to 13.52 mm) Glass
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 176 lbs. (80 kg)


Product Warning:

Do not use more than two hinges on one door. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Technical Sales Department. Use only the template included with our hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
