CRL HR2EPBS 316 Brushed Stainless Long Arm Malibu Post-Mounted Handrail Bracket

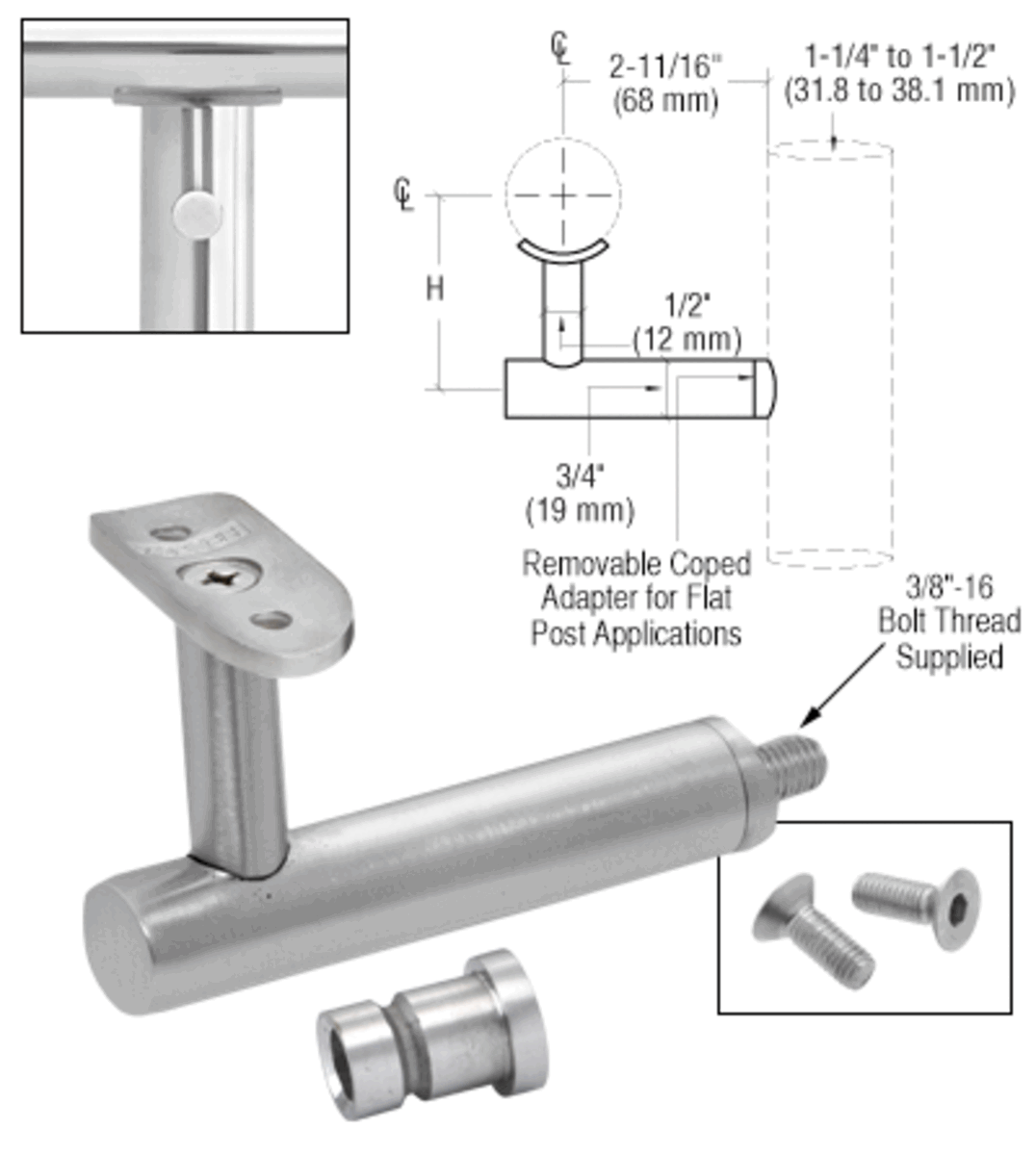

C.R. Laurence HR2EPBS 316 Brushed Stainless Long Arm Malibu Series Post Mounted Hand Rail Bracket offers an exceptional combination of durability and design for your railing needs. Crafted from premium 316 grade stainless steel, this bracket is not only resistant to corrosion but also boasts a sleek brushed finish that enhances the aesthetic appeal of any architectural space. Designed to accommodate hand rail tubing with diameters ranging from 1-1/2" to 2" (38 to 51 mm), it is suitable for various applications. The bracket is ready-to-mount on 1-1/4" or 1-1/2" (32 or 38 mm) Schedule 40 vertical posts, ensuring ease of installation. Available in both short and long arm configurations, the HR2EPBS provides flexibility to meet different project requirements. Each bracket is individually packed and includes attachment screws, making it a convenient solution for contractors and builders alike. For those working with square hand rails, the optional Adapter Plate Cat. No. HBFP1BS is also available. As a reminder, while stainless steel is resistant to corrosion, it requires periodic maintenance to preserve its factory finish. Ensure to review the product packaging for specific thread type instructions, as the mounting stud can be drilled and tapped for M10 x 1.5 or 3/8"-16 threads.

316 Brushed Stainless Long Arm Malibu Series Post Mounted Hand Rail Bracket

• Available in Two Sizes; Short Arm and Long Arm
• For 1-1/2" to 2" (38 to 51 mm) Diameter Hand Rail Tubing
• Ready-to-Mount to 1-1/4" or 1-1/2" (32 or 38 mm) Schedule 40 Vertical Posts
• 316 Grade Stainless

Stainless Steel Advisory:

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• CRL Stainless Steel Disclaimer
• HR2EP Detailed CAD Drawings.dwg
• HR2EP Detailed CAD Drawings.pdf
• HRS Quote Request Form
• HRS System CAD Drawings.dwg
• HRS System CAD Drawings.pdf
