CRL HR2JGBS 316 Brushed Stainless Sunset Series Glass Handrail Bracket

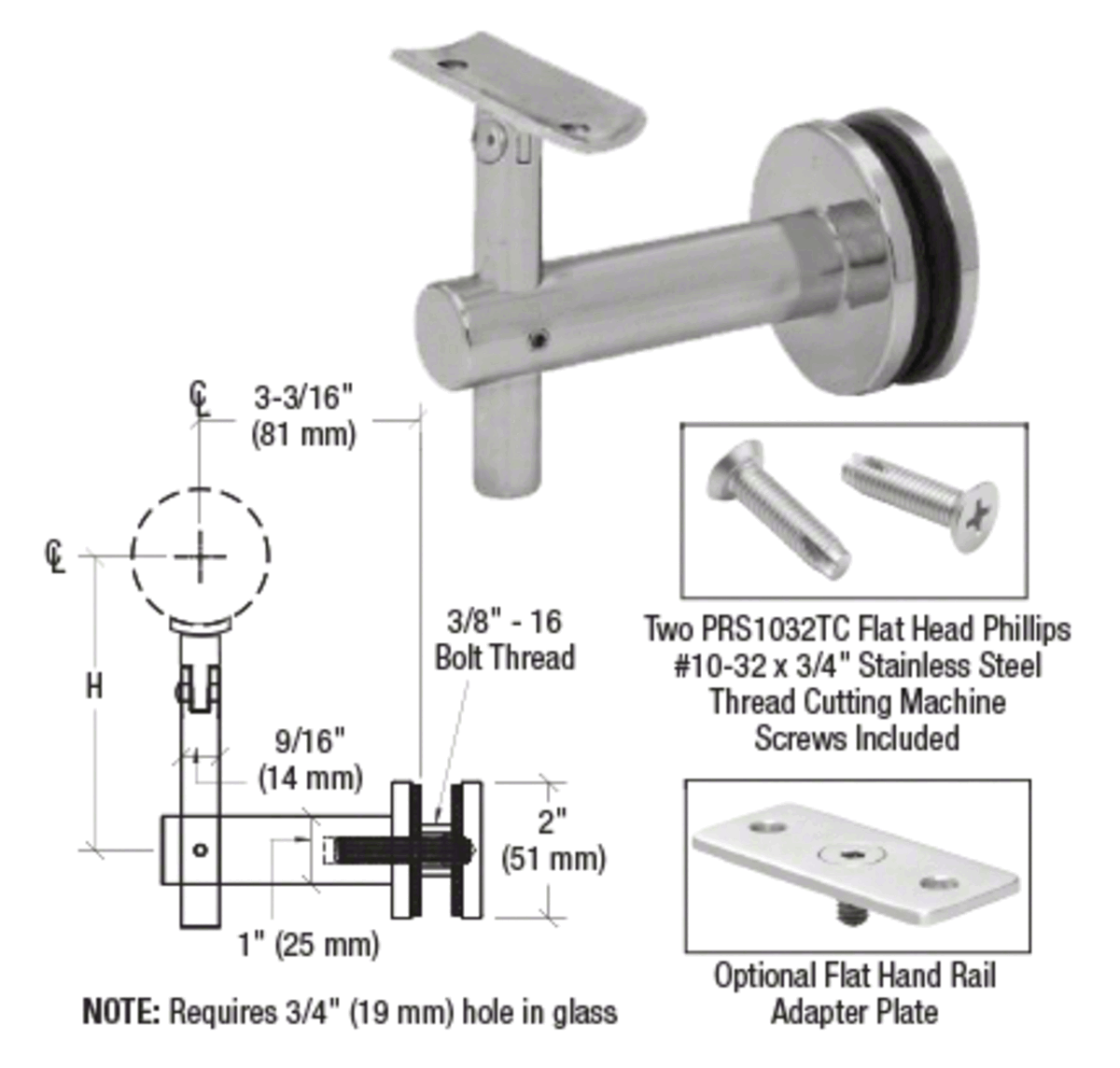

C.R. Laurence HR2JGBS 316 Brushed Stainless Sunset Series Glass Mounted Hand Rail Bracket combines durability and style, making it an essential component for contemporary railing systems. Constructed from high-quality 316 Grade Stainless Steel, this bracket is designed to withstand the elements while providing a sleek, brushed finish that enhances any architecture. This versatile handrail bracket features a 3-way adjustable design, allowing for easy installation and precise alignment. It is compatible with handrail tubing diameters of 1-1/2", 1.9", or 2" (38, 48, or 51 mm) and accommodates glass thicknesses ranging from 1/2" to 1-1/16" (12 to 25.52 mm). The HR2JGBS comes ready-to-install, complete with two flat head Allen M6 x 1.0 x 5/8" stainless steel machine screws. As a key feature, this bracket requires a 3/4" (19 mm) hole in the glass for installation, ensuring a secure and stable fit. With a centerline projection of 3-3/16 inches (81 mm), it offers both functionality and an aesthetically pleasing profile. While stainless steel provides corrosion resistance, regular maintenance is recommended to preserve its finish. Elevate your next project with the reliability and elegance of the C.R. Laurence HR2JGBS Glass Mounted Hand Rail Bracket.

316 Brushed Stainless Sunset Series Glass Mounted Hand Rail Bracket

• 3-Way Adjustable
• Ready-to-Install
• 316 Grade Stainless Steel
• For 1-1/2", 1.9" or 2" (38, 48 or 51 mm) Diameter Hand Rail Tubing
• Designed for 1/2" to 1-1/16" (12 to 25.52 mm) Glass Thickness

Stainless Steel Advisory:

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• CRL Stainless Steel Disclaimer
• HRS Quote Request Form
• HRS System CAD Drawings.dwg
• HRS System CAD Drawings.pdf
