CRL HR2SPBS Manhattan Series Brushed Stainless Post-Mounted Handrail Bracket

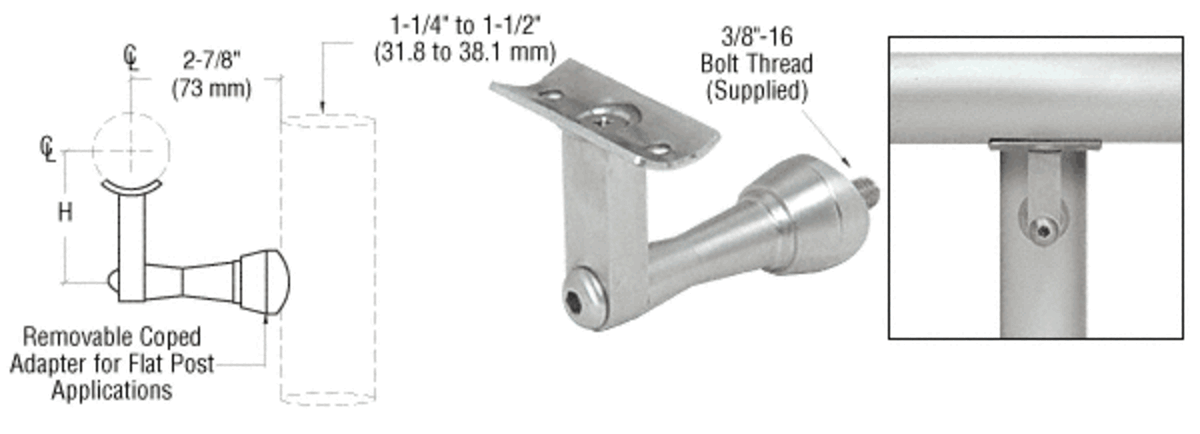

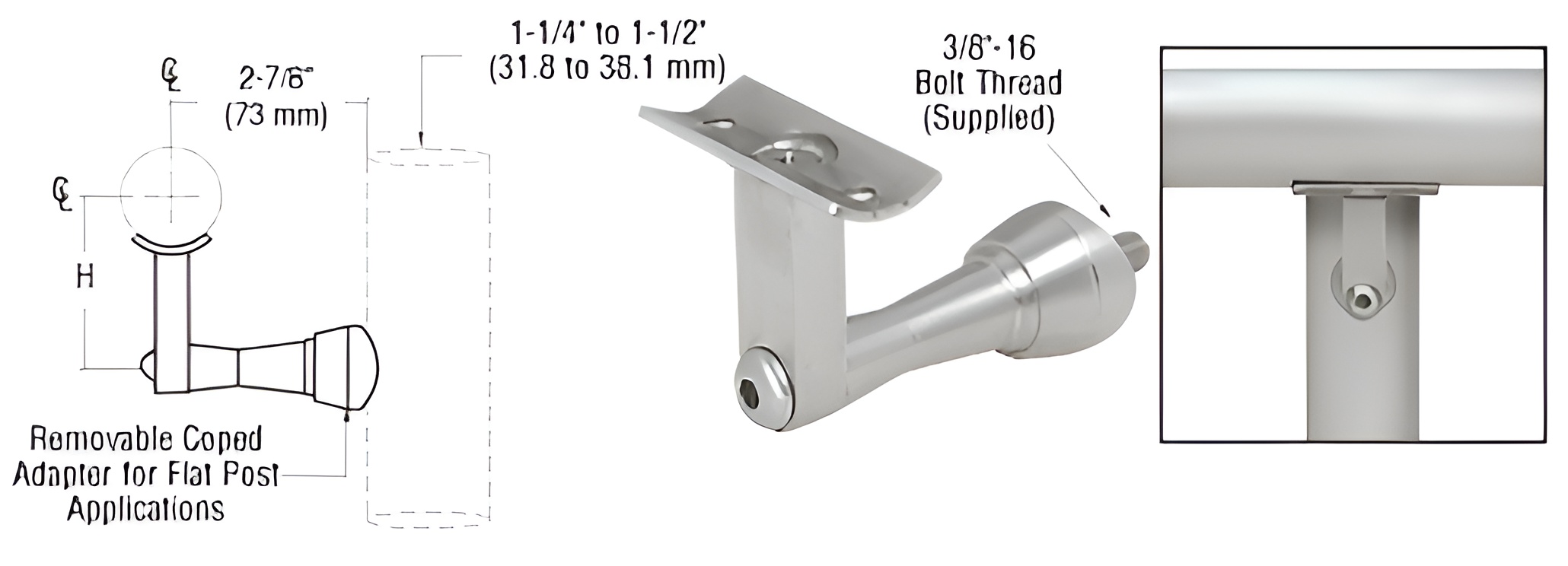

C.R. Laurence HR2SPBS Brushed Stainless Manhattan Series Post Mounted Hand Rail Bracket offers a reliable solution for securing hand railings in both residential and commercial settings. Designed to mount easily onto either 1-1/4" or 1-1/2" (32 or 38 mm) Schedule 40 vertical posts, this bracket accommodates hand railing tubing with diameters of 1-1/2", 1.9", or 2" (38, 48.3, or 50.8 mm). One of this bracket's standout features is its adjustable bar angle and railing bracket angle, allowing for precise alignment to meet your design needs. Available in several architectural finishes, including a sleek brushed stainless steel option, it can complement a variety of aesthetic preferences, enhancing the overall look of your space. With a centerline projection of 2-7/8 in. (73 mm), this bracket provides a sturdy and attractive support system for your hand railing. While stainless steel is known for its durability and resistance to corrosion, regular maintenance is recommended to preserve its factory finish. Whether you're upgrading an existing installation or starting a new project, the C.R. Laurence Manhattan Series Post Mounted Hand Rail Bracket combines functionality and style, making it an ideal choice for any professional or homeowner.

Brushed Stainless Manhattan Series Post Mounted Hand Rail Bracket

• Ready-to-Mount to Either 1-1/4" or 1-1/2" (32 or 38 mm) Schedule 40 Vertical Posts
• Available in Several Architectural Finishes
• For 1-1/2", 1.9" or 2" (38, 48 or 51 mm) Diameter Hand Rail Tubing

Stainless Steel Advisory:
