CRL HR7EGMBL Matte Black Huntington Glass-Mounted Handrail Bracket

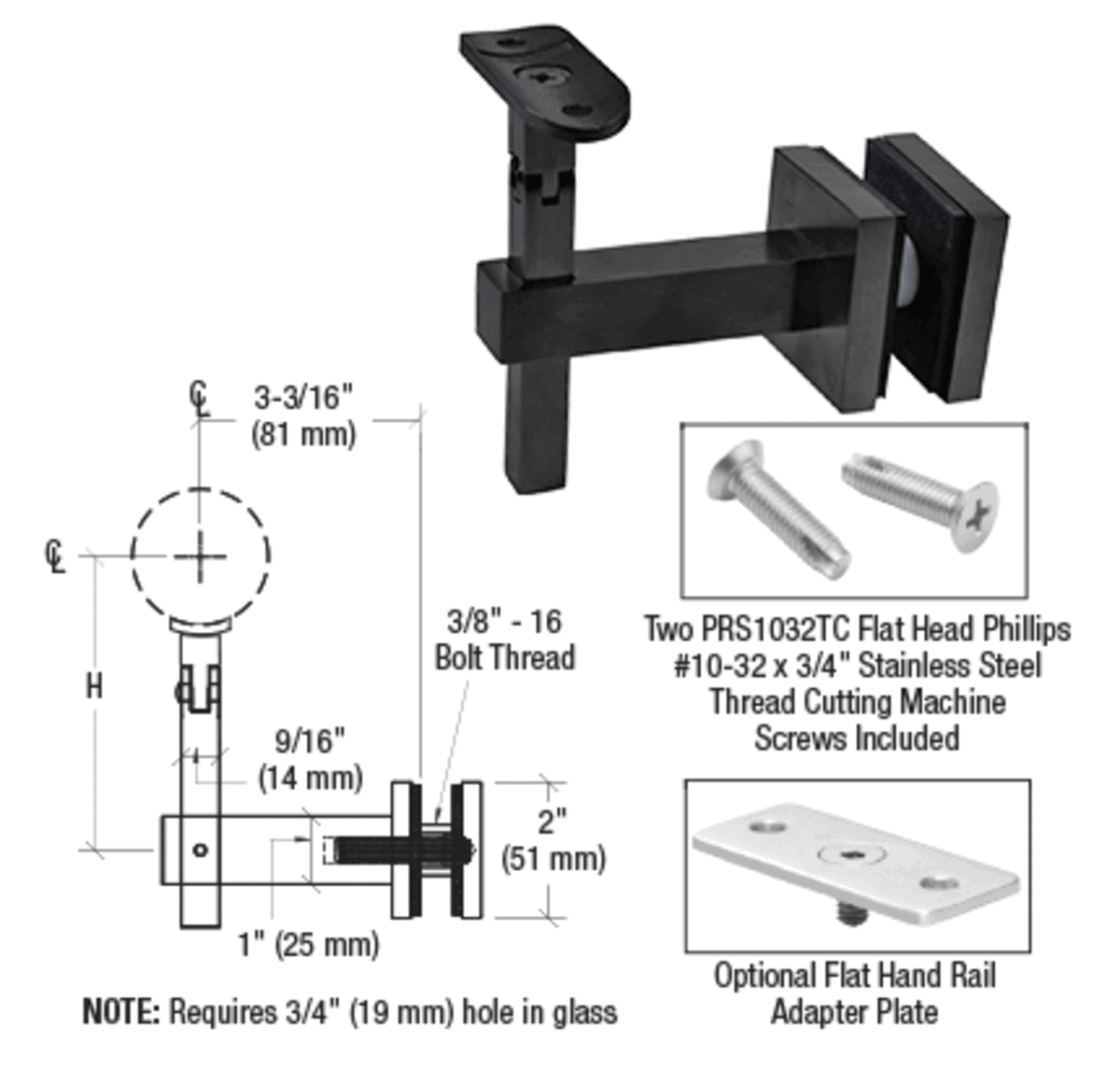

C.R. Laurence HR7EGMBL Matte Black Huntington Series Glass Mounted Hand Rail Bracket combines style and functionality for a refined railing solution. Crafted to accommodate hand rail tubing with a diameter ranging from 1-1/2" to 2" (38.1 to 50.8 mm), this bracket is ideal for both residential and commercial applications. It is suitable for glass thicknesses between 1/2" to 1-1/16" (12 to 25.52 mm), ensuring versatility in design. Designed for ease of installation, the Huntington Series bracket is ready to mount directly onto glass surfaces. It can also be adapted for wall mount applications, providing even more flexibility in how you choose to utilize it. The matte black finish adds a modern touch, making it a perfect fit for contemporary spaces. With a cap height of 2 inches (51 mm) and a centerline projection of 3-3/16 inches (81 mm), this bracket not only enhances safety but also complements various design aesthetics. Please note, it requires a 3/4" (19 mm) hole in the glass for proper installation. Constructed from durable aluminum, the HR7EGMBL is both lightweight and robust, ensuring long-lasting performance. Elevate your architectural projects with this sophisticated hand rail bracket from C.R. Laurence.

Matte Black Huntington Series Glass Mounted Hand Rail Bracket

• Ready-to-Install for 1-1/2" to 2" (38.1 to 50.8 mm) Diameter Hand Rail Tubing
• Suitable for 1/2" to 1-1/16" (12 to 25.52 mm) Glass Thickness
• Can Also be Used for Wall Mount Applications

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• HRS Quote Request Form
• HRS System CAD Drawings.dwg
• HRS System CAD Drawings.pdf
