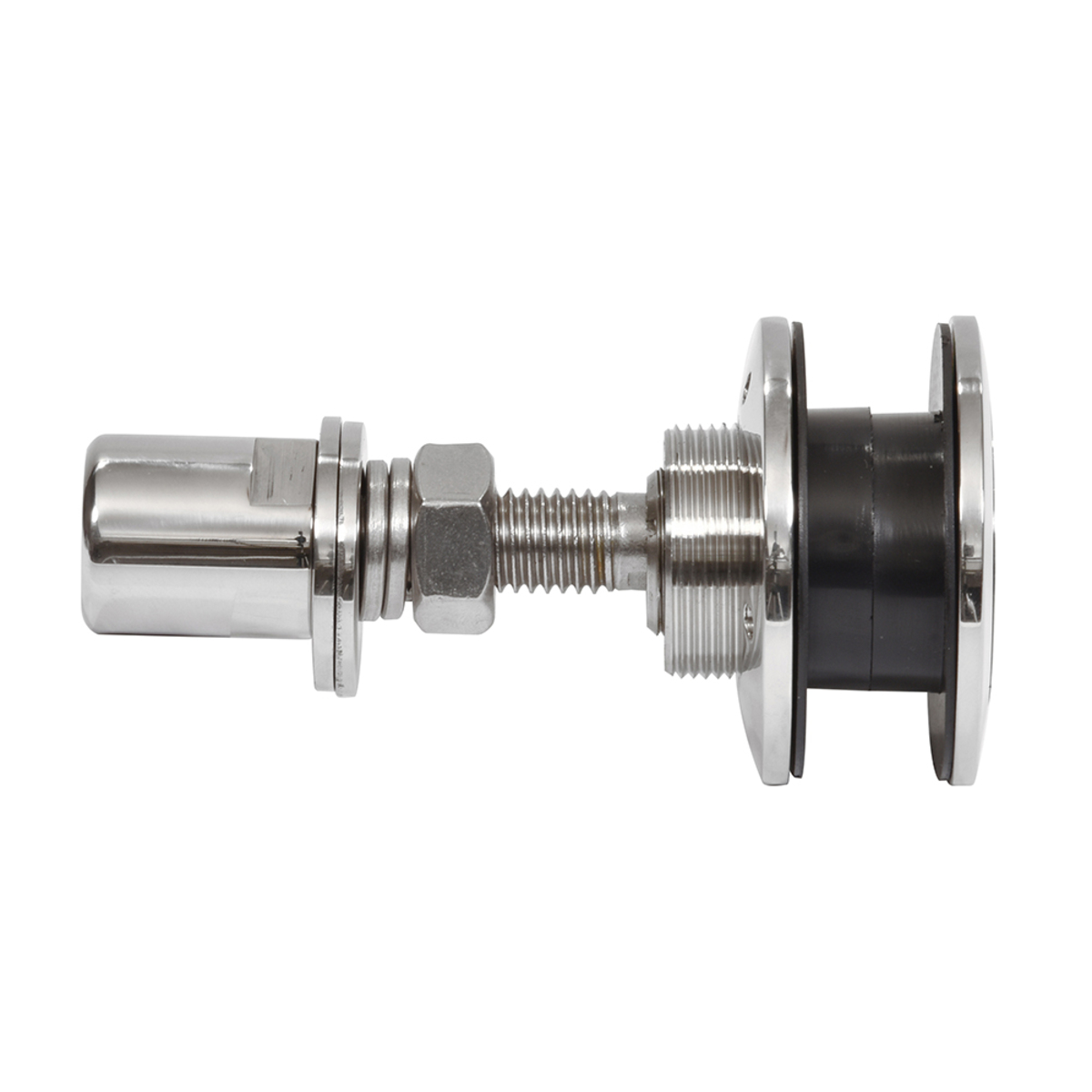

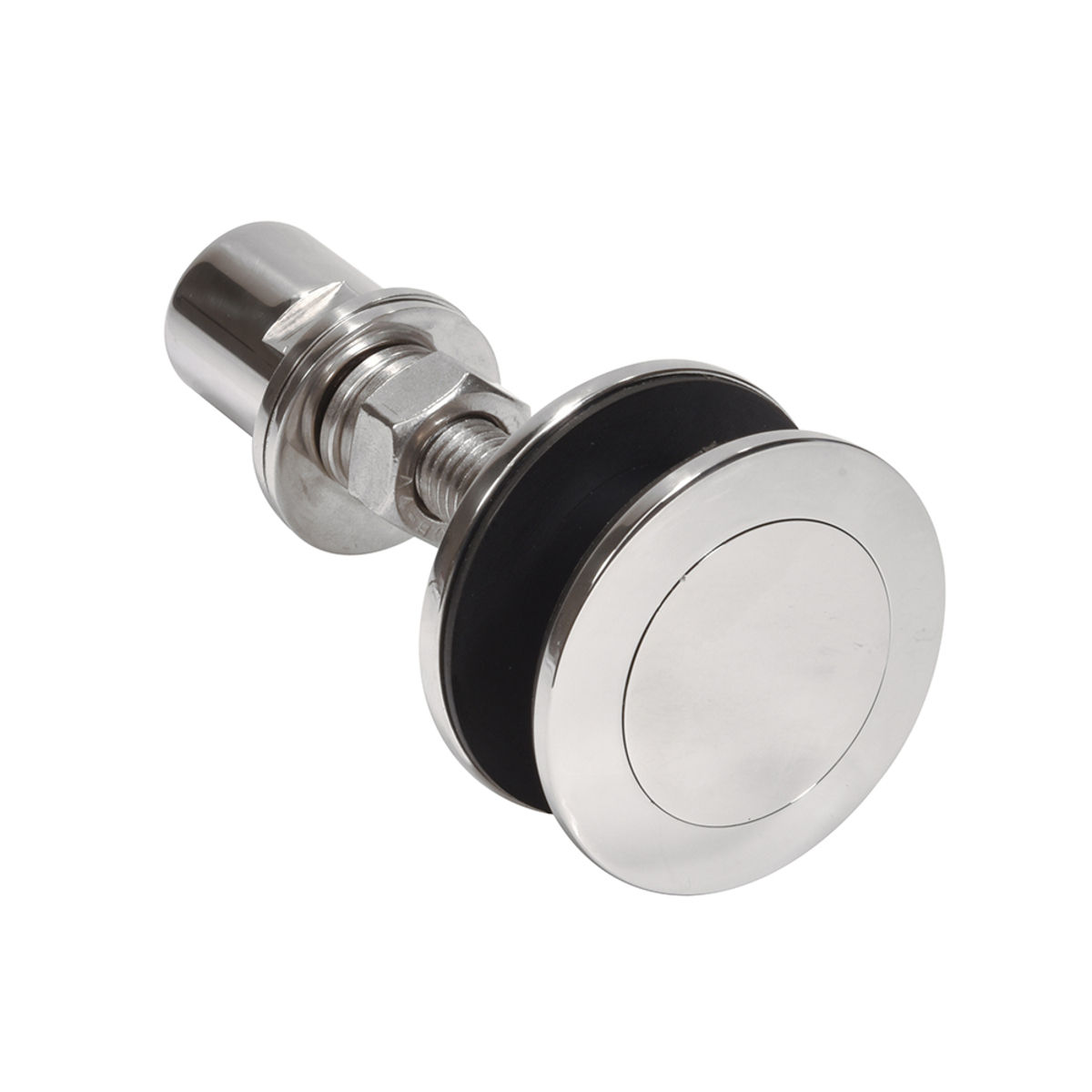

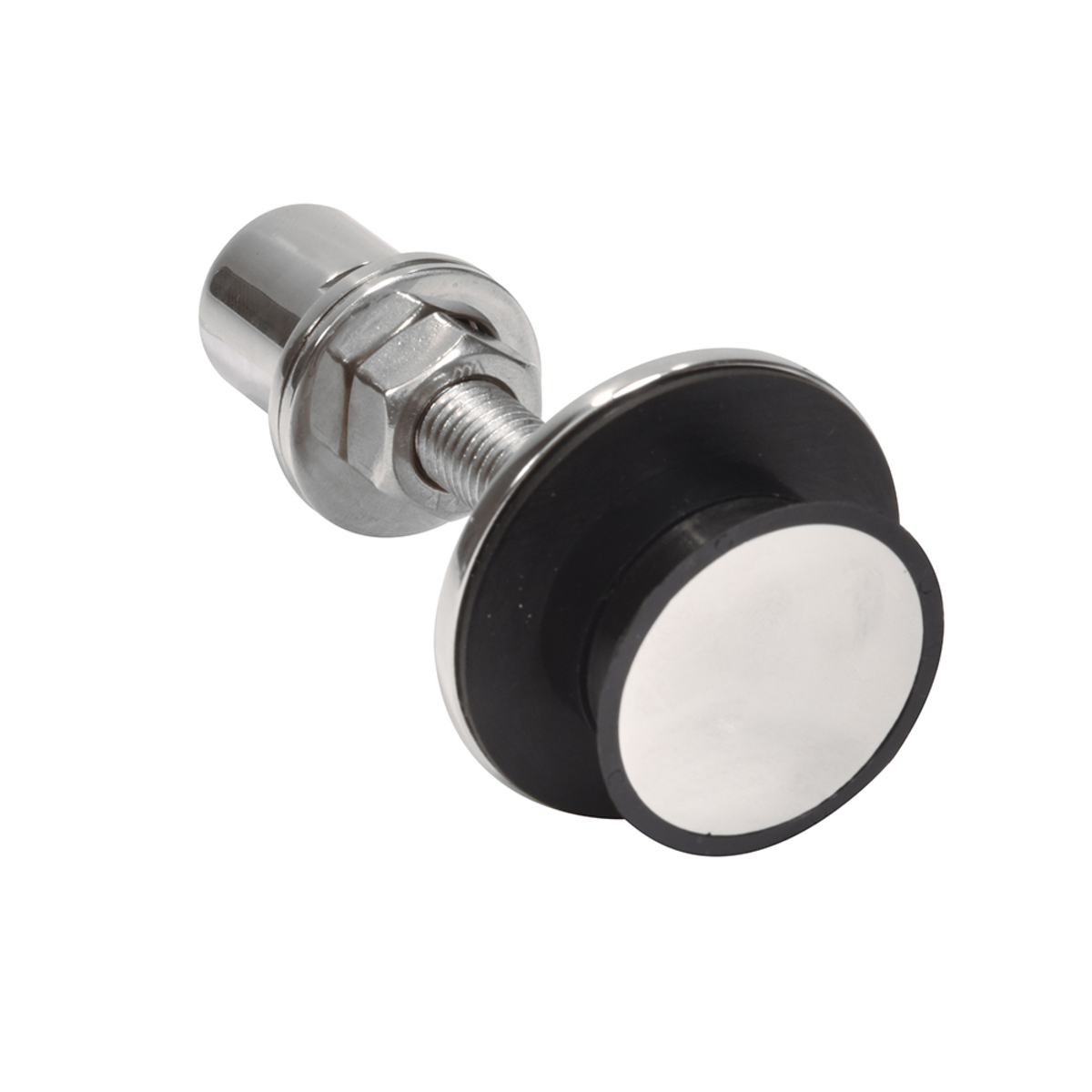

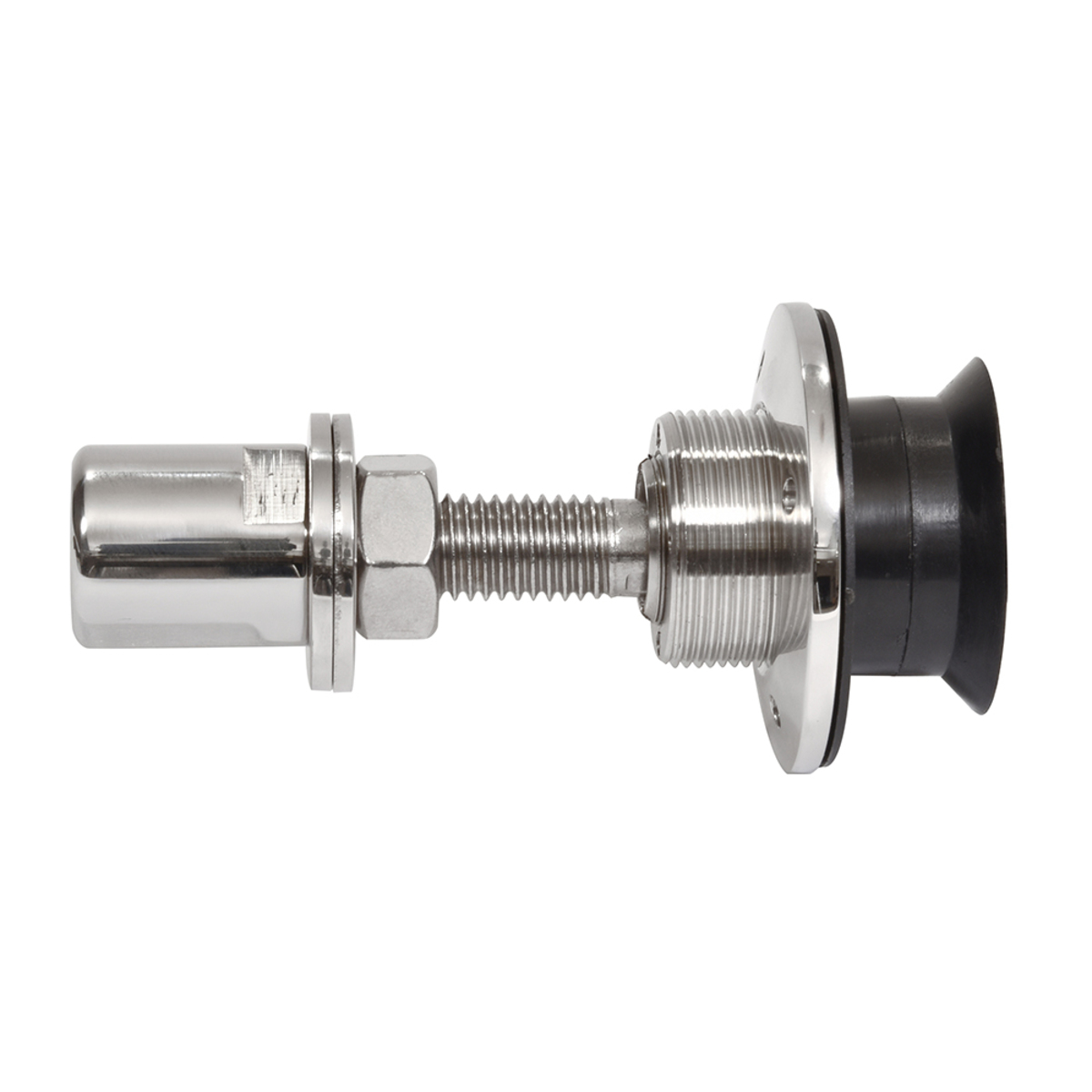

CRL HSF14PS 316 Polished Stainless Steel Swivel Fastener for 1/2" to 1-1/16" Glass

Your Price: $76.67

Retail Price:$91.78

Your Savings:$15.11(16%)

CRL HSF14PS Polished Stainless Steel Swivel Fastener for 1/2" to 1-1/16" glass offers a sleek, durable solution for all-glass installations.

Part Number : CRL_HSF14PS

Availability: 384 In Stock

Quantity

Description

CRL HSF14PS 316 Polished Stainless Steel Swivel Fastener for 1/2" to 1-1/16" Glass

C.R. Laurence HSF14PS 316 Polished Stainless Steel Swivel Combination Fastener for 1/2" to 1-1/16" Glass offers a seamless solution for achieving the 'All-Glass' look in architectural designs. Crafted from durable 316 alloy stainless steel, this fastener is compatible with both tempered monolithic and tempered laminated glass, ensuring versatility in various applications. The swivel head design allows for a tilt of up to 6 degrees in any direction, which helps evenly distribute stress across the glass panel, making it ideal for scenarios subjected to live loads. This fastener features a unique combination attachment design, allowing it to be used for both flush mounting and cap-type mounting, depending on your installation needs. For a clean, smooth exterior, flush mounting can be achieved with a countersunk hole, while the supplied adaptor washer accommodates standard holes. It's important to note that this product should not be used with annealed or raw glass. Available in polished and brushed stainless steel finishes, the HSF14PS not only provides functionality but also enhances the aesthetic appeal of your glass installations. Regular maintenance is recommended to preserve its finish, ensuring long-lasting performance and visual appeal.

316 Polished Stainless Steel Swivel Combination Fastener for 1/2" to 1-1/16" Glass

Designed for the 'All-Glass' Look
For Use with 1/2" to 1-1/16" (12 to 27 mm) Tempered Glass
Made of 316 Alloy Stainless Steel
Available in Polished and Brushed Stainless Finishes
Use with Tempered Monolithic or Tempered Laminated Glass
Ionoplast Interlayer recommended for Laminated Glass

The head of the CRL Swivel Glass Attachment can tilt up to 6 degrees in any direction on its ball and socket joint. This allows for any stress applied to the glass to be more evenly distributed across the entire panel of glass rather than concentrating at the hole. These are typically used in conditions where the glass will be subject to live loads.

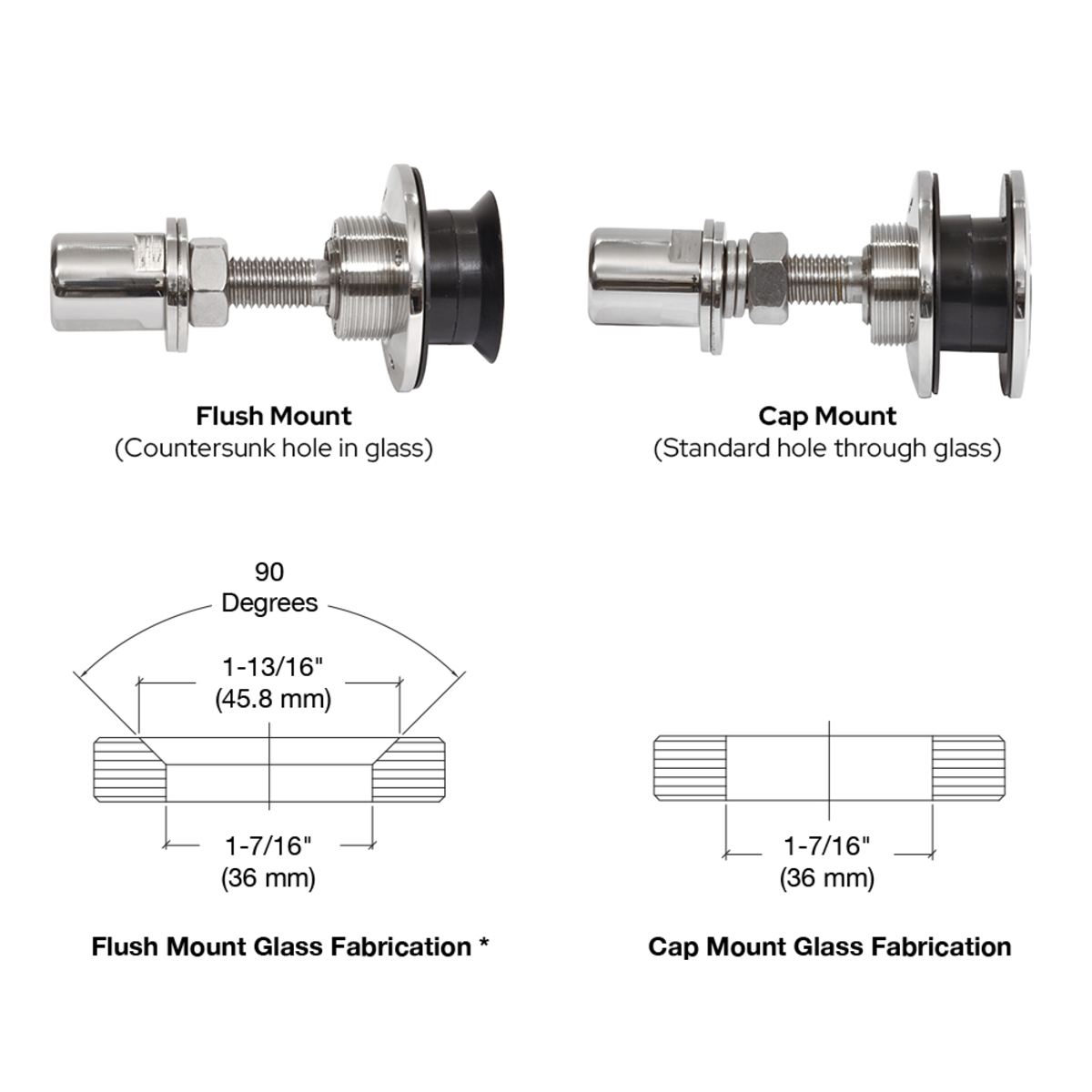

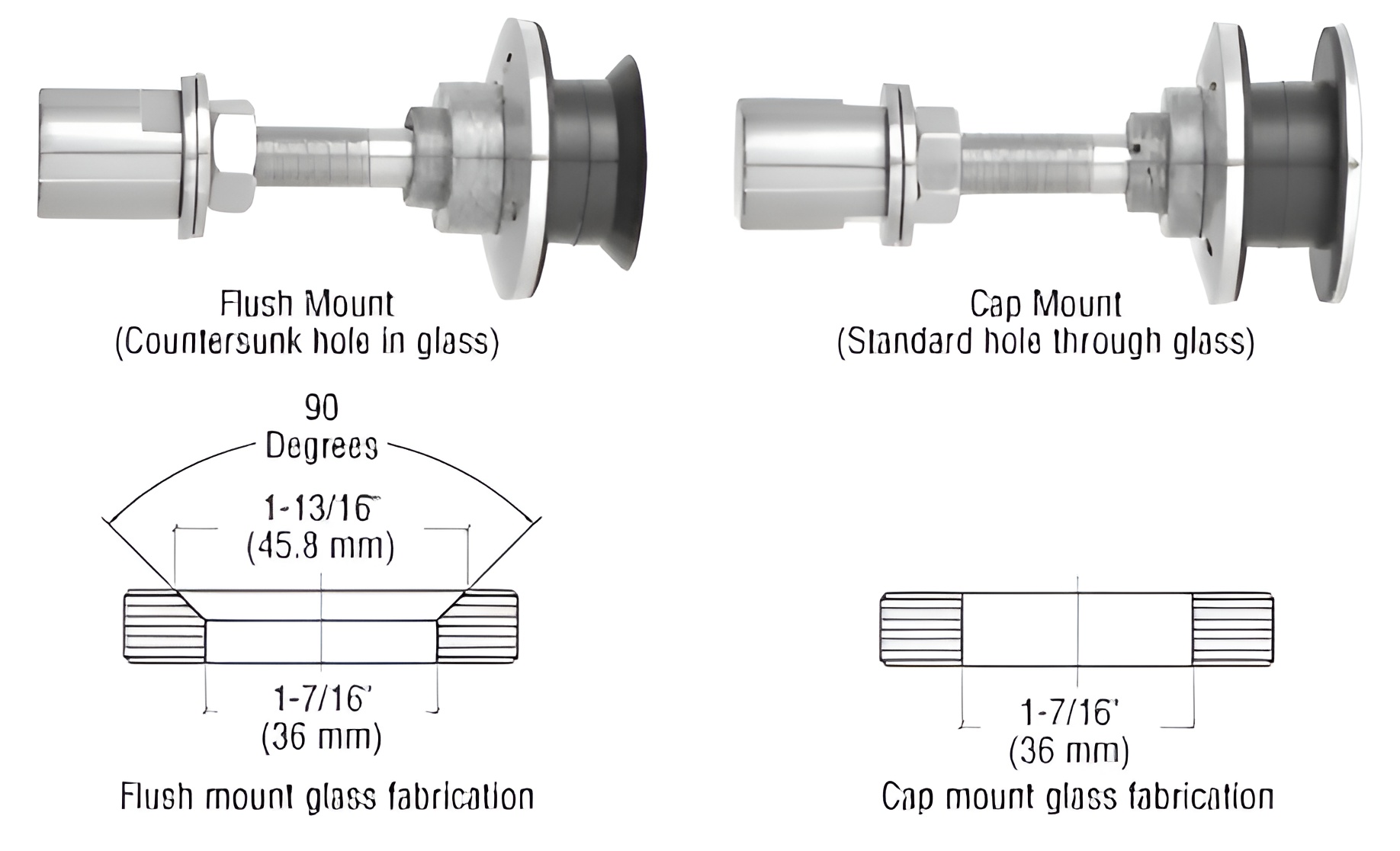

The Swivel Head Fitting also employs our special Combination Glass Attachment design so it can be used for 'flush' mounting for a smooth exterior surface when the glass is fabricated with a countersunk hole. This same Fitting can be used for the 'cap' type of mounting when using the supplied adaptor washer. This requires just a standard hole in the glass.

NOTE: We suggest when using the flush mount method that you give your glass fabricator a sample Flush Mount Glass Attachment to ensure a proper flush fit.

Product Warning:

Do Not Use With Annealed or Raw Glass

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Articulation: Swivel

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Polished Stainless Steel

Glazing Thickness: 1/2 in. To 1-1/16 in. (13 mm To 27 mm)

Glazing Type: Tempered Monolithic, Tempered Laminated

Load Capacity: Heavy

Material: 316 Stainless Steel

Shipping Limitations: None
