CRL HYDH037CH Chrome Hydroslide Bi-Fold Wall Mount HingeC.R. Laurence HYDH037CH Chrome Hydroslide Bi-Fold Wall Mount Hinge offers a sophisticated solution for enhancing your shower enclosure with a bi-folding design. This hinge allows for two sliding panels of glass to fold into the enclosure, creating a wider opening compared to traditional sliding doors. Crafted from solid brass, it not only ensures durability but also adds a touch of elegance, available in polished chrome and three other finishes to seamlessly match your existing Hydroslide system hardware. Designed for use with monolithic tempered glass, the HYDH037CH accommodates glass thicknesses from 5/16" to 3/8" (8 to 10 mm). Installation requires specific glass holes, and the hinge is suitable for free-swinging movement within the enclosure. It is important to note that the upper track, hanger, and 90-degree wall-to-upper track connectors are sold separately. Each hinge supports up to 100 lbs. (45 kg) for both folding doors combined, ensuring stability and reliability. Additionally, included gaskets and screws facilitate a straightforward installation process. For residential or hotel shower applications, the C.R. Laurence Hydroslide Bi-Fold Hinge is a stylish and practical choice, engineered to enhance usability while maintaining safety standards.

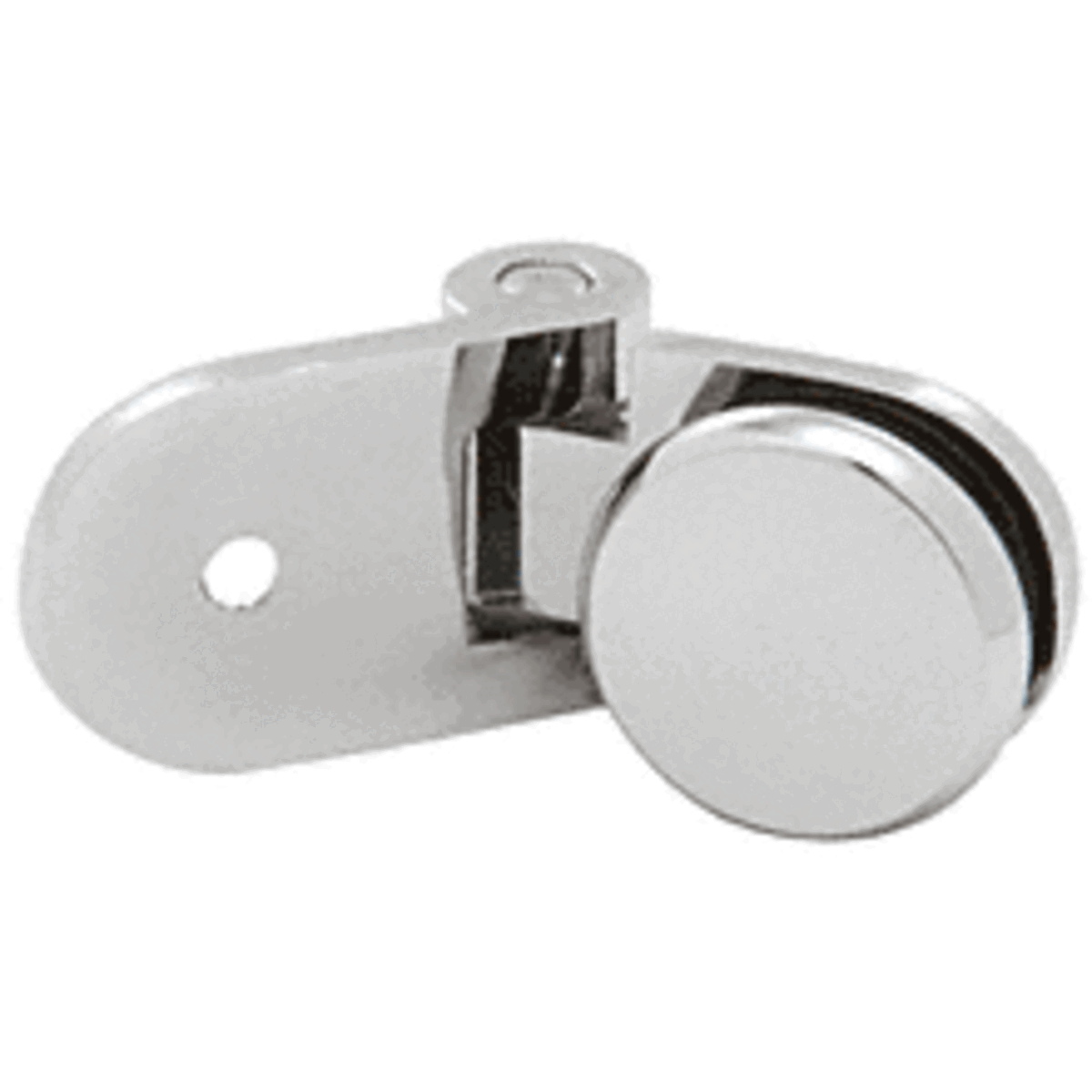

Chrome Hydroslide Bi-Fold Wall Mount Hinge
- Wall Mount and Glass-to-Glass Models Allow Door to Bi-Fold Into Enclosure
- Used in Conjunction With Hydroslide Upper Track, One Hanger, and Upper Track Connectors
- Four Finishes to Match Our Hydroslide System Hardware
- Use Monolithic Tempered Glass
CRL Hydroslide Bi-Fold Hinges add a different element to the already popular Hydroslide System. Instead of a standard sliding door, you can now "Bi-Fold" two sliding panels of glass into the shower enclosure, creating a larger opening than the single sliding door will allow. Made of solid brass and available in four popular finishes, the Hydroslide Bi-Fold Hinges require holes in the glass.
NOTE: Upper Track, Hanger, and 90 Degree Wall-to-Upper Track Connectors necessary for installation are all sold separately.
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: Bi-Fold into Shower Enclosure
Closing Type: Free Swinging
Holes Required in Glass
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Capacities: Do not Exceed Either 48" (1.22 m) or 100 Lbs. (45 kg) for Both Folding Doors Combined. Use Two Hinges Only on Each Folding Panel.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Back Plate: Full
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Edge Profile: Beveled
Finish/ Color:: Polished Chrome
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Material: Brass
Maximum Door Weight - 2 Hinges: 100 lbs. (45.4 kg)
Maximum Door Width: 24 in. (610 mm)
Series: Hydroslide
Shipping Limitations: None
