CRL J993H0D Jackson 900 Series Dual Hold Open Floor Closer Body Cement Case

CRL J993H0D Jackson 900 Series Dual Hold Open Floor Closer Body Cement Case

C.R. Laurence J993H0D Jackson 900 Series 90 and 120 Degree Dual Hold Open Spring Power Adjustable Floor Mounted Closer Body and Cement Case Basic Package is engineered for durability and versatility in both new and retrofit applications. With a robust capacity of 1,000 lbs. (453 kg) for 54" (1.37 m) doors, this closer is ideal for handling larger, heavier doors while ensuring maintenance-free performance. The multi-size spring power is fully adjustable, accommodating varying door weights and conditions, while the unique centering adjustment allows for precise double door alignment within a 6-degree range. Designed to meet ADA requirements, the closer can be set for 5 or 8.5 lbs. opening forces, making it accessible for all users. This model features dual hold open options at 90º and 120º, providing flexibility for various applications. Its specially formulated, multi-viscosity temperature stabilizing fluid ensures smooth operation even in extreme temperature changes, while the UL listing guarantees compliance with safety standards. The package includes the closer body, cement case, and installation tools, ensuring a straightforward setup. With a 10-year limited warranty, the C.R. Laurence Jackson 900 Series closer offers a reliable solution for high-traffic environments where functionality and design matter.

Jackson 900 Series 90 and 120 Degree Dual Hold Open Spring Power Adjustable Floor Mounted Closer Body and Cement Case Basic Package

• 1000 Lb. Capacity, 54" (1.37 m) Doors
• Multi-Size Spring Power Adjustable
• Interchangeable Spindle Heights
• Leveling and Door Centering Adjustments
• 10 Year Limited Warranty
• UL Listed
• BS EN1154 - Classification 3.8.6/1.1.1.3

The CRL Jackson® 900 Series Multi-Sized Floor Mounted Door Closer is a heavy-duty, fully adjustable closer designed for new and retrofit applications. Accessories are available for either double or single acting doors. With its 1,000 lbs. (453 kg) capacity, the 900 Series Door Closer can be used with larger and heavier interior or exterior doors for longer, maintenance-free performance. These Door Closers are available in dual 90º and 120º, or 105º only Hold Open and No Hold Open models.


This fully adjustable Door Closer meets A.D.A. requirements in that it can be set at 5 or 8.5 lbs. opening forces. The unique centering adjustment simplifies double door alignment. This Door Closer is ideal for areas with extreme temperature changes due to its multi-viscosity temperature stabilizing fluid with thermal sensitive valves providing seasonal adaptability. Packages for new and retrofit installations, as well as accessories for both Center-Hung and Offset door applications, are available.

NOTE: This Door Closer is designed to open to a maximum of 180 degrees. An auxiliary floor or overhead stop is required to stop the door at less than 180 degrees.

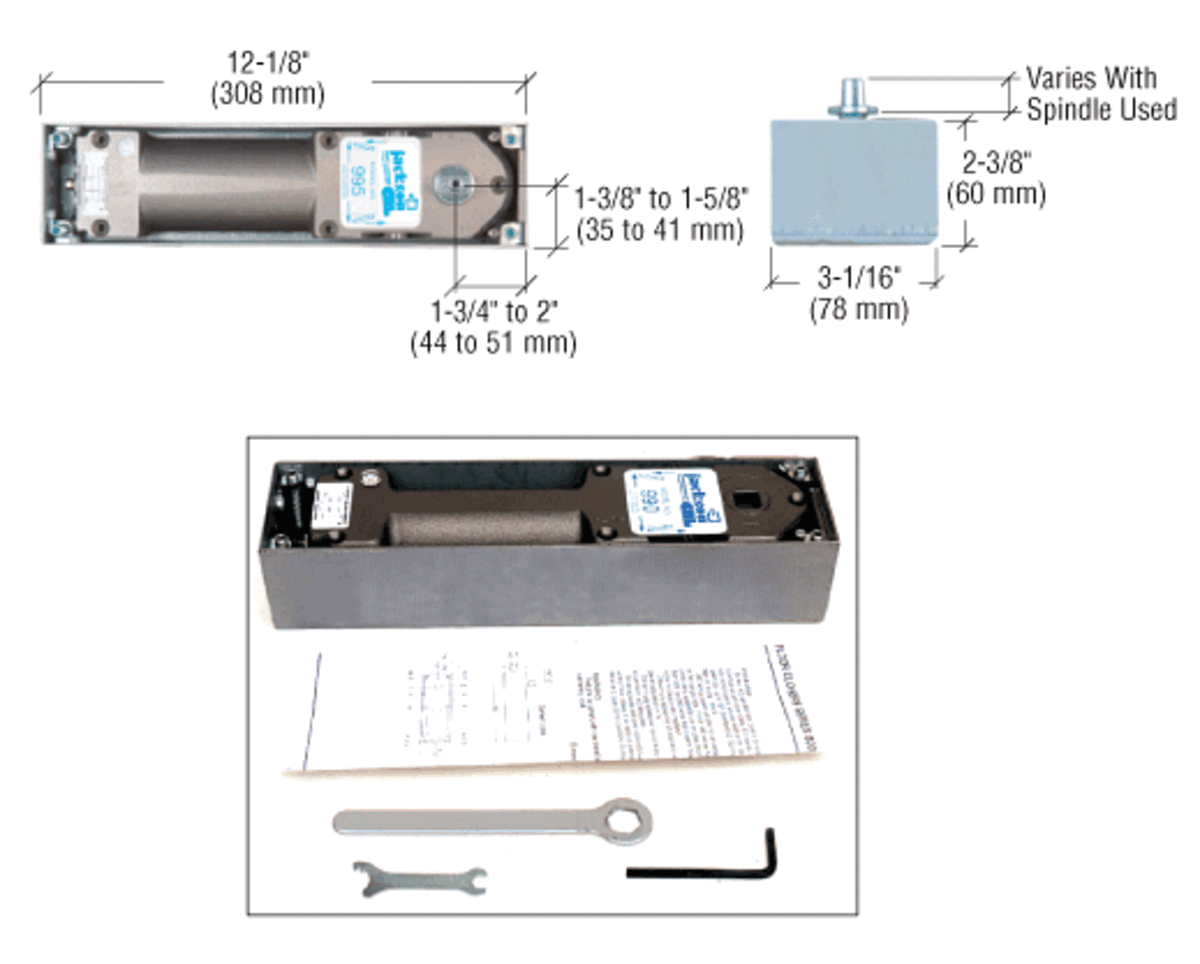

CONSISTS OF:
990 Closer Body
Cement Case
Installation Tool Package

SPECIFICATIONS:
Maximum Center-Hung Door: Weight = 1000 lbs. (454 kg), Width = 54" (1.37 m)
Maximum 3/4" Offset Door: Weight = 650 lbs. (295 kg), Width = 48" (1.22 m)
Maximum 1-1/2" Offset Door: Weight = 300 lbs. (136 kg), Width = 42" (1.07 m)
Adjustable Spring Power: Multi-Size 1 - 6
Door Centering Adjustment: 6 Degree Range Adjustment to Align Door
Hold or No Hold Open Models: Hold Open at Both 90 Degrees and 120 Degrees, Hold Open at 105 Degrees Only

Jackson 900 closer cover plate accepts flat head screws M6 x 1.0 x Length TBD by the application


Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.

Resources

• Jackson 900 Series Floor Mounted Door Closers Center Hung and Offset Installation Instructions
• Jackson Door Control Products Limited Warranty and Liability Information
