CRL J995BCD Jackson 900 Series 180 Swing Floor-Mounted Closer Package

CRL J995BCD Jackson 900 Series 180 Swing Floor-Mounted Closer Package

CRL J995BCD Jackson 900 Series 180 Degree Swing No Hold Open Backcheck 85 Degree Power Adjustable Floor Mounted Basic Closer Package is engineered for heavy-duty performance, making it an ideal choice for both new and retrofit applications. With a remarkable 1,000 lbs. capacity, this closer is suitable for doors up to 54 inches wide, ensuring reliability for larger openings. The multi-size spring power adjustment allows for tailored performance to meet specific door requirements, while interchangeable spindle heights and leveling adjustments simplify installation. The door centering adjustment offers a 6-degree range to ensure seamless alignment, making this closer an excellent option for double doors. UL Listed and compliant with A.D.A. standards, the Jackson 900 Series operates with opening forces adjustable to 5 or 8.5 lbs., accommodating varying user needs. Its resilient design includes a multi-viscosity temperature stabilizing fluid, making it adaptable to extreme temperature changes. Included in the package are the closer body, cement case, and an installation tool package, ensuring you have everything needed for a smooth installation process. With a 10-year limited warranty, this closer promises long-lasting durability and maintenance-free operation. For a dependable solution, trust the C.R. Laurence Jackson 900 Series Floor Closer to meet your architectural demands.

Jackson 900 Series 180 Degree Swing No Hold Open Backcheck 85 Degree Power Adjustable Floor Mounted Basic Closer Package

• 1000 Lb. Capacity, 54" (1.37 m) Doors
• Multi-Size Spring Power Adjustable
• Interchangeable Spindle Heights
• Leveling and Door Centering Adjustments
• 10 Year Limited Warranty
• UL Listed
• BS EN1154 - Classification 3.8.6/1.1.1.3

The CRL Jackson® 900 Series Multi-Sized Floor Mounted Door Closer is a heavy-duty, fully adjustable closer designed for new and retrofit applications. Accessories are available for either double or single acting doors. With its 1,000 lbs. (453 kg) capacity, the 900 Series Door Closer can be used with larger and heavier interior or exterior doors for longer, maintenance-free performance. These Door Closers are available in dual 90º and 120º, or 105º only Hold Open and No Hold Open models.


This fully adjustable Door Closer meets A.D.A. requirements in that it can be set at 5 or 8.5 lbs. opening forces. The unique centering adjustment simplifies double door alignment. This Door Closer is ideal for areas with extreme temperature changes due to its multi-viscosity temperature stabilizing fluid with thermal sensitive valves providing seasonal adaptability. Packages for new and retrofit installations, as well as accessories for both Center-Hung and Offset door applications, are available.

NOTE: This Door Closer is designed to open to a maximum of 180 degrees. An auxiliary floor or overhead stop is required to stop the door at less than 180 degrees.

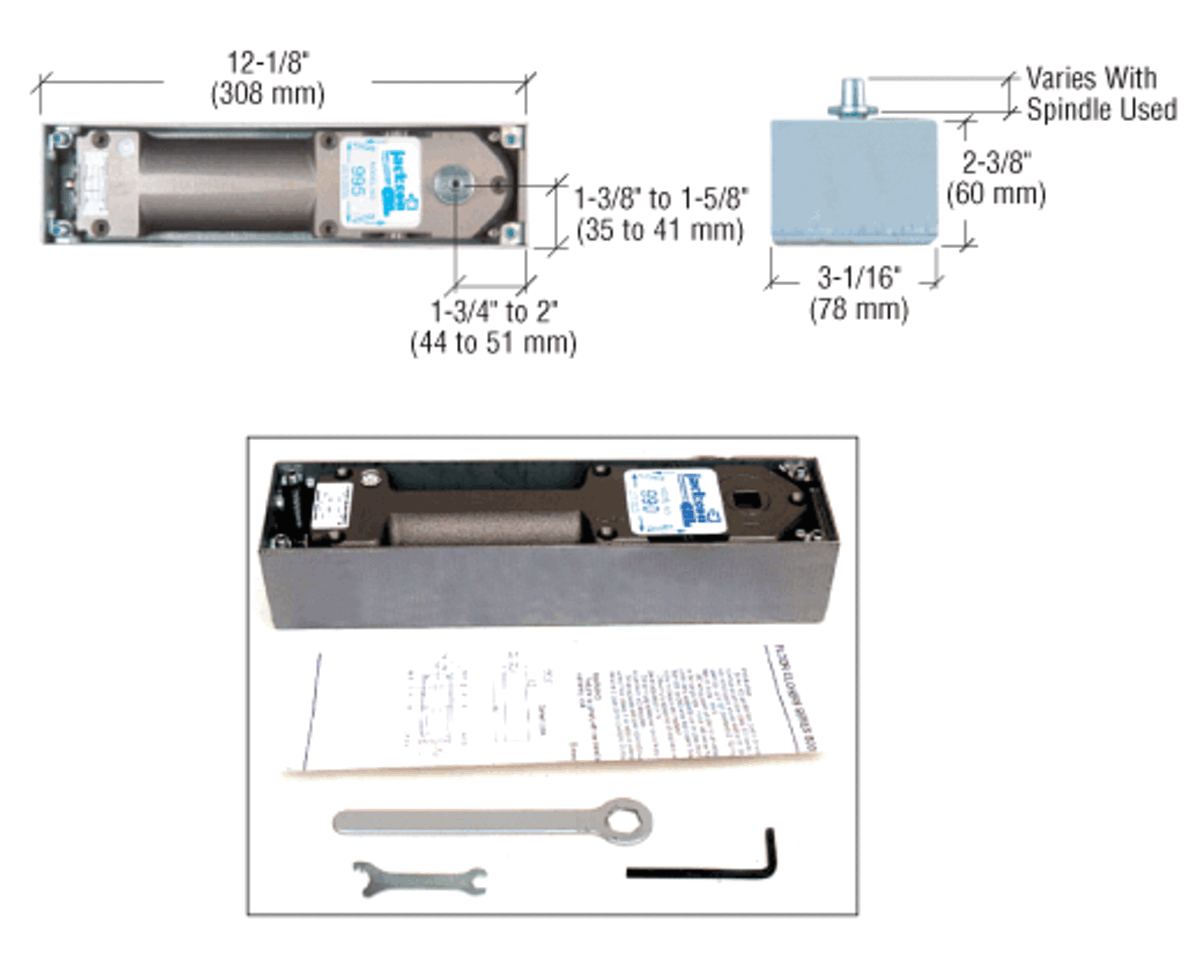

CONSISTS OF:
990 Closer Body
Cement Case
Installation Tool Package

SPECIFICATIONS:
Maximum Center-Hung Door: Weight = 1000 lbs. (454 kg), Width = 54" (1.37 m)
Maximum 3/4" Offset Door: Weight = 650 lbs. (295 kg), Width = 48" (1.22 m)
Maximum 1-1/2" Offset Door: Weight = 300 lbs. (136 kg), Width = 42" (1.07 m)
Adjustable Spring Power: Multi-Size 1 - 6
Door Centering Adjustment: 6 Degree Range Adjustment to Align Door
Hold or No Hold Open Models: Hold Open at Both 90 Degrees and 120 Degrees, Hold Open at 105 Degrees Only

Jackson 900 closer cover plate accepts flat head screws M6 x 1.0 x Length TBD by the application


Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.

Resources

• Jackson 900 Series Floor Mounted Door Closers Center Hung and Offset Installation Instructions
• Jackson Door Control Products Limited Warranty and Liability Information
