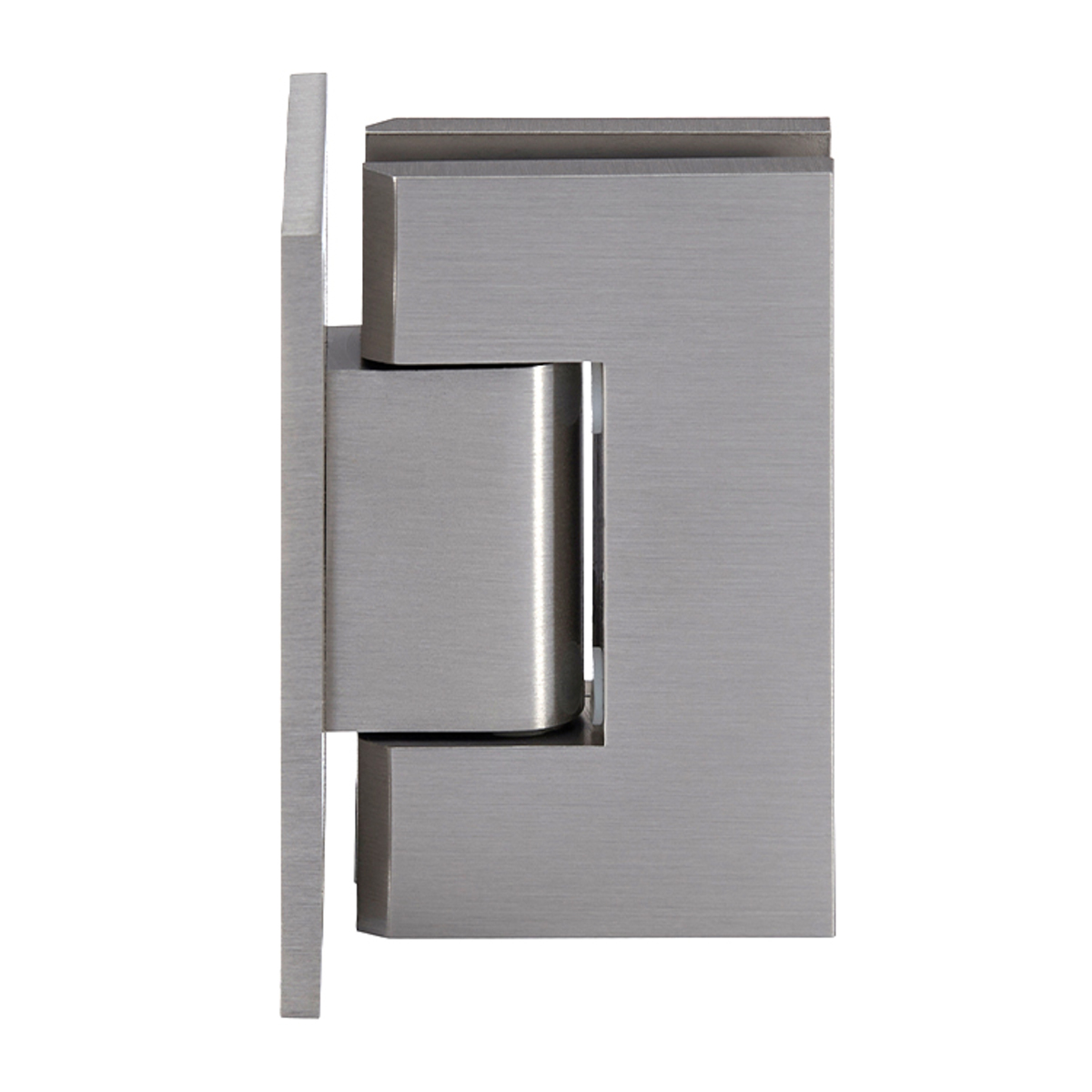

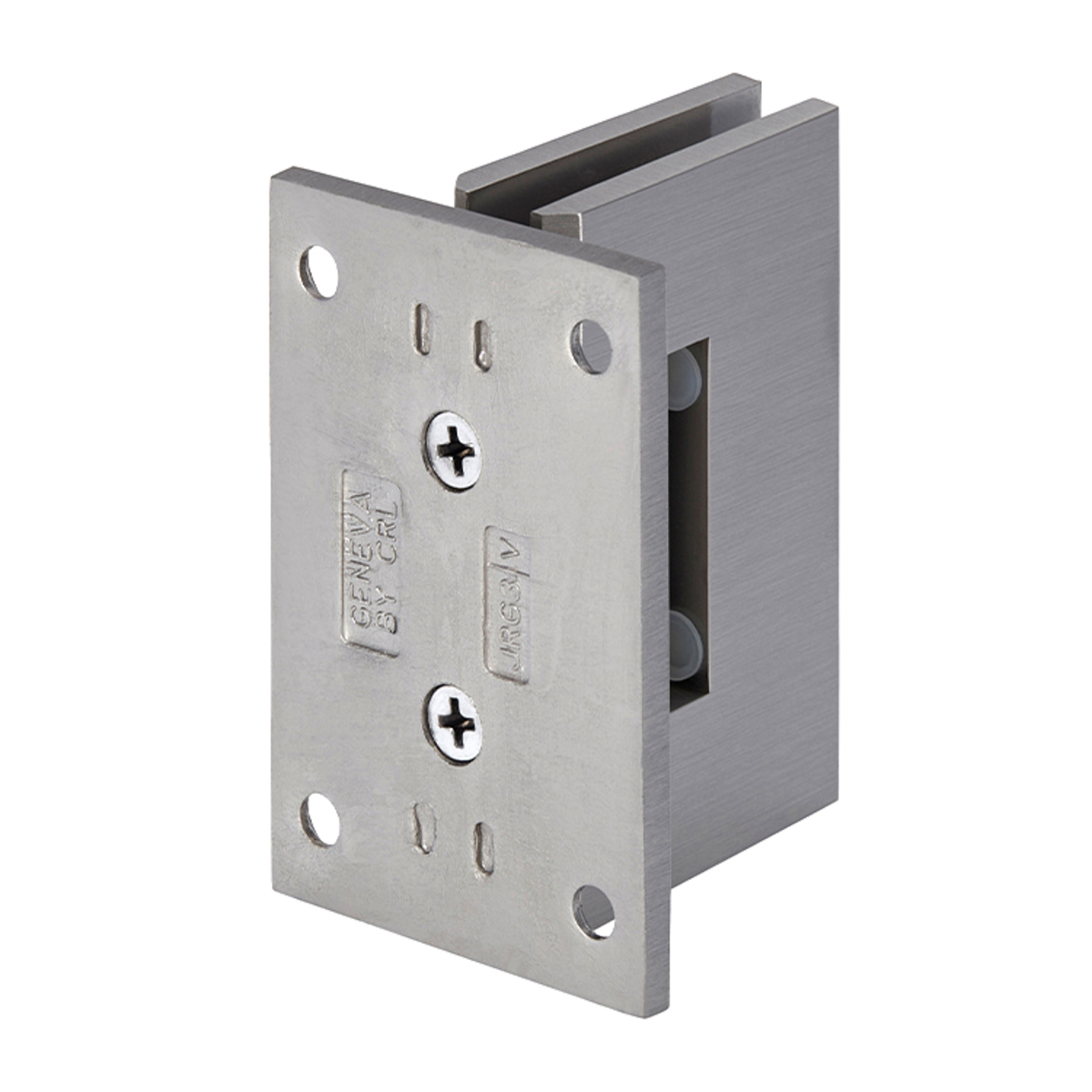

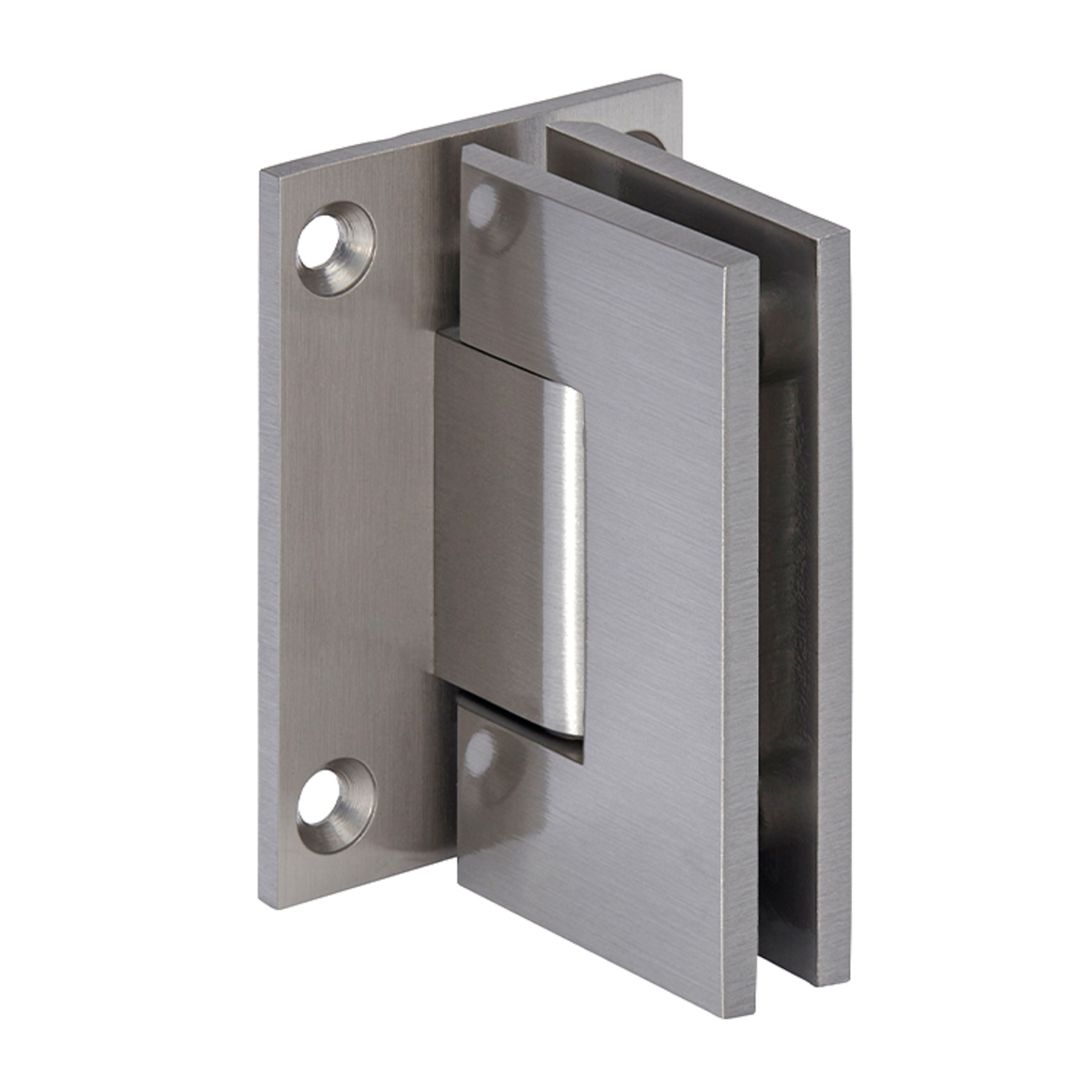

CRL JRG037BN Brushed Nickel Geneva 037 Wall Mount Full Back Plate Hinge

CRL JRG037BN Brushed Nickel Geneva 037 Wall Mount Full Back Plate Hinge

C.R. Laurence JRG037BN Brushed Nickel Junior Geneva 037 Series Wall Mount Full Back Plate Hinge is a sophisticated solution for modern shower doors. This hinge is designed for use with 1/4" to 5/16" (6 mm to 8 mm) thick tempered glass, accommodating a robust door weight of up to 62 lbs. (28 kg) with two hinges or 92 lbs. (42 kg) with three. Crafted from solid brass, its brushed nickel finish adds a touch of elegance to any bathroom. The Junior Geneva hinge features a self-centering mechanism and a reversible 5-degree pivot pin, allowing for a tighter door closure into the shower. The versatility of installation is enhanced by the availability of three wall mount styles and custom pivot pins for "off-angle" installations, accommodating walls that do not meet at 90 degrees. With a compact height of 2-15/16 in. (75 mm) and width of 1-13/16 in. (46 mm), this hinge fits seamlessly into various designs. Every hinge comes complete with gaskets and screws, ensuring a straightforward installation process. Backed by a 3-year warranty, the C.R. Laurence Junior Geneva hinge exemplifies reliability and style, making it a top choice for both residential and hospitality environments.

Brushed Nickel Junior Geneva 037 Series Wall Mount Full Back Plate Hinge

• Our Most Popular Hinge Series for 1/4" to 5/16" (6 to 8 mm) Thick Glass
• Wall Mount Full Back Plate Standard Model(Factory Set for Standard Closing Position)
• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass

The same elegant European design that has made our Geneva Series so popular is available in a smaller version, the Junior Geneva, to offer flexibility of application. Used to accommodate 1/4" (6 mm) to 5/16" (8 mm) thick glass, the Junior Geneva is made of solid brass. There are three Wall Mount styles along with 90 degree, 135 degree, and 180 degree Glass-to-Glass styles. The Junior Geneva is self-centering and available in up to 12 stock finishes. They contain a Reversible Pivot Pin for optional 5 degree tighter door closure.


STANDARD REVERSIBLE PIVOT PIN: Each Junior Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree, which will allow the door to close 5 degree further into the shower. The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

Using two hinges with 1/4" to 5/16" glass (6 to 8 mm) the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 1/4" to 5/16" glass (6 to 8 mm) the hinge will hold up to 92 lbs. (42 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Most models offer a choice of Standard Model, factory set at standard closing position (0 degree), or 5 degree Pre-Set Model for tighter closure into shower interior. All models contain a Reversible 5 degree Pivot Pin. When activated, it allows 5 degree tighter door closure.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
