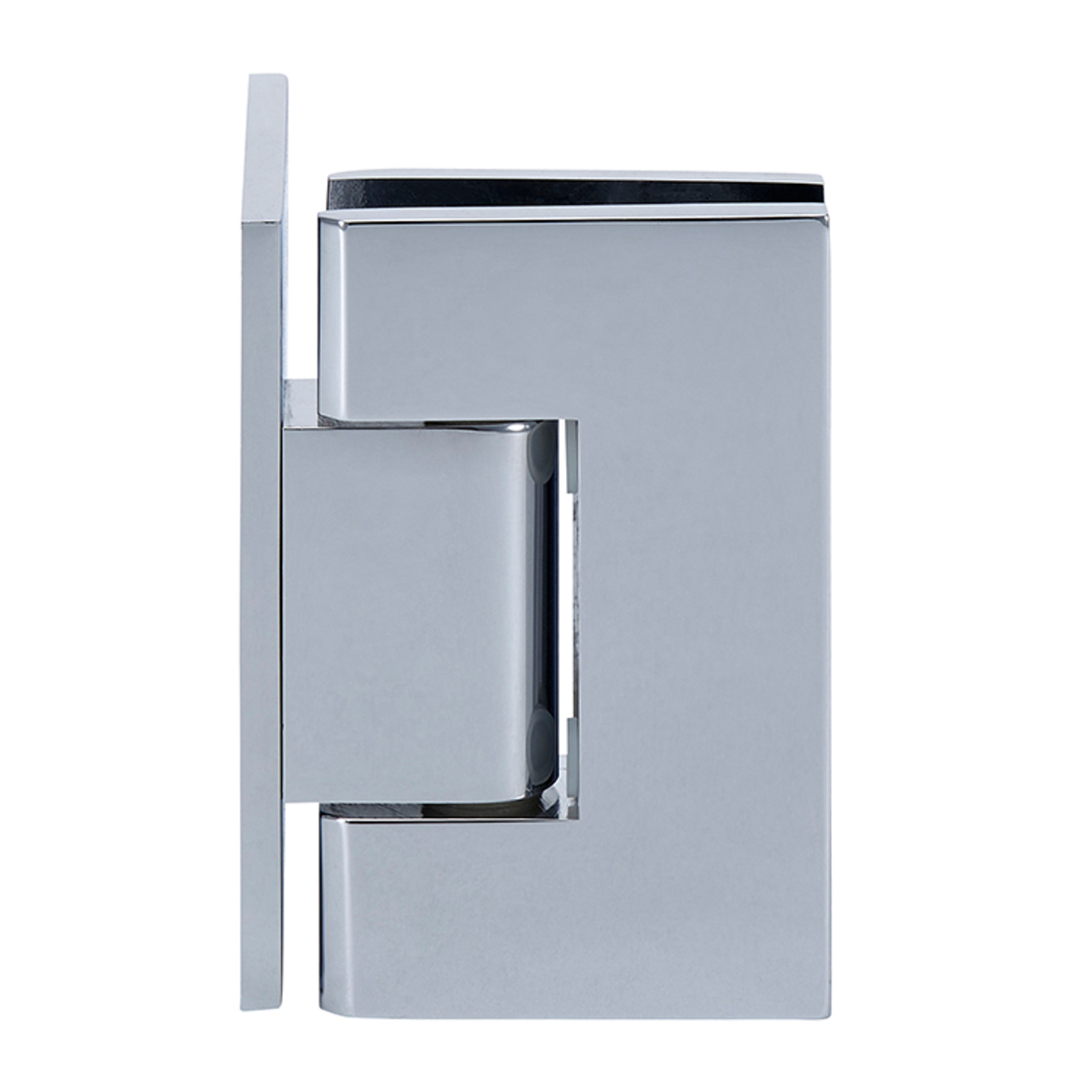

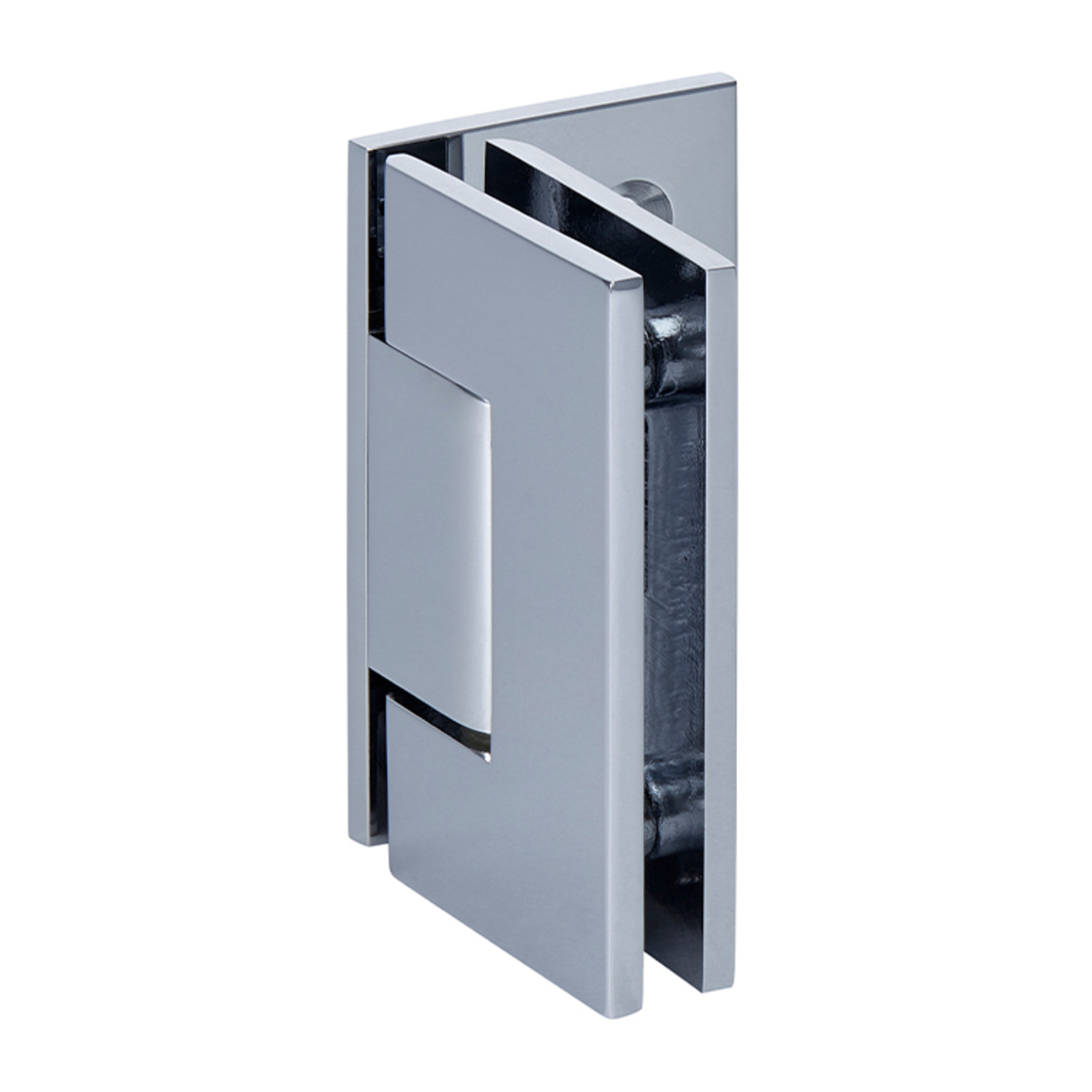

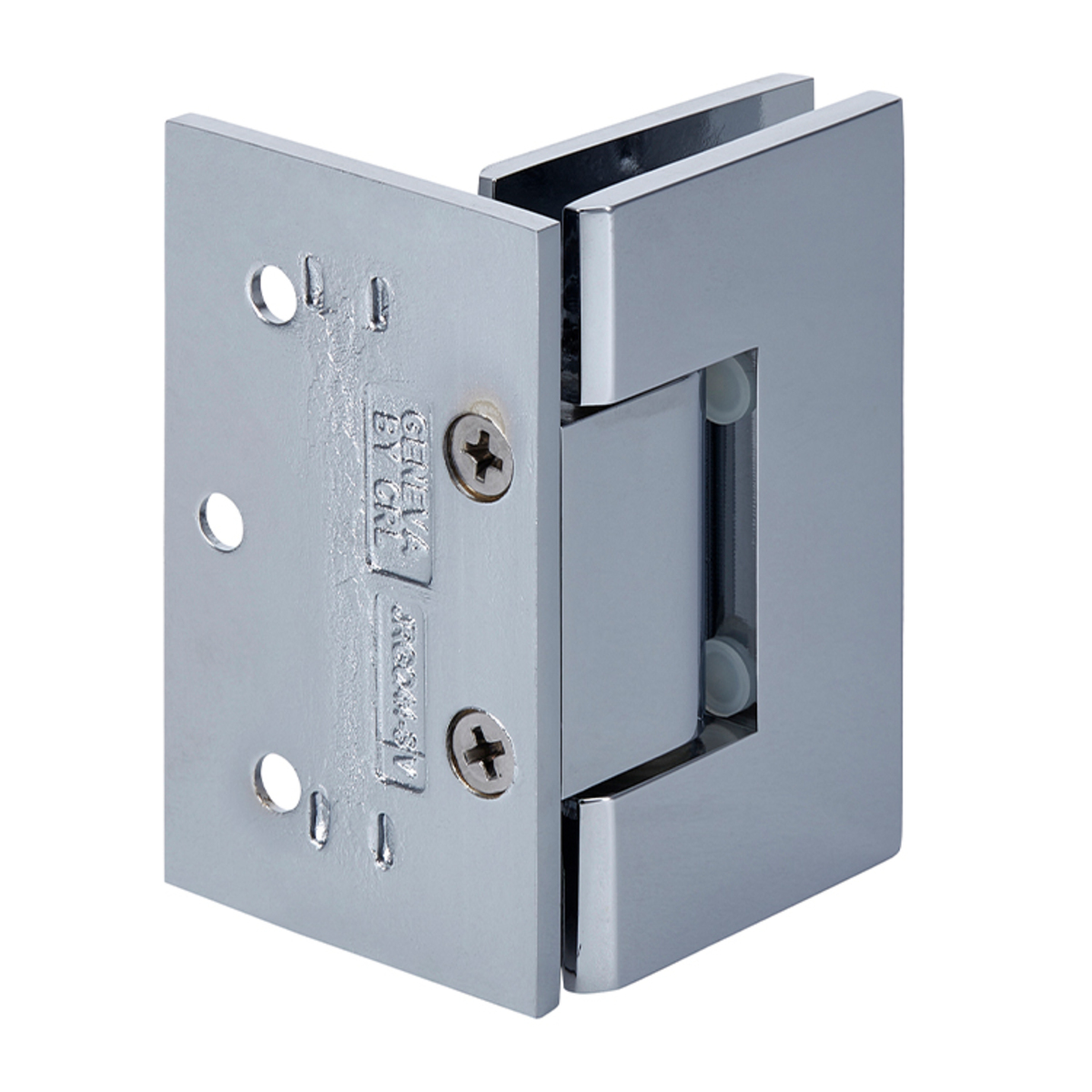

CRL JRG044CH Polished Chrome Junior Geneva 044 Wall Mount Offset Hinge Back Plate

CRL JRG044CH Polished Chrome Junior Geneva 044 Wall Mount Offset Hinge Back Plate

C.R. Laurence JRG044CH Polished Chrome Junior Geneva 044 Series Wall Mount Offset Back Plate Hinge combines elegance with functionality, making it an ideal choice for modern shower installations. Crafted from solid brass, this hinge accommodates monolithic tempered glass ranging from 1/4" (6 mm) to 5/16" (8 mm) thick, ensuring durability and stability. Its unique wall mount offset back plate design offers a clean sight line from outside the shower. The hinge is self-centering, allowing for seamless door operation, and features a reversible 5-degree pivot pin. This innovative design provides the option for a tighter door closure, enhancing the overall aesthetics of your space. With a maximum weight capacity of 62 lbs. (28 kg) when using two hinges and 92 lbs. (42 kg) with three, it easily supports varying door sizes, with widths of up to 32" (813 mm). Available in an array of beautiful finishes, including polished chrome, the Junior Geneva hinge not only meets functional requirements but also complements any interior design. Backed by a 3-year warranty, it ensures peace of mind for both building professionals and discerning homeowners. Elevate your shower experience with this sophisticated and reliable hardware solution.

Polished Chrome Junior Geneva 044 Series Wall Mount Offset Back Plate Hinge

• Wall Mount Offset Back Plate (Allows Clean Sight Line From Shower Exterior)
• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass

The same elegant European design that has made our Geneva Series so popular is available in a smaller version, the Junior Geneva, to offer flexibility of application. Used to accommodate 1/4" (6 mm) to 5/16" (8 mm) thick glass, the Junior Geneva is made of solid brass. There are three Wall Mount styles along with 90 degree, 135 degree, and 180 degree Glass-to-Glass styles. The Junior Geneva is self-centering and available in up to 12 stock finishes. They contain a Reversible Pivot Pin for optional 5 degree tighter door closure.


STANDARD REVERSIBLE PIVOT PIN: Each Junior Geneva Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree, which will allow the door to close 5 degree further into the shower. The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

Using two hinges with 1/4" to 5/16" glass (6 to 8 mm) the hinge will hold up to 62 lbs. (28 kg) with a maximum door width of 28" (711 mm).

Using three hinges with 1/4" to 5/16" glass (6 to 8 mm) the hinge will hold up to 92 lbs. (42 kg) with a maximum width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Most models offer a choice of Standard Model, factory set at standard closing position (0 degree), or 5 degree Pre-Set Model for tighter closure into shower interior. All models contain a Reversible 5 degree Pivot Pin. When activated, it allows 5 degree tighter door closure.
Construction: Solid Brass
Hinge Swings: 90 degree In and 90 degree Out
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
