CRL L10H3BS 316 Brushed Stainless L10 U-Channel 135 Corner for 21.52mm Laminated Glass

C.R. Laurence L10H3BS 316 Brushed Stainless L10 Series U-Channel 135 Degree Horizontal Corner is expertly designed for seamless integration of 21.52 mm laminated glass cap railing systems. This 135-degree corner piece allows for precise hairline joint assemblies with straight lengths of CRL Cap Rail, ensuring a sleek and modern aesthetic for any architectural project. Crafted from durable 316 stainless alloy, this U-channel is not only resistant to corrosion but is also welded and finished for a ready-to-install solution that saves time on-site. When paired with laminated tempered glass, it provides robust support while enhancing safety and stability. For optimal performance, the use of the LR21PV Cap Railing Rubber Insert and 95CBL Silicone is required to secure the glass effectively. Measuring 6 inches in length and accommodating a glazing thickness of 27/32" (21.52 mm), this U-channel is engineered for both functionality and style. The brushed stainless steel finish adds a refined touch to any railing design. Please note that while it is designed for durability, periodic maintenance is recommended to maintain its factory finish. For further assistance, reach out to CRL Railing Products Technical Sales Department.

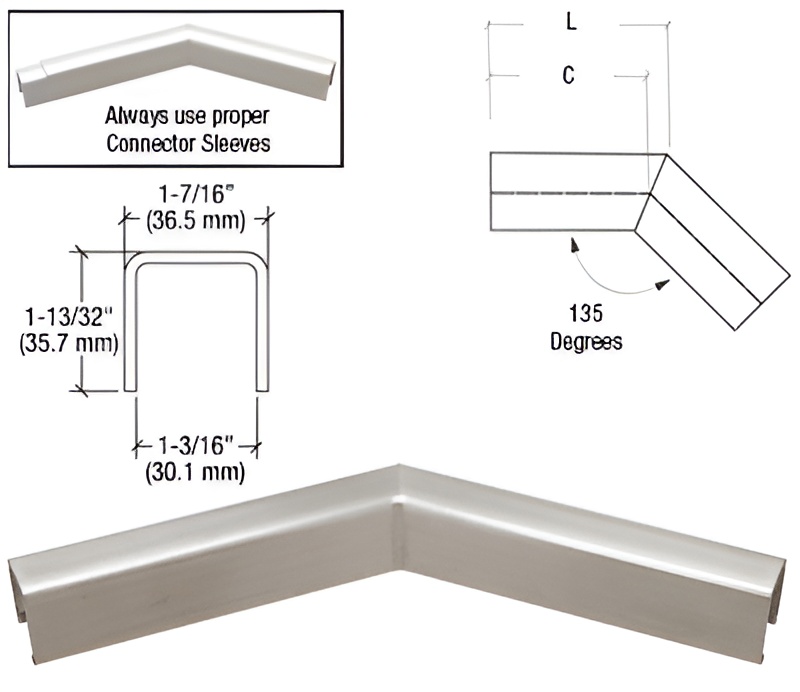

316 Brushed Stainless L10 Series U-Channel 135 Degree Horizontal Corner for 21.52 mm Laminated Glass Cap Railing

• Welded and Finished
• Ready-to-Install
• 316 Stainless Alloy
• Use Laminated Tempered Glass

Stainless Steel Advisory:

Resources

• Architectural Glass Railing Systems and Hardware Catalog
• Architectural Glass Railing Systems and Hardware Catalog
• CRL Stainless Steel Disclaimer
• GRS Base Shoe Quote Request Form
• GRS Cap Railing System Quote Request Form
• GRS Cap Railing System Quote Request Form
• GRS Cap Railing System Quote Request Form
• Windscreen and Pool Fencing Systems Product Information
