C.R. Laurence LAT34HEMBLS Black Stainless Steel Latitude 34 Hemisphere Sliding Door Kit combines sleek design with remarkable functionality. With a robust 200 lb maximum weight capacity, this kit is ideal for standard glass door sizes across various applications. Engineered for durability, it has been rigorously tested for up to 1,000,000 cycles, ensuring long-lasting performance. This sliding door kit features adjustable sliding resistance, allowing for optimal control, especially with lighter doors. Additional adjustments include customizable track height, door stops, and track mounting points, facilitating a perfect fit and seamless operation. The 96" (2.4 m) track can be easily cut to size, providing flexibility for your specific installation needs. Constructed from high-grade 6005A-T61 and 6061-T6 aluminum, the kit showcases a brushed stainless finish that complements any modern décor. The kit offers configurations for either single or bi-parting doors, with two kits required for the latter. Each kit includes essential components such as roller units, a track, end caps, and adjustable bottom guides, while tempered glass and door pull hardware must be purchased separately. For added versatility, the kit can be wall-mounted or glass-mounted using a separate glass mount kit (item# LAT34MKGLS). Elevate your space with the Hemisphere Sliding Door Kit from C.R. Laurence.

Black Stainless Steel Latitude 34 Hemisphere Sliding Door Kit

• 200 lb maximum weight capacity
• Tested to 1,000,000 cycles
• Adjustable sliding resistance
• For 3/8" (10 mm) to 1/2" (12 mm) monolithic tempered glass
• 96" (2.4 m) standard track length can be cut to size
• High-grade 6005A-T61 and 6061-T6 aluminum construction
• Single or bi-parting sliding door options
• Wall mount or glass mount using glass mount kit (item# LAT34MKGLS)

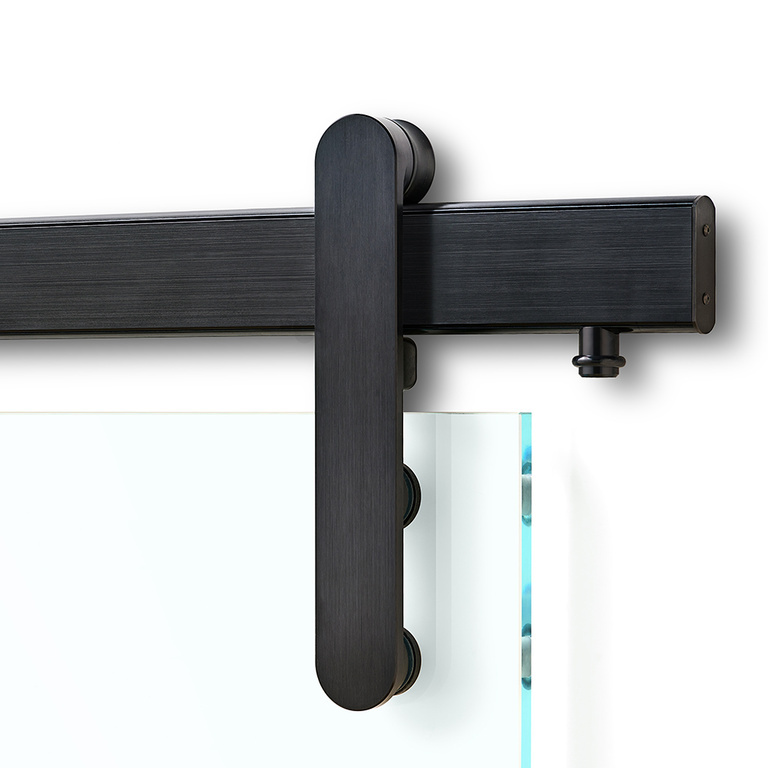

Sleek and compact, the Hemisphere Sliding Door offers subtle sophistication with concealed fasteners and trolley. A 200 lb maximum weight capacity makes it the perfect choice for common glass door sizes in a wide variety of applications.

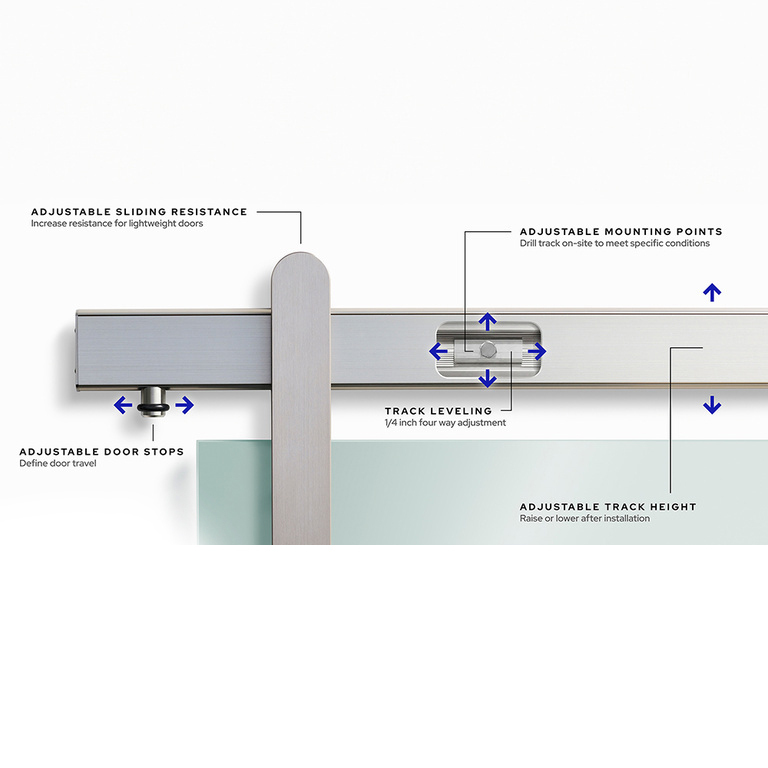

Hemisphere features unmatched field adjustability. For lighter doors, sliding resistance can be adjusted. Other adjustable features include adjustable track height, door stops, and track mounting points. Fast and easy track leveling is also possible with 1/4" (6 mm) bi-directional adjustment after installation.

Single and bi-parting door configurations are available. For bi-parting doors, order 2 kits.

Resources

• Hemisphere BIM Start Page.pdf
• Hemisphere BIM.rvt
• Hemisphere Installation Instructions- Single Slider
• Hemisphere System Drawings.dwg
• Hemisphere System Drawings.pdf
• Latitude 34 3-Part Spec
• Latitude 34 3-Part Spec.docx
• Latitude 34 Care and Maintenance Information
• Latitude 34 Collection Brochure
