Images may not represent actual product and finish

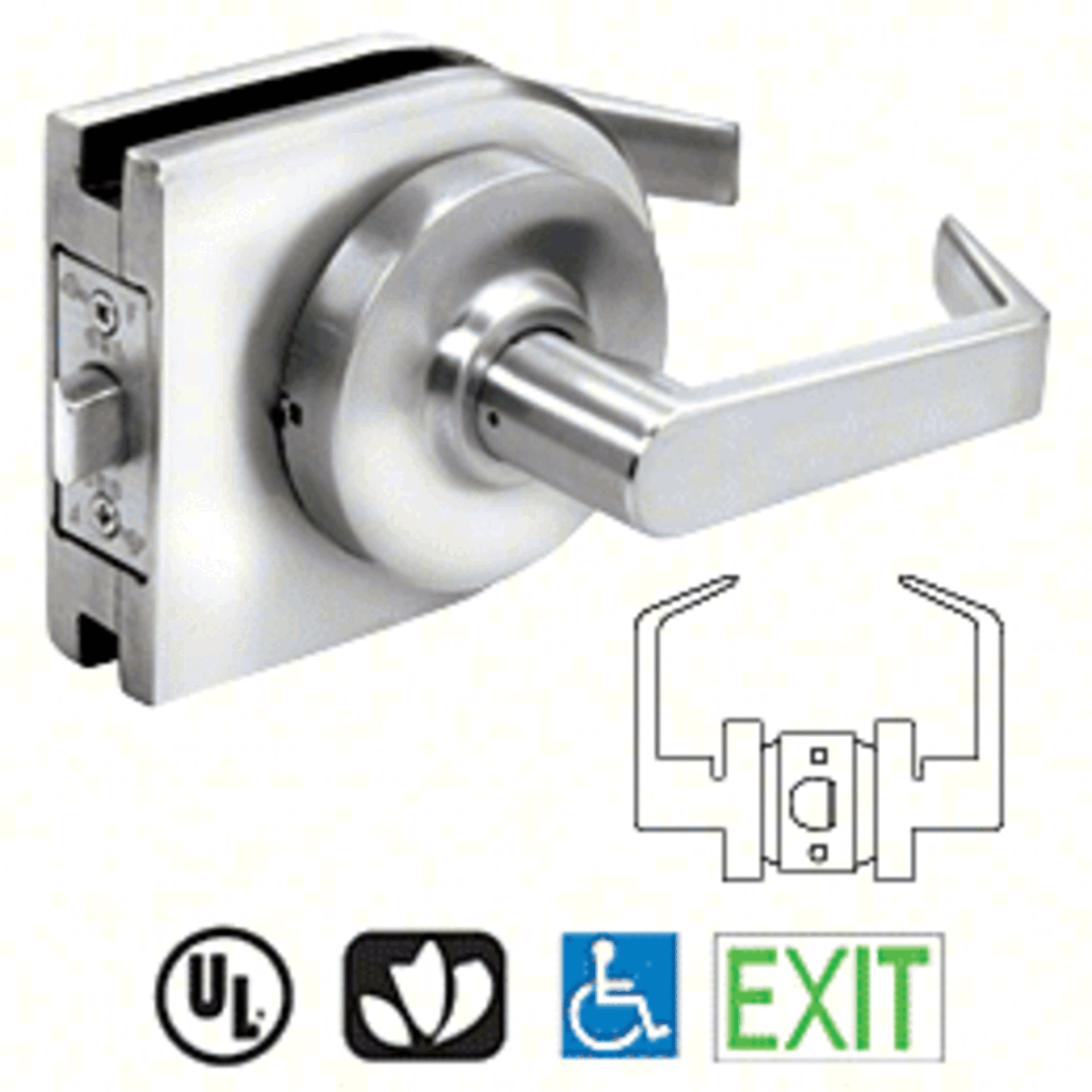

CRL LH10PS Polished Stainless Grade 1 Passage Lever Lock Housing

Your Price: $248.49

Retail Price:$297.48

Your Savings:$48.99(16%)

CRL LH10PS Polished Stainless Grade 1 Lever Lock Housing offers a sleek, low-profile design for secure glass applications.

Part Number : CRL_LH10PS

Availability: 2 In Stock

Quantity

Description

CRL LH10PS Polished Stainless Grade 1 Passage Lever Lock Housing

C.R. Laurence LH10PS Polished Stainless Grade 1 Lever Lock Housing - Passage combines functionality and modern design, making it an ideal choice for glass installations. This low-profile lock housing is compatible with 3/8" or 1/2" (10 or 12 mm) thick glass, ensuring a seamless integration within various architectural styles. The unit is supplied with an ANSI A156.2 Grade 1 or Grade 2 lever lock, offering peace of mind regarding security and durability. One of the standout features of the LH10PS is its non-handed and reversible design, allowing for versatile installation options. With five architectural finishes available and four distinct function options, this lock housing can be tailored to meet specific project requirements while enhancing the overall aesthetic. Constructed with adherence to industry standards, the LH10PS complies with ANSI A117.1 and A.D.A. for barrier-free accessibility, making it suitable for various environments. Additionally, it meets fire safety regulations outlined in NFPA-80 and NFPA101. Please note that glass fabrication is required for installation, and the product comes complete with installation instructions and a fabrication template. Regular maintenance of stainless steel is recommended to preserve its finish. With the C.R. Laurence LH10PS, you can achieve both style and security in your glass applications.

Polished Stainless Grade 1 Lever Lock Housing - Passage

Low Profile Body Design for Use with 3/8" or 1/2" (10 or 12 mm) Glass
Supplied with ANSI A156.2 Grade 1 or Grade 2 Lever Lock
Non-Handed and Reversible
Five Architectural Finishes Available
Four Function Options

CRL's Lever Lock Housings are easy-to-install and come complete with Housing and Lever Lockset for 3/8" or 1/2" (10 or 12 mm) thick glass. The Entrance and Storeroom models are available with either a Schlage® 'C' 6-Pin keyway or a 7-Pin Small Format Interchangeable Cores (SFIC). An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) Strike is included.

• ANSI A156.2 Grade 1. UL10C and UBC 7.2
for Positive Pressure
• ANSI A117.1 and A.D.A. for Barrier-Free Accessibility
• C-UBC California Amended Uniform Builders Code – 2001
• NFPA-80 National Fire Protection - 1999
• NFPA101 National Fire Protection - Life Safety – 2000

Product Warning:

Glass Fabrication is required. Installation Instructions and Fabrication Template Included.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Cover Style: Round

Finish/ Color:: Polished Stainless Steel

Glazing Thickness: 3/8 in. (10 mm)

Height: 4-1/2 in. (114 mm)

Shipping Limitations: None

Width: 4 in. (102 mm)
