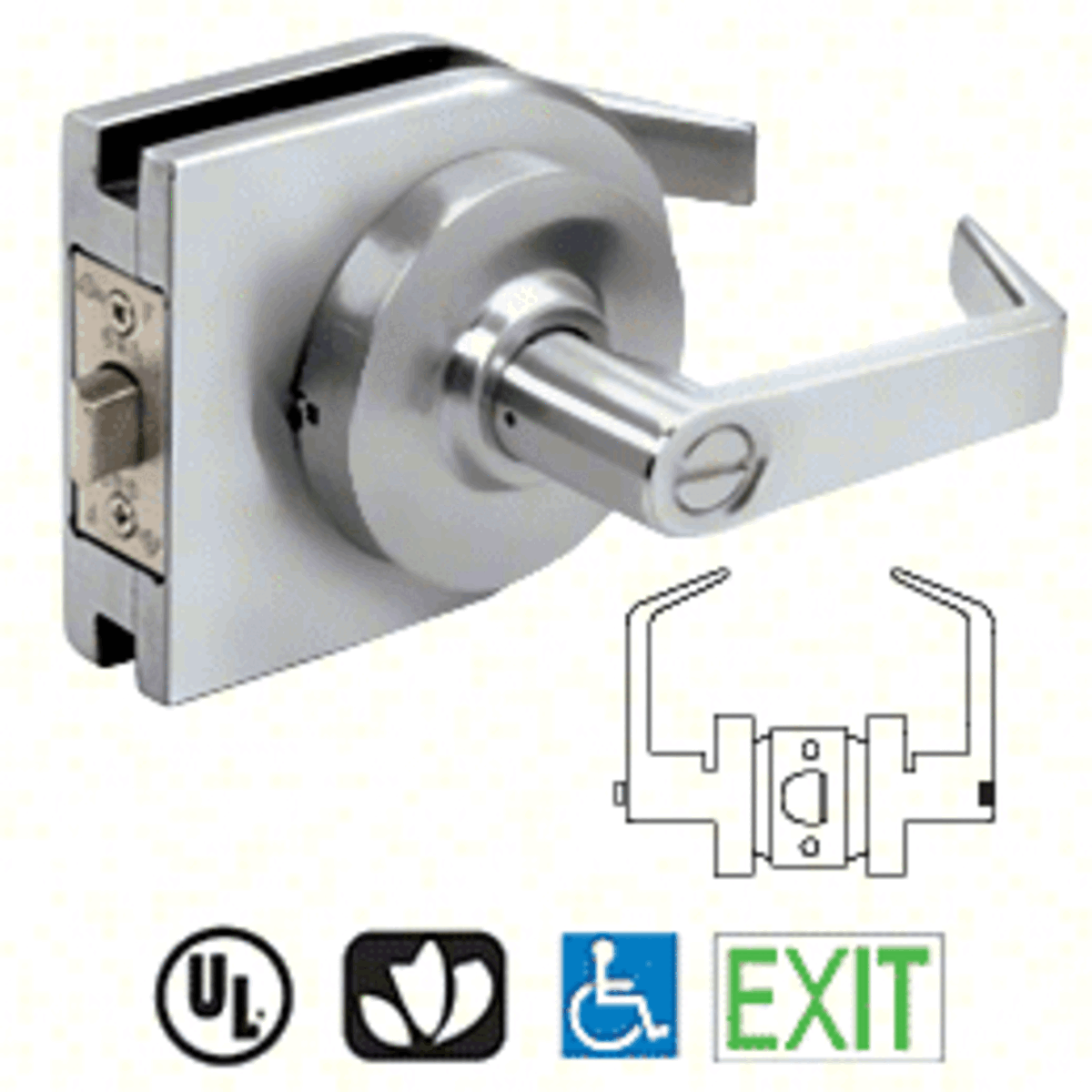

CRL LH40SA Satin Anodized Grade 1 Privacy Lever Lock Housing

Your Price: $296.77

Retail Price:$355.28

Your Savings:$58.51(16%)

CRL LH40SA Satin Anodized Lever Lock Housing offers a sleek design for 1/2" glass, featuring Grade 1 security and multiple finishes.

Part Number : CRL_LH40SA

Availability: 17 In Stock

Quantity

Description

CRL LH40SA Satin Anodized Grade 1 Privacy Lever Lock Housing

C.R. Laurence LH40SA Satin Anodized Grade 1 Lever Lock Housing - Privacy offers a sleek and sophisticated solution for securing glass installations with a low-profile design tailored for 1/2" (12 mm) tempered glass. This versatile lock housing is supplied with an ANSI A156.2 Grade 1 or Grade 2 lever lock, ensuring superior durability and security for both commercial and residential applications. Designed for ease of installation, the LH40SA is non-handed and reversible, making it adaptable to various door configurations. It comes in five architectural finishes, allowing for seamless integration into any design scheme. With four function options available, this lock housing caters to diverse needs, whether for entrance or storeroom access. This product meets stringent safety and building codes, including ANSI A117.1 for barrier-free accessibility and NFPA-80 for fire protection. Additionally, it includes a 1-1/4" x 4-7/8" (32 x 124 mm) strike for a comprehensive locking solution. Please note that glass fabrication is required, and installation instructions along with a fabrication template are included for your convenience. The LH40SA combines functionality with aesthetic appeal, making it an essential choice for any professional looking to enhance security and style in their glass applications.

Satin Anodized Grade 1 Lever Lock Housing - Privacy

Low Profile Body Design for Use with 1/2" (12 mm) Glass
Supplied with ANSI A156.2 Grade 1 or Grade 2 Lever Lock
Non-Handed and Reversible
Five Architectural Finishes Available
Four Function Options
Use Monolithic Tempered Glass

CRL's Lever Lock Housings are easy-to-install and come complete with Housing and Lever Lockset for 3/8" or 1/2" (10 or 12 mm) thick glass. The Entrance and Storeroom models are available with either a Schlage® 'C' 6-Pin keyway or a 7-Pin Small Format Interchangeable Cores (SFIC). An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) Strike is included.

• ANSI A156.2 Grade 1. UL10C and UBC 7.2
for Positive Pressure
• ANSI A117.1 and A.D.A. for Barrier-Free Accessibility
• C-UBC California Amended Uniform Builders Code – 2001
• NFPA-80 National Fire Protection - 1999
• NFPA101 National Fire Protection - Life Safety – 2000

Product Warning:

Glass Fabrication is required. Installation Instructions and Fabrication Template Included.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Cover Style: Round

Finish/ Color:: Satin Anodized

Glazing Thickness: 1/2 in. (12 mm)

Height: 4-1/2 in. (114 mm)

Shipping Limitations: None

Width: 6 in. (152 mm)
